Digigram PCX440np V2 AES Digital Audio Broadcast Multichannel Sound Card USED [Refurbished]
( 281675203250) )

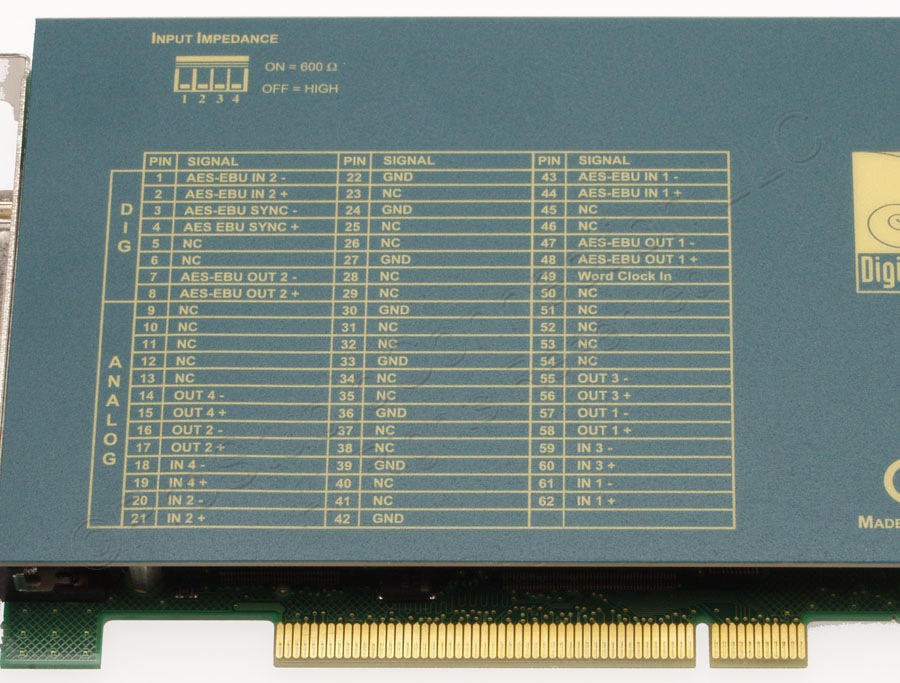

Digigram PCX440np V2 Professional Sound Card • AES Version
New/Unused • 20-Bit Stereo PCI Audio Interface with S/PDIF & AES/EBU Digital I/O • 2 Stereo Inputs & 2 Stereo Outputs
Note: This card is new and unused. The XLR breakout cable is not included. The small synchro cable (not pictured) is however included.
The Digigram PCX440np is a proven performer in audio-for-video, multitrack audio production, broadcast automation, and other applications.
It has four mono balanced analog inputs/outputs (two stereo) and 20-bit converters. The programmable clock can generate precise sampling frequencies to facilitate video synchronization when used with the time-code input. Two digital stereo inputs and two digital stereo outputs (AES/EBU or SPDIF) and an AES/EBU synchronization input are available.
The PCX440np is full duplex, offering simultaneous and independent record and playback capabilities. The PCX440np performs real-time, simultaneous MPEG Layer I and Layer II compression and decompression during record and playback. Support provided for Layers I and II of the MPEG Audio standard (ISO 11172-3) and the low sampling frequencies of the MPEG-2 Audio standard (ISO 13818-3).
