Henry Engineering Logiconverter Logic GPI Interface Opto-Isolated Relay TTL CMOS [Refurbished]
( 282640233930) )

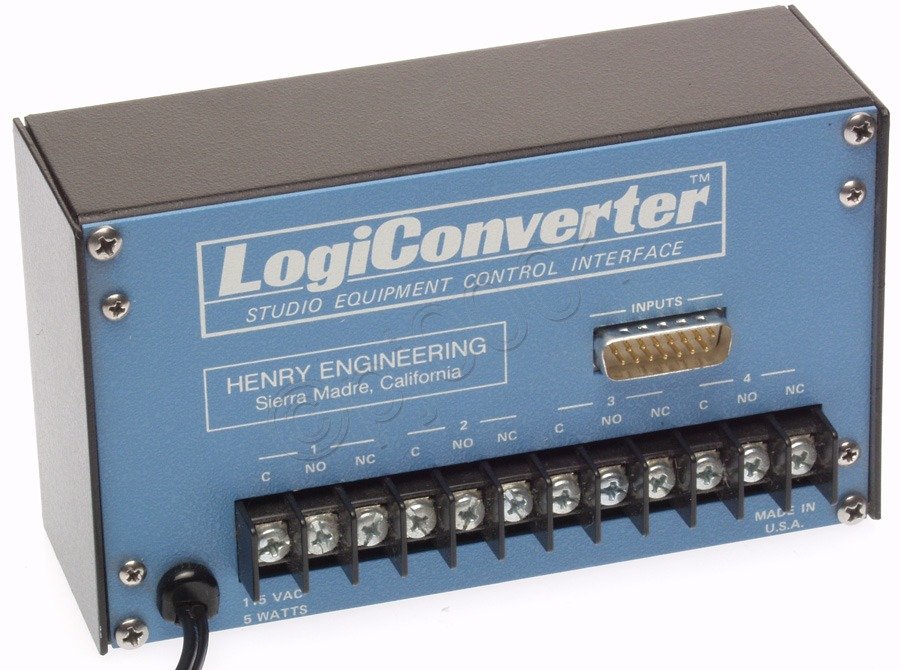

Henry Engineering 'Logiconverter' Opto-Isolated Logic Relay Interface
Generate Multiple Contact Closures from a 5-24V Trigger
Description
LogiConverter is what you need when "you can't get there from here", control-wise. It makes things compatible, reliable, and safe. Don't risk damaging your equipment because of incompatible control voltages or topology!
More detail is available in the User Manual.
LogiConverter is a general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits. LogiConverter has 4 opto-isolated inputs that control 4 isolated relay outputs. The unit can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs with up to 24 combinations possible. A single input can provide single or dual "flip-flop" outputs; two inputs can latch and reset an output.
Logic modes are selected by internal DIP switches. Inputs can be any DC voltage from 5-24 vdc, TTL or CMOS logic outputs, open collectors, or contact closures. Inputs are via a 15-pin D connector. Relay outputs are via top panel barrier strip connectors.
LogiConverter is powered by an internal 115V AC power supply.
