JK Audio Innkeeper 1r Digital Hybrid Broadcast Host Phone Line Audio Interface [Refurbished]
( 363686809283) )
Tested/Guaranteed • Fully Working • 1U Rackmount • Telephone Audio Interface • Automatic Digital Line Nulling
Photos show the actual item for sale
Unit is very lightly used and is in very good cosmetic condition. The item has been tested and confirmed to operate as expected. The photos show the actual item for sale. Note that JK Hybrids in my experience operate best with a low level of input signal, so start testing by turning down the Send gain control to the point where just the first LED level indicator is peaking lit. Also the output is on the low side so having the Caller level set to the max is normal when interfacing to balanced downstream equipment. A couple of small painwork blemishes have been retouched with matching paint.
Details
The Innkeeper 1 gets audio in and out of telephone lines. Its excellent caller audio does not exhibit the transmit/receive crosstalk common to analog hybrids, making it perfect for radio or television talk shows, teleconferencing, or auto-answer IFB feeds.
Full details may be obtained from
the User Manual
(https://www.prostudioconnection.net/0113/Innkeeper1-User_Manual.pdf)
A digital hybrid such as the innkeeper 1 connects audio
signals to a standard analog telephone line without the
variations in quality found with analog hybrids. The main
function of a hybrid is to bring in the caller’s phone line,
as clear and clean as possible. In the real world, when you
send your voice down the telephone line it will bleed over
into the caller’s audio, so the hybrid must adapt to the phone
line in order to properly separate transmit and receive audio.
We use a 16 bit DSP to monitor the phone line and audio
signals continuously in order to deliver excellent separation.
Our dual - convergence algorithm can achieve excellent trans -
hybrid loss typically exceeding 50 dB, without any setup.
This wouldn’t be a JK Audio product without its fill of common-sense features. Check out the front-panel headphone jack and volume control. You can monitor either the send signal, the caller’s voice, or a mix of the two. This output is also sent to the rear panel screw terminals so you can easily add a monitor speaker. As a matter of fact, all of the remote features can be found on real screw terminals for ease of installation. And, of course, the audio connections: mic/line switchable XLR input, XLR caller output and an additional, user-defined XLR output. Now press the "Presence" button and you’ll get a richer sound from the caller’s voice. This digital filter brings back some of the low-end lost in transmission. And possibly the coolest feature: The Innkeeper 1 can be controlled by the Guest Module 1, the optional remote control keypad.
JK Audio Innkeeper 1 Features

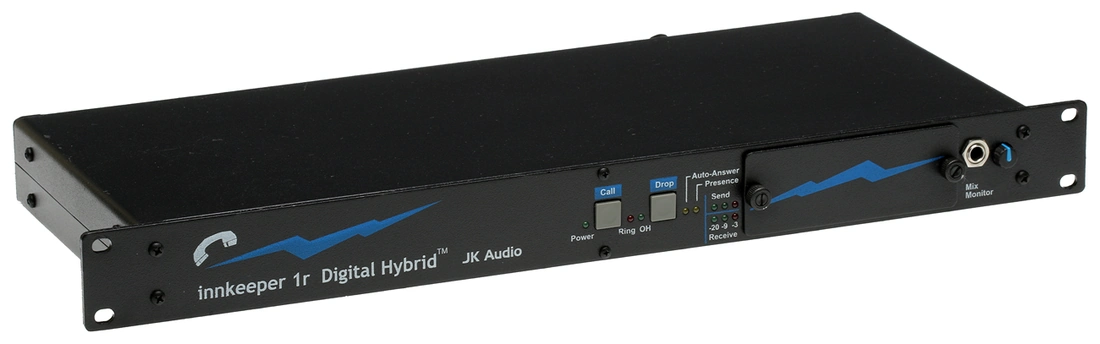

From the front panel you can control on-hook/off-hook, and adjust headphone volume. Front-panel LEDs display signal levels and option status. The Send and Caller Volume controls are hidden behind an access panel to discourage unauthorized "tweaking". Auto-Answer and Presence switches can also be hidden behind an access panel [not included]. The mic/line switch is located on the back of the unit, along with all audio and phone line connections.
- Excellent separation of caller & talent voice.
- 16 bit DSP technology.
- Proprietary auto null algorithm, 50 dB null.
- Balanced XLR mic / line input.
- Balanced XLR caller output.
- Balanced XLR user defined output.
- Front panel headphone jack.
- Monitor speaker terminals on back.
- Voice Presence Compensation.
- Input / output LEDs.
- Remote control screw terminals.
- Remote control jack for Guest Module.
- Works with standard and "dry" phone lines.
- Auto answer/disconnect
The User Manual can be located here.
