Spectracom SecureSync OCXO NTP Network Time Server GPS 10MHz Oscillator Clock [Used]

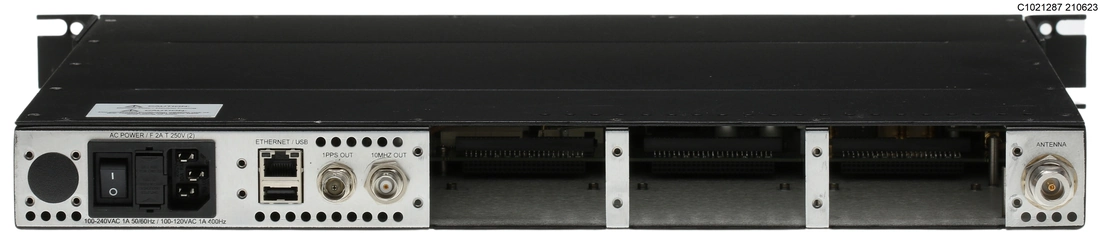

Photos show the actual item for sale

Introduction

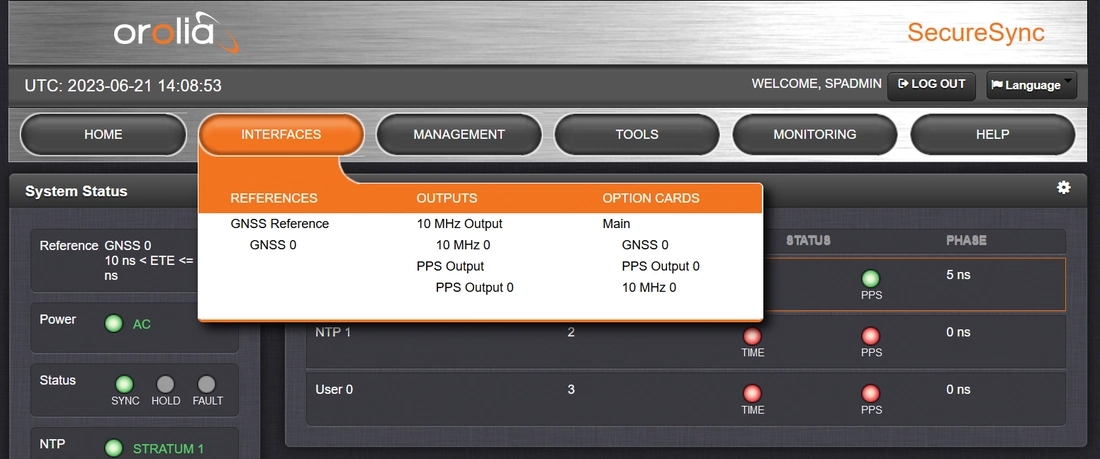

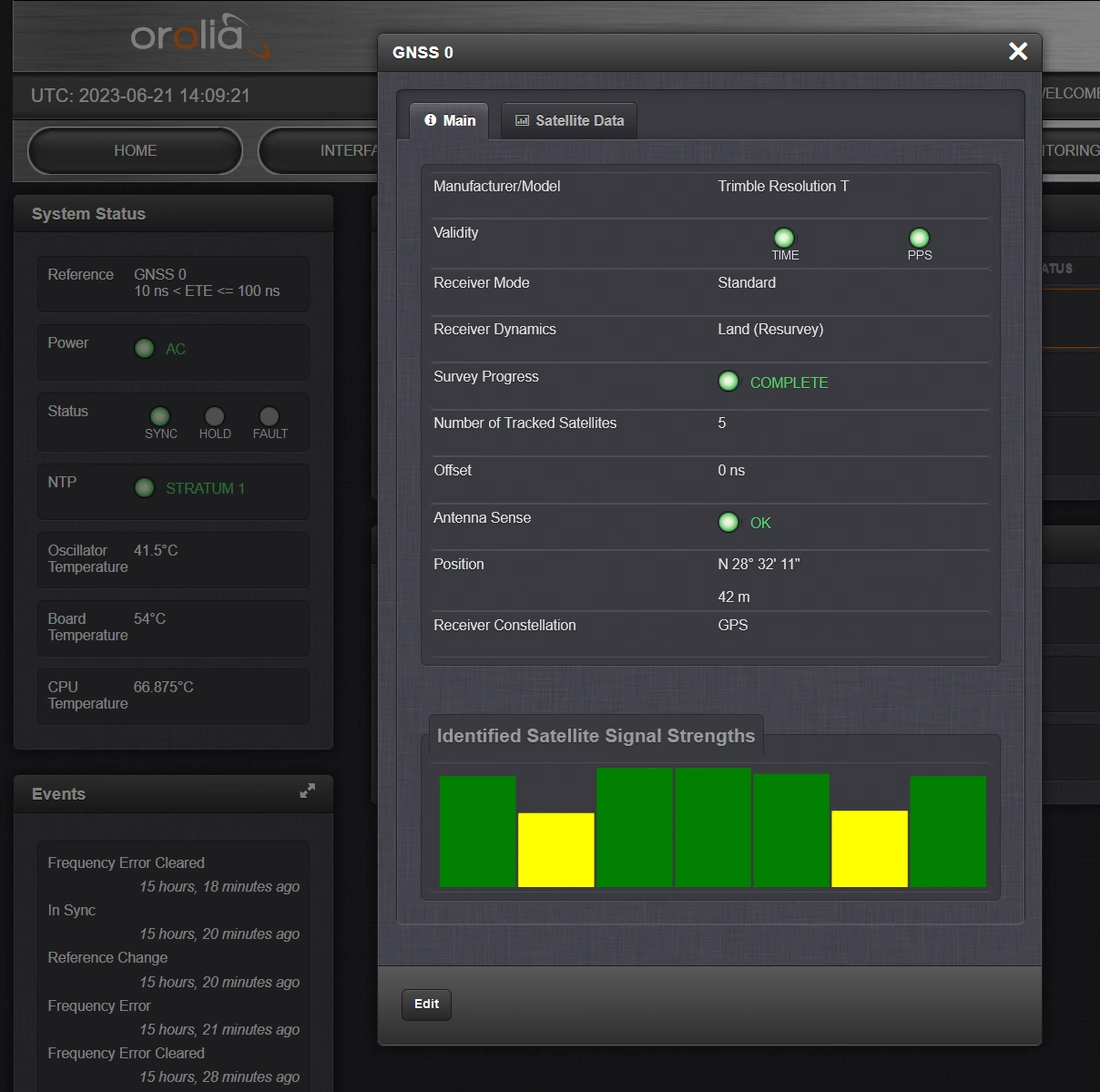

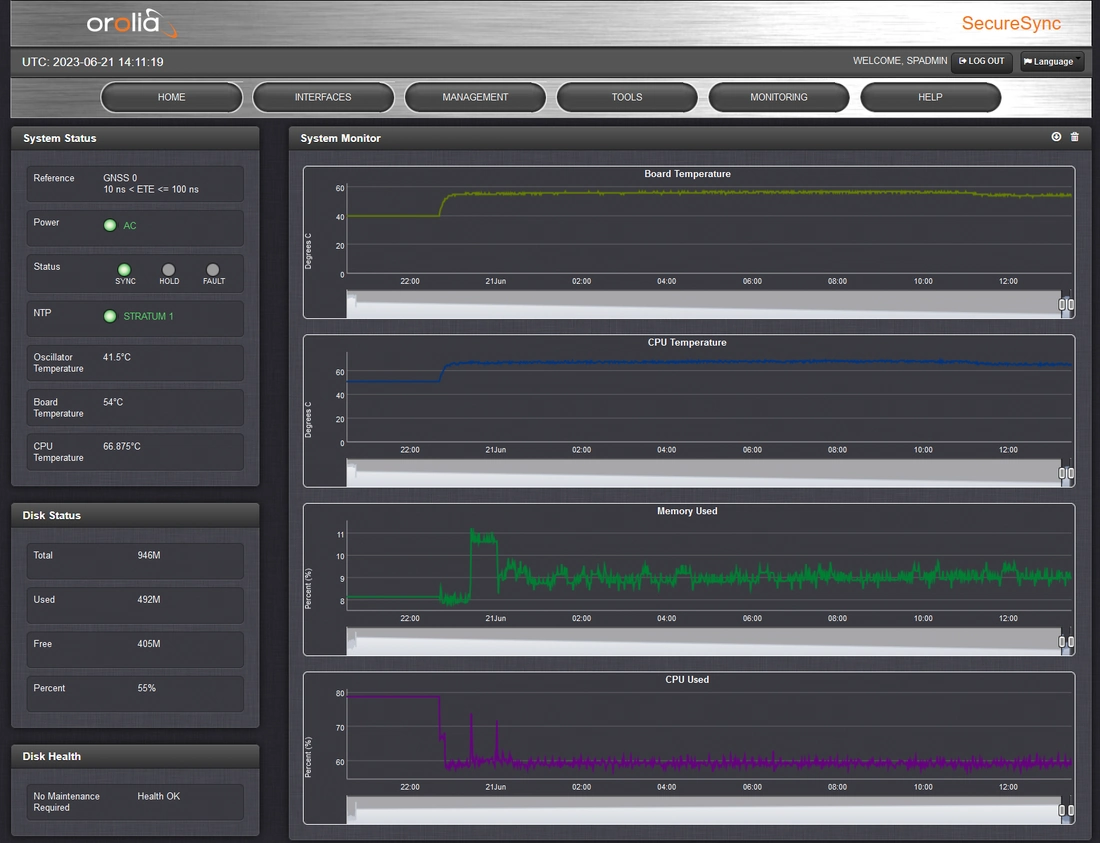

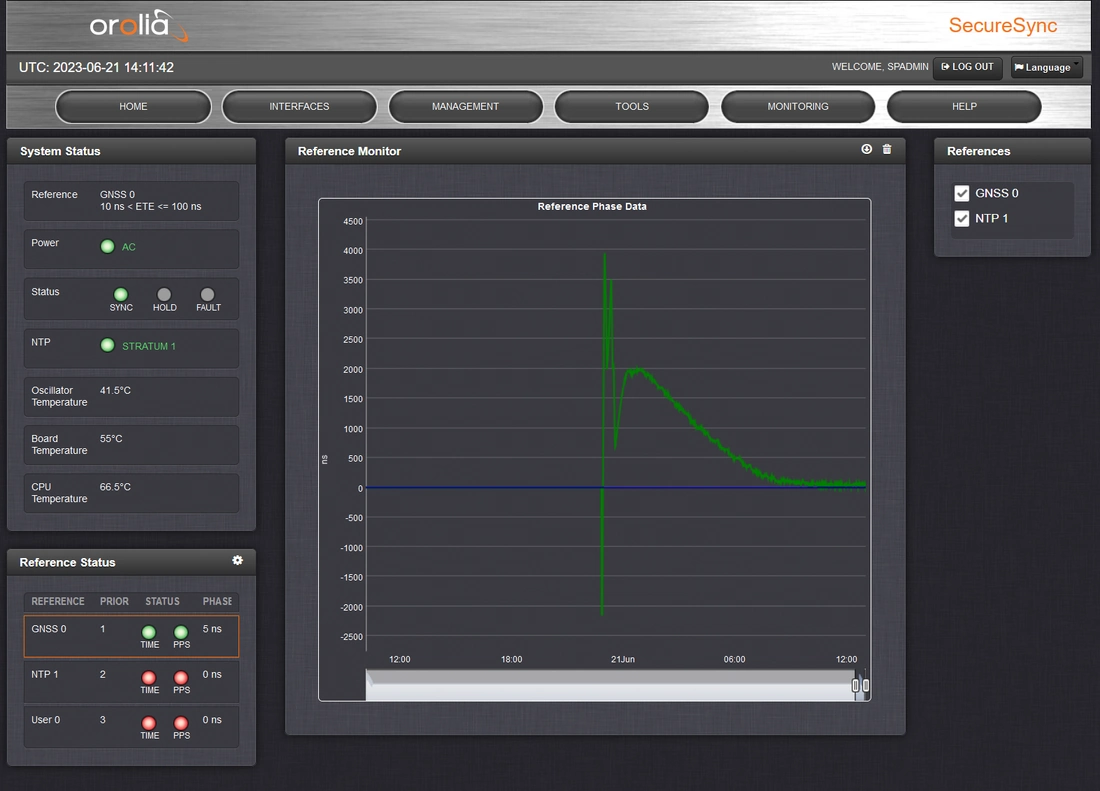

Here's a lightly used SecureSync GPS NTP Network Time Server with the upgraded OCXO Oscillator option installed for better free-running stability. For your peace of mind the unit has been tested and confirmed to operate as expected - the test results from the actual item for sale are shown below. This unit obtains accurate time from the GPS satellite constellation. The firmware has also been updated to v5.9.4 which is the latest revision at the time of listing. A professional grade outdoor 5V antenna will be required for the unit to operate to full specification. For a permanent installation an outdoor antenna with a full view of the sky is required. I usually have some suitable antenna listed separately (I can offer a recommendation if requested), and a suitable downlead can be obtained from a cable fabricator. The listing comprises the SecureSync server and rack ears only. No unpictured accessories, cables, documents or software are included. The photos show the actual item for sale.

Full product information may be obtained from the User Manual at
https://www.prostudioconnection.net/1502/SecureSync_Manual.pdf

Features

• Modular, secure synchronization system
• Precision time-keeping via TCXO oscillator
• Supported input/output signals (type and quantity dependent on signal and configuration):
  • GPS (GLONASS dual GNSS option present but not enabled)
  • 1PPS
  • Frequency (10 MHz)
  • ASCII time codes
• Modular (configure-to-order) ruggedized shock and vibration-tested chassis
• Exceptional Operating Temperature Range of -20 C to +65 C
• High bandwidth NTP performance
• Ethernet 10/100 Base-T
• Secure Network Management: enable or disable protocols for encryption, authentication, authorization and accounting
• IPv4/IPv6 dual stack

Usually Sells for $5,000+

Description

SecureSync combines Spectracom’s precision master clock technology and secure network-centric approach with a compact modular hardware design to bring you a powerful time & frequency reference system at the lowest cost of ownership. Military and commercial applications alike will benefit from its extreme reliability, security, and flexibility for synchronizing critical operations.

An important advantage of SecureSync is its unique rugged chassis designed to meet Mil 810F for environmental performance. The modular design provides for the most cost effective solution. Built-in time and frequency functions are extended with up to 6 input/output modules (not included).

Included with the base unit is an extremely accurate 1PPS timing signal aligned to a 10 MHz frequency signal without any 10 MHz phase discontinuity.

On-board clocks synchronize to a variety of external references as standard, factory-installed, or upgradeable options. Choose from a variety of option cards (not included) to add to your configuration of timing signals, including additional 1PPS, 10MHz, time code (IRIG, ASCII, HaveQuick), other frequencies (5 MHz, 2.048 MHz, 1.544 MHz), telecom T1/E1 data rates, multi-network NTP, and PTP.

To support network time synchronization, SecureSync supports the latest features of network time protocol (NTP) and precision time protocol (PTP, IEEE-1588v2). An optional multi-port NTP configuration (not included) allows for operation across 4 isolated LAN segments. For security, system management can be restricted to a dedicated management LAN. Up to 6 PTP ports can be added (not included) to operate in various PTP deployments.

SecureSync is a security-hardened network appliance designed to meet rigorous network security standards and best practices. It ensures accurate timing through multiple references, tamper-proof management, and extensive logging. Robust network protocols are used to allow for easy but secure configuration. Features can be enabled or disabled based on your network policies. Installation is aided by DHCP (IPv4), AUTOCONF (IPv6), and a front-panel keypad and display. The 1 RU chassis supports GPS input. The unit is powered by AC on an IEC60320 connector.

Features

• Modular, secure synchronization system for mission critical networks
• Internal precision time-keeping via OCXO oscillator
• Supported input/output signals (type and quantity dependent on signal and configuration): •GPS, Secure GPS (L1/L2, SAASM: GB-GRAM or MRU)
  • 1PPS
  • Frequency (10 MHz)
  • ASCII time codes
• Modular (configure-to-order) ruggedized shock and vibration-tested chassis
• Exceptional Operating Temperature Range of -20 C to +65 C
• High bandwidth NTP performance
• Ethernet 10/100 Base-T
• Secure Network Management: enable or disable protocols for encryption, authentication, authorization and accounting
• IPv4/IPv6 dual stack
