Spectracom SecureSync Rubidium GPS GLONASS Galileo NTP Network Time Server Rb [Refurbished]
( 364055222105) )
Ex Factory Demo Unit • Very Good Condition • Tested/Guaranteed • Fully Working • Rubidium Oscillator Option • Triple GNSS Receiver: GPS, GLONASS, Galileo • NTP Time Server • 10MHz Disciplined Rb Oscillator • Includes New Rack Ears

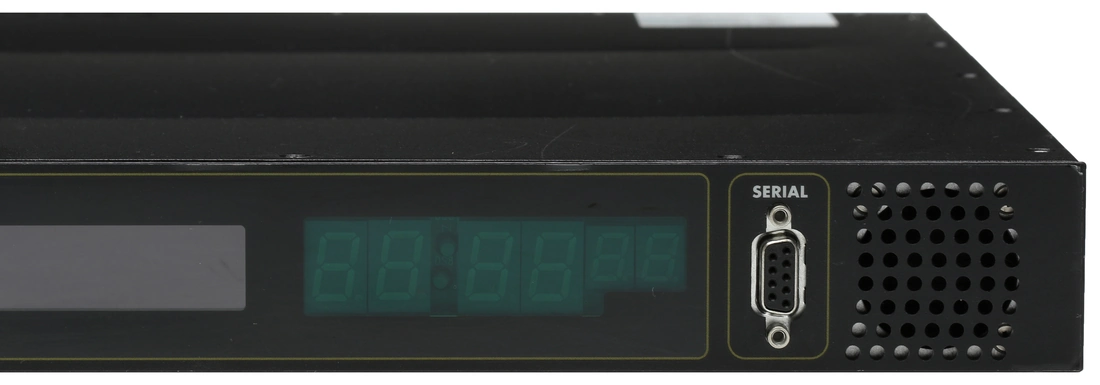

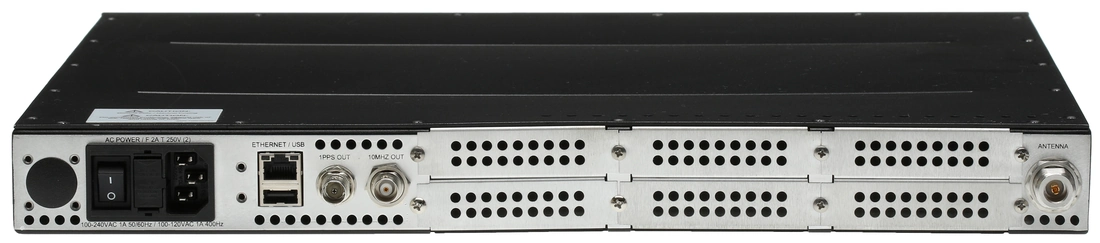

Actual item for sale

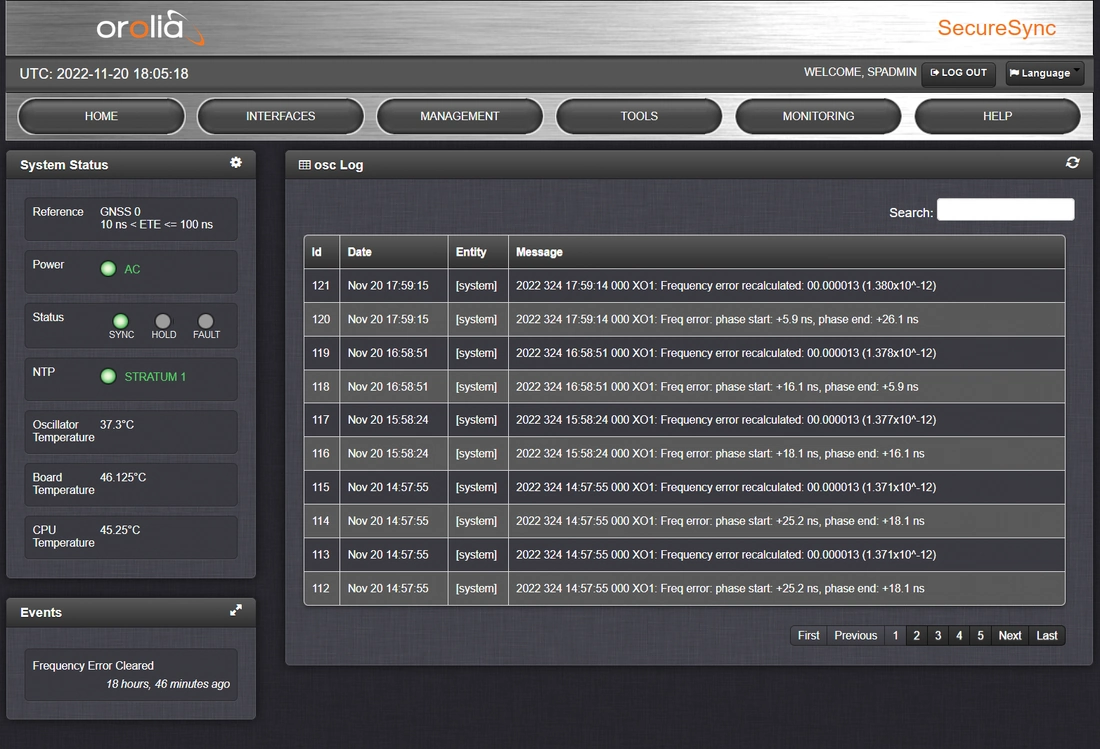

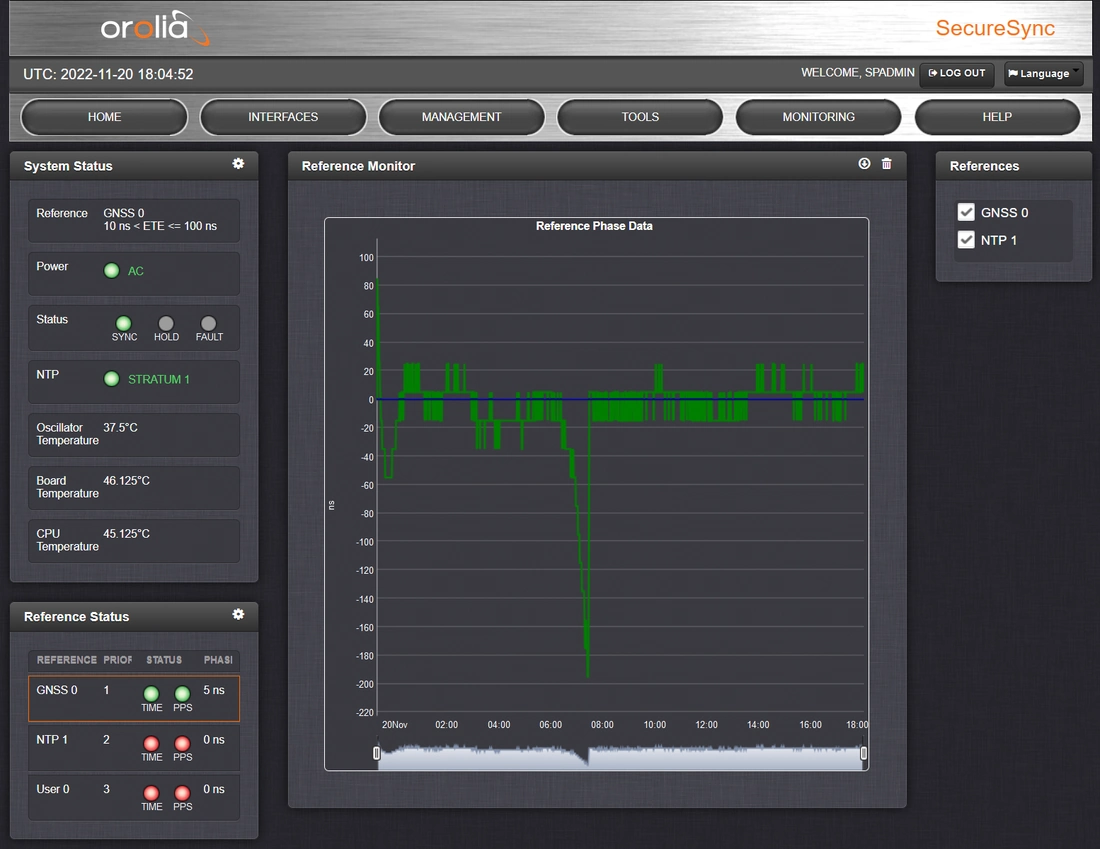

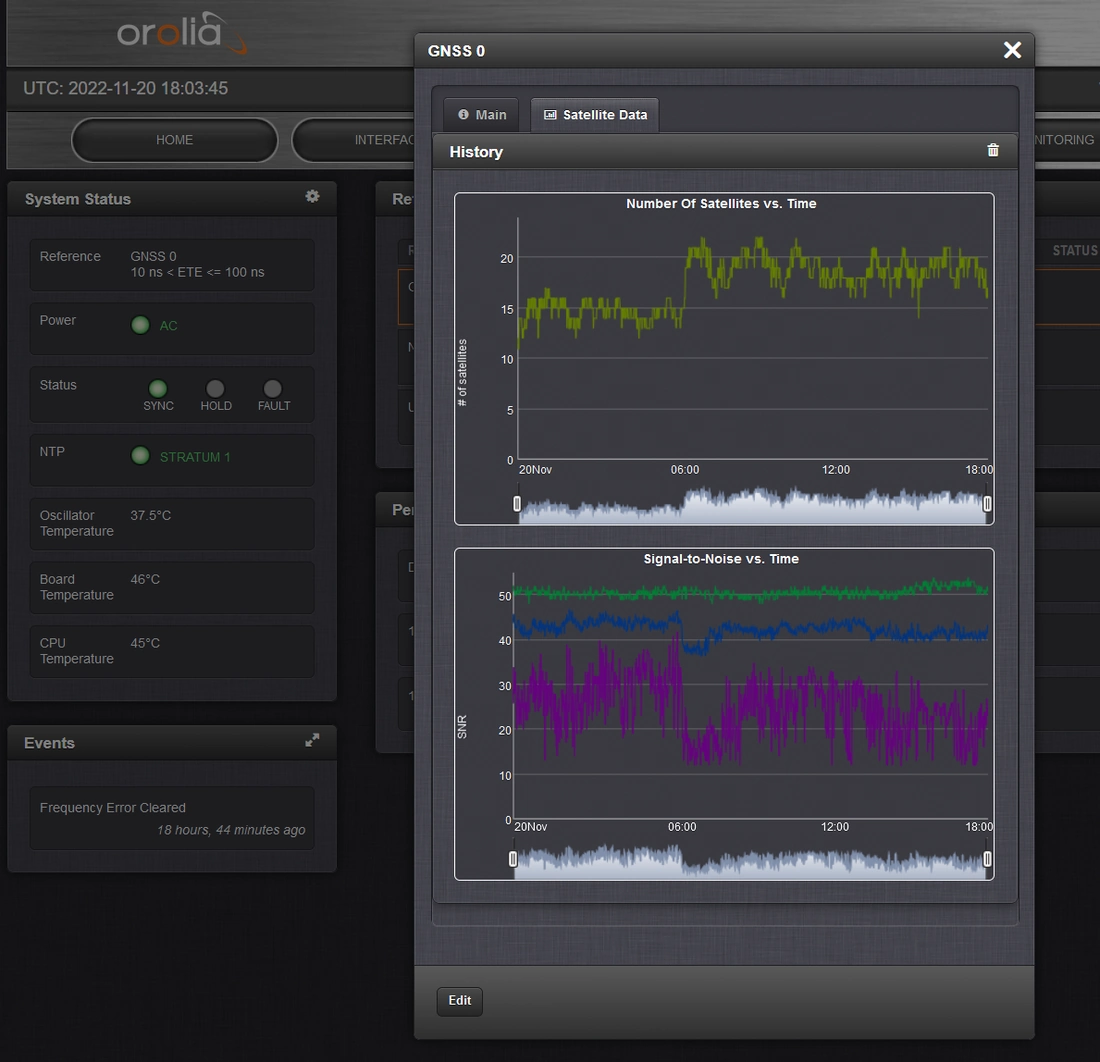

Here's a ex-factory demo SecureSync NTP server with the upgraded Rubidium Oscillator installed, which is in very good cosmetic condition. This is a later model with the u-Blox M8T GNSS receiver module installed which in my testing was able to track up to 20 satellites simultaneously from the GPS, GLONASS and Galileo constellations. For your peace of mind the unit has been tested and confirmed to operate as expected - see screenshots below taken during testing of the actual item for sale. The firmware has also been updated to v5.9.4 which is the latest revision at the time of listing. The listing comprises the SecureSync server and rack ears as shown. No unpictured accessories, cables, documents or software are included.
Full product information may be obtained from the User Manual
- Modular, secure synchronization system
- Precision time-keeping via TCXO oscillator
- Supported input/output signals (type and quantity dependent on signal and configuration):
- Frequency (10 MHz)
- ASCII time codes
- Modular (configure-to-order) ruggedized shock and vibration-tested chassis
- Exceptional Operating Temperature Range of -20 C to +65 C
- High bandwidth NTP performance
- Ethernet 10/100 Base-T
- Secure Network Management: enable or disable protocols for encryption, authentication, authorization and accounting
- IPv4/IPv6 dual stack
Usually Sells for $5,000
SecureSync combines Spectracom’s precision master clock technology and secure network-centric approach with a compact modular hardware design to bring you a powerful time & frequency reference system at the lowest cost of ownership. Military and commercial applications alike will benefit from its extreme reliability, security, and flexibility for synchronizing critical operations.
An important advantage of SecureSync is its unique rugged chassis designed to meet Mil 810F for environmental performance. The modular design provides for the most cost effective solution. Built-in time and frequency functions are extended with up to 6 input/output modules (not included).
Included with the base unit is an extremely accurate 1PPS timing signal aligned to a 10 MHz frequency signal without any 10 MHz phase discontinuity.
On-board clocks synchronize to a variety of external references as standard, factory-installed, or upgradeable options. Choose from a variety of option cards to add to your configuration of timing signals, including additional 1PPS, 10MHz, time code (IRIG, ASCII, HaveQuick), other frequencies (5 MHz, 2.048 MHz, 1.544 MHz), telecom T1/E1 data rates, multi-network NTP, and PTP.
To support network time synchronization, SecureSync supports the latest features of network time protocol (NTP) and precision time protocol (PTP, IEEE-1588v2) [Option not installed]. An optional multi-port NTP configuration [not included] allows for operation across 4 isolated LAN segments. For security, system management can be restricted to a dedicated management LAN. Up to 6 PTP ports can be added [not included] to operate in various PTP deployments.
SecureSync is a security-hardened network appliance designed to meet rigorous network security standards and best practices. It ensures accurate timing through multiple references, tamper-proof management, and extensive logging. Robust network protocols are used to allow for easy but secure configuration. Features can be enabled or disabled based on your network policies. Installation is aided by DHCP (IPv4), AUTOCONF (IPv6), and a front-panel keypad and display. The unit is powered by AC on an IEC60320 connector.
