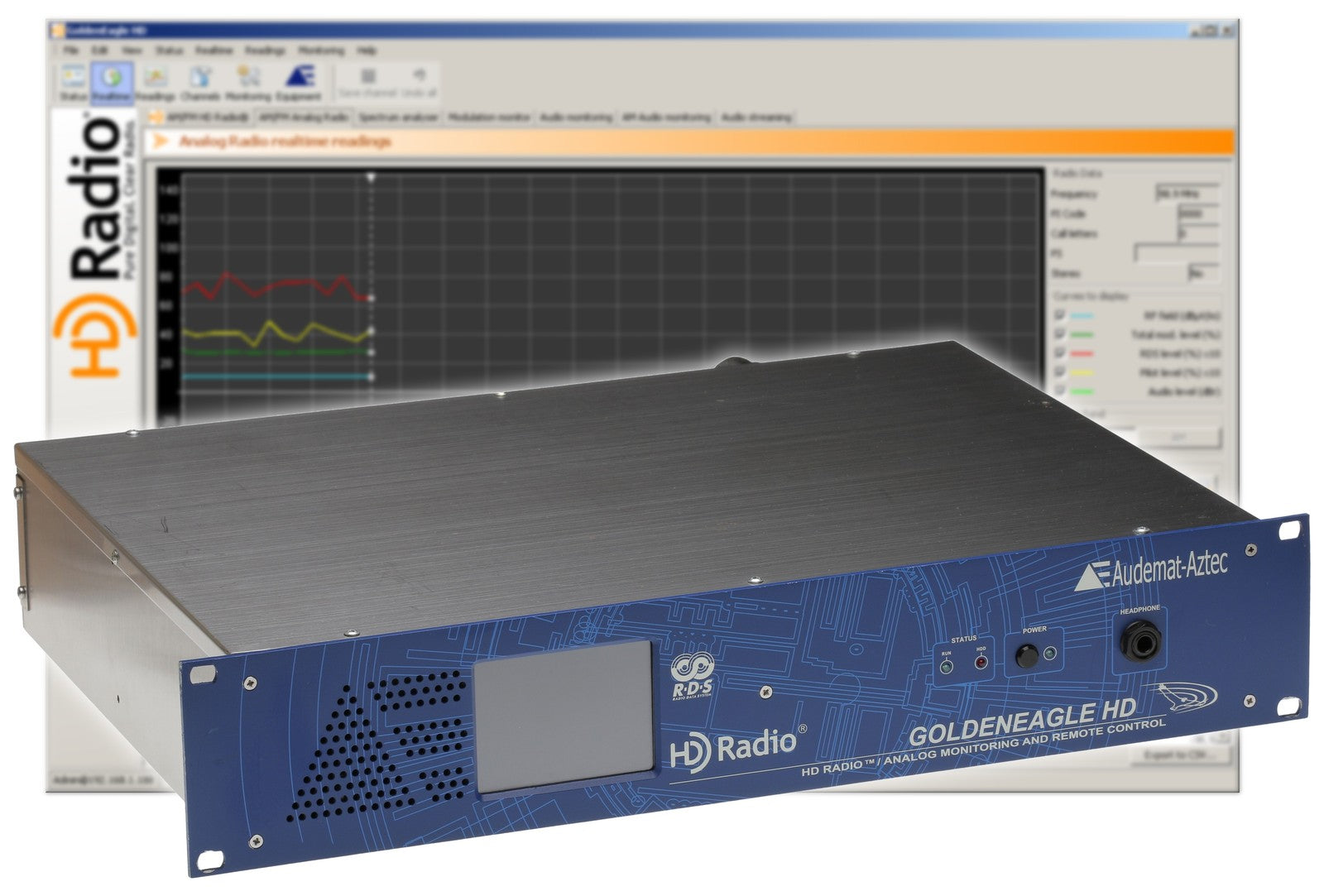

Audemat-Aztec Goldeneagle HD Radio AM FM Broadcast Monitor w/ Spectrum Analyzer

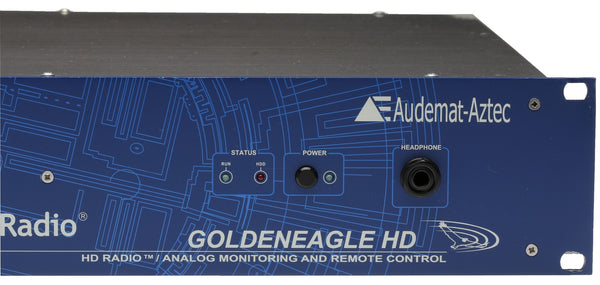

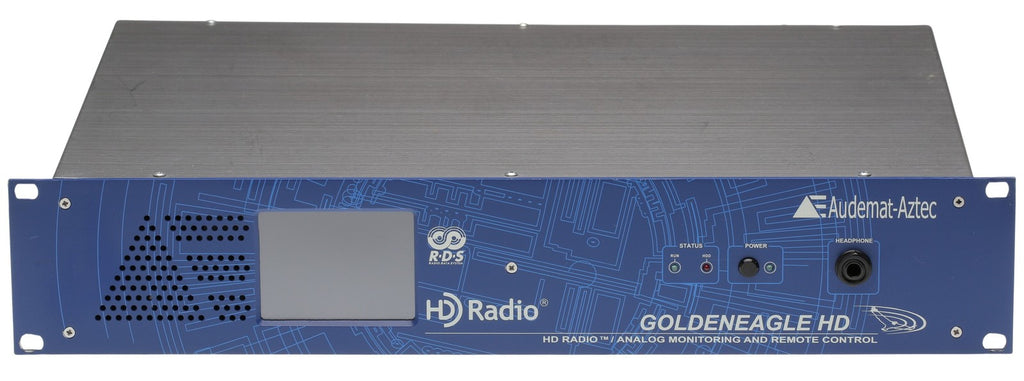

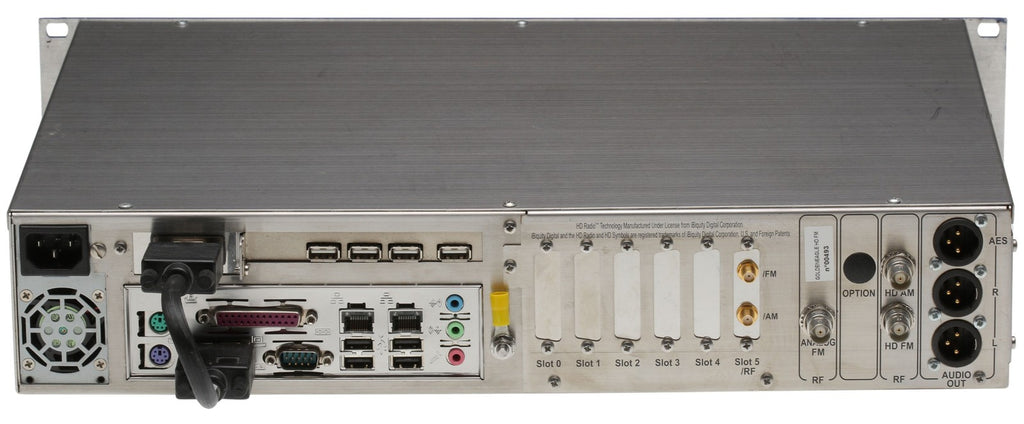

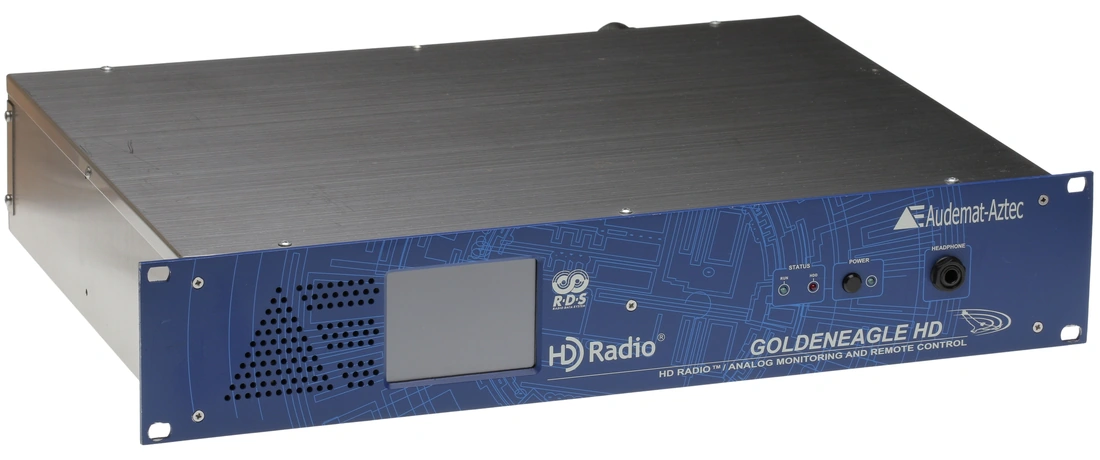

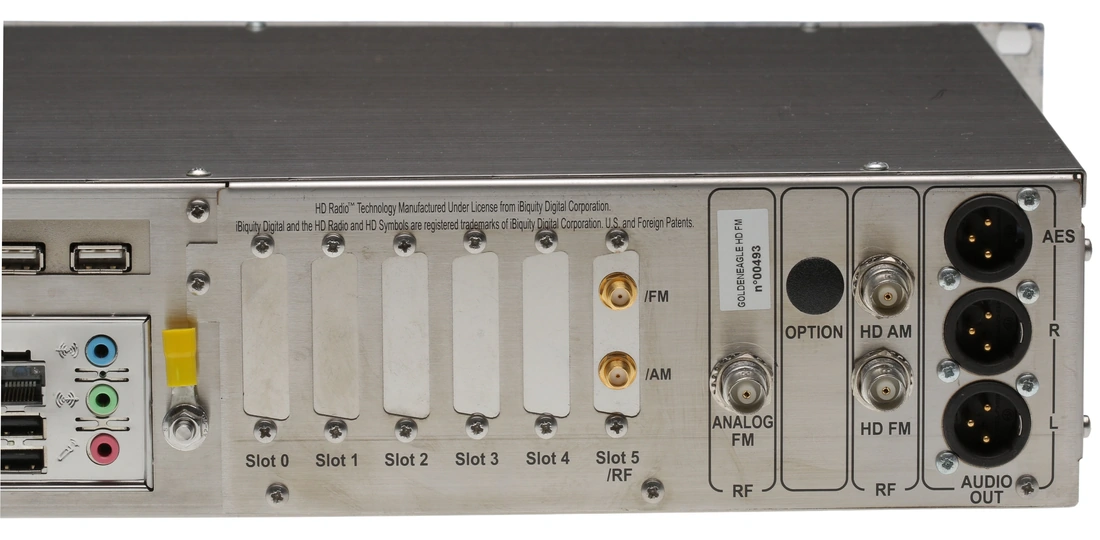

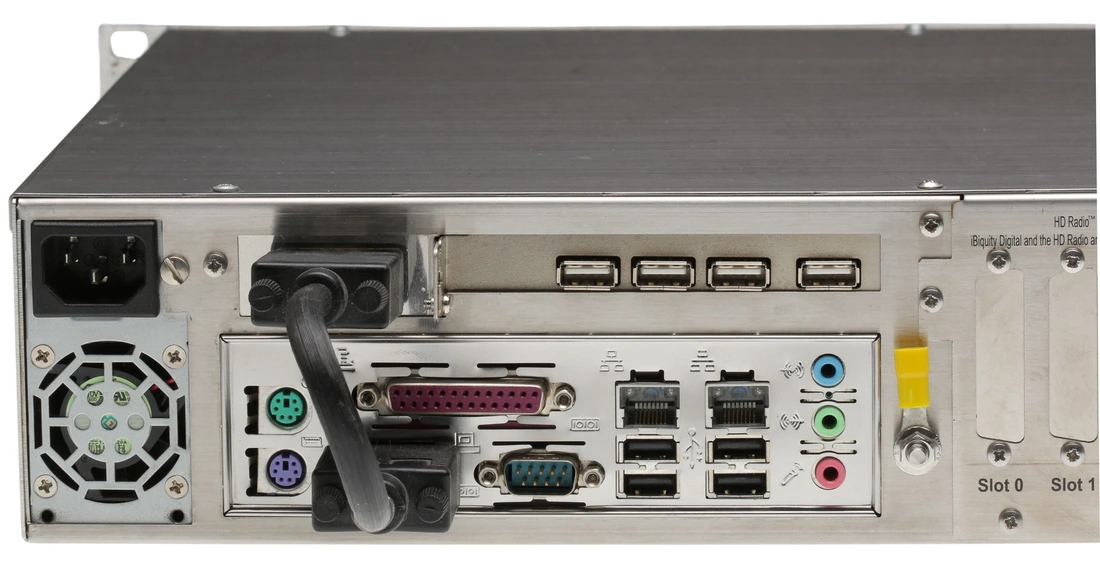

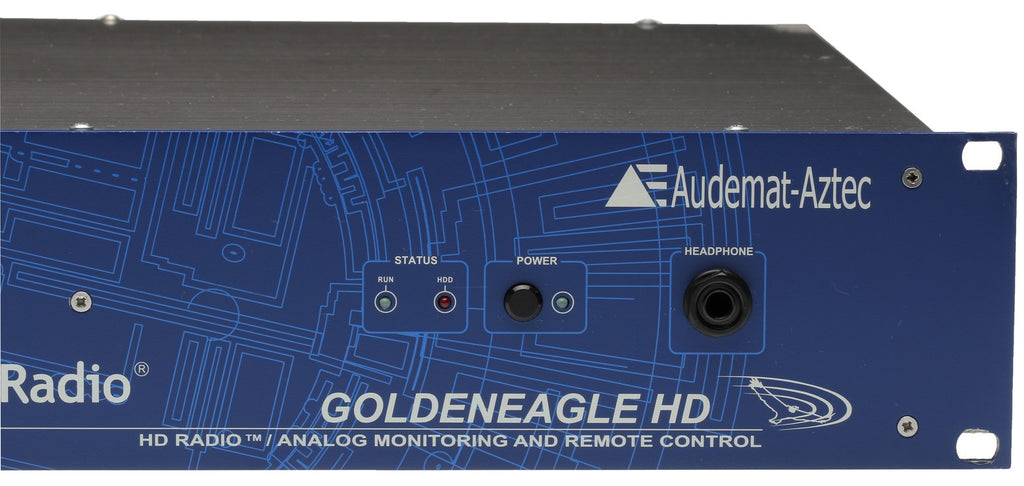

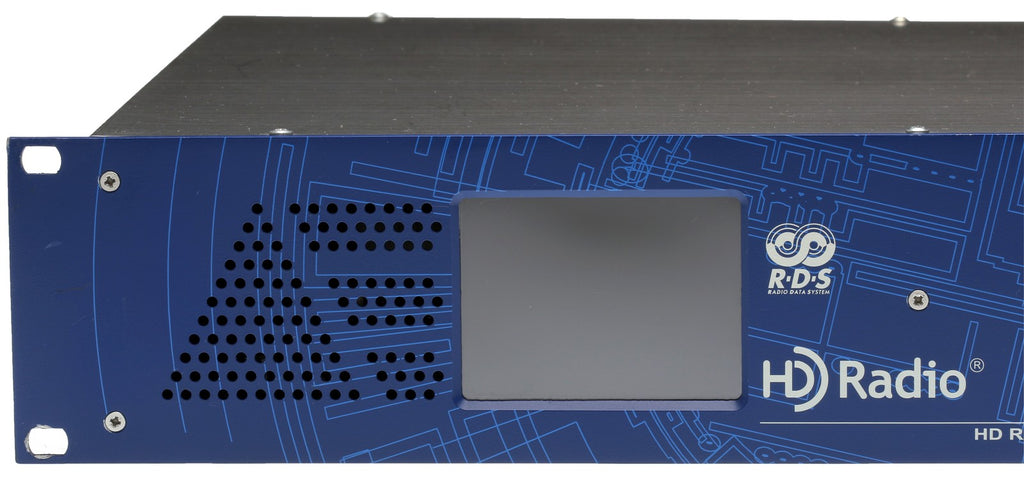

Photos show the actual item for sale

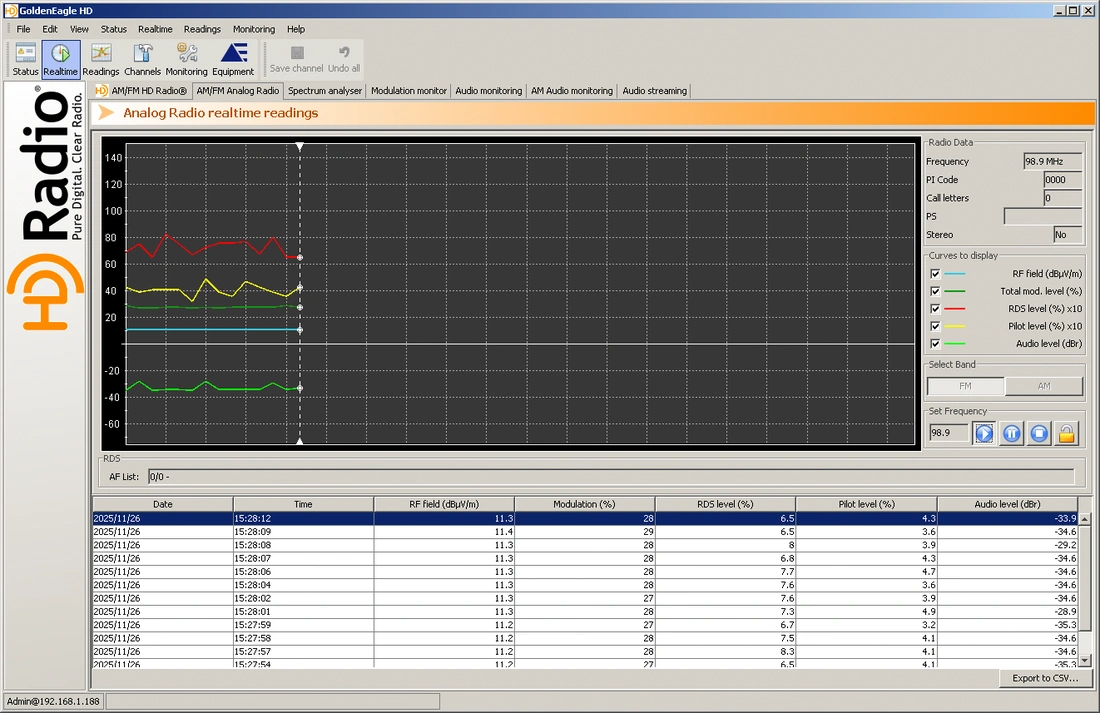

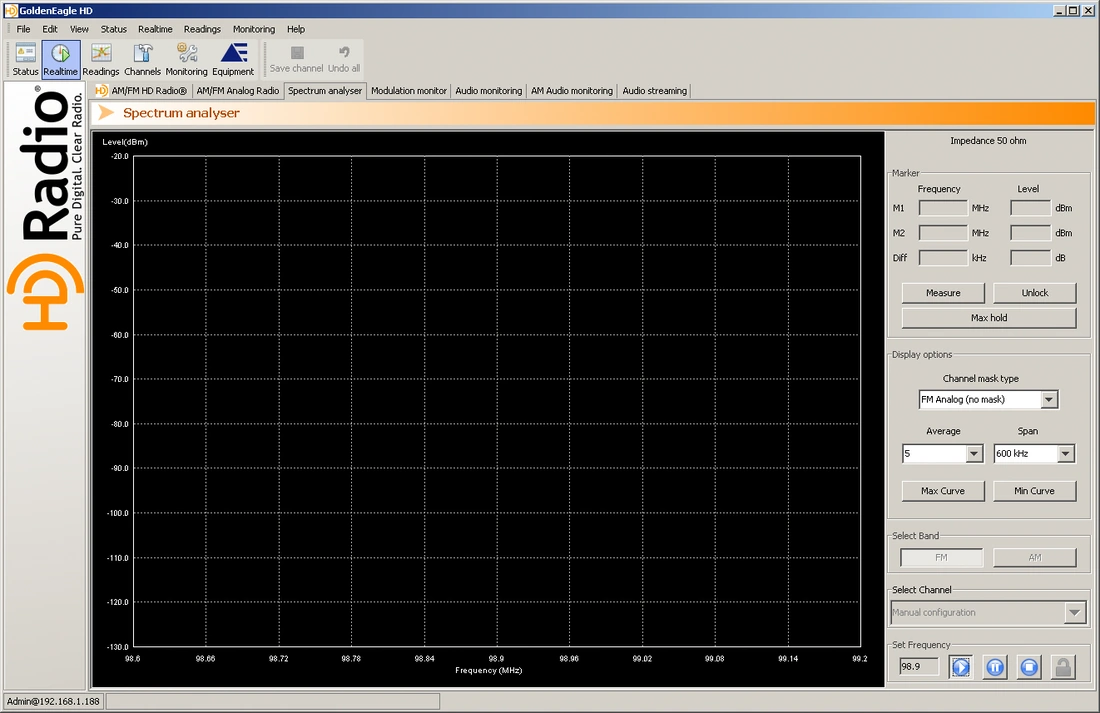

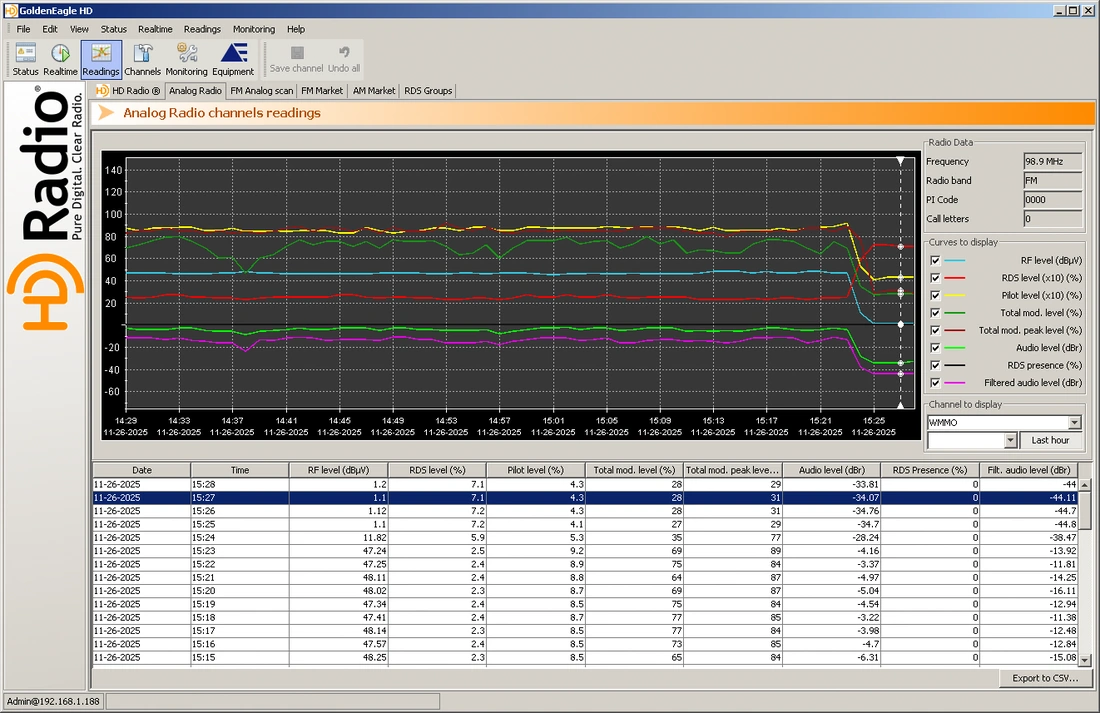

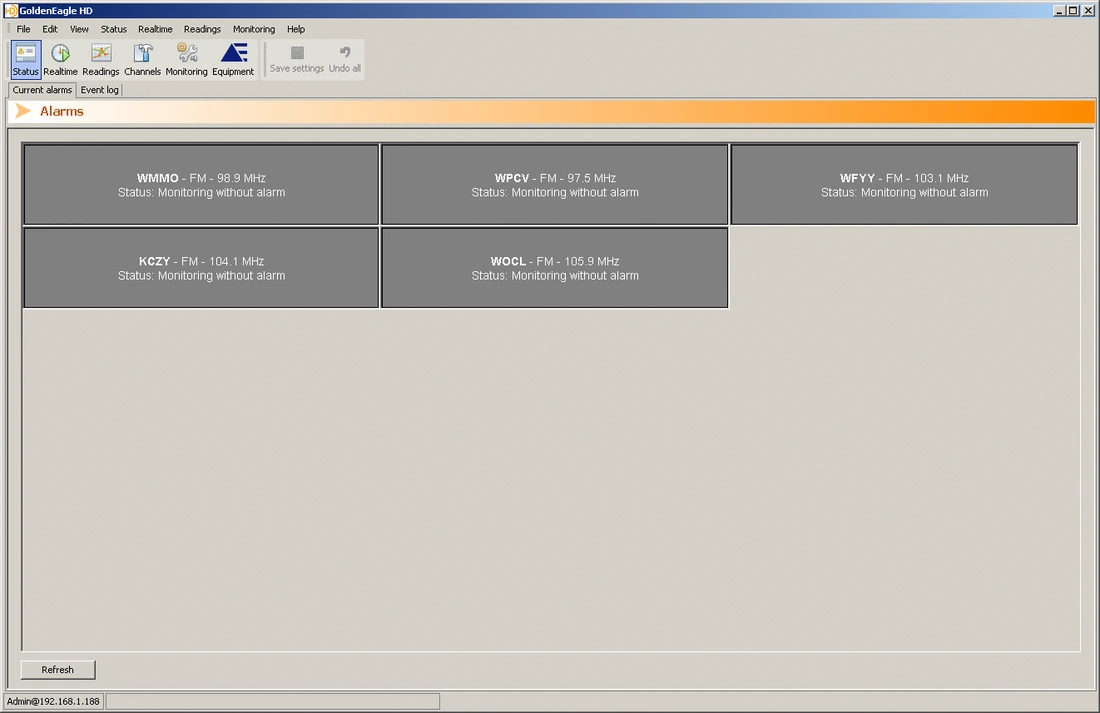

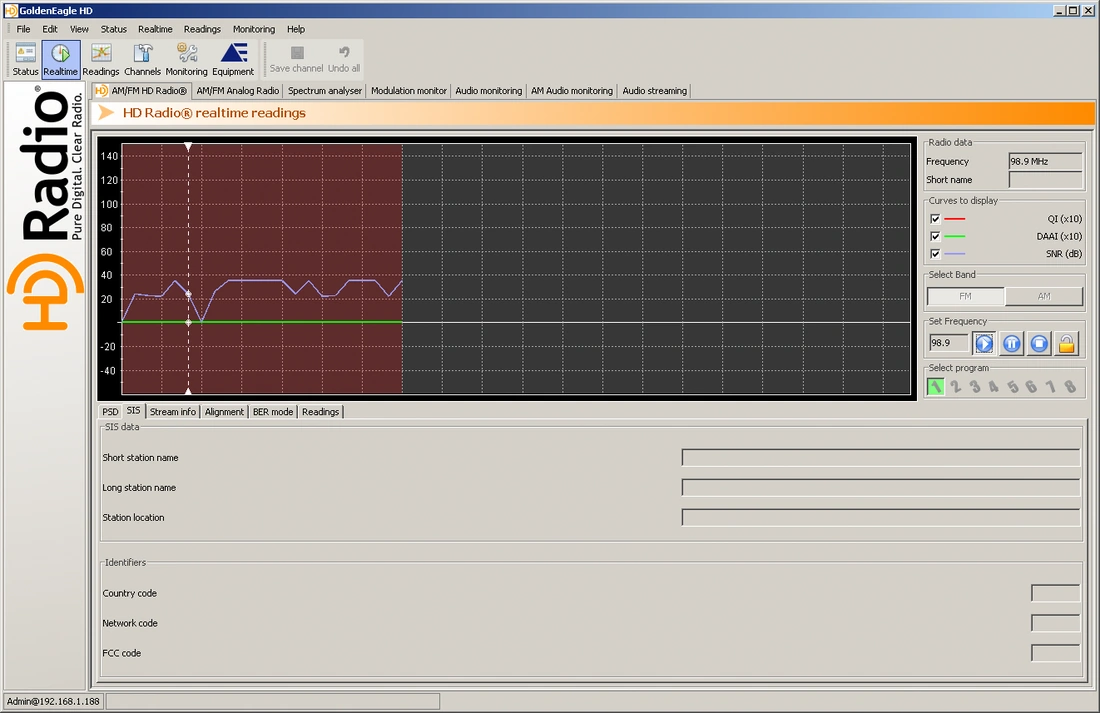

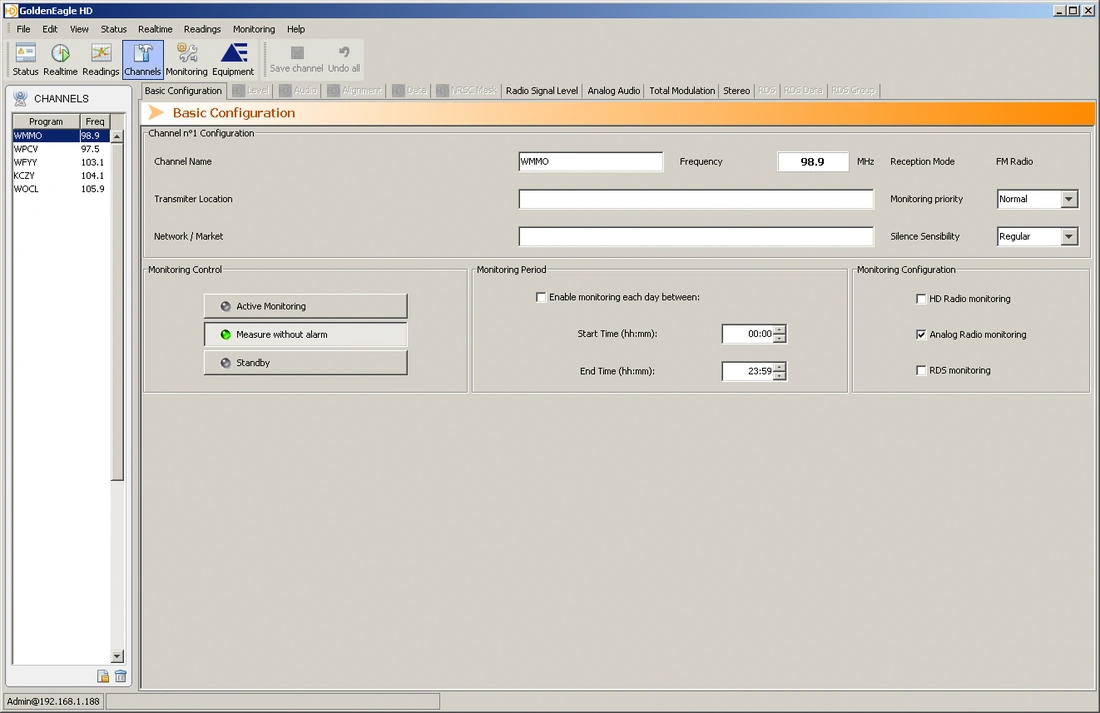

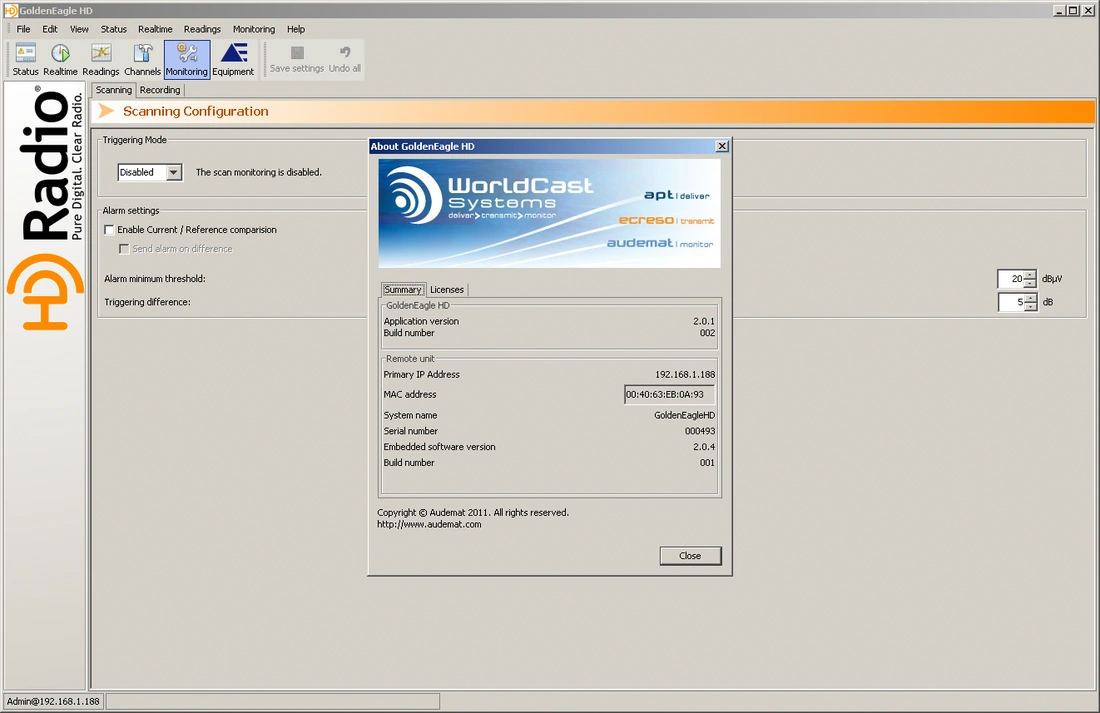

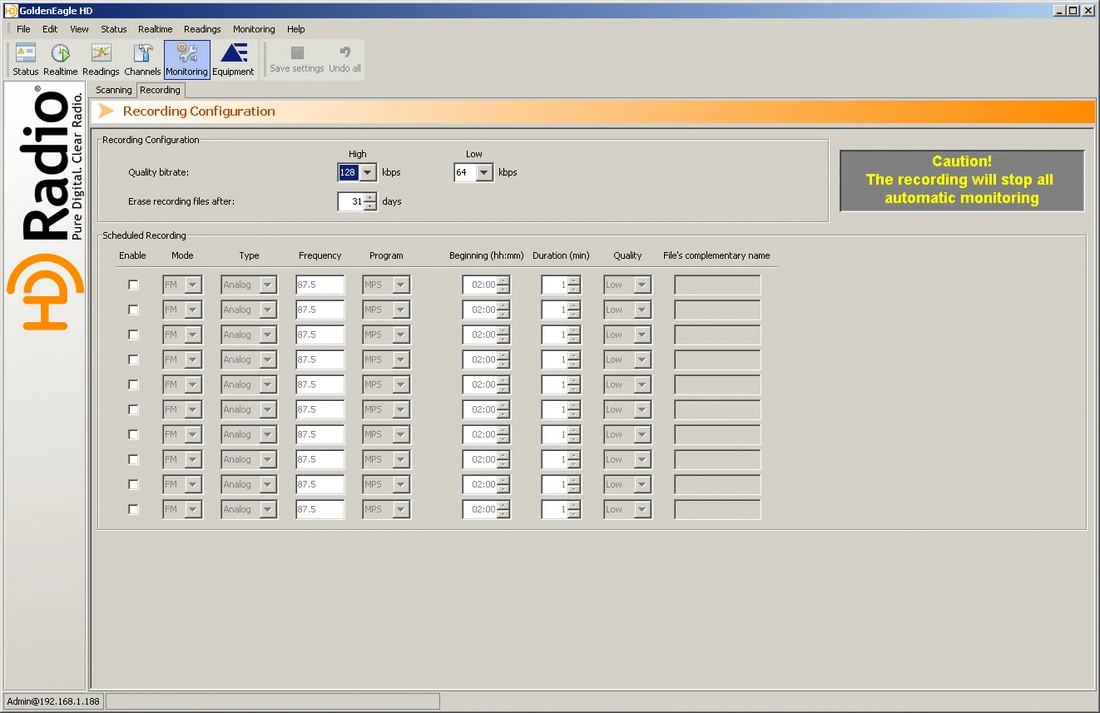

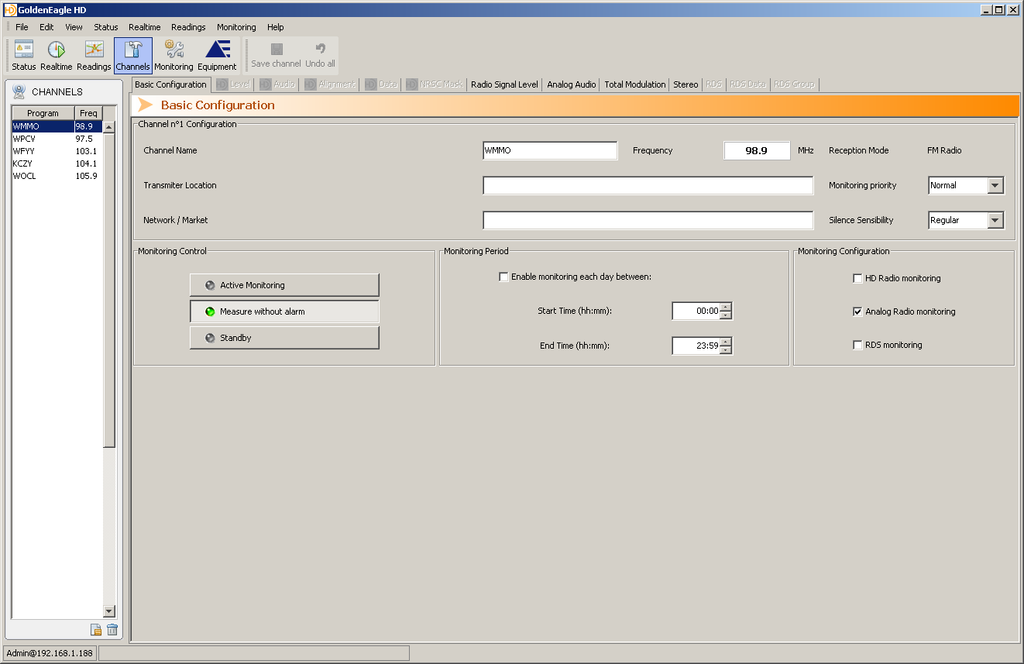

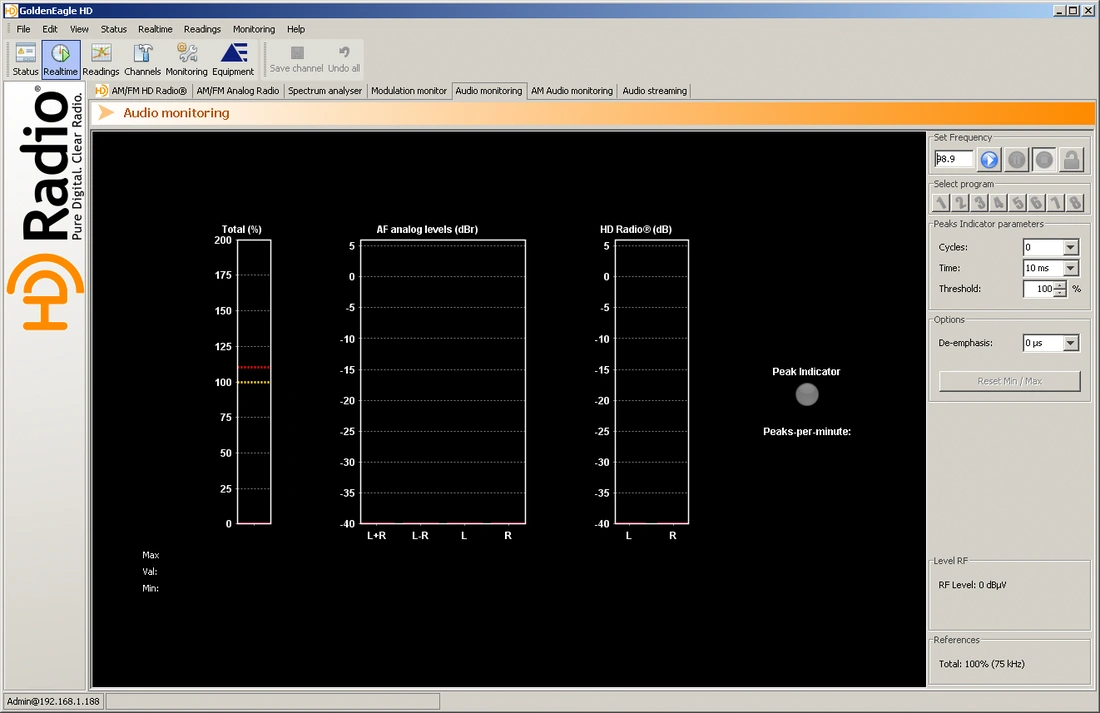

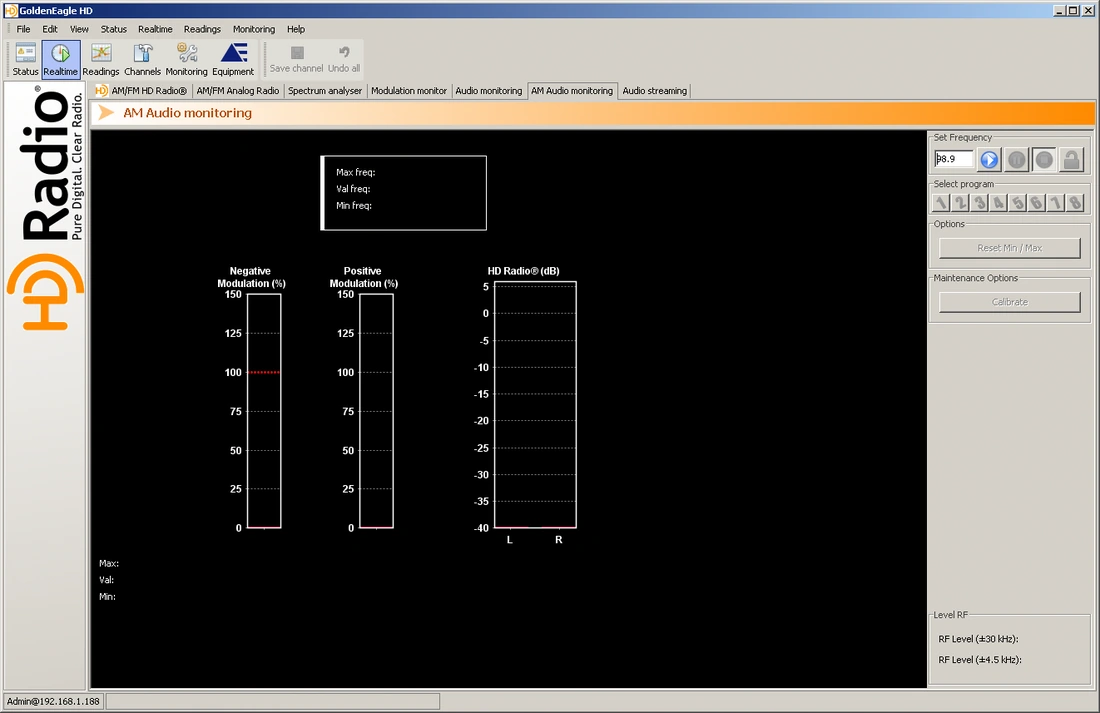

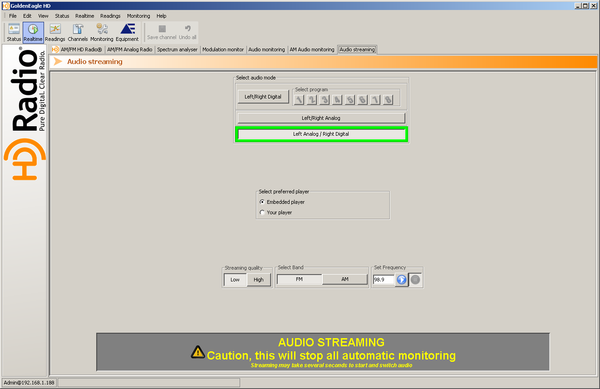

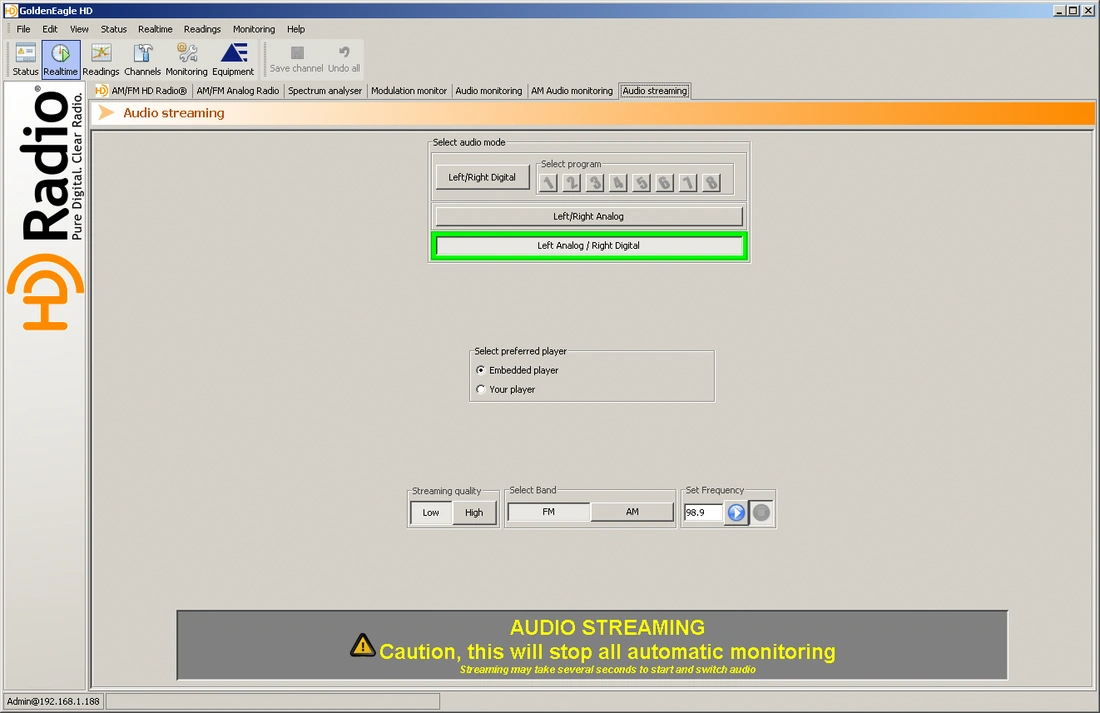

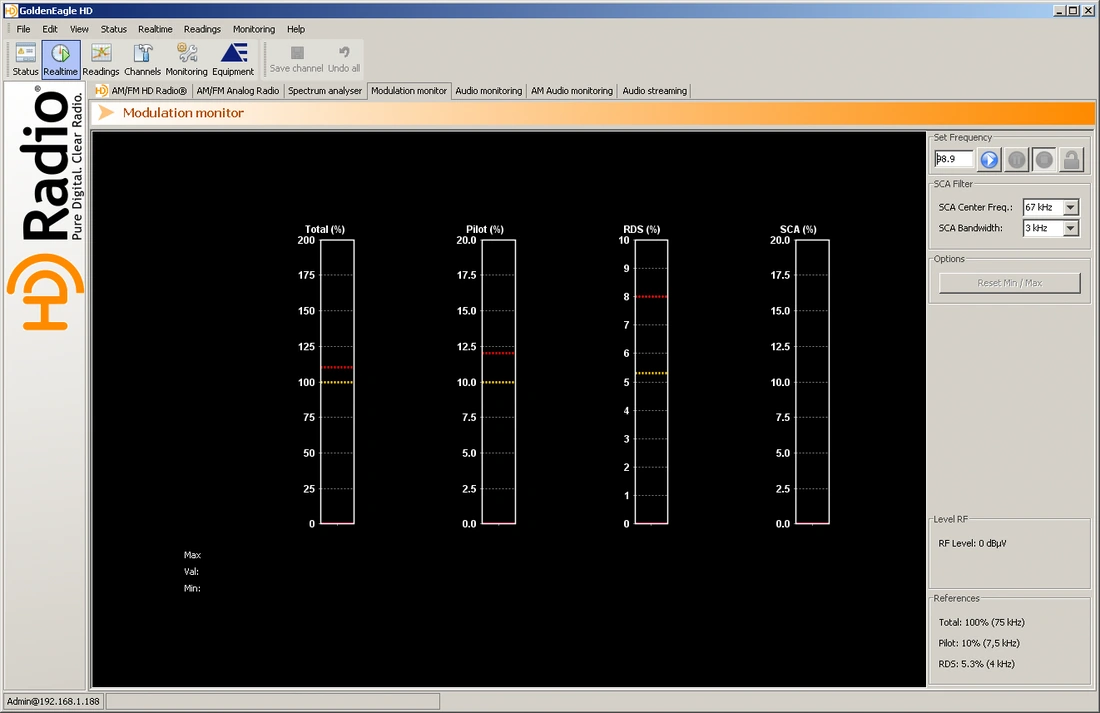

This Goldeneagle HD monitoring unit has the the optional spectrum Analyzer hardware installed enabled. The unit has been loaded with the latest firmware and re-calibrated by the factory when it was removed from service a couple of years ago. In my testing I was able to access the internal web server to set the basic config and to download the installer for the control application. I installed this on a Windows computer and was able to access the unit and scan the band for local stations. Individual stations could be checked for the parameters you see on the screenshots below. My testing was performed on an XP 32 Bit machine as the control application is written in Java and most likely will not run on a current Windows machine. Please only proceed with your purchase if you are willing to control the unit with Windows PC running XP 32 Bit or earlier. Full product details are available from the User Manual at https://www.prostudioconnection.net/1909/GOLDENEAGLE_HD_Manual.pdf and the Quick Start Guide at https://www.prostudioconnection.net/1909/Goldeneagle_HD_QuickStart_Guide.pdf. The short VGA cable to connect the video out to the front panel touch screen monitor is included. No other cables, accessories or documents are included.

Description

Monitor all analog and HD parameters for up to 10 AM and/or FM stations via TCP/IP. NRSC mask compliance, automatic time alignment measurements, audio silence sensing, optional remote control capabilities. Optional spectrum analyzer/digital demodulator for spectrum and modulation measurements. Broadcasters # 1 Choice for HD Monitoring!

Highlights

• 24/7 monitoring of analog and digital broadcasts (including multicast)
• Automatic notification of out of tolerance conditions via email
• Displays all MPS and Multicast Data (PSD, SIS, etc.)
• Displays and monitors RDS data
• Digital to analog audio time, level and phase alignment monitoring
• Embedded web server and software for remote monitoring

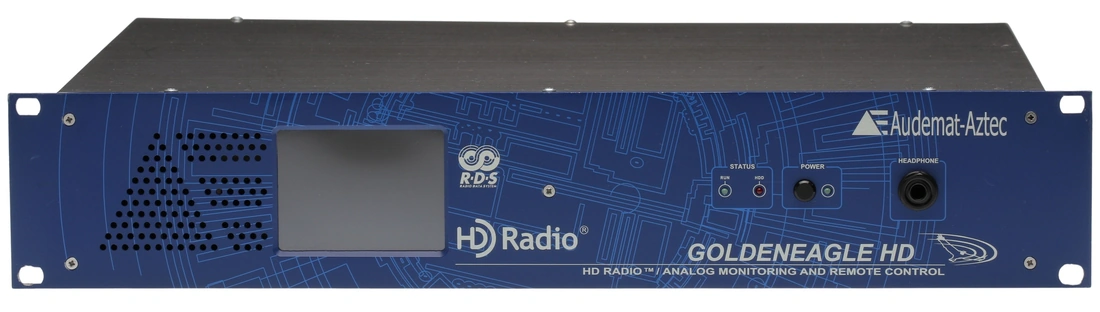

• Touchscreen display for selection of preset stations and visualization of readings, sprectra, bargraphs...

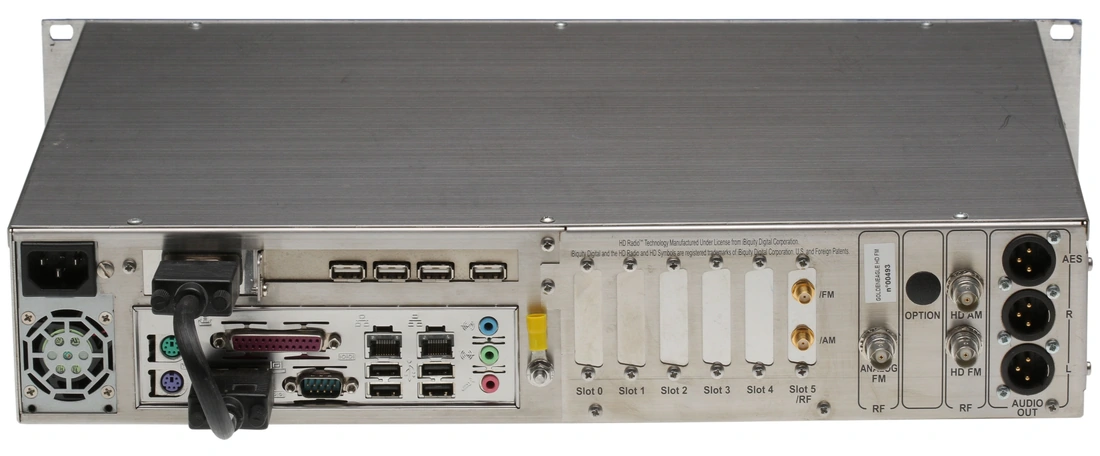

• Balanced analog and digital audio outputs
