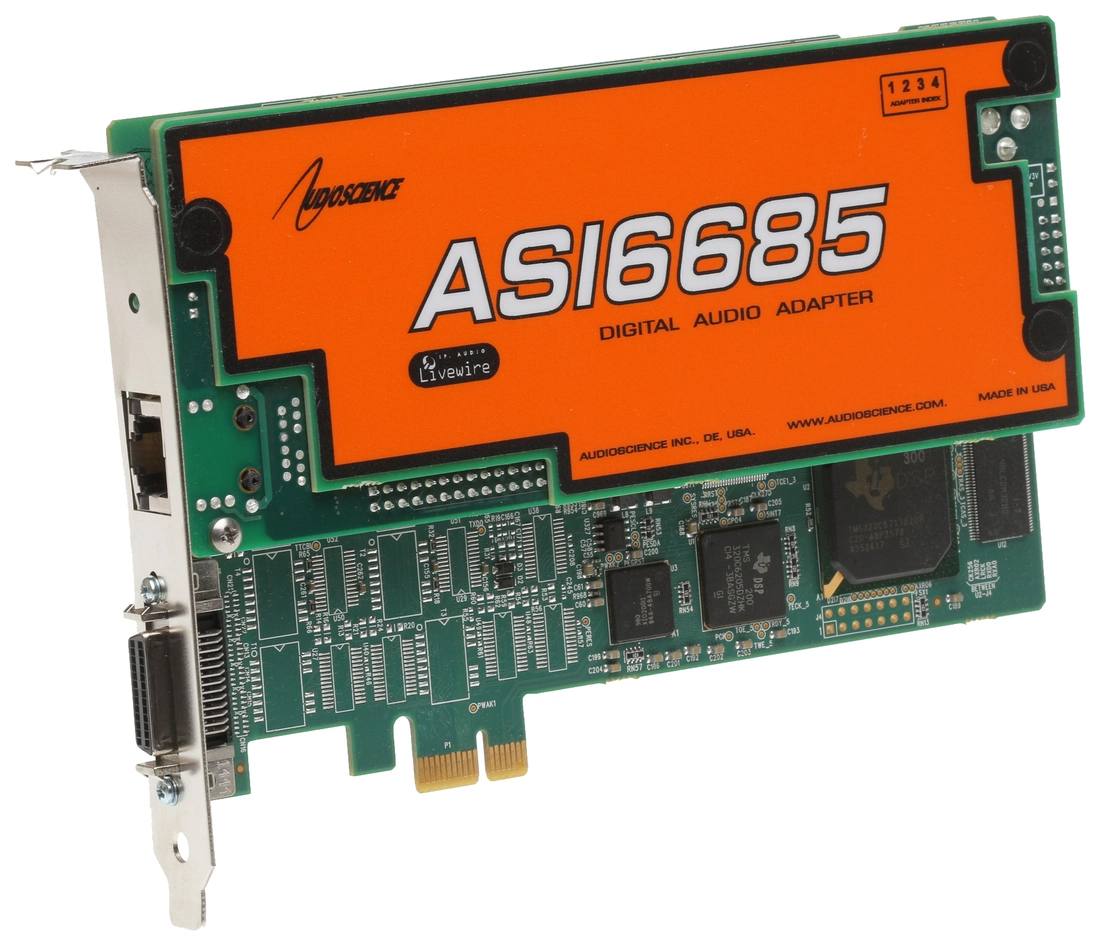

Audioscience ASI6685 PCIe Livewire Broadcast 8 Channel Multichannel Sound Card
( 237082404172) )
Tested/Guaranteed • Fully Working • Was $2,154 • Very Good Condition • 8 Channels of Livewire In/Out • Professional Audio Over IP Multichannel Sound Card • PCIe Interface

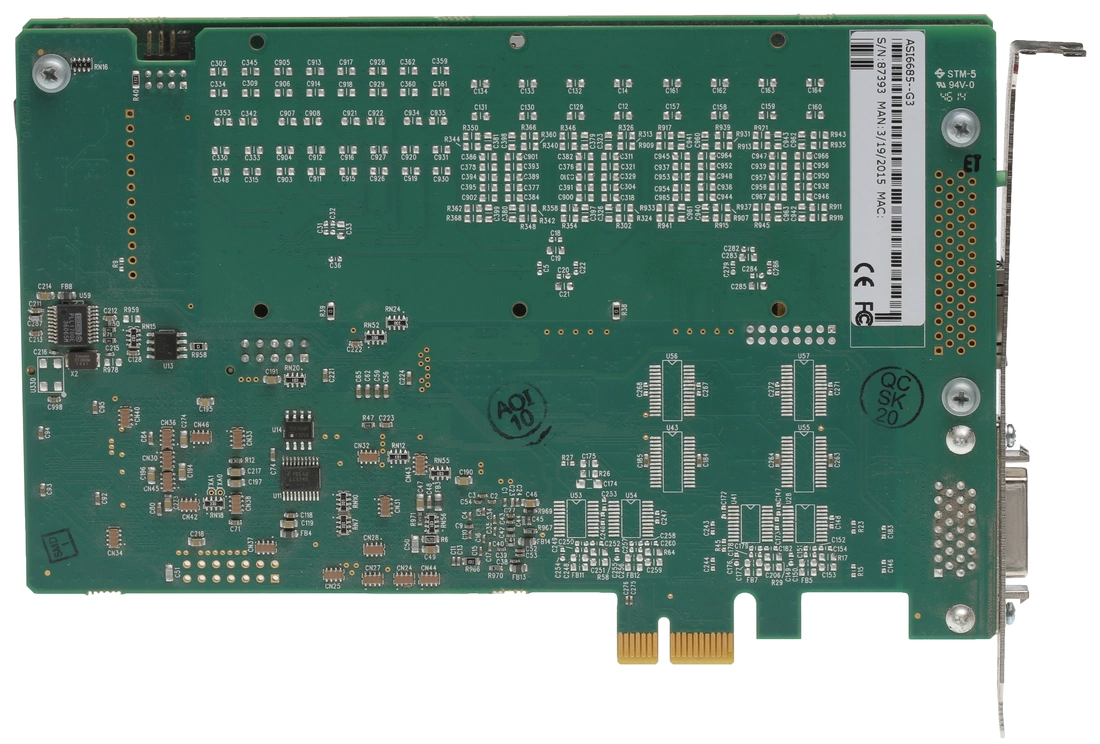

Card is used and in very good condition. It

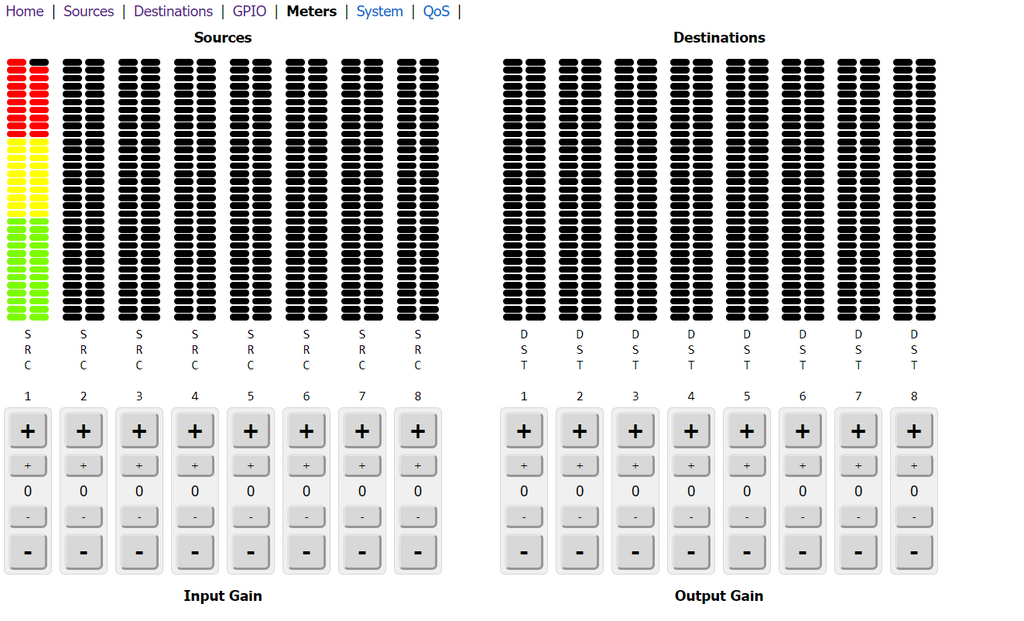

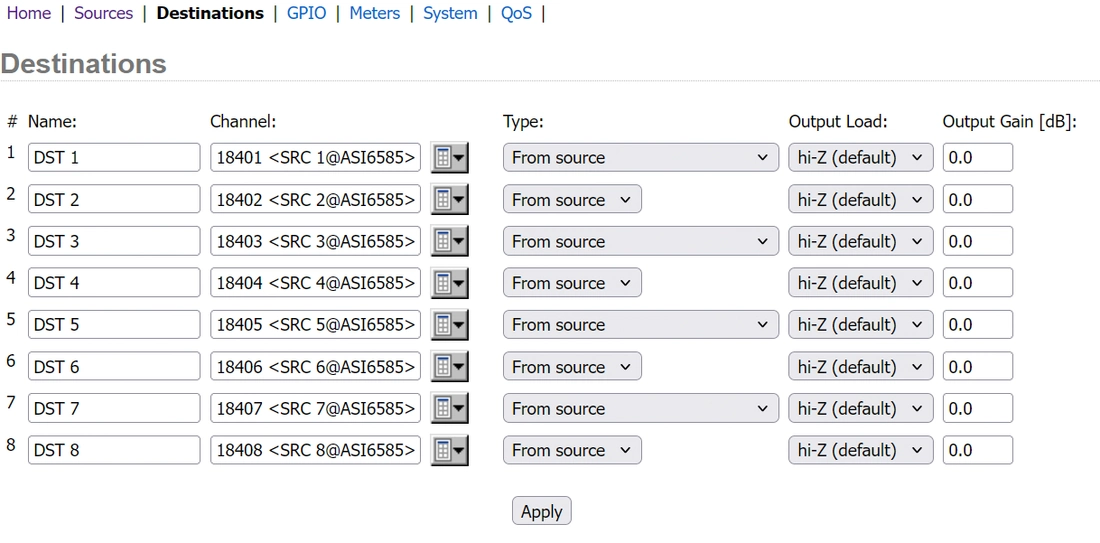

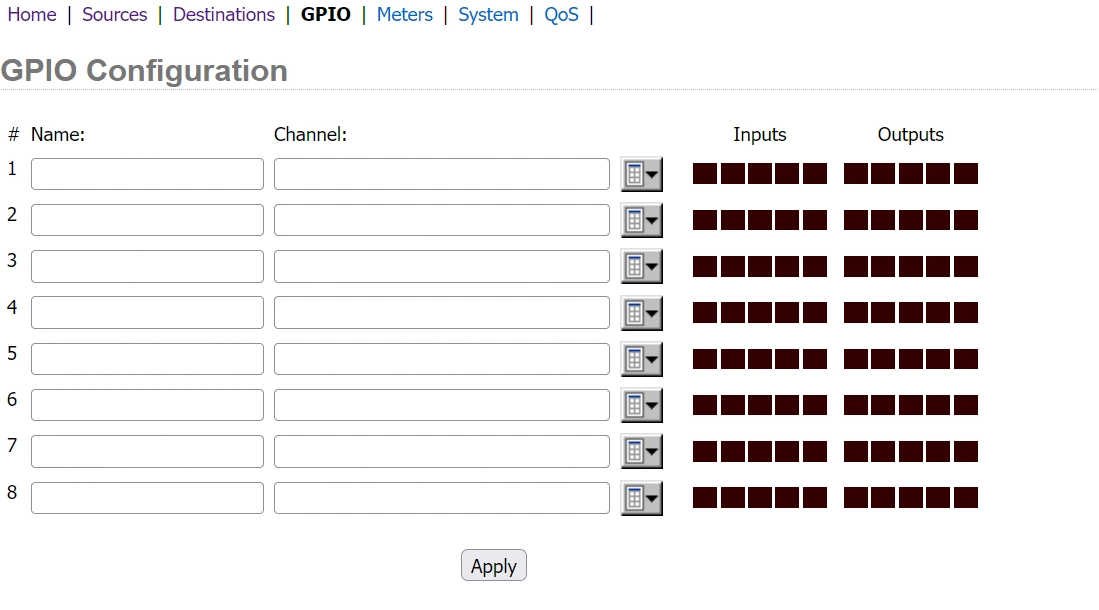

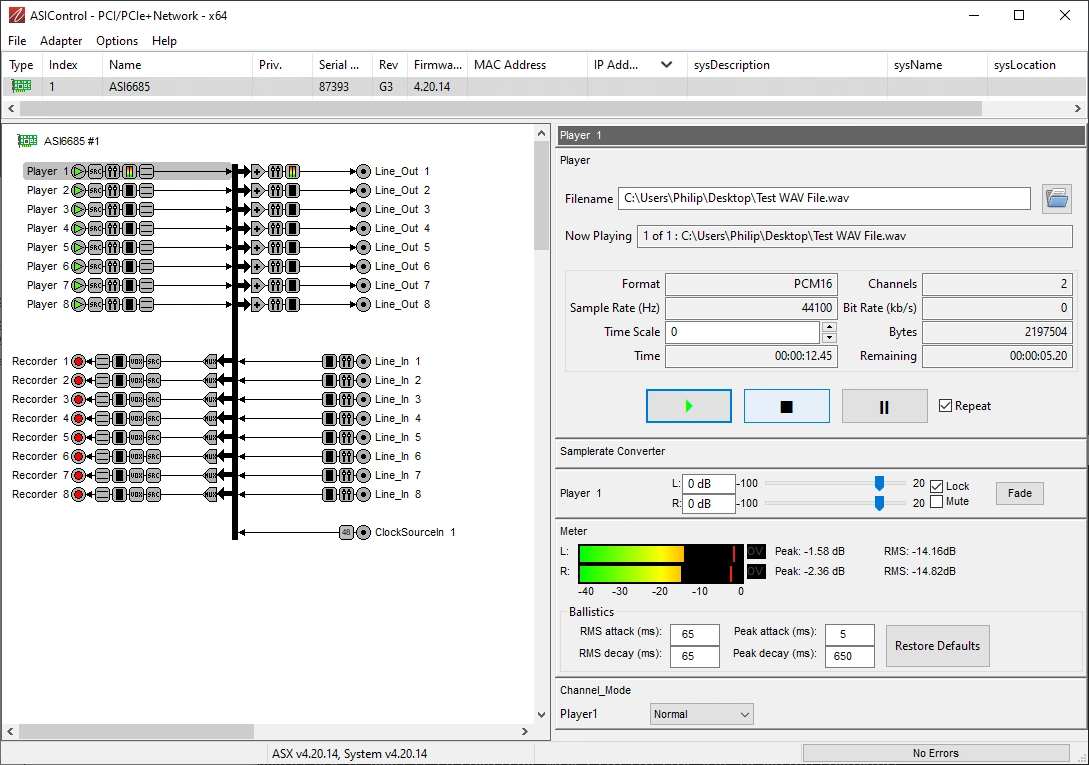

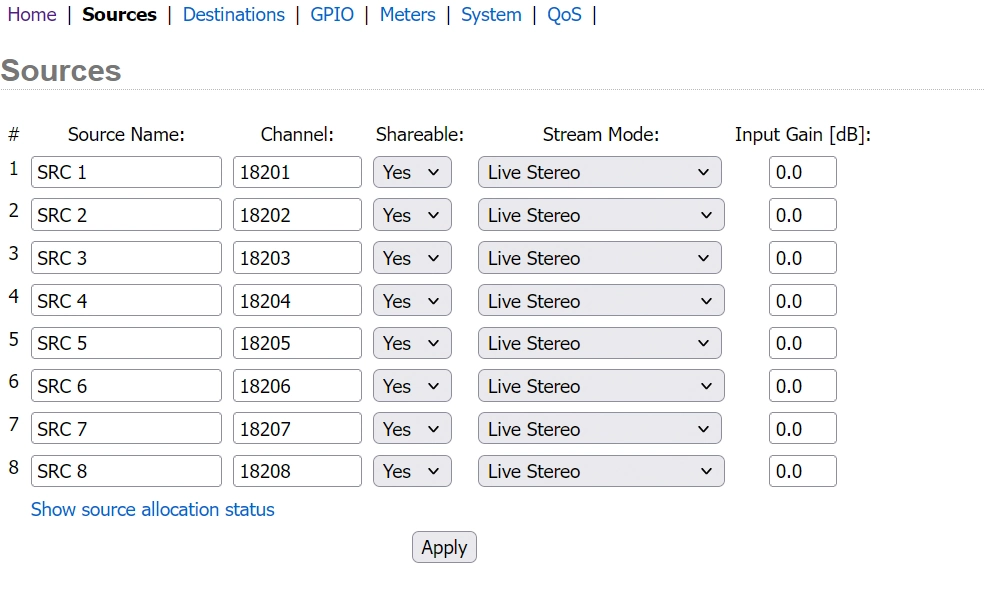

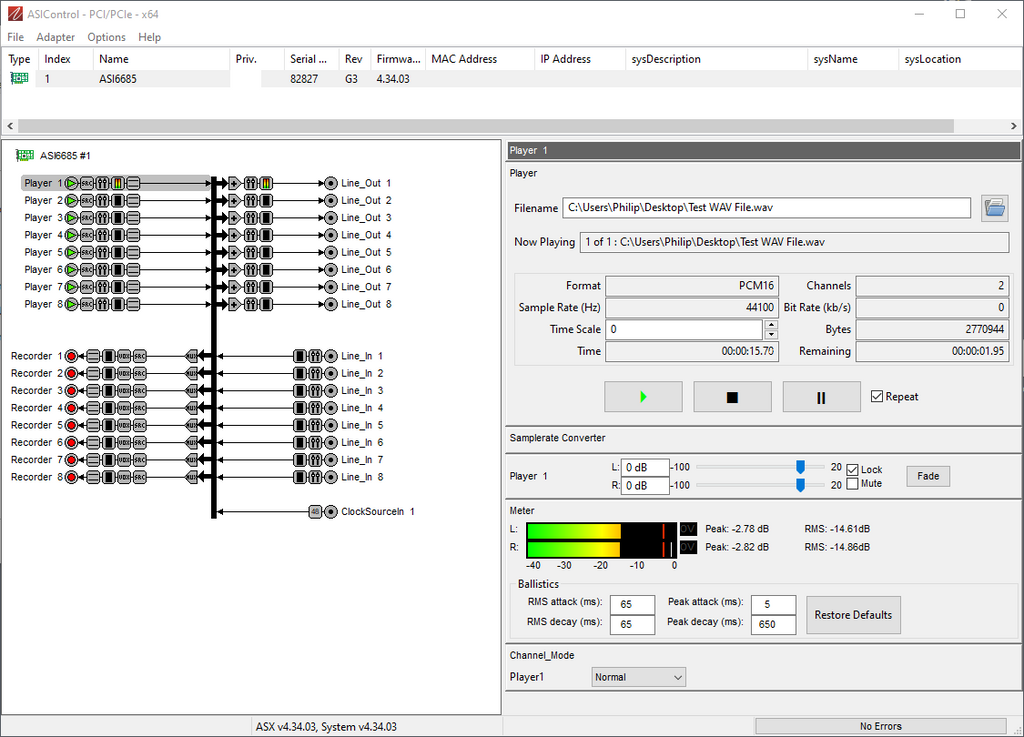

has been tested to confirm that it works as it should and a

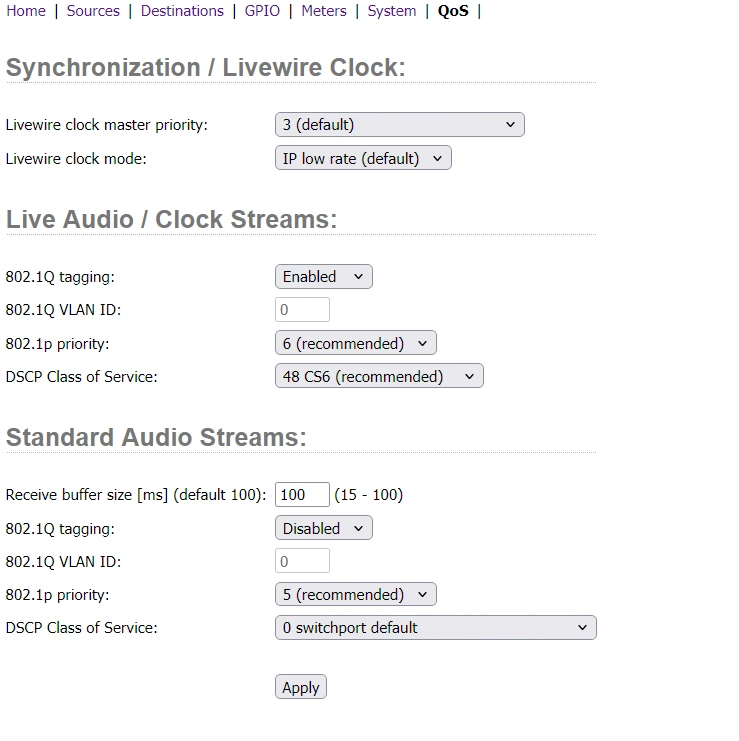

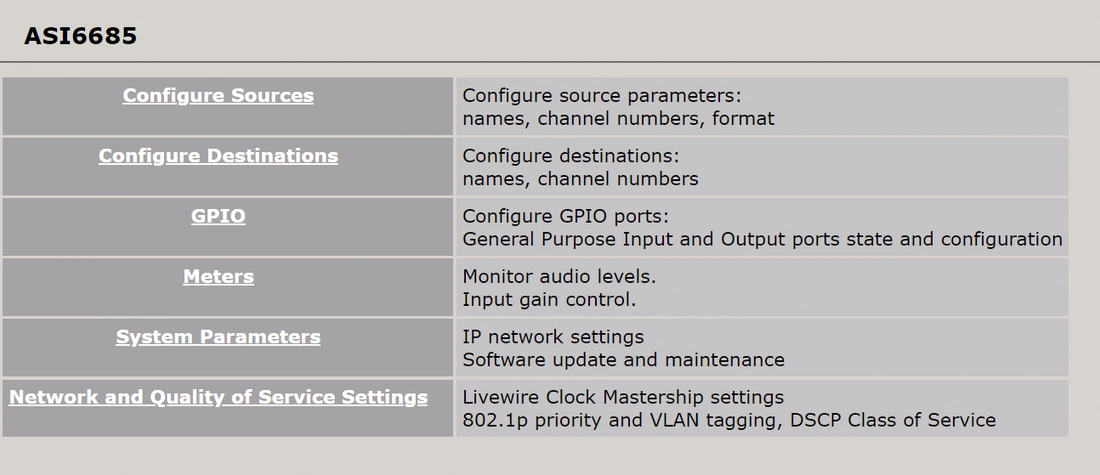

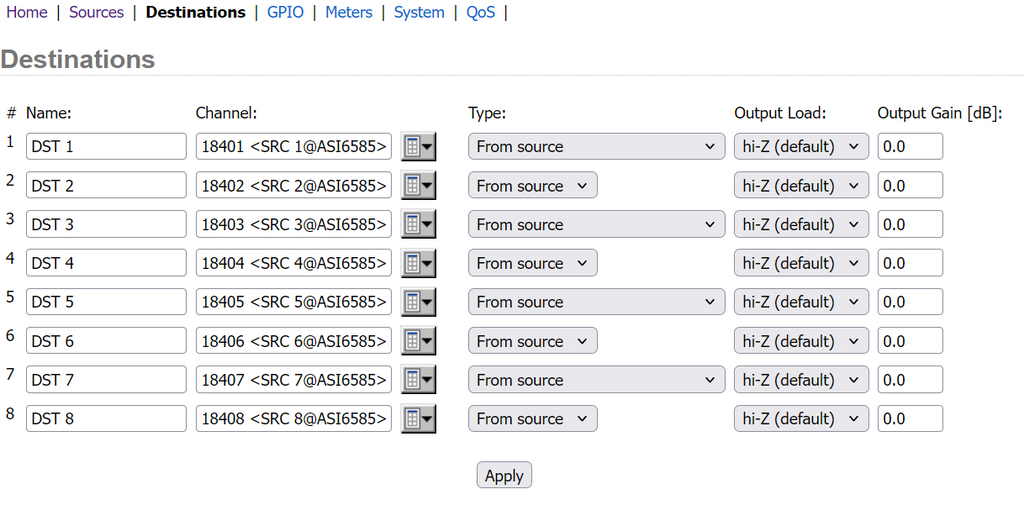

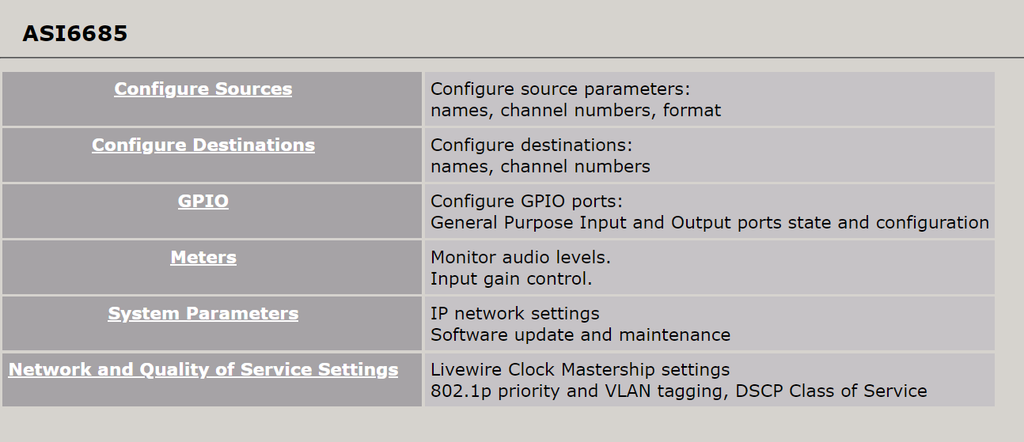

screenshot of the card under test will be included in the

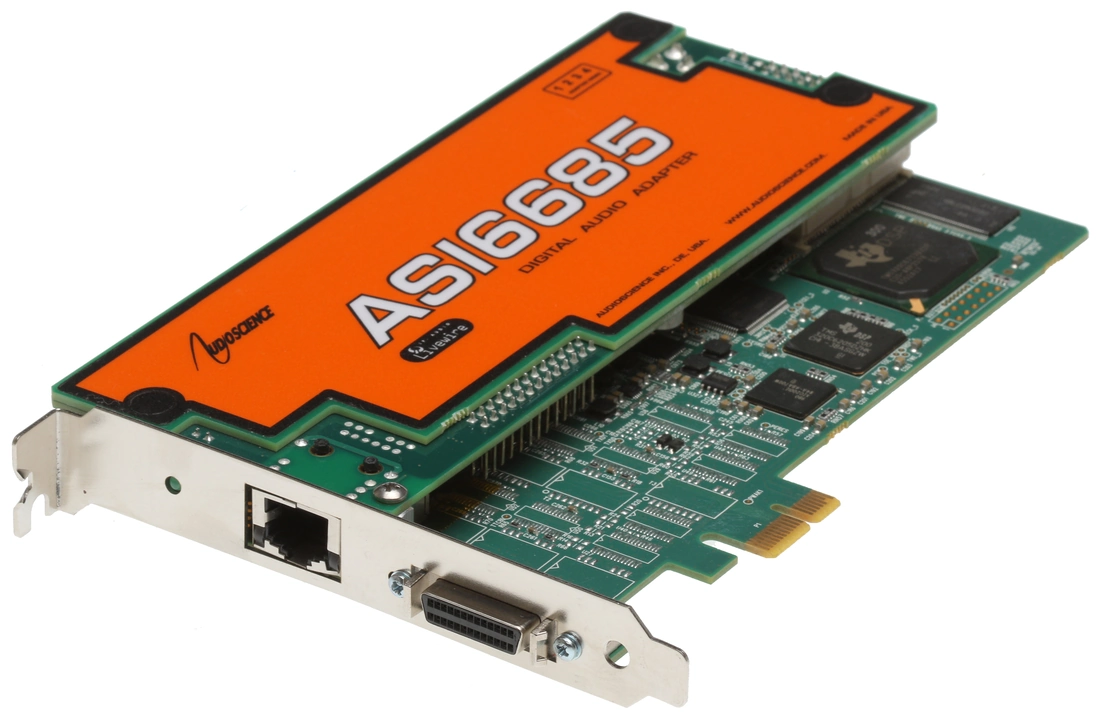

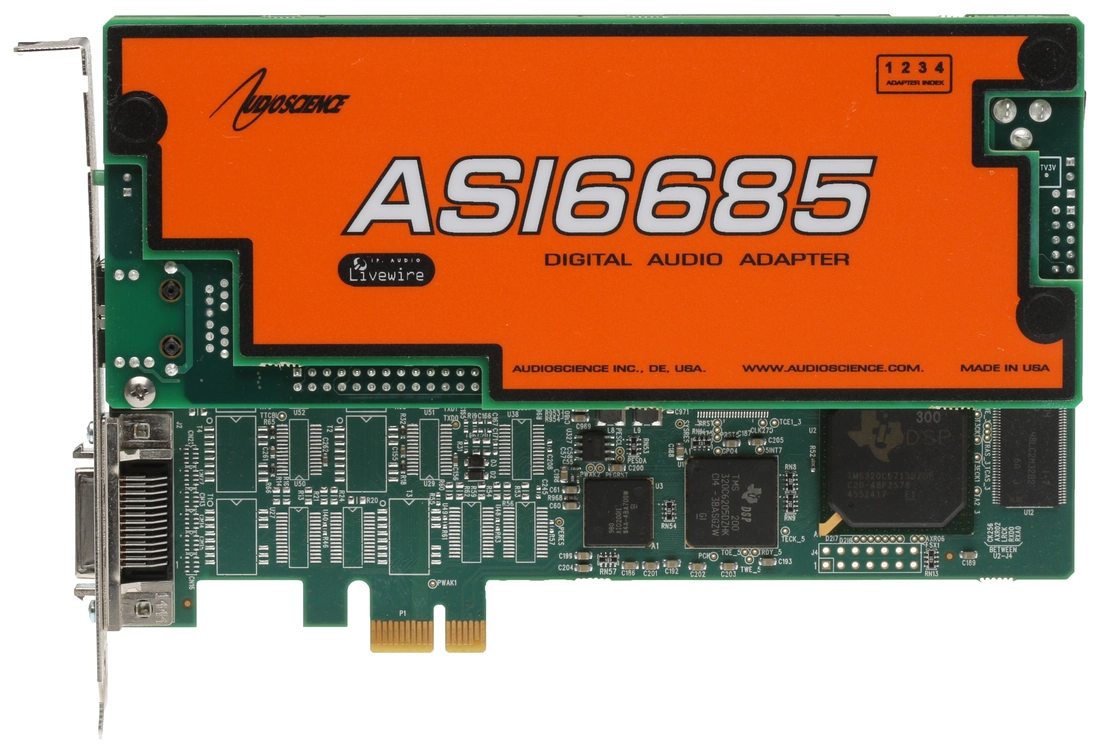

package. Note the lower mini DB26 connector has no function;
it is only there to help hold the card to the mounting
bracket. The card does not have any analog or AES digital

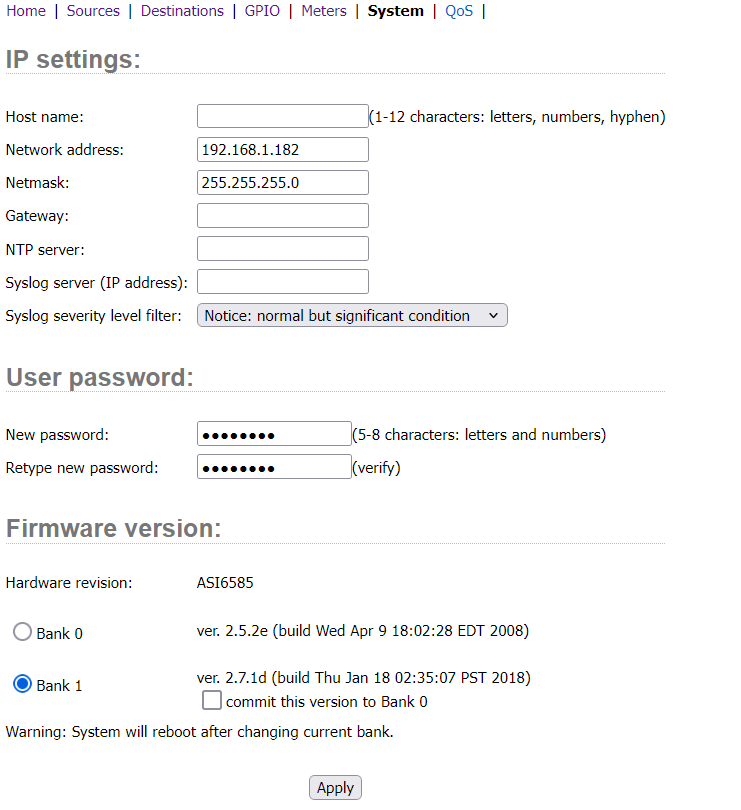

audio I/O capability. The card has been reset to the
detault IP address of 192.168.1.182. The
livewire firmware is the latest version available at the time
of listing.
Description

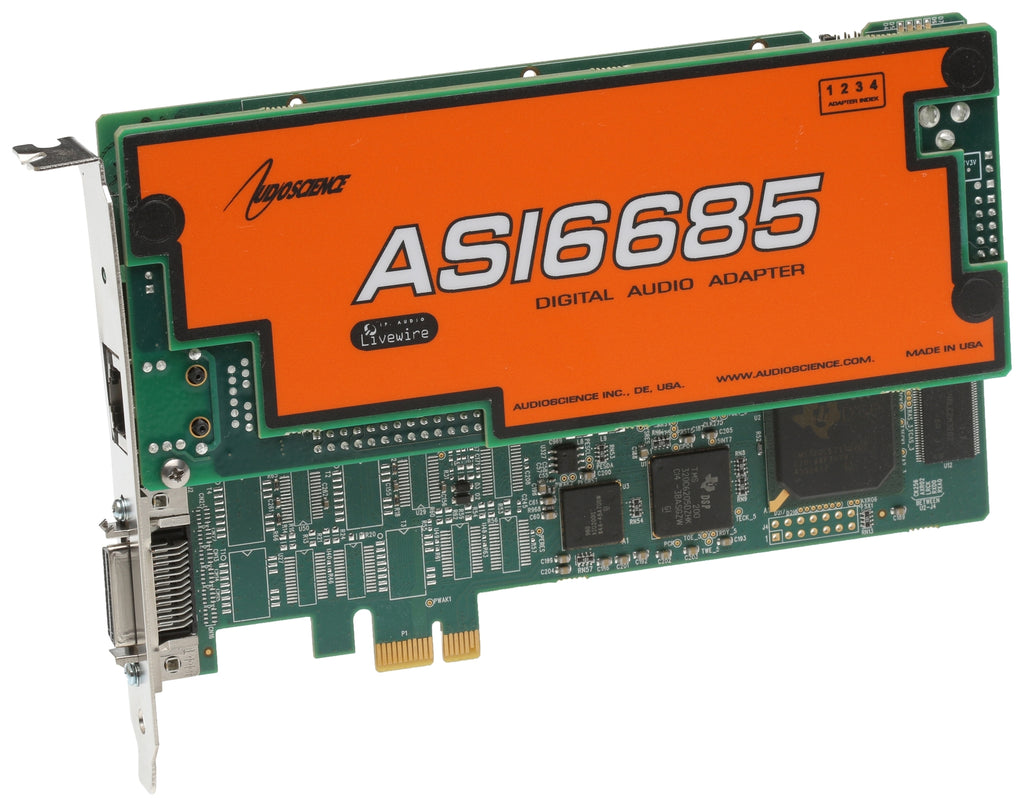

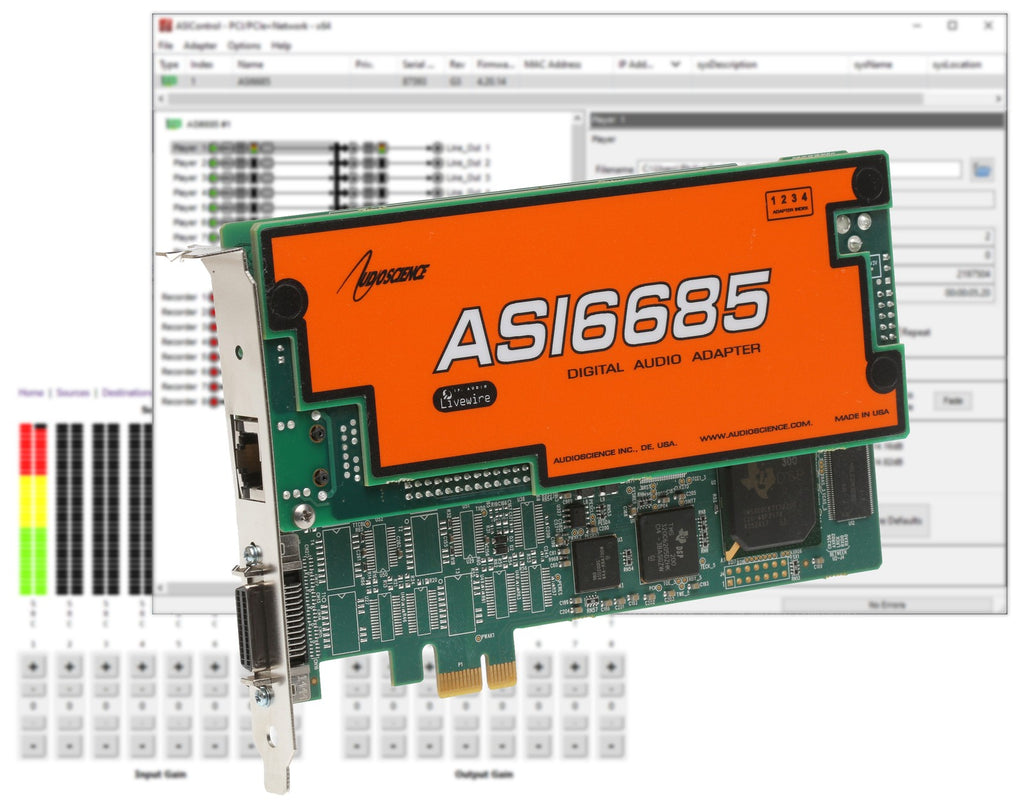

The ASI6685 is a professional PCI sound card designed for use in Axia Livewire IP-audio based radio broadcast automation systems.
It uses the Axia Livewire protocol to record and play audio streams over a standard Ethernet network.
Providing up to 16 play streams that are mixed to 8 stereo outputs and up to 16 record streamsfed from 8 stereo inputs, the ASI6685 features AudioSciences unique anything to anywhere mixing and routing.
A choice of uncompressed PCM, MPEGlayer 2, and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowingthe host computer to focus on other tasks.
DSP based functionality includes MRX multi-rate mixing technology that allows streams of differentsample-rates and formats to be mixed digitally. TSX time scalingallows compression/expansion of any or all playback streams in realtime with no change in pitch.
For emerging surround soundapplications, SSX mode allows
multichannel streams of up to 8channels to be played, recorded
and mixed.

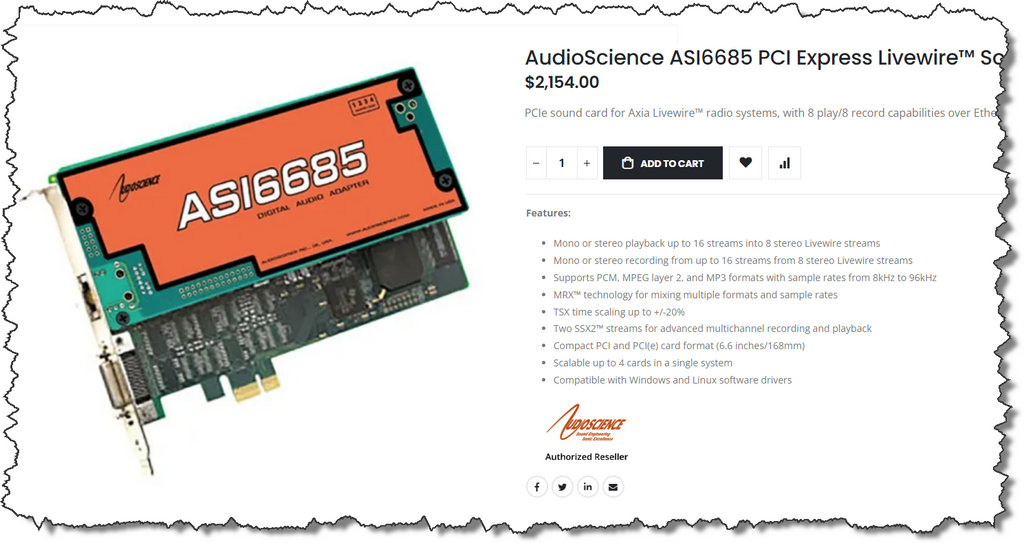

Usually Sells for $2,154
Features
- 4, 8, 12, or 16 streams of mono or stereo playback into 8 stereo Livewire streams
- Formats include PCM, MPEG layer 2 and MP3 with sample rates from 8kHz to 96kHz
- MRX technology supports mixing of multiple formatsand sample rates
- TSX time scaling by up to +/-20%25
- Two SSX streams for multichannel record and playback
- Short length PCI card format (6.6 inches/168mm)
- Up to 4 cards in one system
- Windows and Linux software drivers available at http://www.audioscience.com/internet/download/win_drivers.htm
