JK Audio Innkeeper 4 Line Broadcast Digital Hybrid Phone Audio Console Interface

Tested/Guaranteed • Very Good Condition • Fully Working • 4 Lines • 1U Rackmount • Was $1,735 • 115V/230V Auto

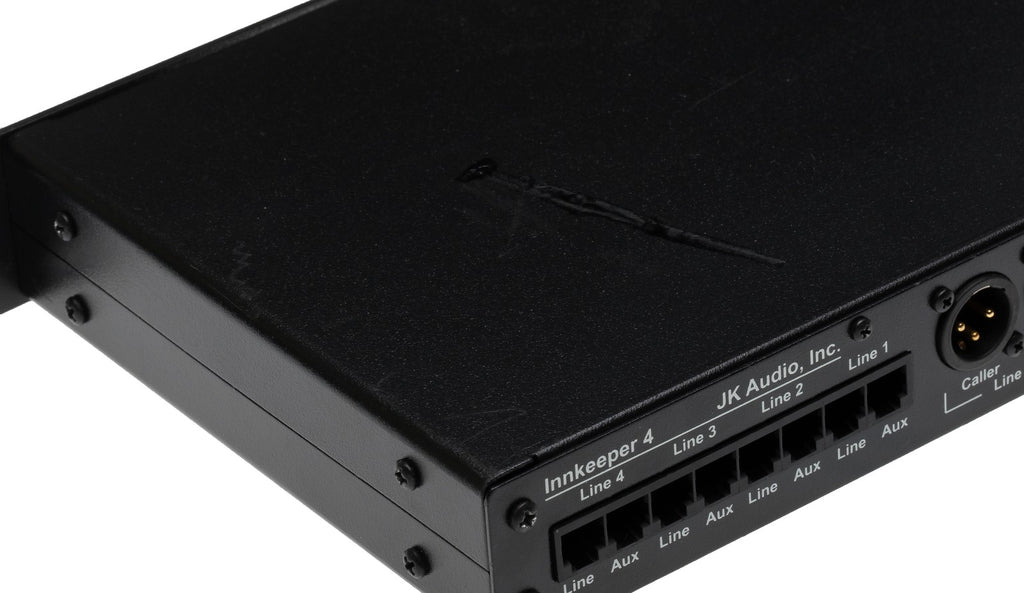

A lightly used four line hybrid unit which is in good cosmetic condition and which has been tested to confirm that it works fully.  Note that a few small blemishes in the paintwork have been retouched to improve the cosmetic condition.  These probably won't be seen when the item is in a rack and viewed from a normal distance.

Description

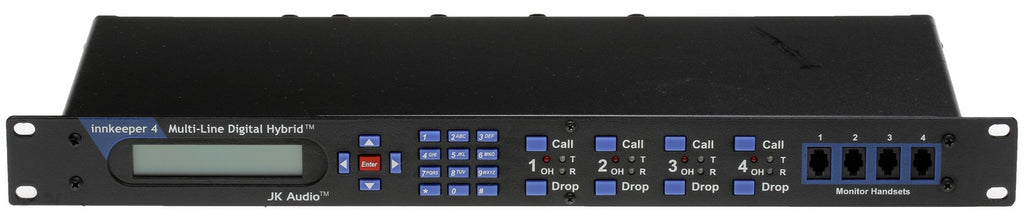

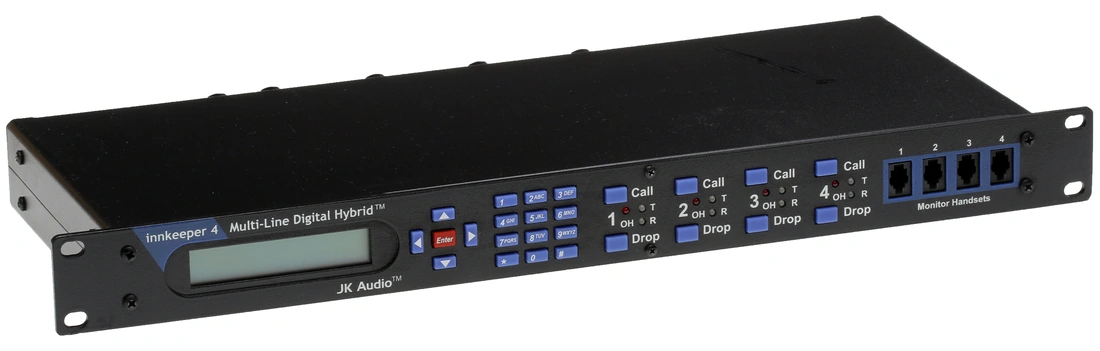

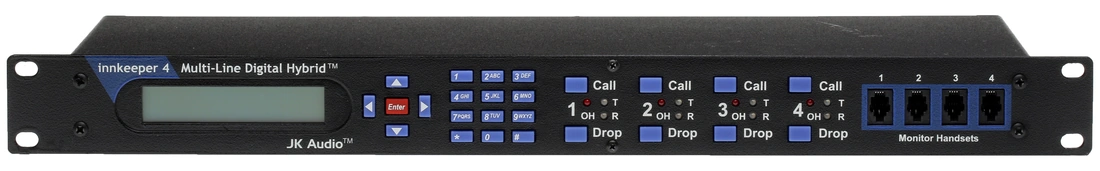

Innkeeper 4 squeezes four independent digital hybrids in a 1U rack space. The front panel keypad, display, and handset jacks provide easy speed dialing and call setup. Digital hybrids allow you to send signals into the phone line while maintaining excellent separation between your voice and the caller. The balanced XLR output jacks contain only the caller’s voice.

Full details may be found in the User Manual
(https://www.prostudioconnection.net/1909/JK-Audio-innkeeper-2-4-User-Guide.pdf)

Digital hybrids connect audio signals to standard analog telephone lines without the transmit / receive crosstalk common to analog hybrids. The Digital Signal Processor (DSP) continuously monitors both the phone line and audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation, typically exceeding 50 dB, without any setup and without sending a noise burst down the line.

Usually Sells for $1,735

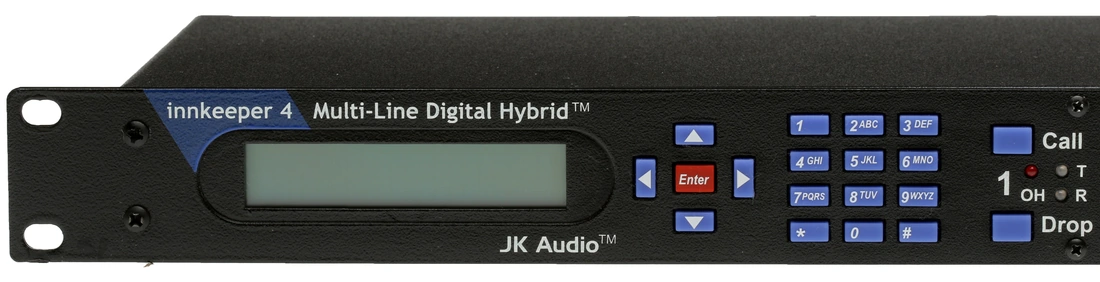

The menu driven keypad and back lit display allow you to store 50 phone numbers by name in a phone list. You can also use the display to set features such as the number of rings before auto answer, master send channel selection, and test tone output. An auxiliary telephone jack is provided for each line. The auxiliary telephone is disconnected when you press the “Call" button, and reconnected when you press the “Drop" button.

Innkeeper 4 features Auto-Answer/Auto Disconnect for use in IFB and monitoring applications. Other applications include: telephone interviews, talk shows, church PA interface, and conference room full duplex applications.

Summary

• Excellent separation of send and receive audio
• Memory / Speed Dial from phone list
• 16 bit DSP technology
• Proprietary auto null algorithm, 50 dB null

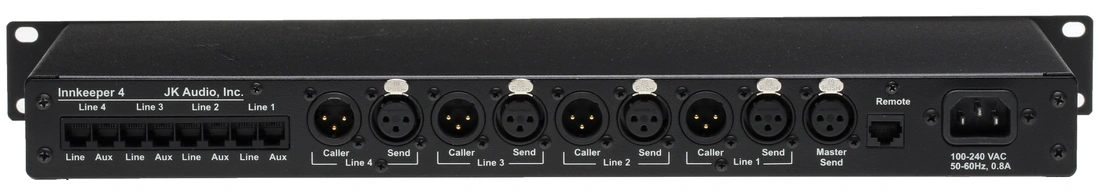

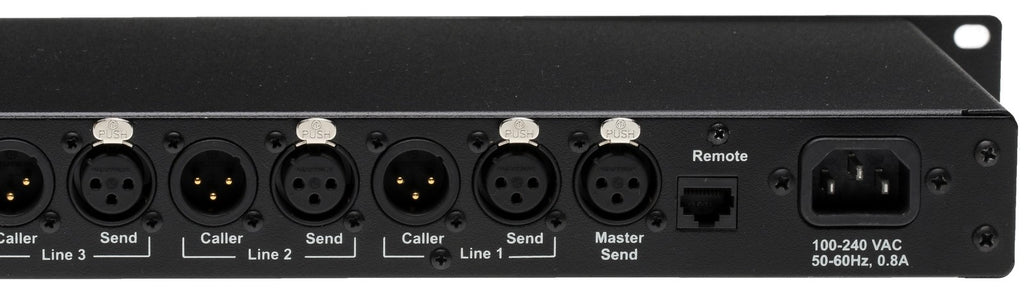

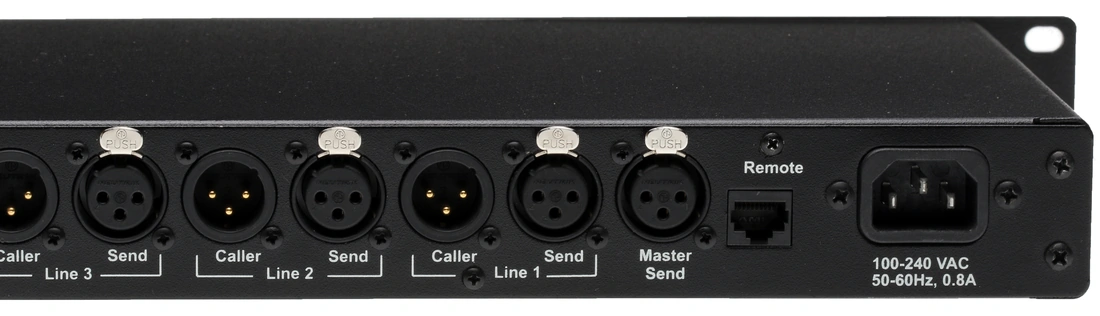

• XLR line input, one per line
• XLR master input sends audio to selected lines
• XLR caller output, one per line
• Send & Receive level LED
• Remote control and LED status indication

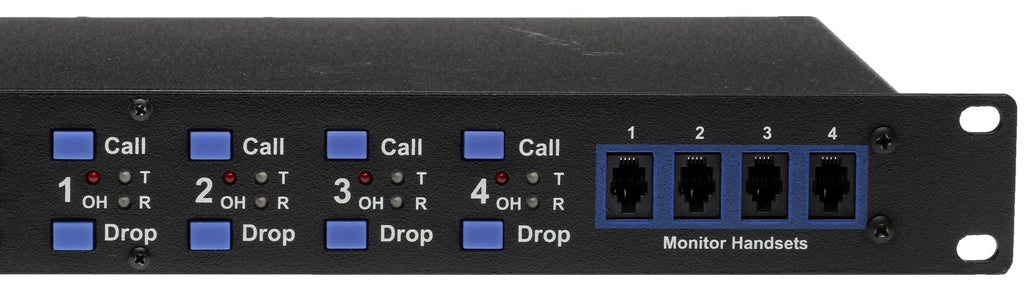

• Monitor Handset Jacks
• Auto answer/disconnect

Specifications

• Line Input: (5) Balanced Female XLR, 20k ohms, 500 mV RMS (-4dBu) nom. +10 dBu max
• Line Output: (4) Balanced male XLR, 200 ohms 500 mV RMS (-4dBu) nom. +10 dBu max
• Handset: Front panel handset jacks biased for electret handset (not included)

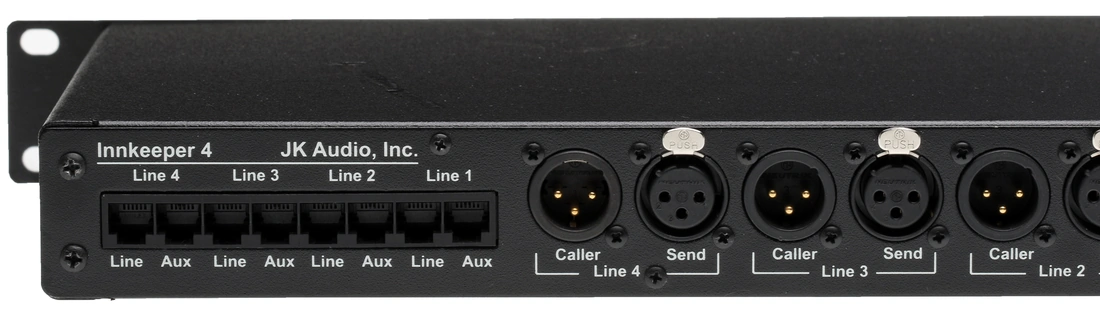

• Phone Line: (4) RJ11C
• Aux Phone: (4) RJ11C
• Isolation: 1500 VAC
• Ringer: 0.5B REN
• Frequency Response: Telephone Side 200 Hz - 3600 Hz
• Power: 120-240 VAC internal power supply
• Size: 19" x 7.3" x 1.75" (26.7 x 18.6 x 4.5 cm)
• Weight: 7.2 pounds
