Tieline TLR5200 Genie 24Bit 96KHz Redundant STL Audio Over IP Internet Codec
( 236727444529) )
Tested/Guaranteed • Lightly Used,
Very Good Condition • Latest Firmware • Audio Over IP STL
Transmitter Link Endpoint • Great for Leased Line/Radio Link
Replacement or Backup • Low Delay AAC/G.722/OPUS/MPEG Coding •
AES Digital & Balanced Analog Audio I/O • 1U Rackmount
Format

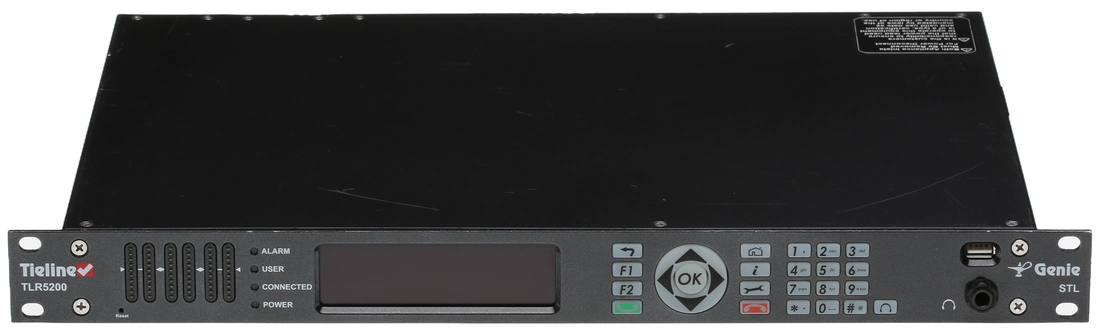

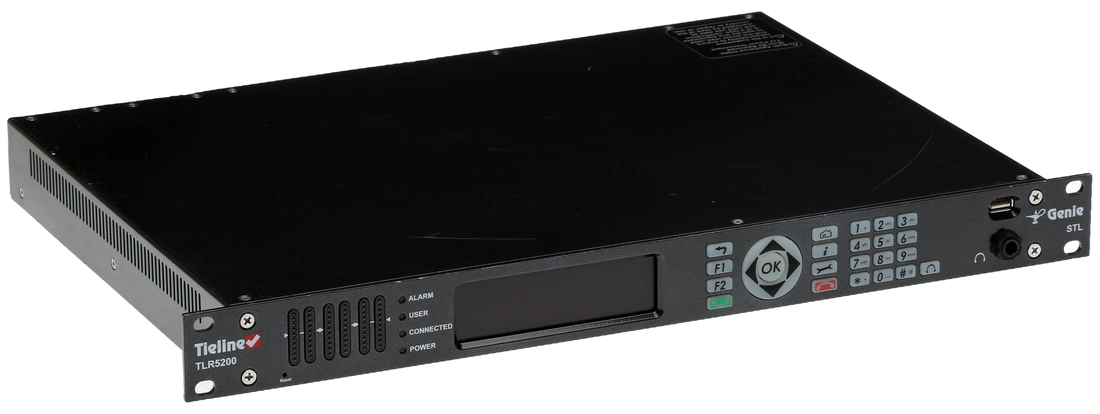

Photos show the actual item for sale
A lightly used Tieline Genie STL Audio over
IP codec. The unit has been updated with the latest firmware and
reset to factory default settings (logon is admin:password, and
the IP address is assigned by DHCP). Further information may be
obtained from the User Manual at
https://www.prostudioconnection.net/2603/Tieline_TLR5200_Datasheet.pdf.
The
photos
show the actual item for sale. No accessory modules are included.
When it comes to advanced, high-tech, and sophisticated audio transmission, the Genie STL IP Enabled Audio Codec stands out as a state-of-the-art solution. This innovative audio codec, designed for the latest digital IP broadcast networks, is packed with features that ensure power, audio, and network redundancy.

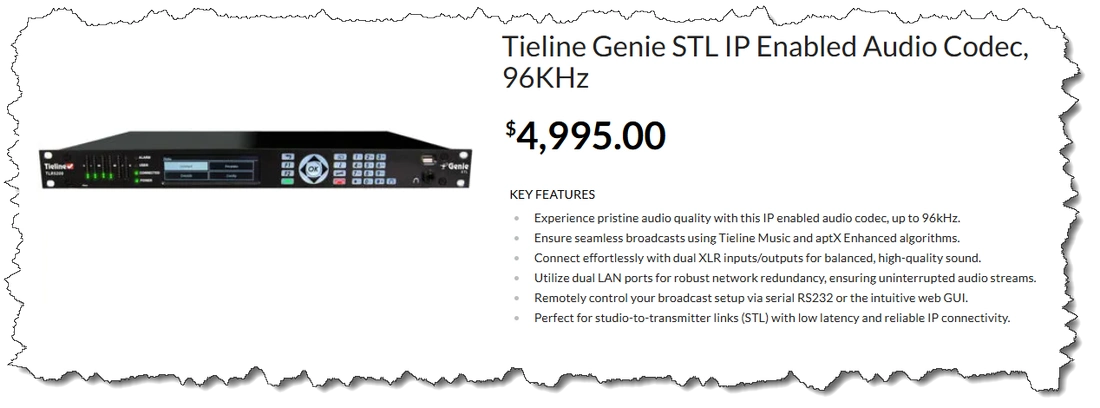

Usually Sells For $4,995
This audio codec excels in delivering superior quality audio over IP (AoIP) on various networks such as LANs, WANs, the internet, satellite IP, cellular, Wi-MAX, and Wi-Fi. It's specifically engineered for continuous operation over mission-critical audio paths throughout broadcast IP networks.
The Genie STL is ideal for Mono, Stereo, and Dual Mono Studio-to-Transmitter Links (STLs), Studio-to-Studio Links, and can multicast in mono or stereo to unlimited endpoints over compatible networks. It also supports multi-unicast to up to 10 endpoints.
In the event of network failure, the Genie STL offers multiple backup options, including automated network failure detection and switching to a backup IP LAN connection. It can also switch to backup ISDN or POTS connections using optional ISDN or POTS modules.

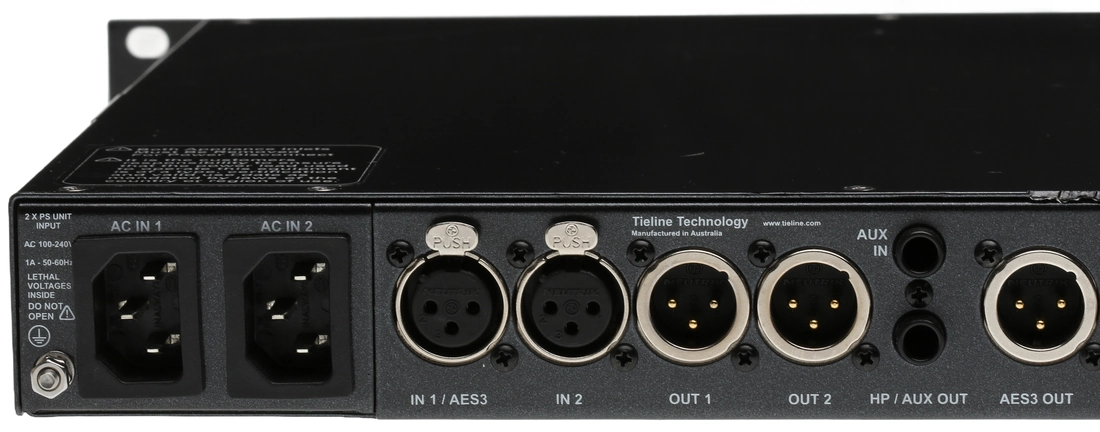

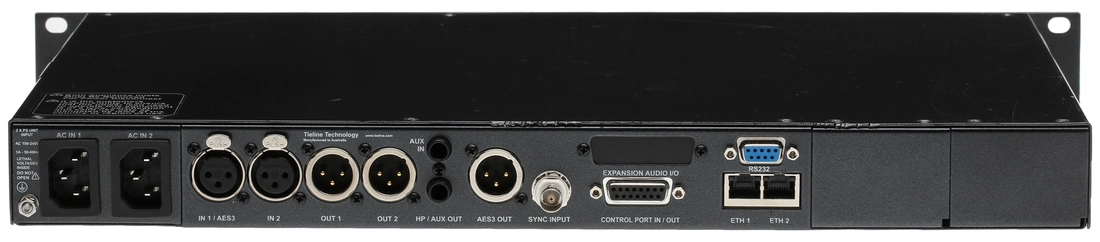

The Genie STL boasts a robust DSP-based architecture designed for rock-solid, mission-critical STL audio. It supports 24 Bit 96kHz audio sampling (32kHz audio quality) and offers both Analog and Digital (AES3) inputs and outputs.

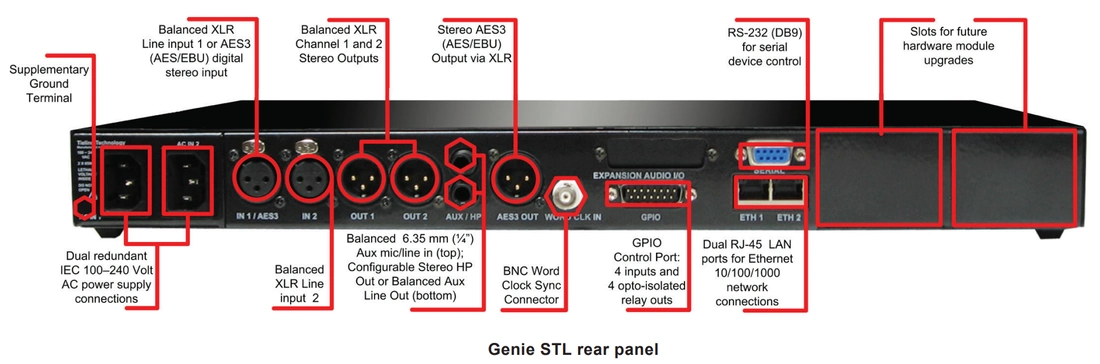

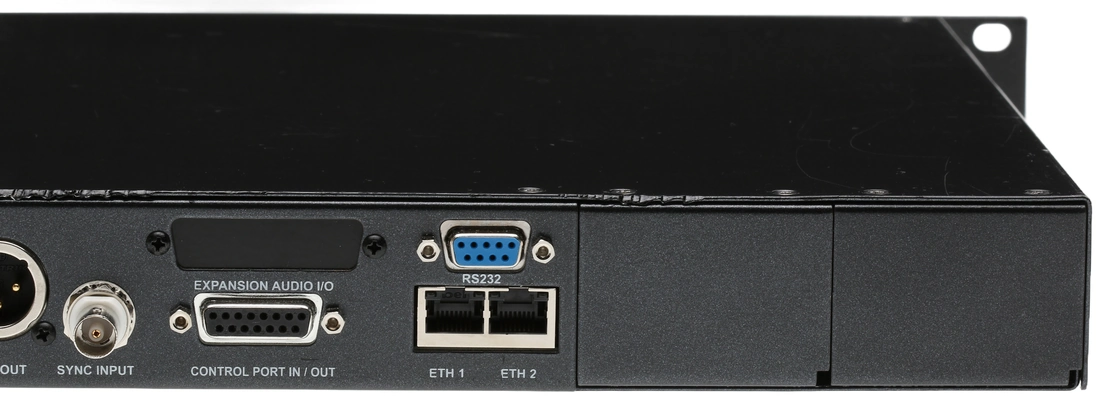

Connectivity is a breeze with dual 1 Gigabit (10/100/1000) Ethernet ports that support automatic switching for redundancy. You can also connect over Wi-Fi using USB Wi-Fi dongles.
The Genie STL is compatible with EBU N/ACIP 3326 for interoperability with other codec manufacturers and supports up to 4 output audio source fail-over options. It also offers SmartStream PLUS dual redundant IP streaming and Fuse-IP network bonding of Ethernet ports or Ethernet and Wi-Fi.

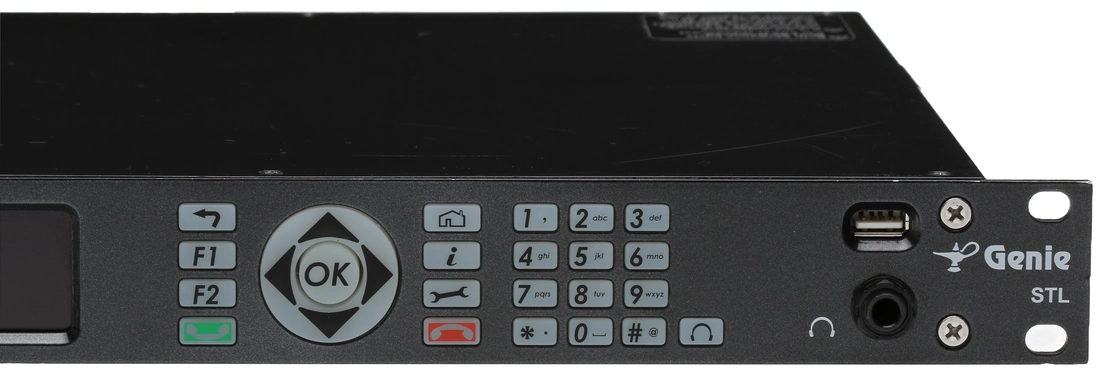

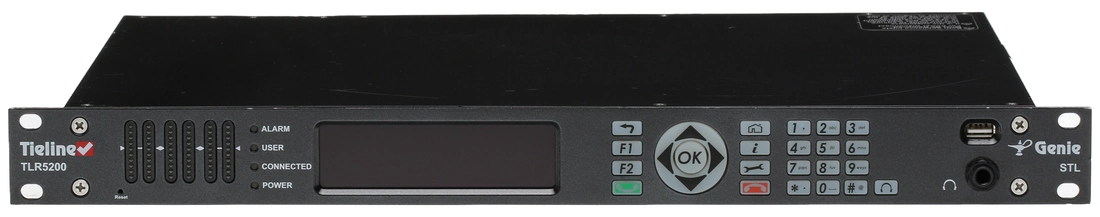

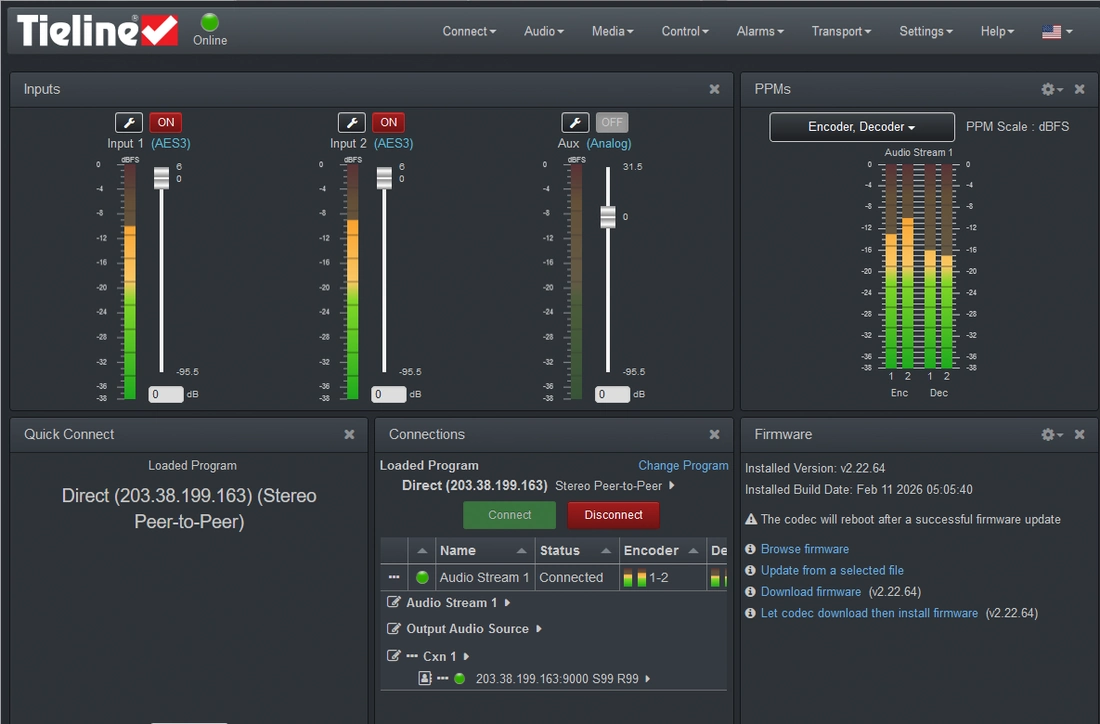

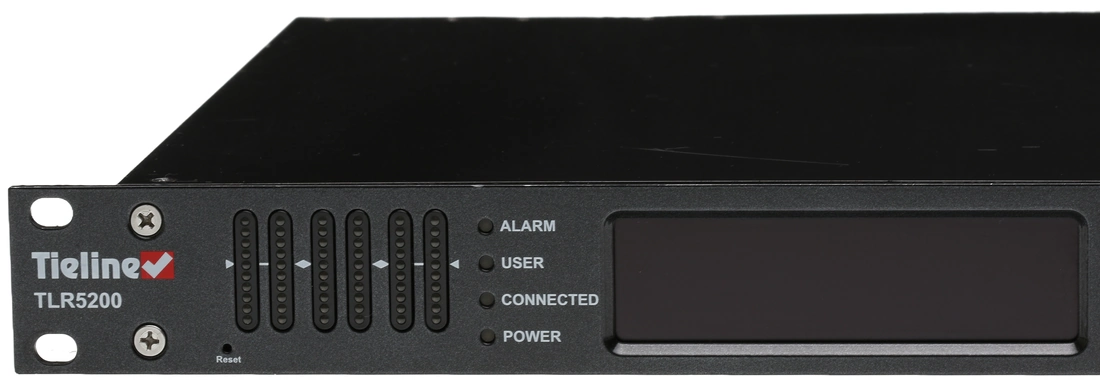

The Genie STL is user-friendly with a full hardware front panel interface, including navigation, LCD display, PPM meters, and dialing keypad. It also offers a user-friendly HTML5 Toolbox Web-GUI for remote codec configuration and control over WANs.
Security is paramount with the Genie STL, offering user name and password protection of codec and Toolbox Web-GUI, support for SSL Security Certificate installation, and SIP Whitelists and Blacklists for filtering of SIP URIs and User Agents.
In conclusion, the Genie STL IP Enabled Audio Codec is a
comprehensive solution for professional audio applications,
offering superior quality, versatility, and security.
Tieline Genie STL Features
- USB Audio Backup - Automatically play backup audio files on USB storage if the connection is lost
- Dual Ethernet Ports - Simultaneously connect over different Telcos using separate LAN ports for diversity using SmartStream PLUS
- Module Compatible - Expand connectivity options with optional POTS/PSTN or ISDN Modules
- Dual Redundant Power Supplies - Dual Power Supplies to protect you in case one fails
- Multi-Unicast - Multi-Unicast to up to 10 end-points; 1st connection bidirectional
- Multicast - Multicast to unlimited IP codecs over supported networks
- Alarms - Silence, Detection, PSU Failure, Lost connection, Temperature, AES Input Lost, AES Reference Lost, SNMP
- Wi-Fi (USB Dongle) - Expand your network options and connect over Wi-Fi networks
- Expanded Backup Options - Genie STL IP codecs have multiple levels of power, audio and network redundancy.
- The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you're always on the air.
