TrueTime Symmetricom XL-DC GPS NTP Server TCXO 10Mhz Oscillator LCD Clock IRIG-B [Refurbished]

( 365861657711) )

$599.00 $0.00      (1 available in stock)

Tested/Guaranteed • TCXO Oscillator • NTP Server (AUI Interface) • Large Left LCD Time Display • 5V Antenna Power • GPS Disciplined 10MHz Oscillator • Atomic Clock Timecode Receiver • 10Mhz 5Mhz 1MHz Sine Wave Outputs • IRIG-B / 1PPS • 115V or 230V Power • RS-232 Input/Ouput

https://www.prostudioconnection.net/2509/C1028523c.jpg

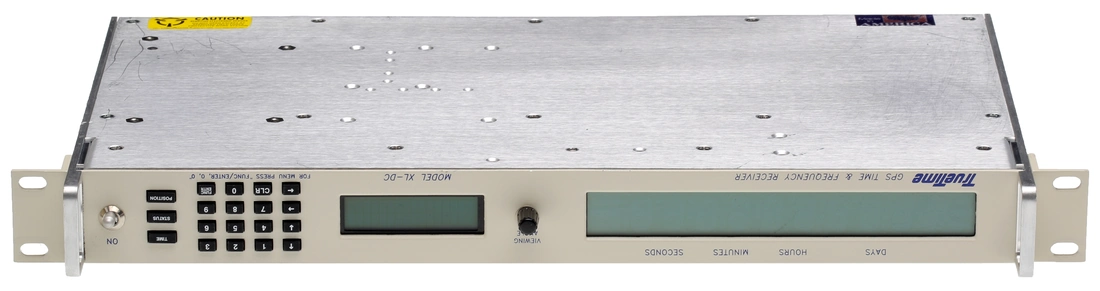

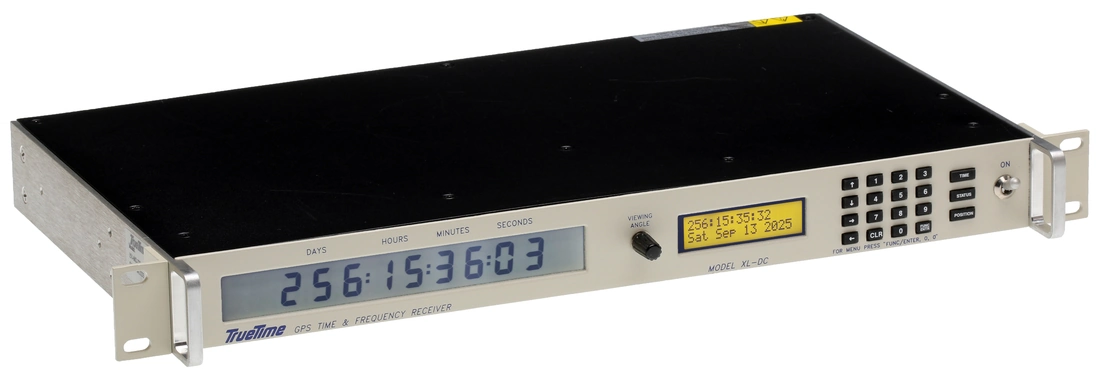

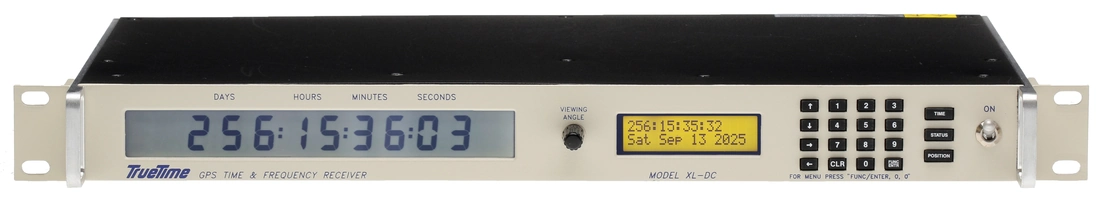

Actual item for sale

https://www.prostudioconnection.net/2509/C1028529.JPG

Description

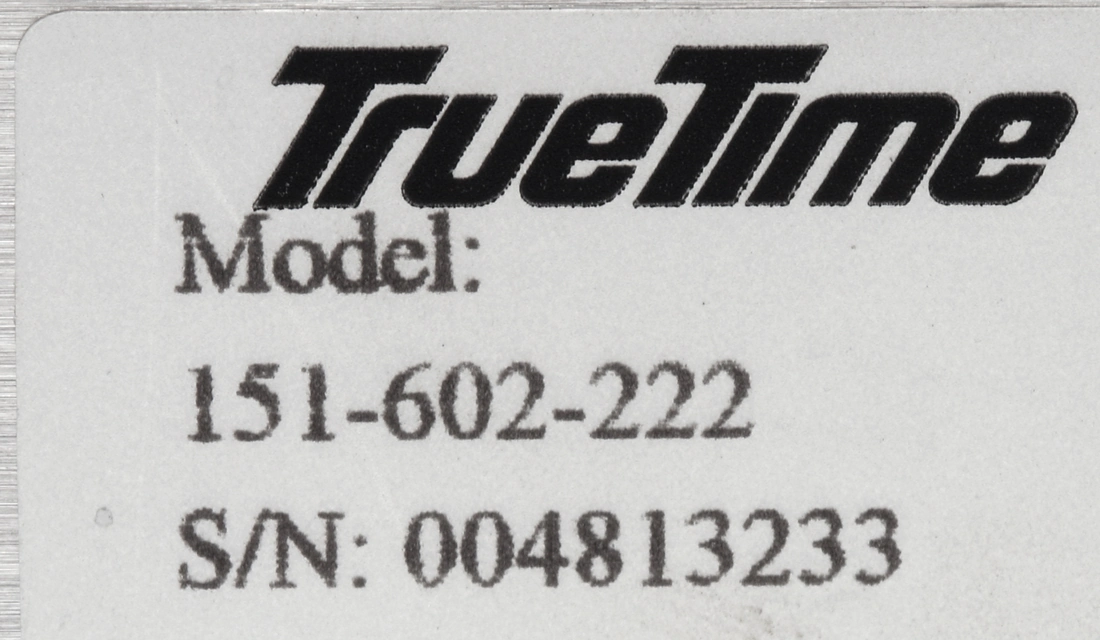

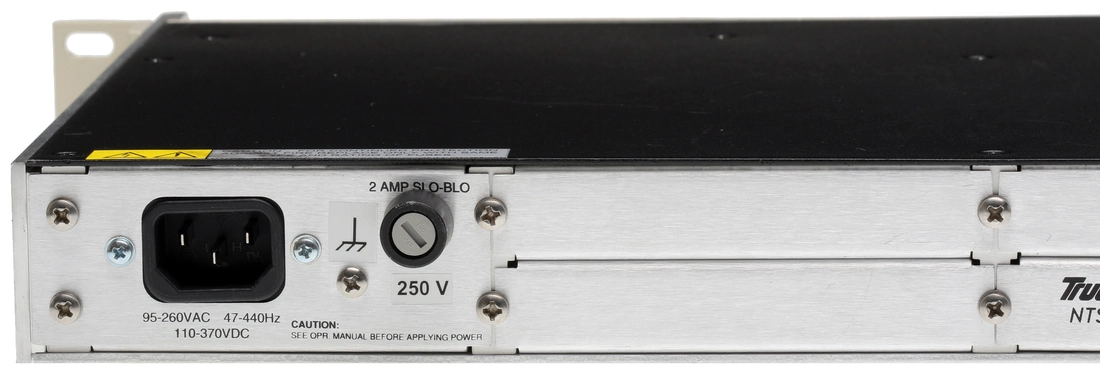

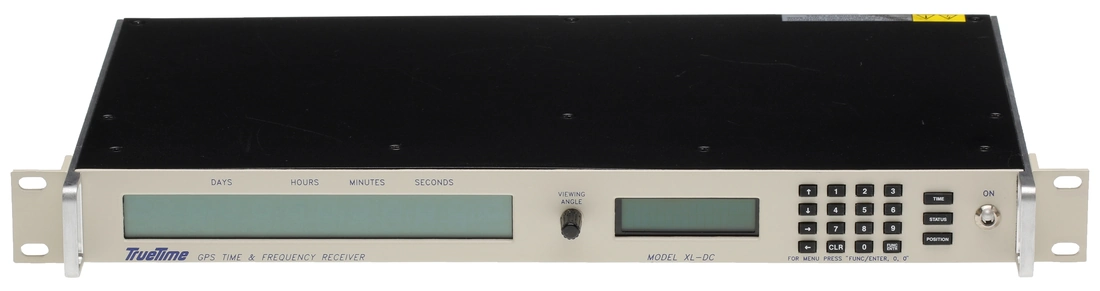

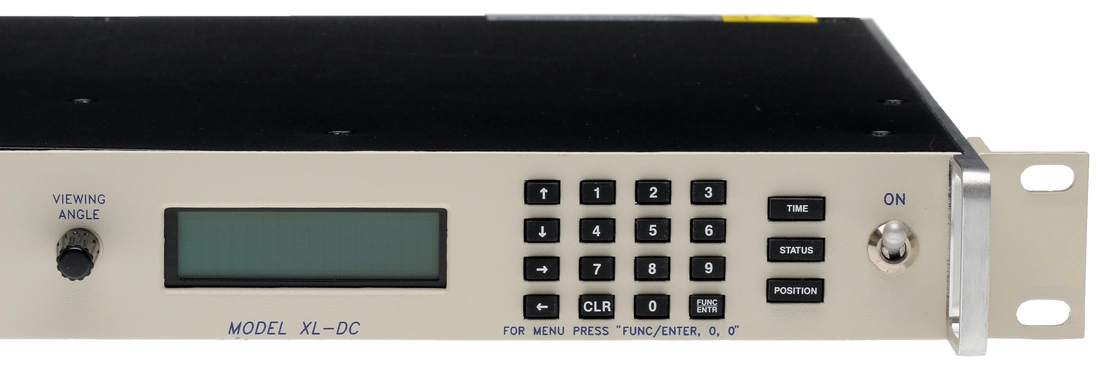

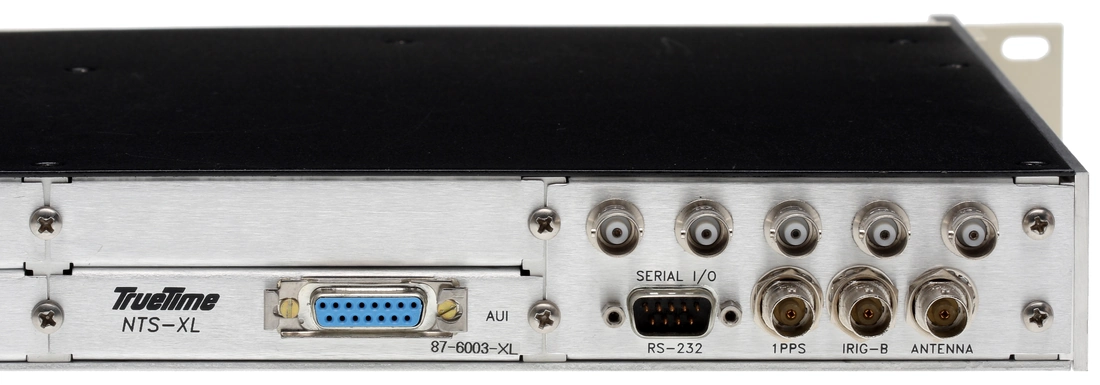

Here's a lightly used TrueTime/Symmetricom XL-DC GPS time receiver/timecode generator in very good cosmetic condition. It has a NTS-XL NTP Server option card installed. The network connection at the rear is via an AUI port. AUI to 10Base-T RJ45 converters are cheap and readily available - see here. This supports static IPv4 addressing only. It has been tested for acquisition of GPS Sync and for good Time, Date, NTP, Timecode and Frequency outputs. The unit works as expected. The output from the console report obtained during testing is provided below. The receiver is equipped with a TCXO oscillator. The internal Lithium memory back up battery has just been replaced so that should not need further attention for some years. The right LCD displays has a backlight. Some small nicks and scratches (eg. on the rack ears) have been touched up using color-matched paint so that the unit should look close to pristine when seen in a rack at a normal viewing distance.

A basic test antenna is included to get you started - so you may need to take both receiver and antenna into the open air to test the device. The Antenna voltage is 5V so almost any good quality GPS antenna should work, but try and have at least 26dB of antenna gain if you want to replicate my test results. A Symmetricom AT575 type is recommended and I usually have some listed separately. Rack ears are included as shown. No printed manual is included but a copy may be downloaded from the link below. No unpictured cables, accessories or documents are included.

https://www.prostudioconnection.net/2509/XL-DC_Manual_qr-code.png

https://www.prostudioconnection.net/2509/C1028521c.jpg

Actual item for sale

Features

  • Less Than 40 Nanoseconds rms Accuracy to UTC
  • Better Than 1x10-12 Frequency Accuracy
  • Versatile and Modular Architecture
  • Supports Many Different Output Options
  • 10Mhz and 5Mhz Sine Wave Outputs
  • 1 PPS Output
  • IRIG B Time Code Output

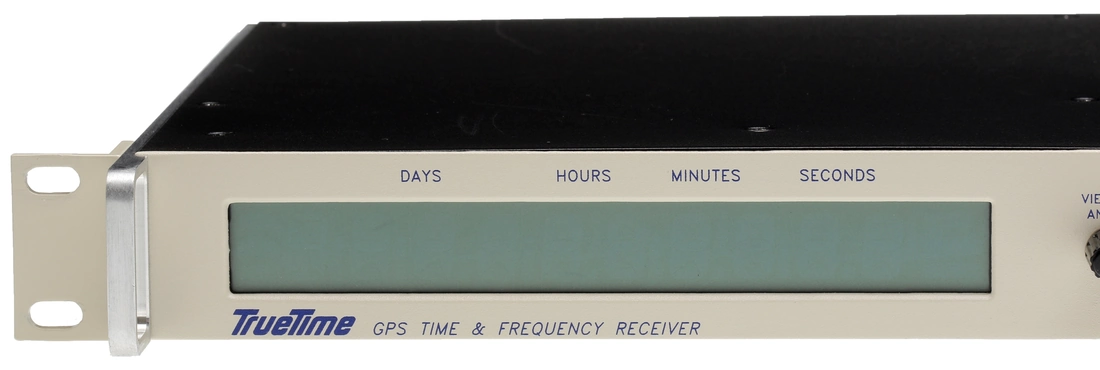

https://www.prostudioconnection.net/2509/C1028524.JPG

https://www.prostudioconnection.net/2509/C1028525.JPG
Console Port Output to Serial Commands

256:15:37:34

256:15:37:35



F01 +00:00

F02 24

F03  UTC  09/13/25 15:37:46

F05 ON  00000001000 00000010000 00000100000 00001000000

f07

ERROR 05 NO SUCH FUNCTION

F11

F13 00.000000200

f14

ERROR 05 NO SUCH FUNCTION

F15 OFF

f18

TRUETIME XL     ACE sys ver 028 GPS-XL V1.045   182-6007v027

f26

ERROR 05 NO SUCH FUNCTION

f28

ERROR 05 NO SUCH FUNCTION

f29

ERROR 05 NO SUCH FUNCTION

F50 N 28d32'11.0" W 081d26'9.7"     5m pdop  2.74

F51        +50ns

F52         +0ns

F53 AUTO: 7 SATS

F55 METERS

F56 N 28d32'11.1" W 081d39'9.7"     9m COUNT 51846 / 90000

f60

F60 prn 1   good  enabled                 sig level=  +0.00

F60 prn 18  good  enabled tracked current sig level= +12.60

F60 prn 26  good  enabled                 sig level=  +0.00

F60 prn 29  good  enabled                 sig level=  +0.00

F60 prn 5   good  enabled                 sig level=  +0.00

F60 prn 20  good  enabled                 sig level=  +0.00

F60 prn 22  good  enabled                 sig level=  +0.00

F60 prn 2   good  enabled                 sig level=  +0.00

F60 prn 31  good  enabled                 sig level=  +0.00

F60 prn 7   good  enabled                 sig level=  +0.00

F60 prn 28  good  enabled                 sig level=  +0.00

F60 prn 4   good  enabled                 sig level=  +0.00

F60 prn 15  good  enabled tracked current sig level= +11.80

F60 prn 24  good  enabled tracked current sig level= +14.20

F60 prn 19  good  enabled                 sig level=  +0.00

F60 prn 9   good  enabled                 sig level=  +0.00

F60 prn 25  good  enabled                 sig level=  +0.00

F60 prn 27  good  enabled tracked current sig level=  +2.60

F60 prn 6   good  enabled                 sig level=  +0.00

F60 prn 14  good  enabled                 sig level=  +0.00

F60 prn 23  good  enabled tracked current sig level= +11.80

F60 prn 21  good  enabled                 sig level=  +0.00

F60 prn 16  good  enabled                 sig level=  +0.00

F60 prn 3   good  enabled                 sig level=  +0.00

F60 prn 8   good  enabled                 sig level=  +0.00

F60 prn 10  good  enabled tracked current sig level= +10.40

F60 prn 11  good  enabled                 sig level=  +0.00

F60 prn 12  good  enabled                 sig level=  +0.00

F60 prn 13  good  enabled                 sig level=  +0.00

F60 prn 30  good  enabled                 sig level=  +0.00

F60 prn 32  good  enabled tracked current sig level=  +5.40

F60 prn 17  good  enabled                 sig level=  +0.00



F66 OFF

F69 UTC

F68 2006

F69 UTC

F71 phase=-4.220E-08 s  offset=-8.182E-10  drift=-1.438E-07/DAY  DAC=-15198

F72 Antenna: OK  PLL: OK  GPS: Locked

F73 SLBA6G--- M-------- m--------
