Leitch ADC-5105 L Illuminated 5" Studio Analog Desktop Clock SMPTE/EBU Timecode

Leitch ADC-5105L Illuminated 5" Desktop Analog Studio Clock • List $595 • New Old Stock in Plain packaging • 115V

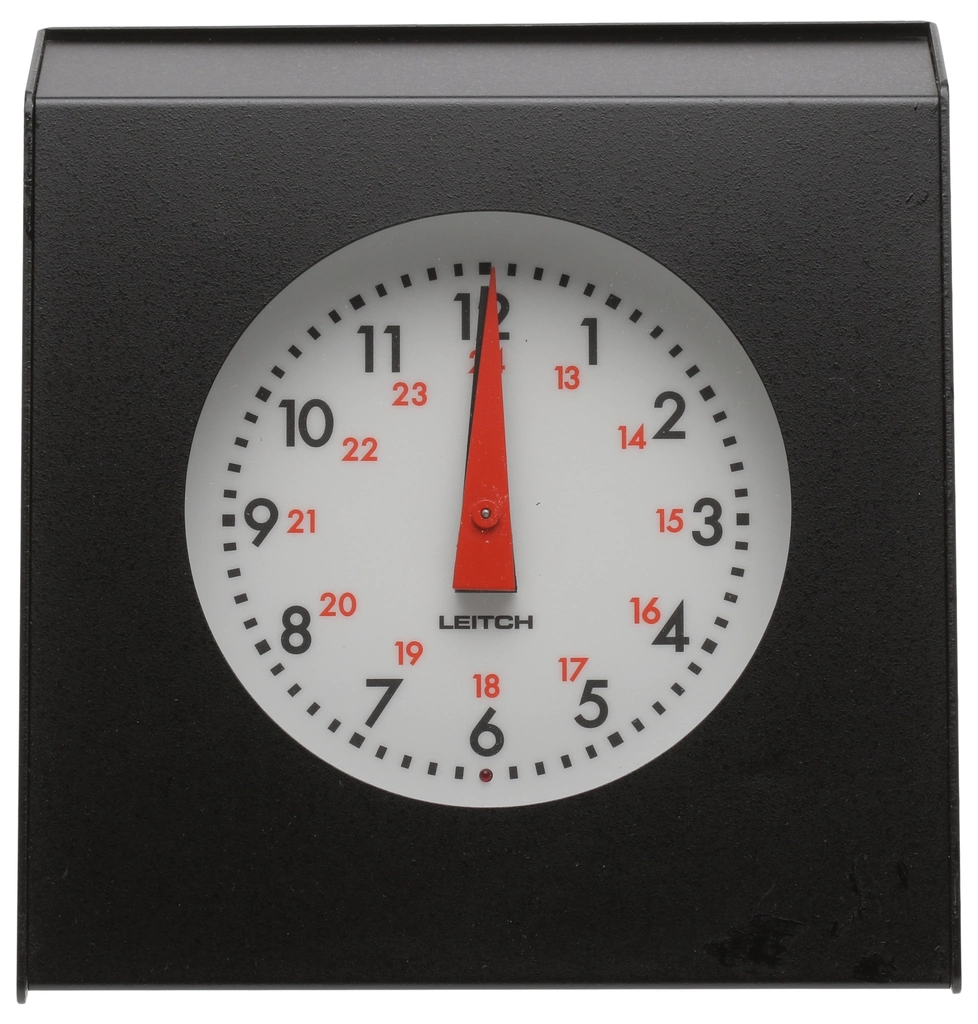

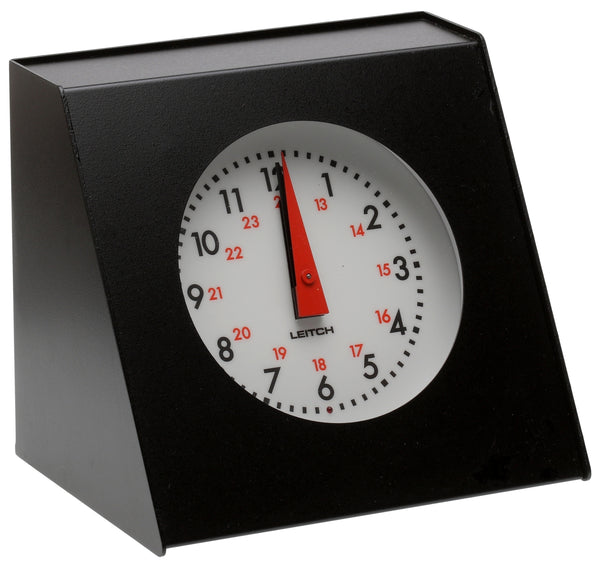

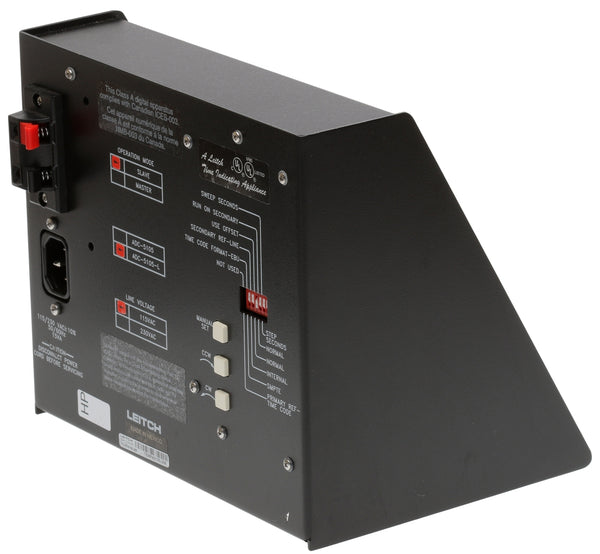

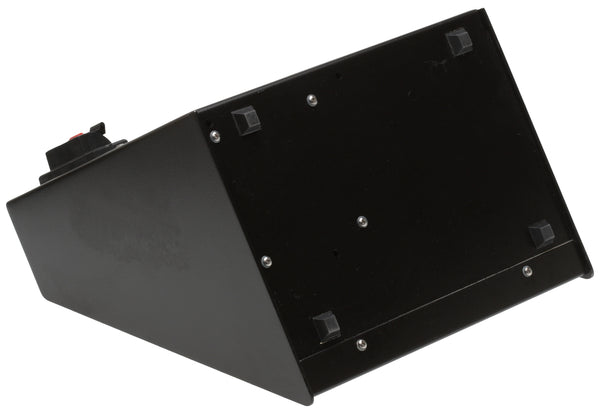

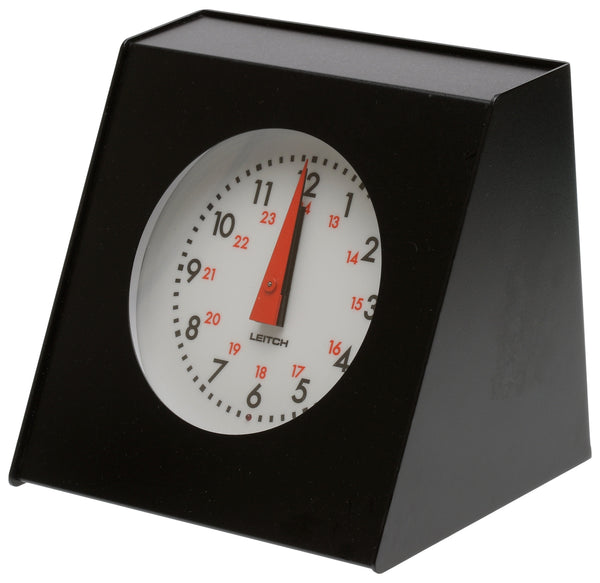

Actual item for sale

New old stock in plain packaging. B-stock - ie. new/unused with functioning white backlight and near silent mechanism but with just a few minor non-performance affecting blemishes that have been retouched with matching paint. May be outside manufacturer's warranty period. Any internal battery is not warrantied and it should be assumed that it needs replacing (and the hand positions reset) before installation.

The ADC-5100 Series clocks are designed to combine the advantages of large, easily read analog time displays with the self-setting capability of digital SMPTE/EBU serial time code readers. This advanced mode is made possible by a unique digitally-controlled drive mechanism. A microprocessor is used to decode the digital information and precisely position the hands.

Features:

• Completely self-setting with SMPTE/EBU time code input or battery back-up [battery not warantied]
• Sweeping or stepping second hand movement
• Built-in quartz time base oscillator with battery back-up [battery not warrantied]
• Runs on 60 Hz, 115 VAC power line

Please see the User Manual for full information.

Specifications

Electrical

• 115/230 VAC 20%25 Internally selectable
• 50/60 Hz Automatic selection
• Power 15VA

Primary Drive Inputs

• Serial Time Code drop frame SMPTE/EBU
• Impedance Hi-Z, balanced
• Level 4 Vp-p, ±8 dB

Outputs

• Serial time code SMPTE/EBU (non-Drop Frame)
• Impedance Low-Z, balanced
• Level +10dBm nominal unloaded, -3dB into 180 ohms

Time Bases

• Time code SMPTE/EBU, automatic selection
• Internal Crystal,± 4 sec/month, 0 -50°C
• Power line 50/60Hz, automatic selection
• Battery backup Crystal, ±10 sec/month, 0 -50°C

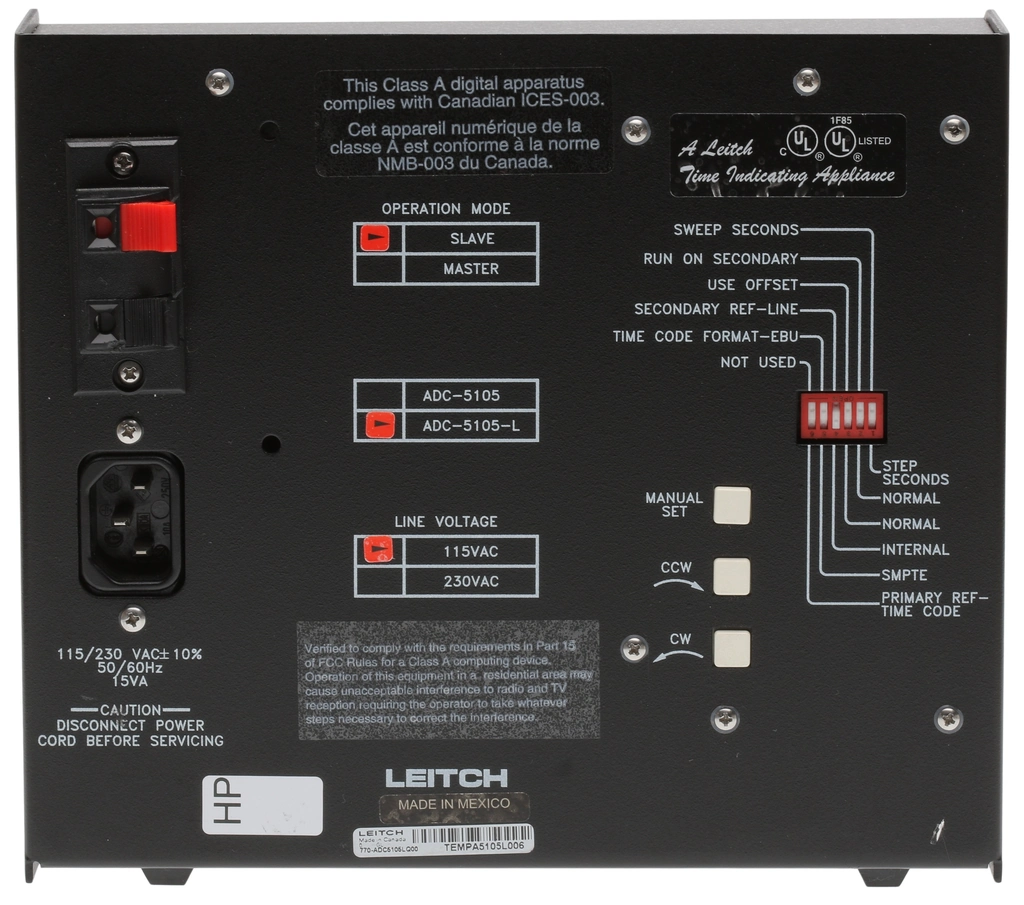

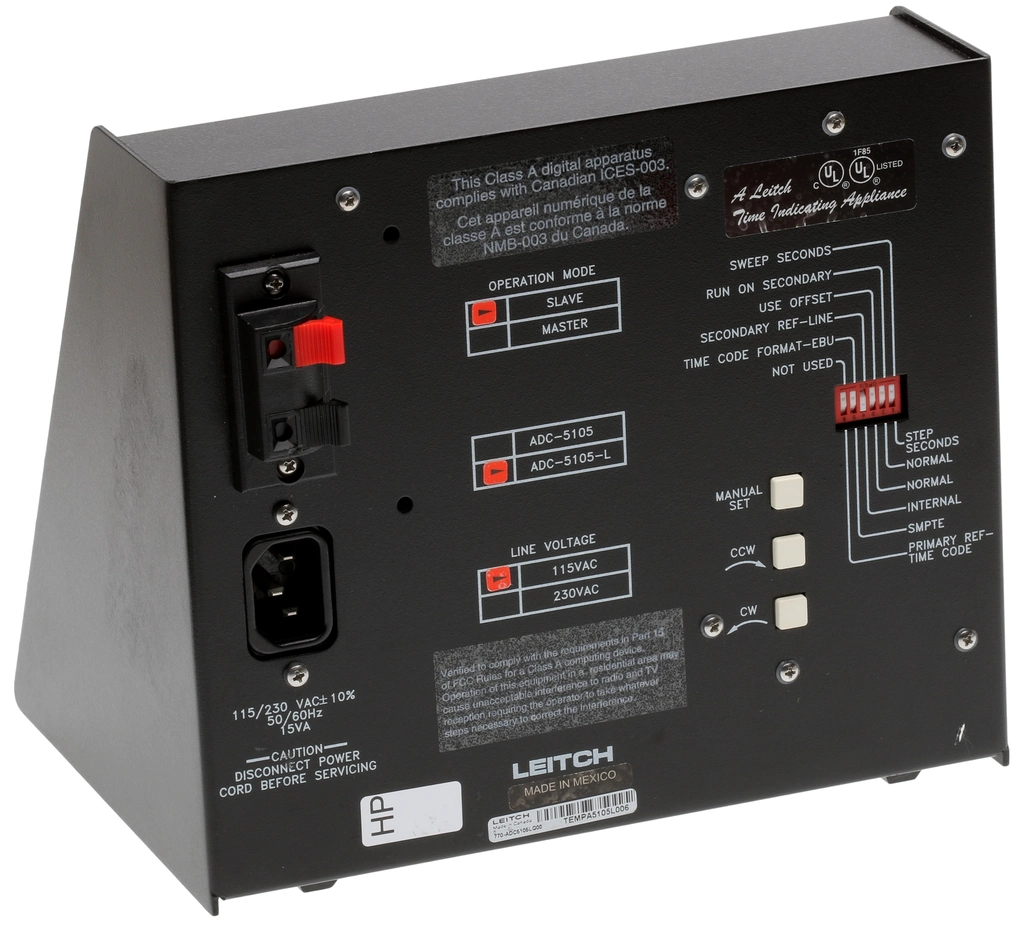

Controls

• Output time code format SMPTE or EBU (non-Drop Frame)
• Secondary reference Internal or Power Line
• Second hand movement Step or Continuous Sweep
• Aux. offset Requires Harris CSD-3902 Clock System Driver
• Local offset Any amount, user selectable
