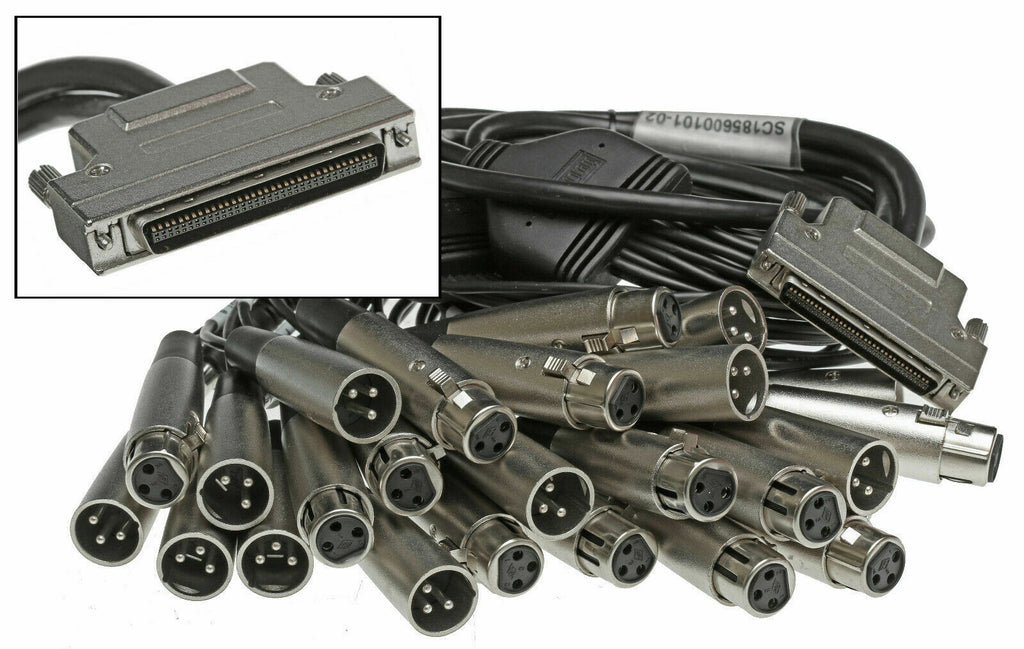

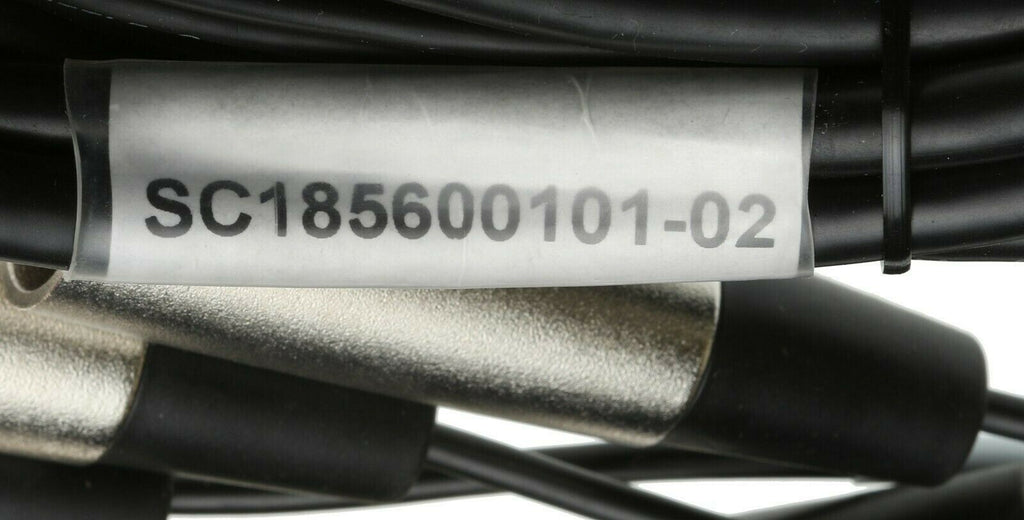

Digigram SC185600101-02 VX882e XLR Breakout Cable AES Digital/Balanced Analog
( 287487951926) )
Lightly Used • Digigram Part SC185600101-02 • VX882e XLR Breakout Cable • AES Digital/Balanced Analog Channels
Description
A replacement cable that originally shipped with the later (ie. dark blue decal) VX882e PCIe (PCI Express) card.
There are two versions of

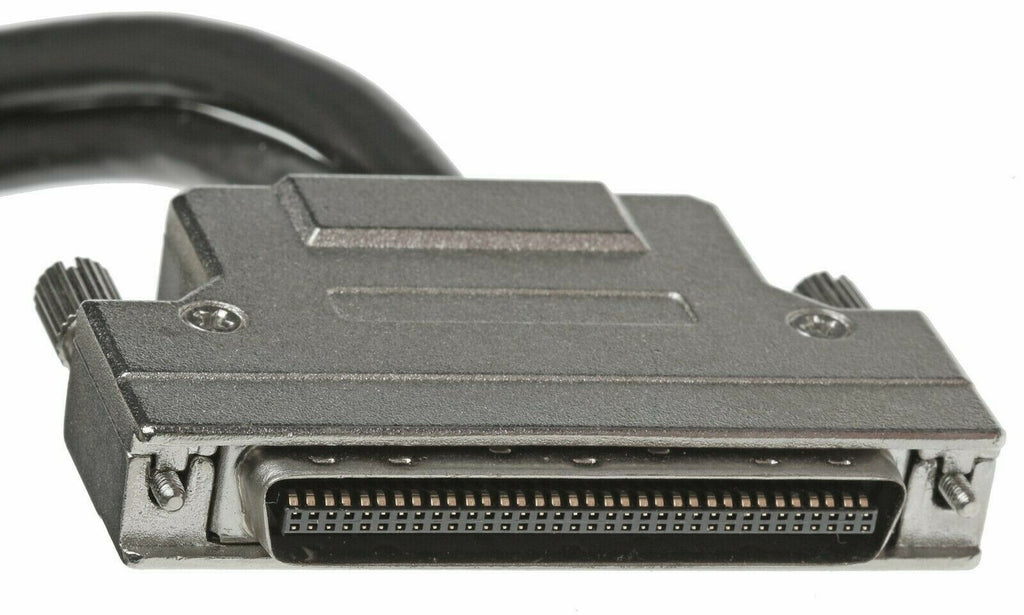

this cable. This is the later '-02' variant of the
cable and it has screw retainers to secure it to the
card. If your VX882e is the earlier card (light blue decal) then the cable will connect OK but it
will not attach to the cable's spring clip retainers
(although in my experience it is a fairly tight fit, so
that may not be a problem). It may be

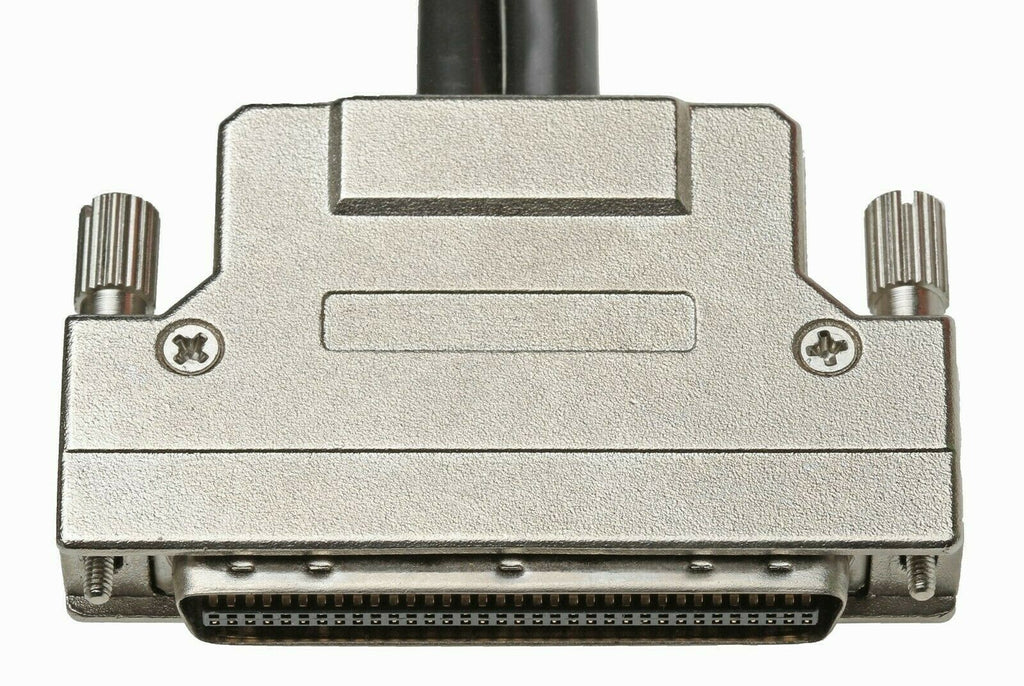

possible to replace the M2.5 screws either side of the
68 pin connector with matching D-Sub jack posts with a
threaded female center so that the thumbscrew retainers
can be used, but this is not guaranteed.

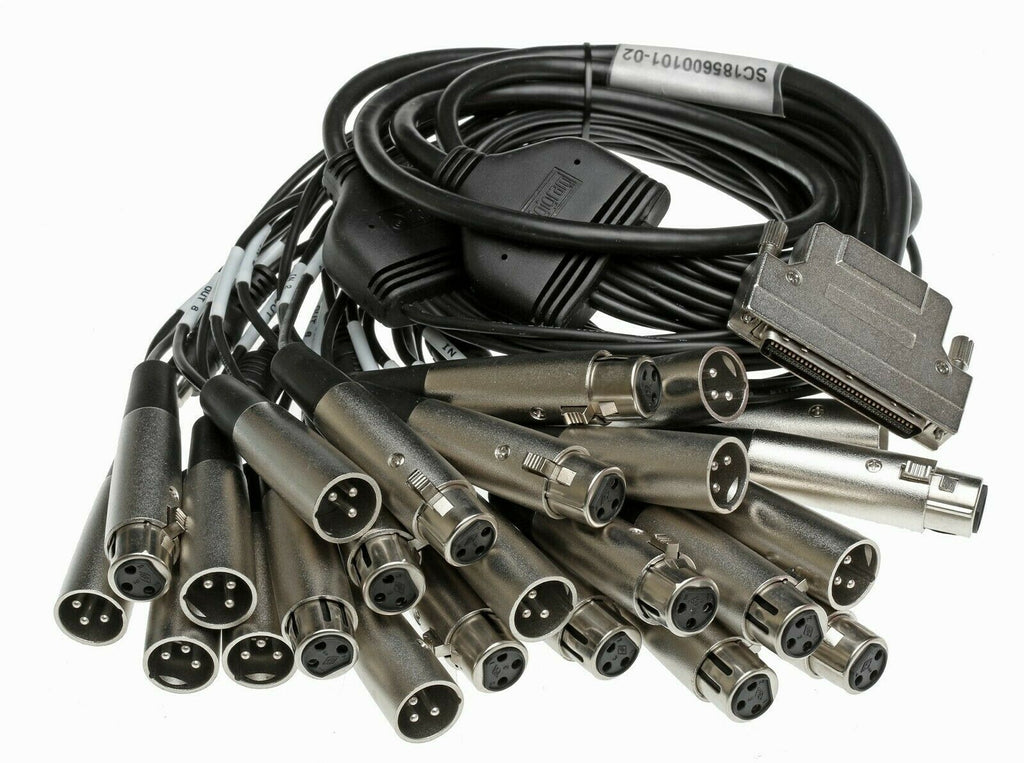

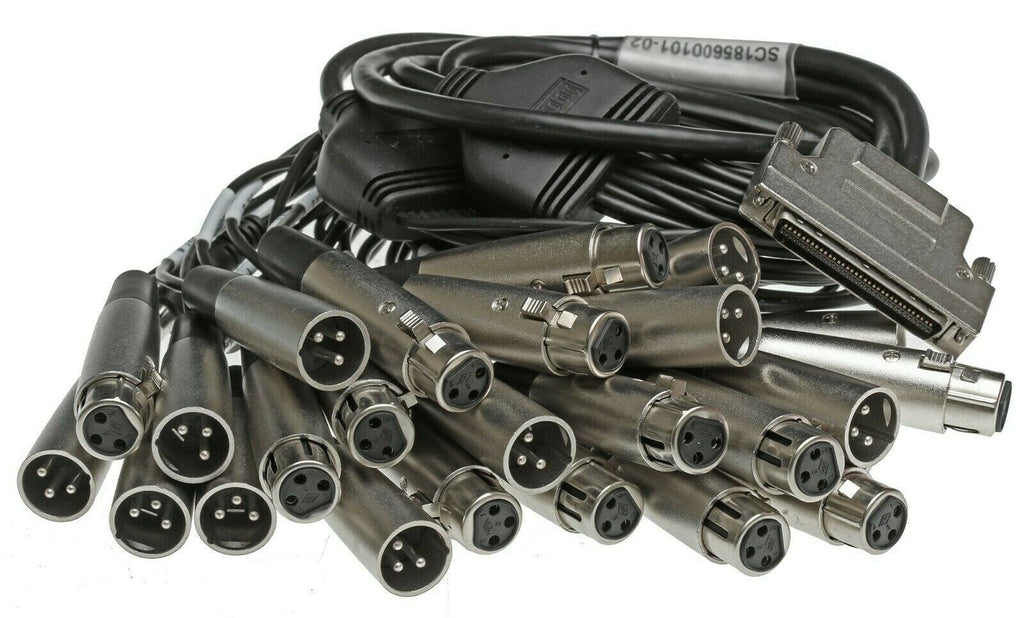

The cable provides 8 channels of balanced analog I/O, 8 channels of AES/EBU I/O, Wordclock I/O and AES/EBU Sync In (digital black), Video In and LTC In.
The VX882e from Digigram is PCIe (PCI Express) card that provides eight analog inputs and outputs, along with eight digital I/O's. The digital outputs mirror the analog outputs, while selecting a digital input, disables the corresponding analog input. Comprehensive synchronization options are provided, including AES/EBU input, Wordclock I/O, video sync and LTC input.
