Arrakis TPS2 1200 Series Broadcast Console Power Supply +/- 12.6V 10s 5s 15s [Used]

( 285478419136) )

$341.00 ~~$501.00~~ (1 available in stock)

Tested • Guaranteed • Power Supply for 1200 Series Console • +/- 12.6V Output • Used, Very Good Condition

https://www.prostudioconnection.net/1803/C0214980.PNG

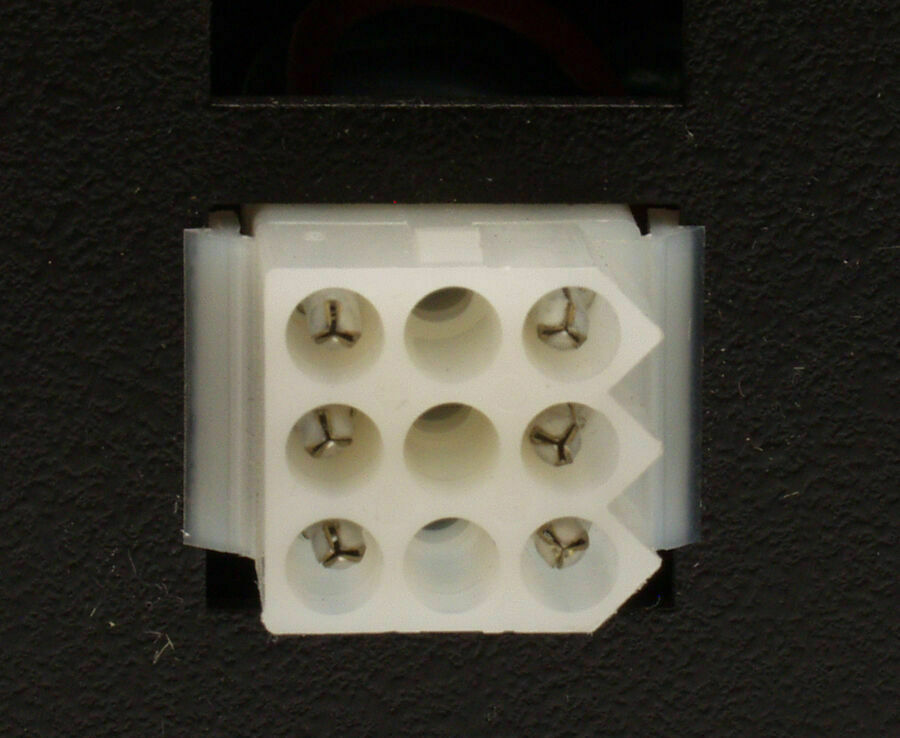

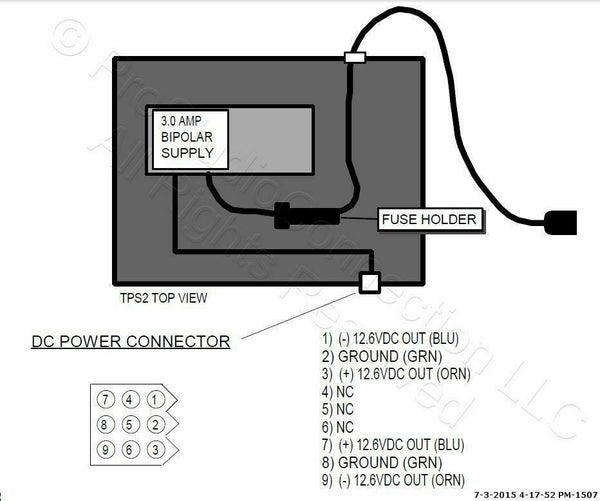

Unit has been tested and found to produce +/-12.6V approx under no load conditions. Item shows light signs of use but has no major dings or scrapes. No umbilical cable is included but one can easily be made from a six conductor cable and a $5 Molex connector kit part number 76650-0055 (I believe) - see https://www.mouser.com/ProductDetail/Molex/76650-0055

Description

The 1200 series console uses a bipolar (positive and negative DC) “International Series" open frame supply built for Arrakis by Power One Inc.

The supply is adjustable from roughly ±10 to ±17 VDC. Protection is provided in the form of current limiting-foldback. Load regulation is ± .05% for 50% load change. Ripple is 5mv peak to peak maximum. Transient response is 50ms to a 50% load change.

110VAC to 220VAC CONVERSION

The power supply can be operated on a variety of AC line voltages. The supply is set up for 120VAC operation as shipped. The supply will run on frequencies from 47 to 63 Hz and voltage variations of +10% to -13%. Conversion to different line voltages is accomplished by moving jumpers on the power supply.
