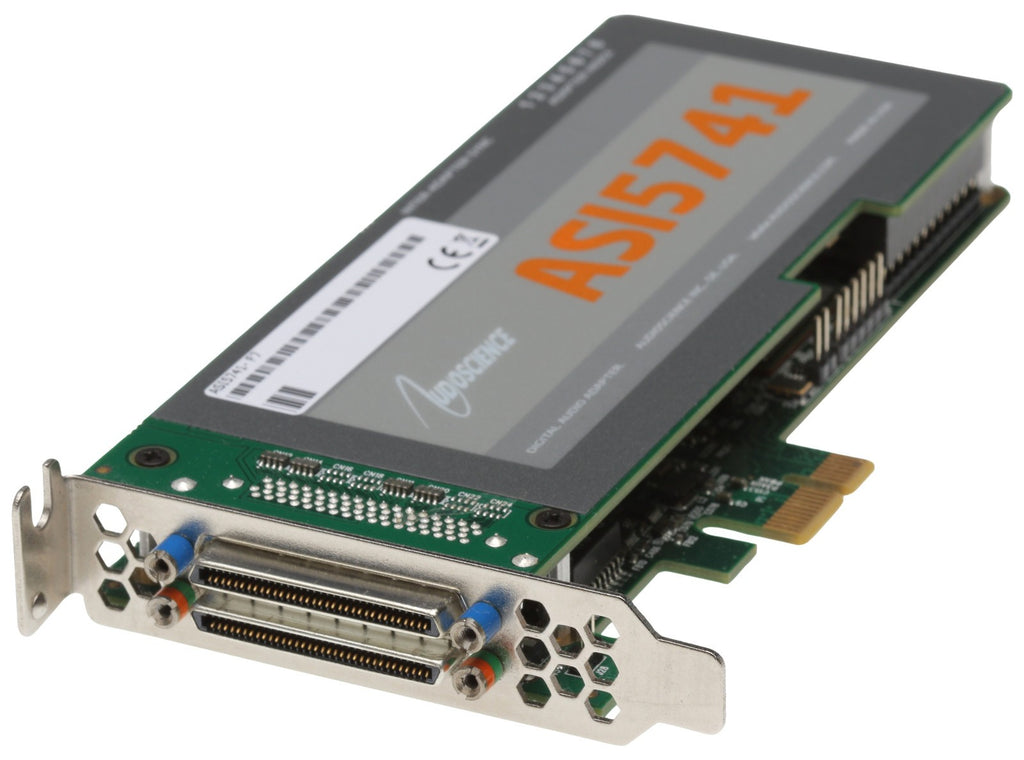

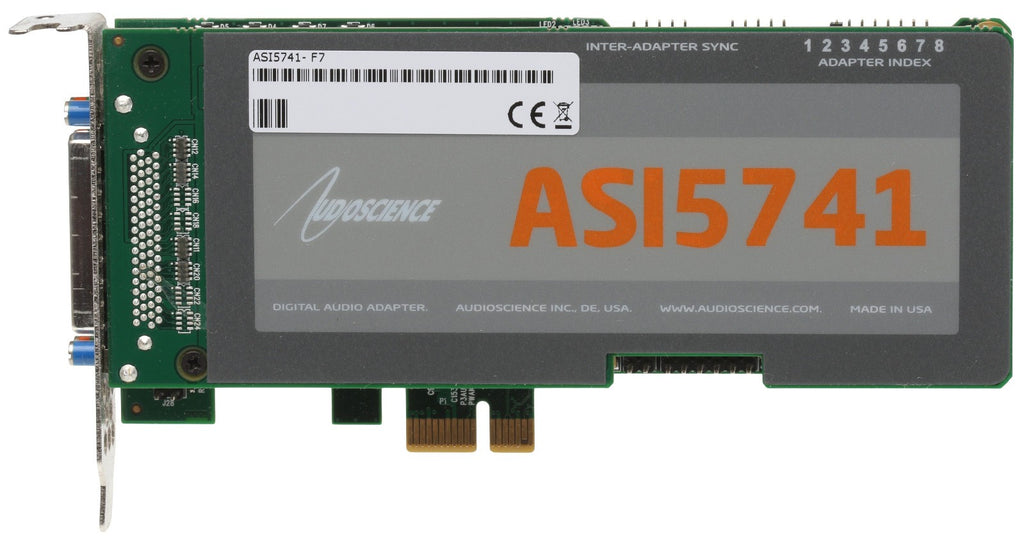

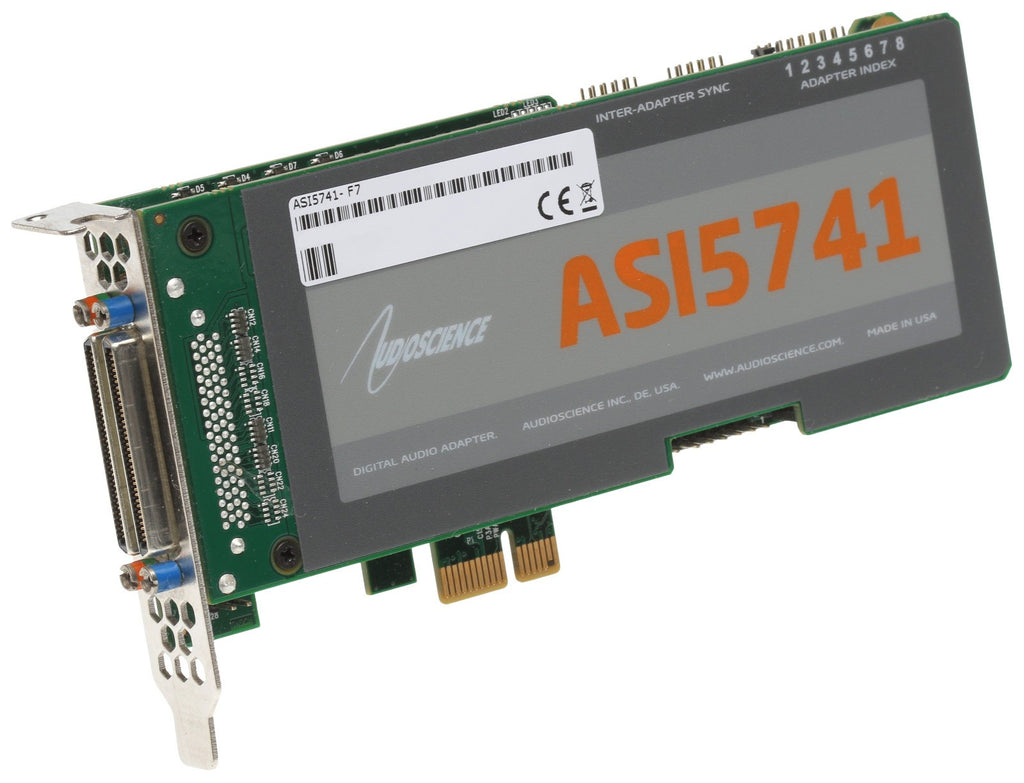

AudioScience ASI5741 Broadcast 4 Channel AES Digital PCIe Sound Card LOW PROFILE

( 286835158100) )

Regular price $624.00 $0.00      (1 available in stock)

LOW PROFILE CARD • 4 Stereo Outputs and 1 Stereo Input • 4x AES Dgital Connections (ONLY) • 192KHz Capable • PCIe Express Interface • MRX and TRX Capable

https://www.prostudioconnection.net/2509/C1028691c.jpg

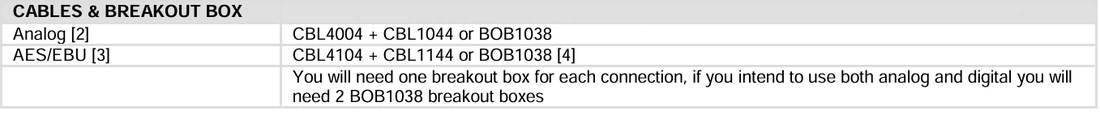

In excellent, near mint condition. Tested to confirm that it is fully working. Note that no breakout cable or breakout box is included. This listing is for the bare sound card only. See below for the part numbers of the matching cables. This is a PCI Express (PCIe) card. This card requires driver version 4.16.00 or later under Windows 10 or Windows 11. Suits a Low Profile - no Full Height bracket is included.

Description

The ASI5741 provides AES/EBU inputs and outputs only.

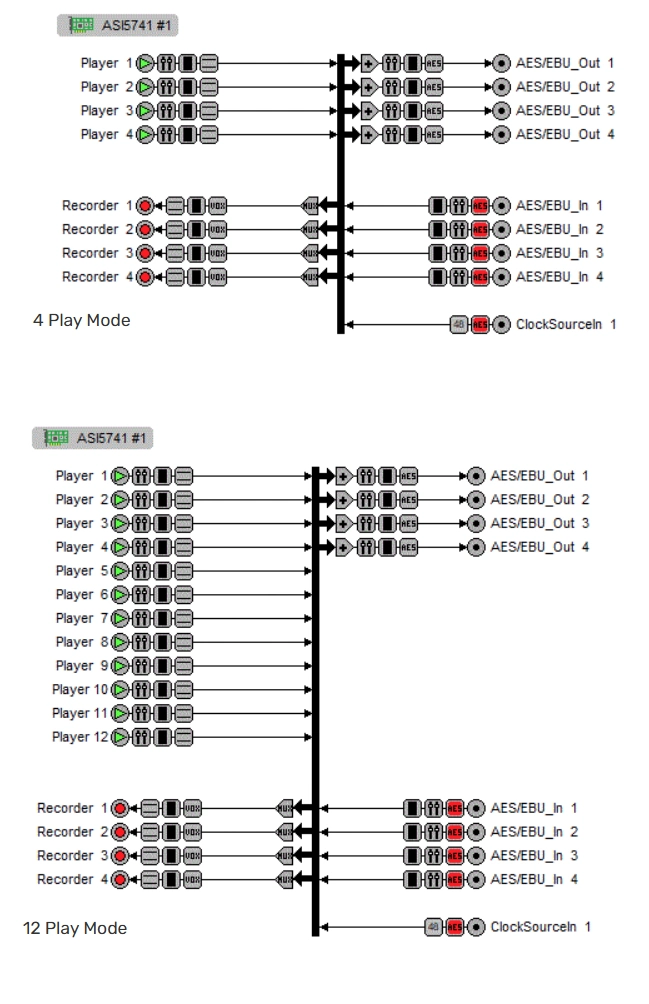

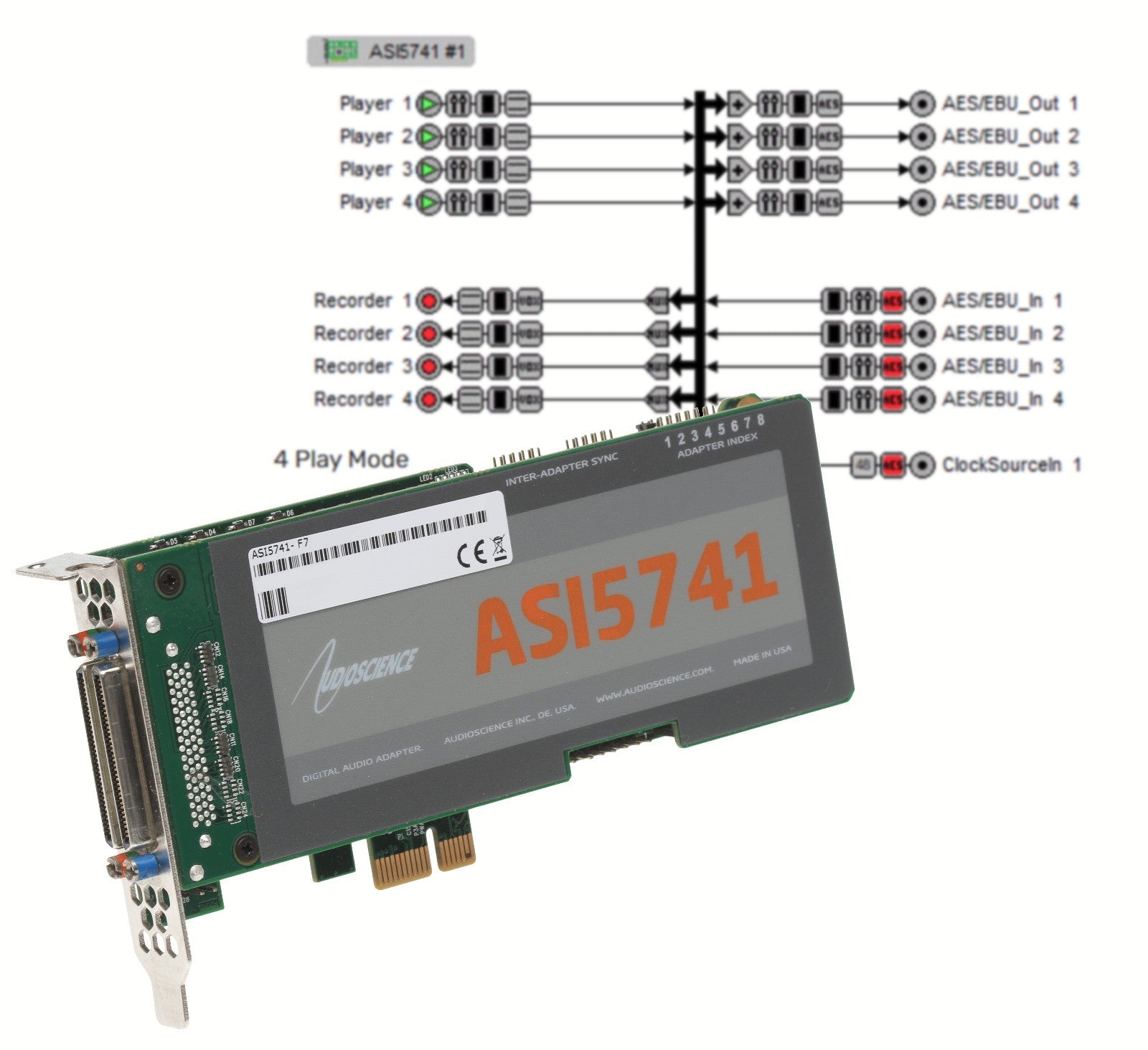

Providing up to 12 play streams that are mixed to 4 balanced stereo outputs and 8 record streams fed from four balanced stereo inputs, the ASI5741 series features AudioScience's unique "anything to anywhere" mixing and routing.

Uncompressed PCM, in a choice of precision is available for both recording and playback.

For surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.

Please note: Required Breakout Cable is not included.

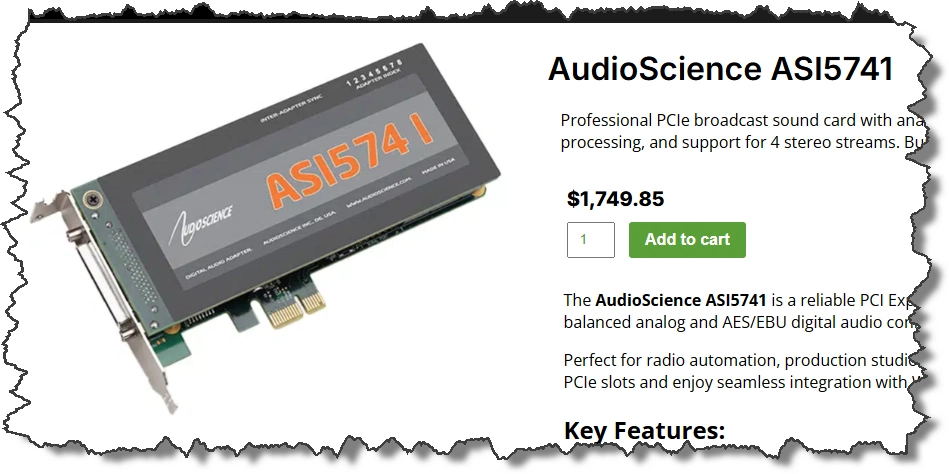

Usually Sells for $1,750

https://www.prostudioconnection.net/2509/ASI5741_Price.png

Features
  • 4 or 12 stereo/mono streams of playback into 4 stereo outputs
  • 4 or 8 stereo/mono streams of record from 4 stereo inputs
  • AES/EBU I/O with sample rate converters on all inputs
  • Formats include 8,16,24 and 32 bit PCM with sample rates to 96kHz
  • SSX2 mode for multichannel record, playback and mixing
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
  • Low profile short length PCI(e) card format (6.6 inches/168mm)
  • Up to 8 cards in one system





https://www.prostudioconnection.net/2509/ASI5741-1.png


https://www.prostudioconnection.net/2509/ASI5741-2.png

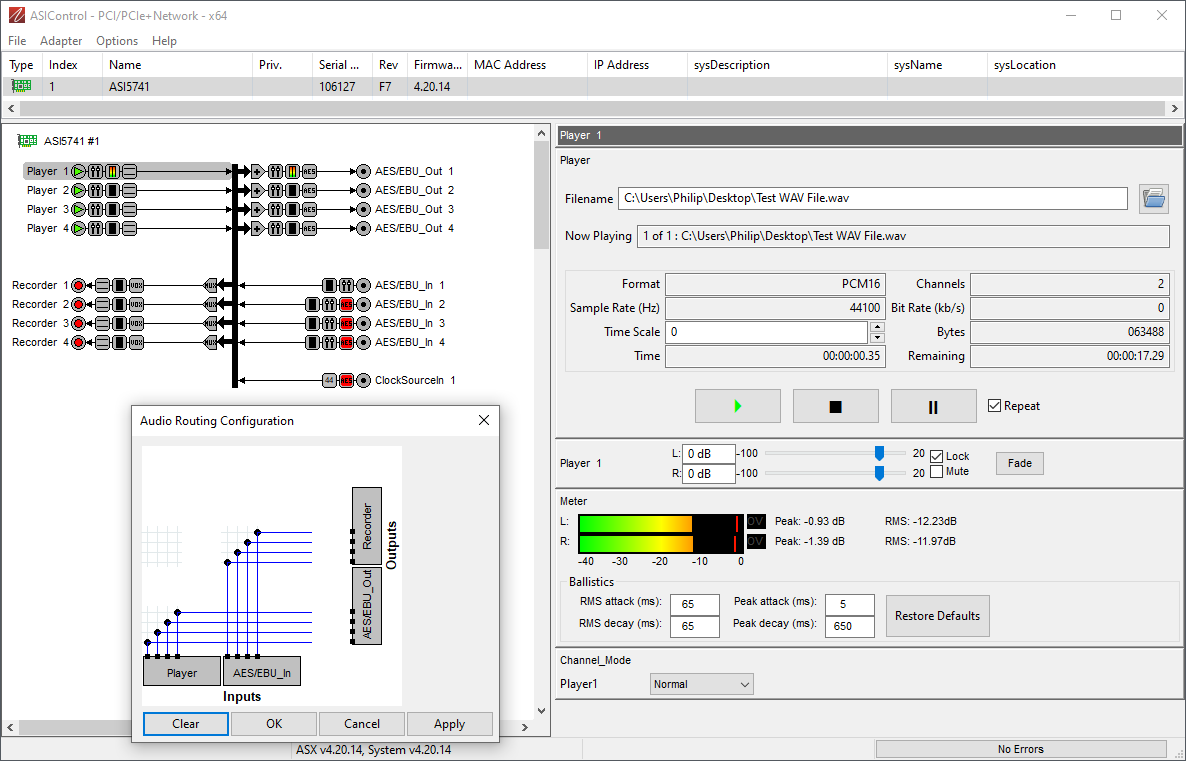

https://www.prostudioconnection.net/2509/ASI5741%20%20106127%20F7.png

https://www.prostudioconnection.net/2508/C1028249.jpg
https://www.prostudioconnection.net/2508/C1028253.jpg
https://www.prostudioconnection.net/2508/C1028250.jpg
https://www.prostudioconnection.net/2508/C1028251.jpg
