AudioScience ASI6722 Broadcast 2+2 Channel AES & Balanced Analog PCIe Sound Card

( 286827959583) )

Regular price $877.00 $0.00      (1 available in stock)

2 Stereo Outputs and 2 Stereo Inputs • AES Digital & Balanced Analog Connections • 192KHz Capable • PCIe Express Interface • MRX and TRX Capable

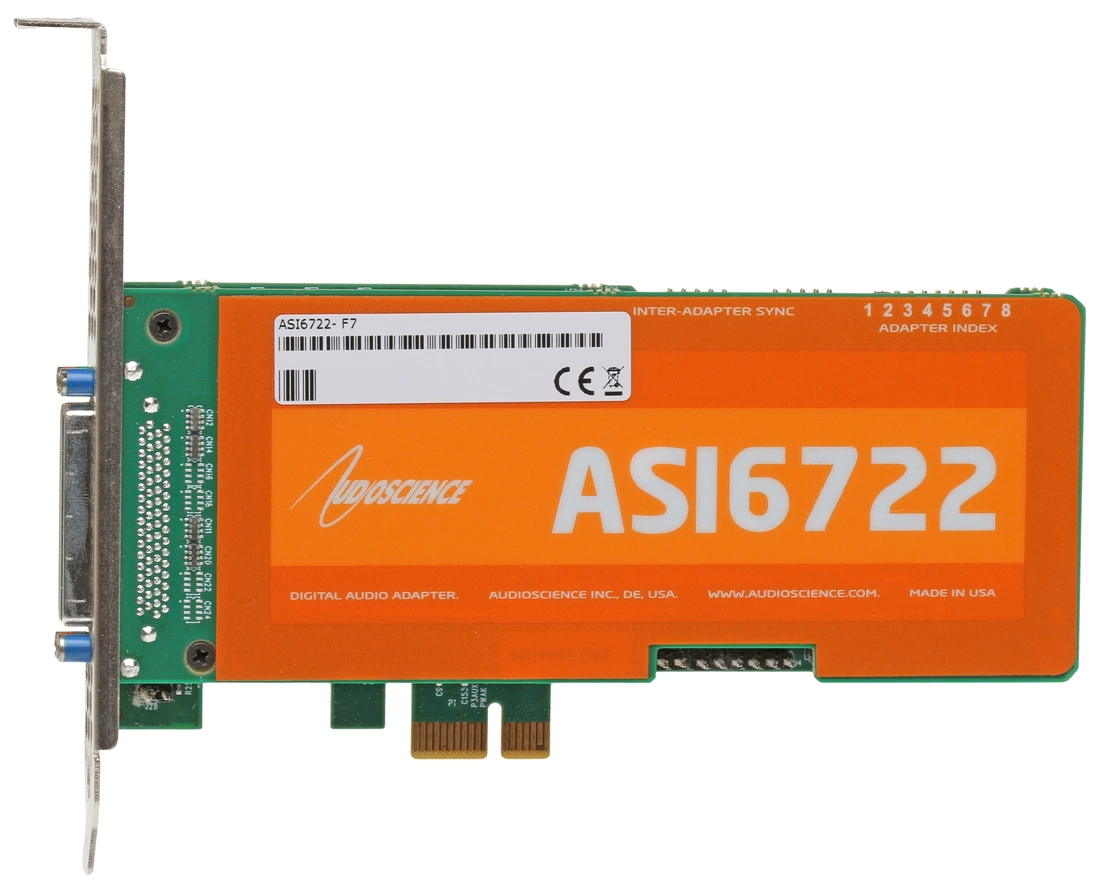

https://www.prostudioconnection.net/2509/C1028672.jpg

https://www.prostudioconnection.net/2509/ASI6722-1.png

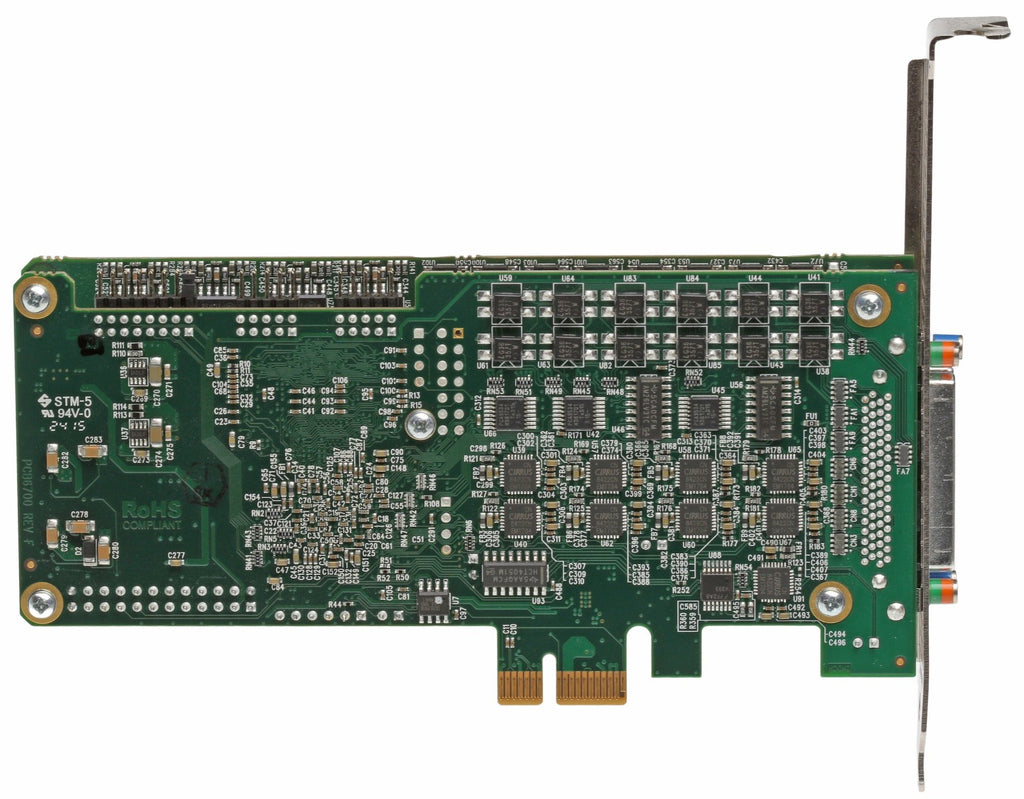

In very good condition. Tested to confirm that it is fully working. Note that no breakout cable or breakout box is included. This listing is for the bare sound card only. See below for the part numbers of the matching cables. This is a PCI Express (PCIe) card. This card requires driver version 4.16.00 or later under Windows 10 or Windows 11. Suits a full height ATX case - no Low Profile bracket is included.

Description

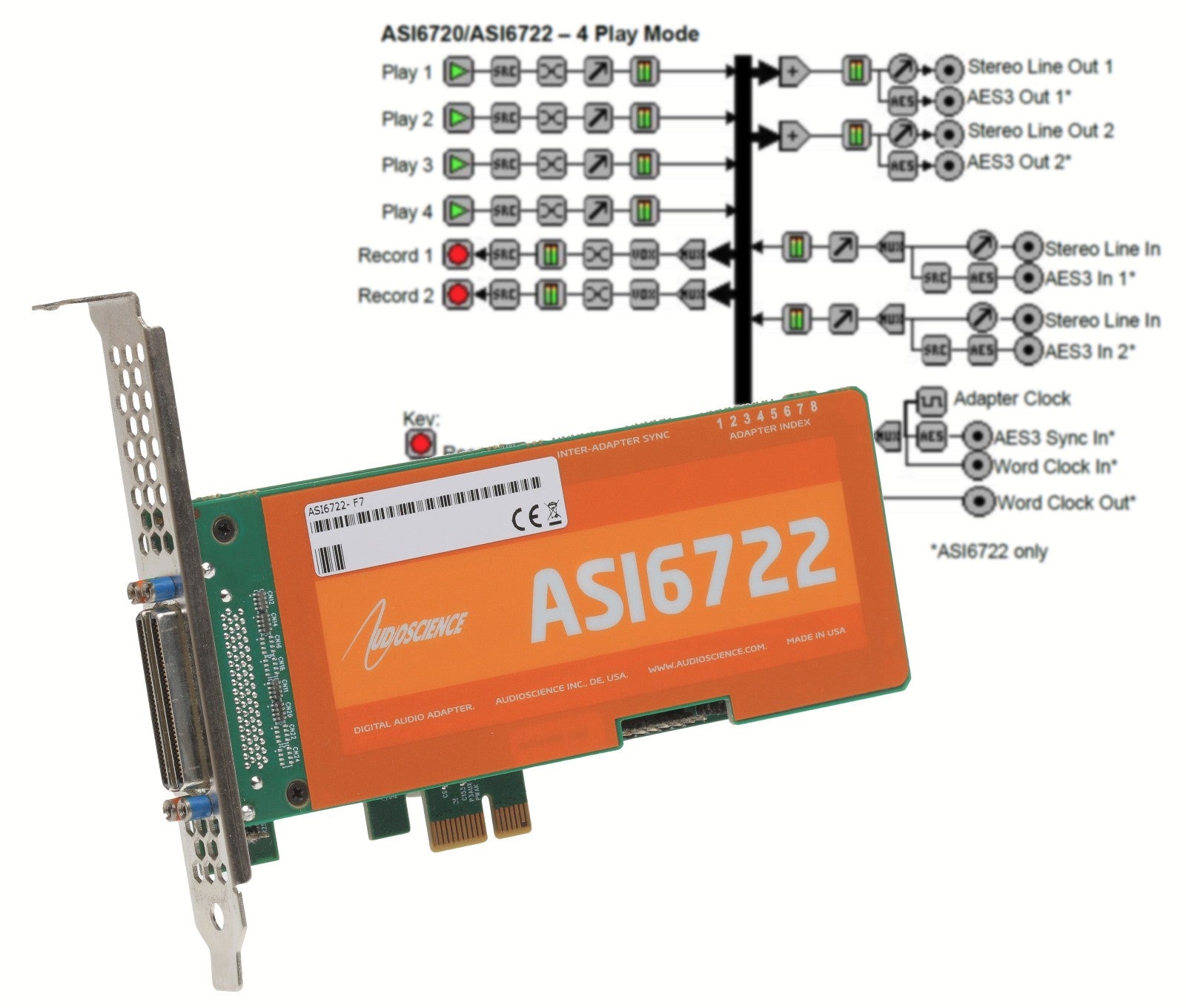

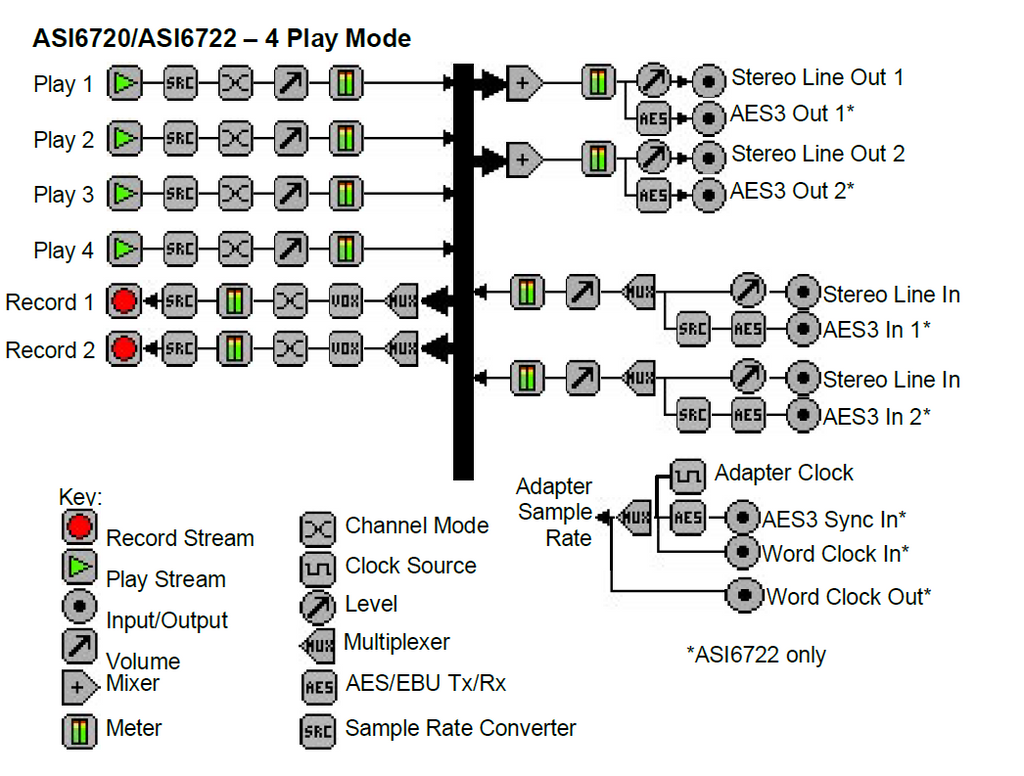

Providing up to 6 play streams that are mixed to 2 balanced stereo outputs and 4 record streams fed from 2 balanced stereo inputs, the ASI6722 features AudioScience's unique "anything to anywhere" mixing and routing.

The ASI6722 provides both balanced analog and AES/EBU inputs and outputs. The maximum analog input and output level is +24dBu.

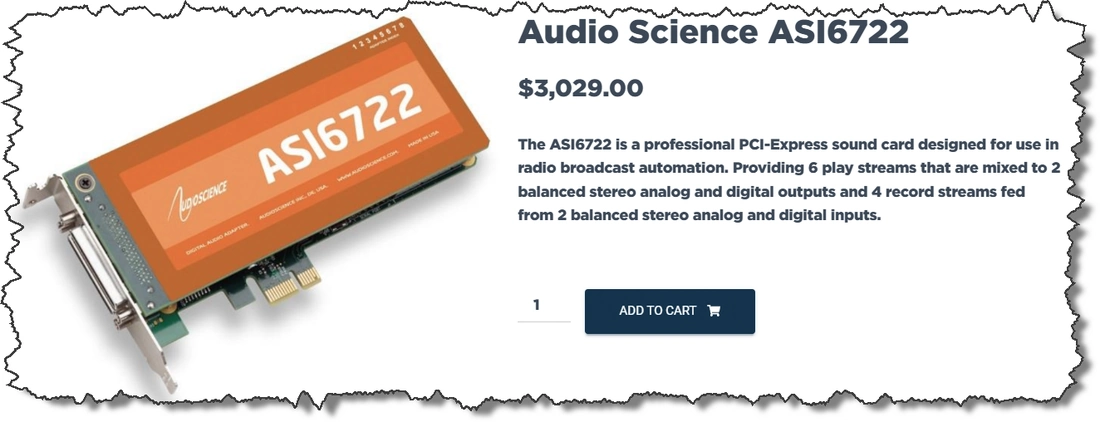

Usually Sells for $3,000

https://www.prostudioconnection.net/2509/ASI6722_Price.png
A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6722 functionality includes MRX multi-rate mixing technology which allows streams of different sample-rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

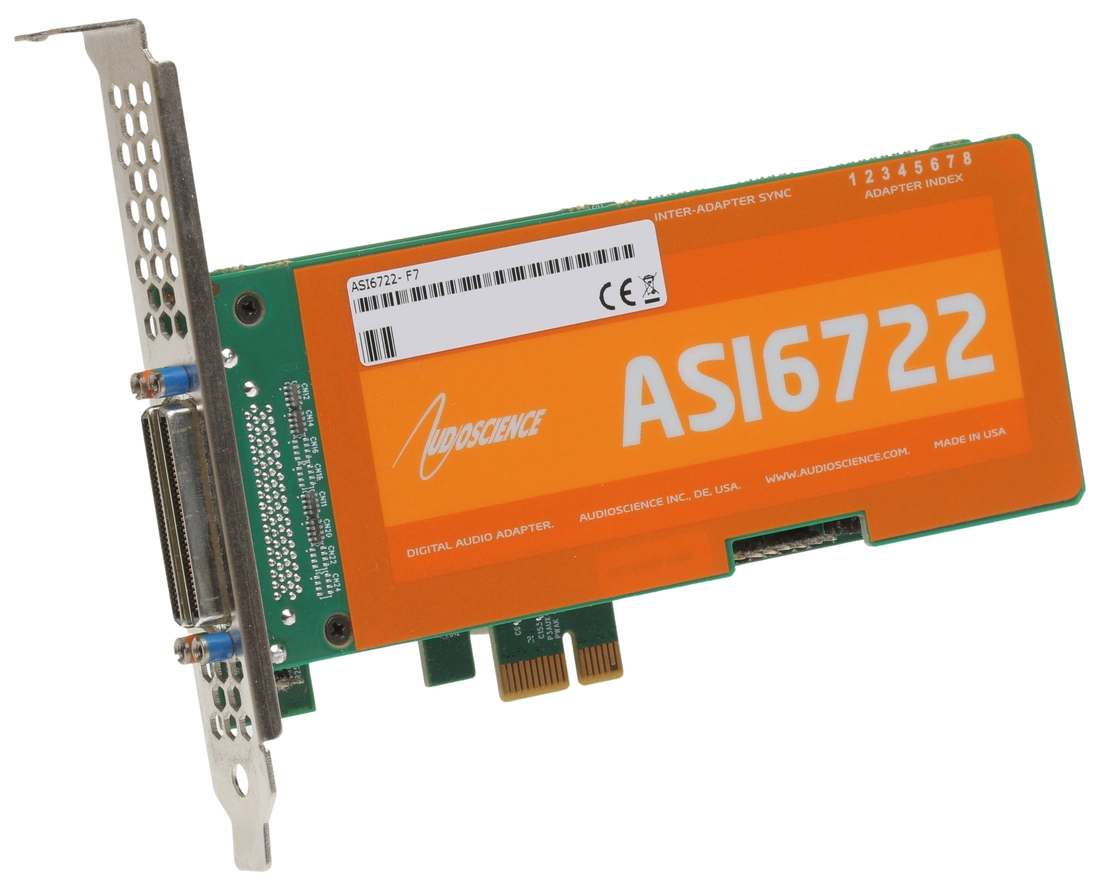

https://www.prostudioconnection.net/2509/C1028671.jpg
Features
  • 4 or 6 stereo/mono streams of playback into 2 stereo outputs
  • 4 stereo or 8 mono streams of record from 2 stereo inputs
  • PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz
  • MRX technology supports mixing of multiple formats and rates
  • TSX time scaling by up to +/-20%
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
  • AES/EBU I/O with sample rate converters on all inputs
  • Dedicated AES/EBU and Word clock Sync input
  • Low profile short length PCI(e) card format (6.6 inches/168mm)
  • Up to 8 cards in one system
  • Windows and Linux software drivers available

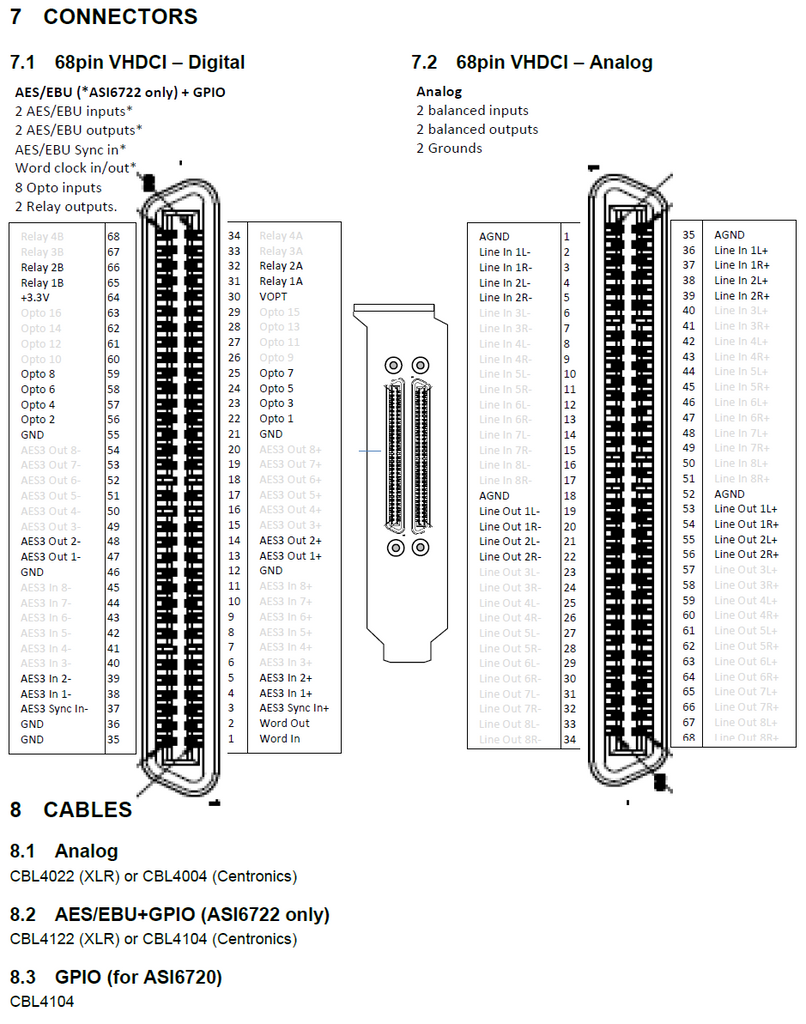

https://www.prostudioconnection.net/2509/ASI6722_Connectors.png

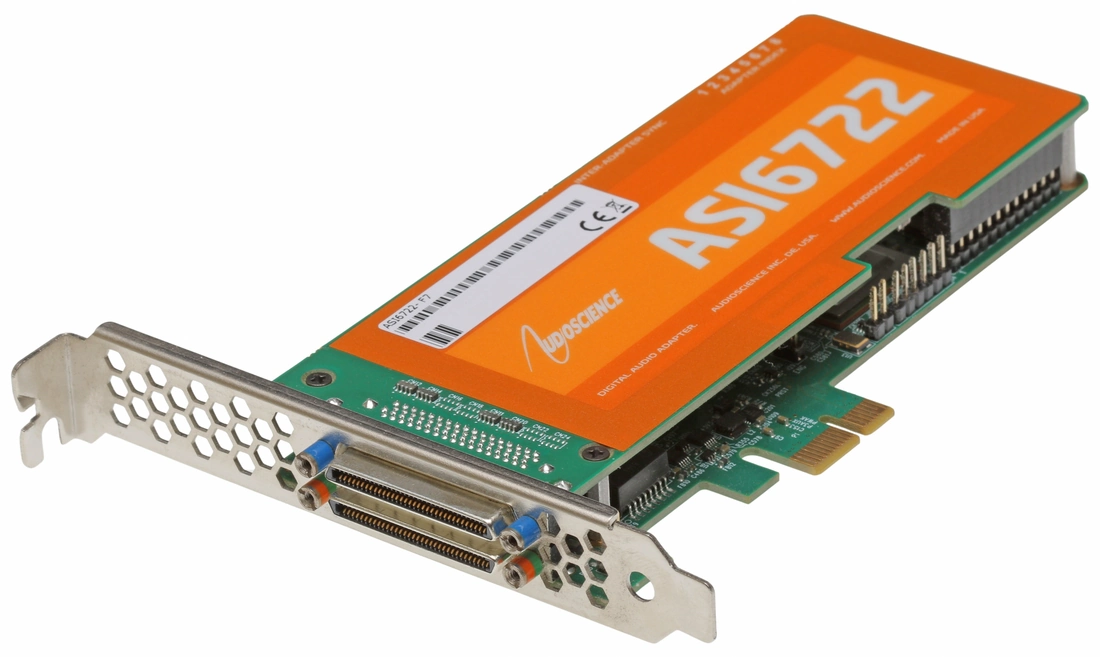

https://www.prostudioconnection.net/2509/C1028673.jpg
