JK Audio Guest Module 1 Remote Dial Key Pad for Digital Broadcast Host Hybrid [Used]
( 363682566293) )
Used, Good Condition • JK Audio 'Guest Module 1' Key Pad for Digital Hybrid
- Guest Module 1 gives you remote access to the on-hook/off-hook and dial features of either the Broadcast Host or Innkeeper series digital hybrids.
- This little time-saver gives you call control you simply can't get with an auxiliary telephone and a couple of switches.

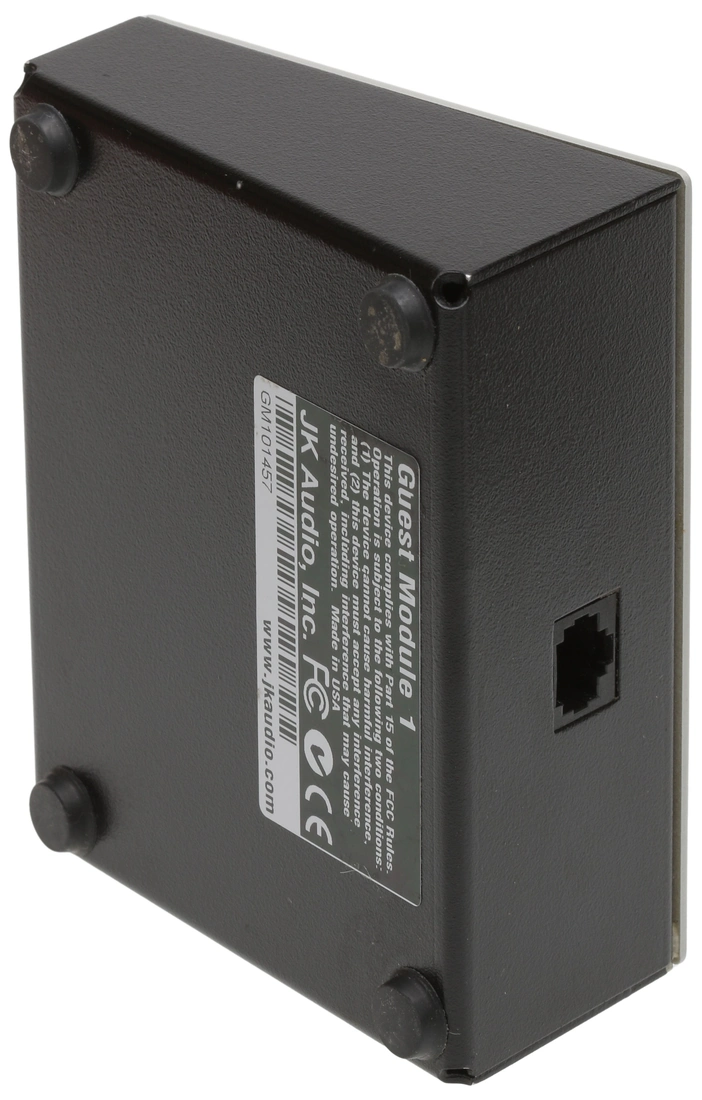

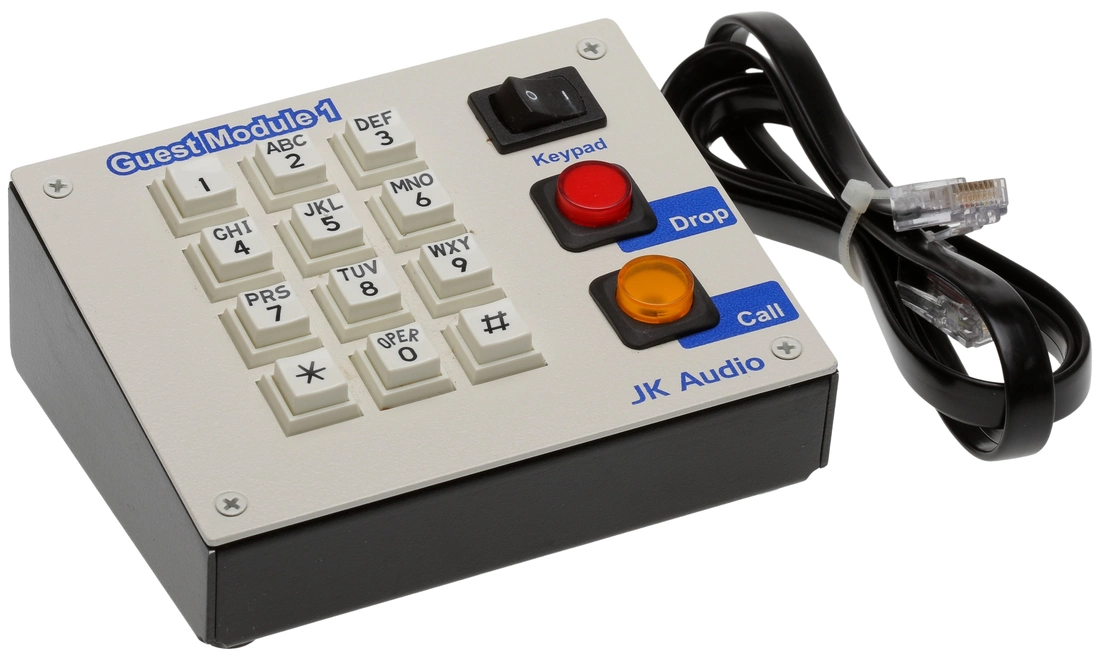

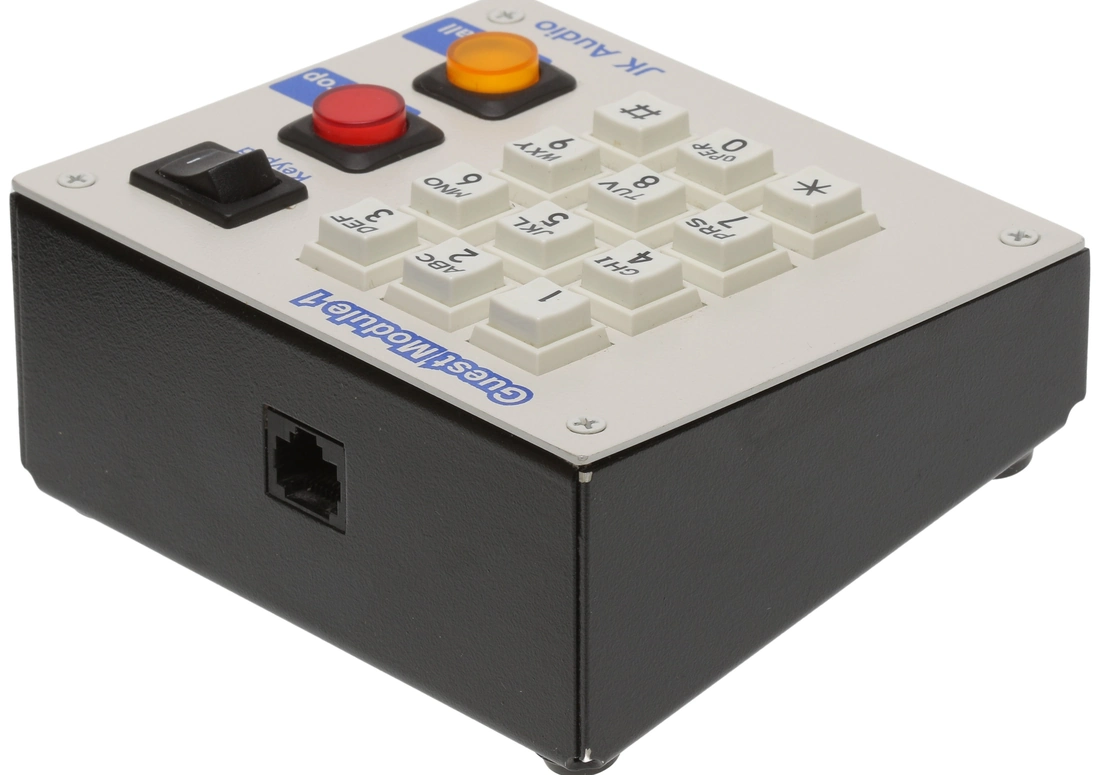

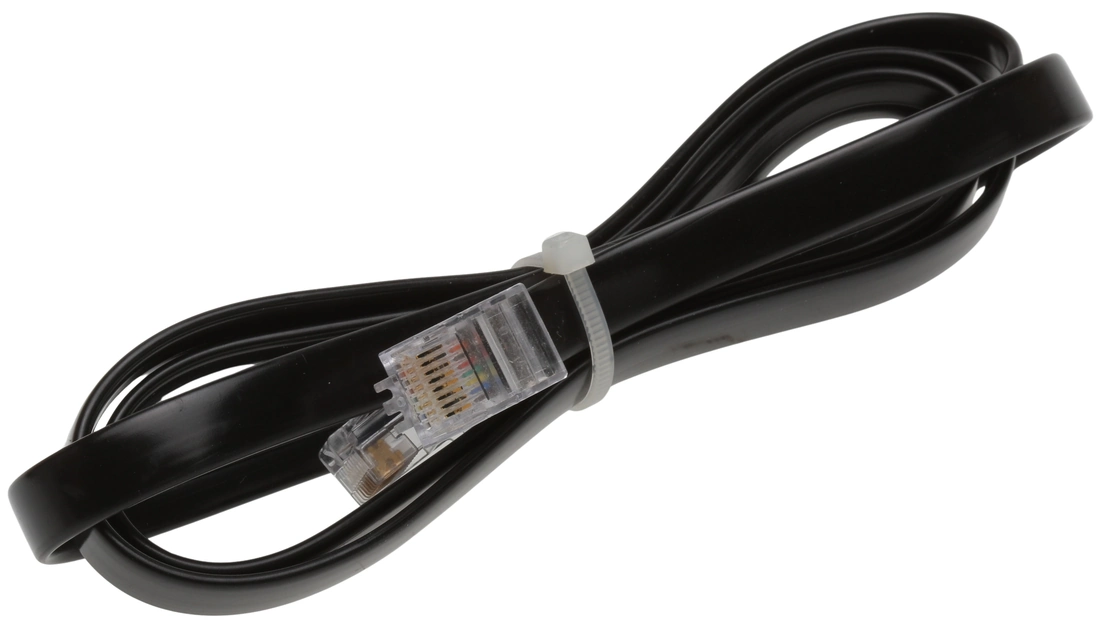

- Connect Guest Module 1 using an 8 pin RJ45 modular cable. This cable provides remote power so there is no need for batteries or an external power pack.
- The Call button will flicker when a call comes in. Press this button to answer or place a call. The button will stay lit when a call is present.
- When you dial on-air, the tones go out on the line, and do not come back mixed with the dial tone or caller signal.
- Guest Module 1 was designed exclusively for JK Audio Broadcast Host or Innkeeper 1x/1rx digital hybrids..
For full product details please see the User Manual

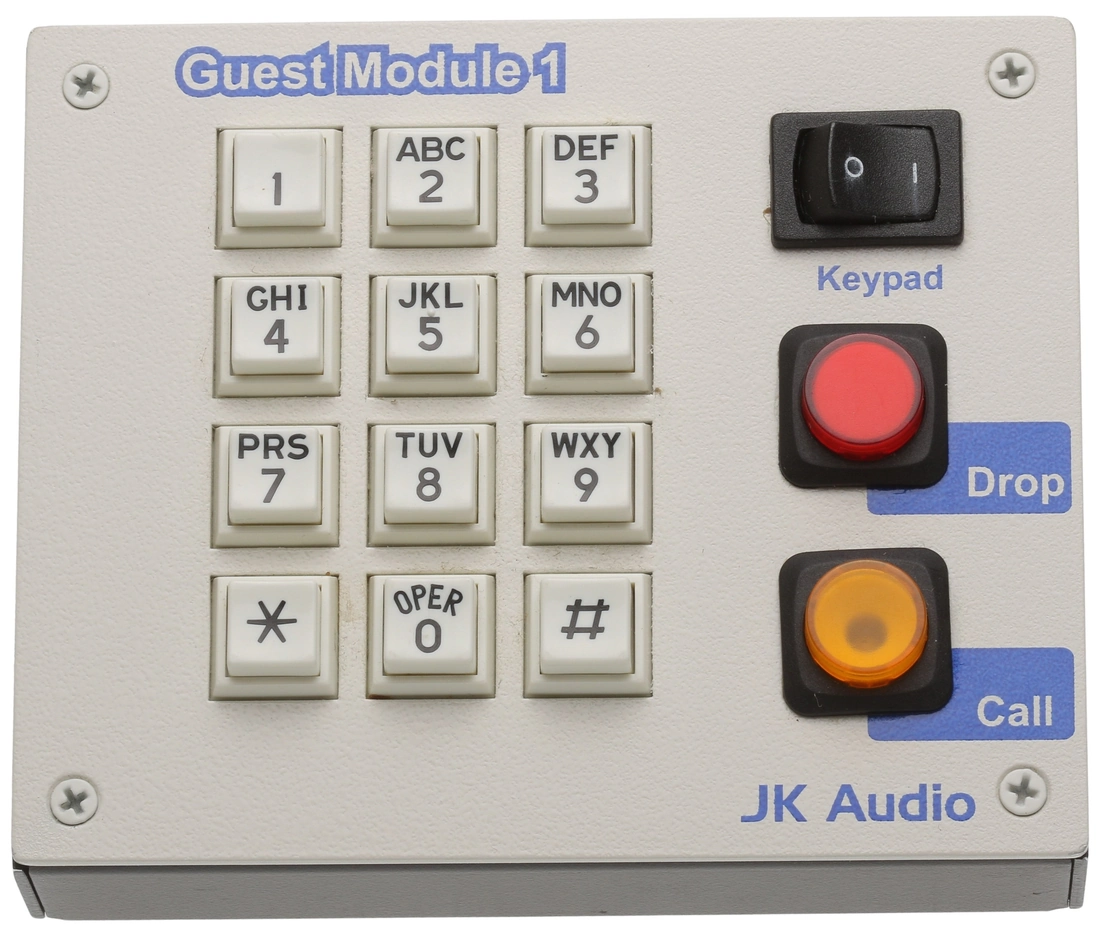

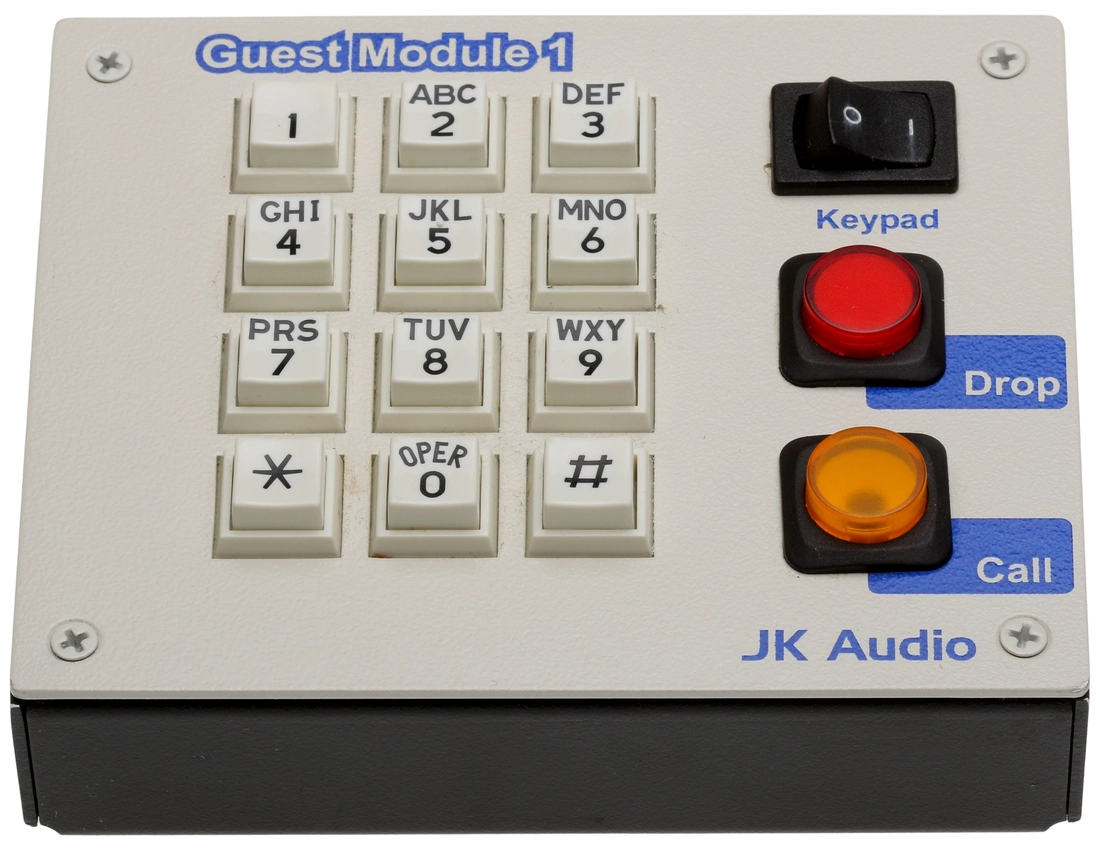

- DTMF keypad
- Keypad disable switch
- Talk / Dial Button
- Hangup Button
- Ring / Call LED
- Made in USA
Size: 4.5" x 4.0" x 2.0" (11.4 x 10.1 x 5 cm)
Weight: 12 ounces
