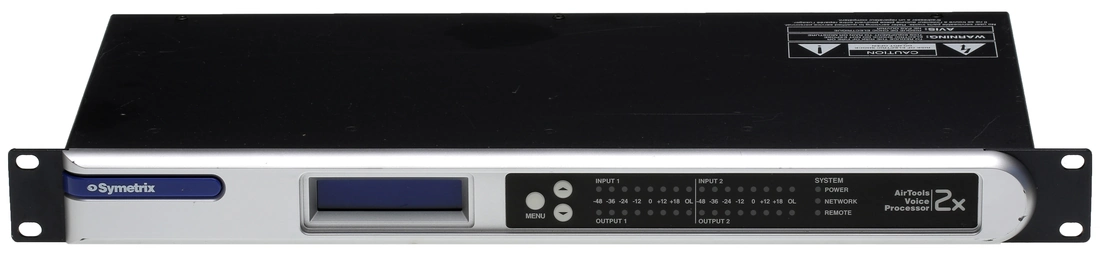

Airtools Symetrix 2X AES Digital Voice Processor Preamplifier Podcast **PARTS** [For Parts]

*** FOR PARTS OR REPAIR *** • Good Cosmetic Condition • Worldwide 100-240V Power • Great Voiceover/Production Preamp • Instant Memory Preset Recall • Voice Processor Channel Strip

This unit works partially. It is being offered for sale on an as-is, final sale basis with no returns accepted. In my brief (and non-exhaustive) testing I was able to access the unit via the LAN jack using the 2X Control Application under Windows 10 64 Bit (I can email this to the buyer if required) - and I was able to configure, monitor and control the unit as normal. The unit passes audio on all channels in both analog and digital audio formats. The LED meters seem to respond as expected. The main issue with this unit is that the front panel buttons seem to be inoperative. I don't know the reason - there isn't a loose interconnection cable inside. In practice this is possibly a non-issue as you would normally control this unit remotely via the App (which also allows you to set the IP address). Using the front panel buttons offers limited control and is a cumbersome process. The unit can be reset via the rear panel reset button, which does work as expected. The unit has been upgraded to the latest firmware available at the time of listing (v2.69) and has been reset to factory defaults (ie. IP address set via DHCP). Full product details may be obtained from the User Manual at https://www.prostudioconnection.net/1402/Airtools_2x_Manual.pdf.

I have not tested the REMOTE port, or the WORD CLOCK INPUT ports.

I'm sharing the results of my testing to help you in your purchase decision, but I do not guarantee that you will get the same results or reach the same conclusions. Nor that I haven't missed some important point. Please bear this in mind in your valuation.

Description (Conformance NOT Guaranteed)

A dual-channel digital voice processor, capable of processing two discrete microphone or line-level sources independently or as a stereo pair.

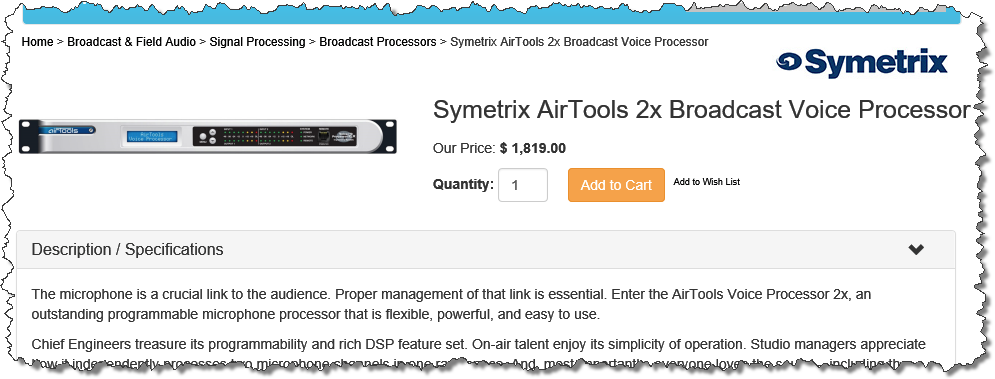

Usually sells for $1,819

The AirTools Voice Processor 2x is a flexible, powerful and easy to use dual-channel programmable digital microphone processor that offers a complete set of voice enhancement tools for any situation. The available Windows software application gives you complete control of critical parameters including EQ, Compression, and much more. Once a desired sound is dialed in, all settings can be saved as named presets for later recall, so a given studio mic can be optimized for a diverse air staff of male and female voices. The latest software release lets the user copy individual presets from one unit and move them to other units without overwriting other device file settings such as dynamic processing or EQ (ideal for when voice talent moves among various studios).

The User Manual may be obtained from
https://www.prostudioconnection.net/1402/Airtools_2x_Manual.pdf

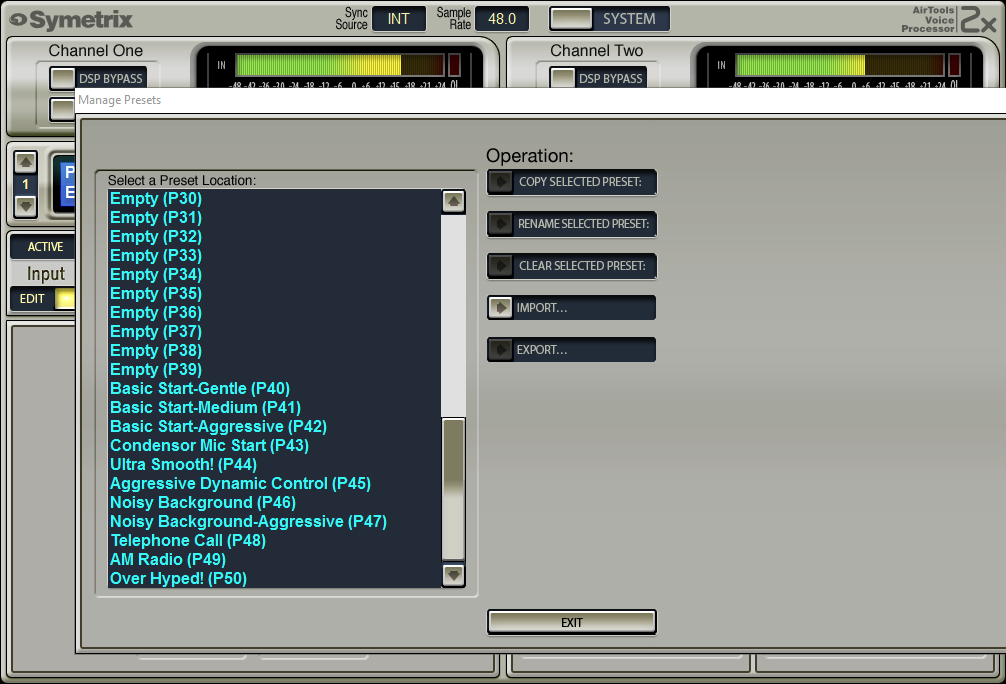

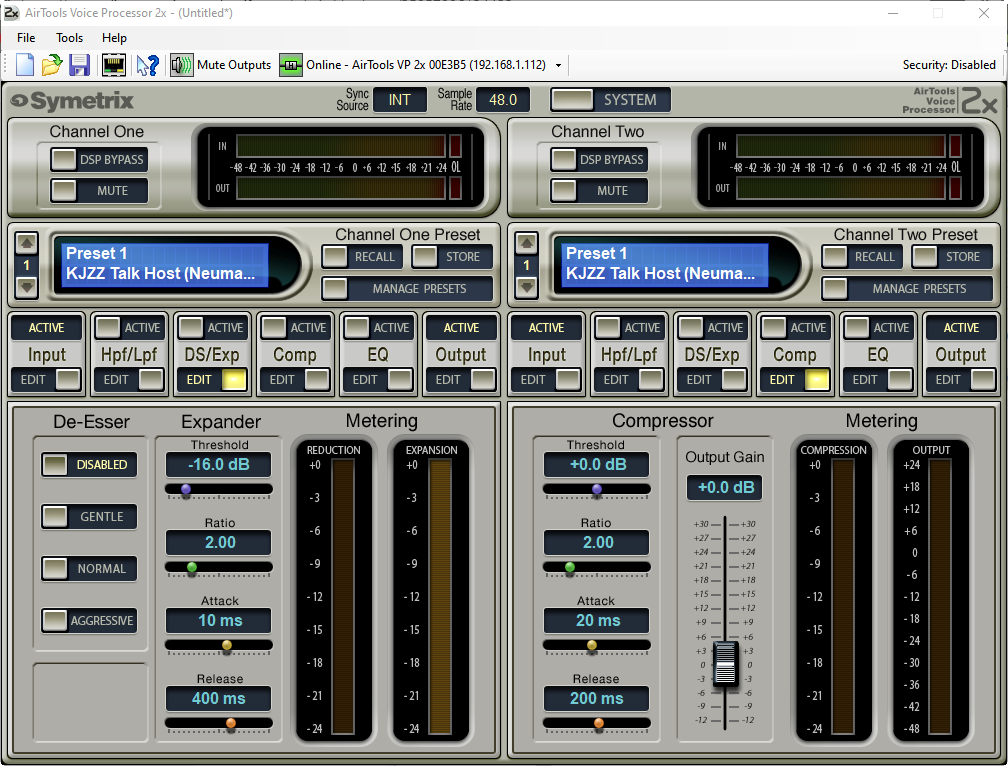

Graphical Interface using LAN Connection

Features

• Two independently programmable channels of ultra-low latency digital microphone processing in one rack space

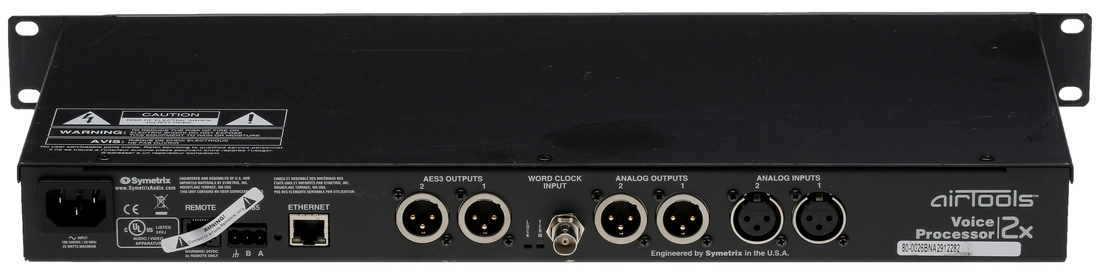

• Two (2) Mic/Line inputs, two (2) Mic/Line outputs, two (2) AES outputs, Word Clock input
• Processing modules include Compression, Equalization, De-Essing, Downward Expansion, High pass and Low pass filters, and Voice Symmetry
• Configure named presets for each on-air personality - up to 50, including factory presets - using the included Windows software over Ethernet
• Recall presets with convenient front panel controls, optional hardware remote(s), or third-party control protocol
• 60db Mic Preamp Headroom
• Universal Power Supply
