Airtools Symetrix 6200 Digital Mic Preamplifier Voice Speech Processor **READ** [For Parts]
( 287376351714) )
Partially Working • Very Good Cosmetic Condition • Digital Mic Voice Processor Channel Strip • List Price $2,200/Retail Price $1,999 • Worldwide 100-240V Power

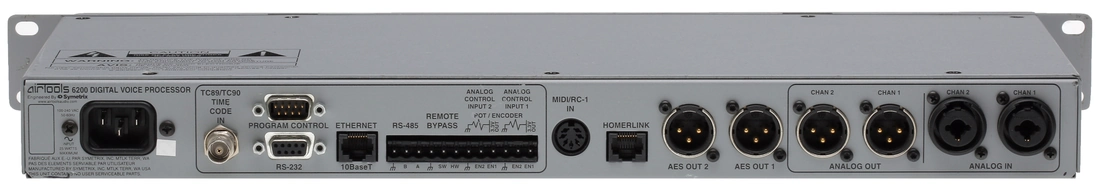

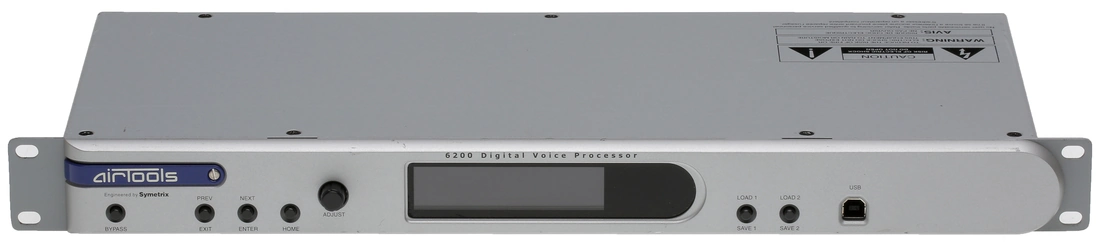

Photos show the actual item for sale
This unit works partially. It is being offered for
parts/repair - or for operation with limited
functionality. The front panel push buttons no longer
seem to function, but the unit can be controlled remotely
via RS-232 serial connection and via TCP/IP. I have
tried a full hardware reset but this has not changed
anything. In my testing I was able to manage the unit
remotely and change program parameters. I was not able
to change parameters using the front panel push buttons (but
the rotary encoder does seem to work OK). Serial
communications are set to 19200 baud and the IP address is
set at 192.168.1.188. It may not be possible to change
these values due to the unresponsive front panel
buttons. I don't know if the IP address can be changed
via an ARP command. The unit's audio performance is
normal. If you want to use AES digital audio
input then you will need to make up a cable to connect the
input signal via the Homerlink RJ45 jack. The pinouts
for this jack are given in the User Manual. No
unpictured
cables,
accessories or documents are included. No printed manual is
included but
a copy may be downloaded from
https://www.prostudioconnection.net/0113/6200_ug.pdf.
The
photos show the actual item for sale. I can send the
buyer the remote control application by email if required.
Description (Conformance NOT Guaranteed)
A dual-channel digital voice processor, capable of processing two discrete microphone or line-level sources independently or as a stereo pair.

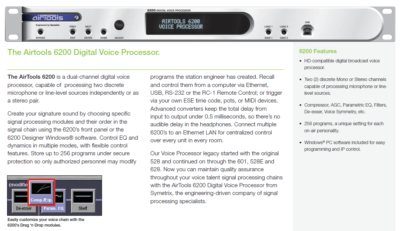

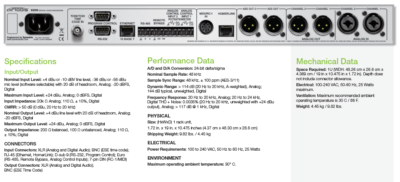

The Product Data Sheet may be obtained from https://www.prostudioconnection.net/0113/6200_ds_EN.pdf
The User Manual may be obtained from https://www.prostudioconnection.net/0113/6200_ug.pdf

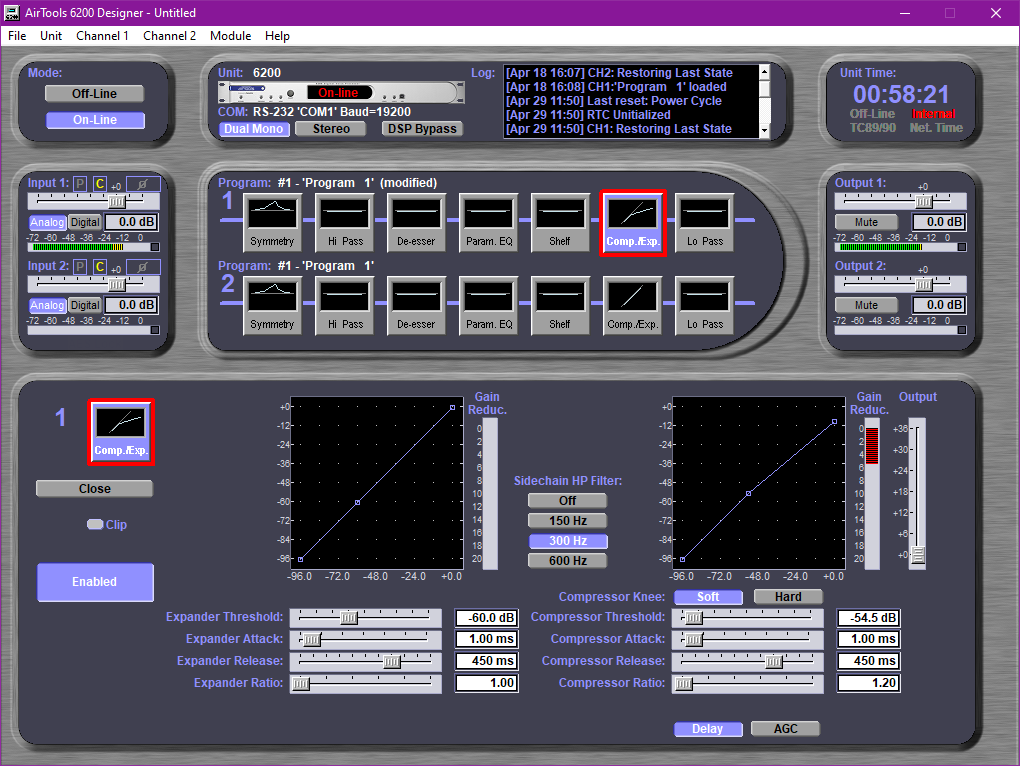

Create your signature sound by choosing specific signal processing modules and their order in the signal chain using the 6200's front panel or the 6200 Designer Windows software. Control EQ and dynamics in multiple modes, with flexible control features. Store up to 256 programs under secure protection so only authorized personnel may modify programs the station engineer has created. Recall and control them from a computer via Ethernet, USB, RS-232 or the RC-1 Remote Control; or trigger via your own ESE time code, pots, or MIDI devices. Advanced converters keep the total delay from input to output under 0.5 milliseconds, so there's no audible delay in the headphones. Connect multiple 6200's to an Ethernet LAN for centralized control over every unit in every room.
Usually sells for $1,999
Features
- HD-compatible digital broadcast voice processor.
- Two discrete Mono or Stereo channels capable of processing microphone or line-level sources.
- Compressor, AGC, Parametric EQ, Filters, De-esser, Voice Symmetry, etc.
- 256 programs, a unique setting for each on-air personality.
- Windows PC software available for easy programming and IP control (https://www.prostudioconnection.net/1801/Symetrix_6200_Software.pdf).
