Andrew GPS-PBW-26N/B 26dB 5V Small 2.5" Dia Antenna Telecom Timing N Conn Lucent

( 365781626458) )

$55.45 (7 available in stock)

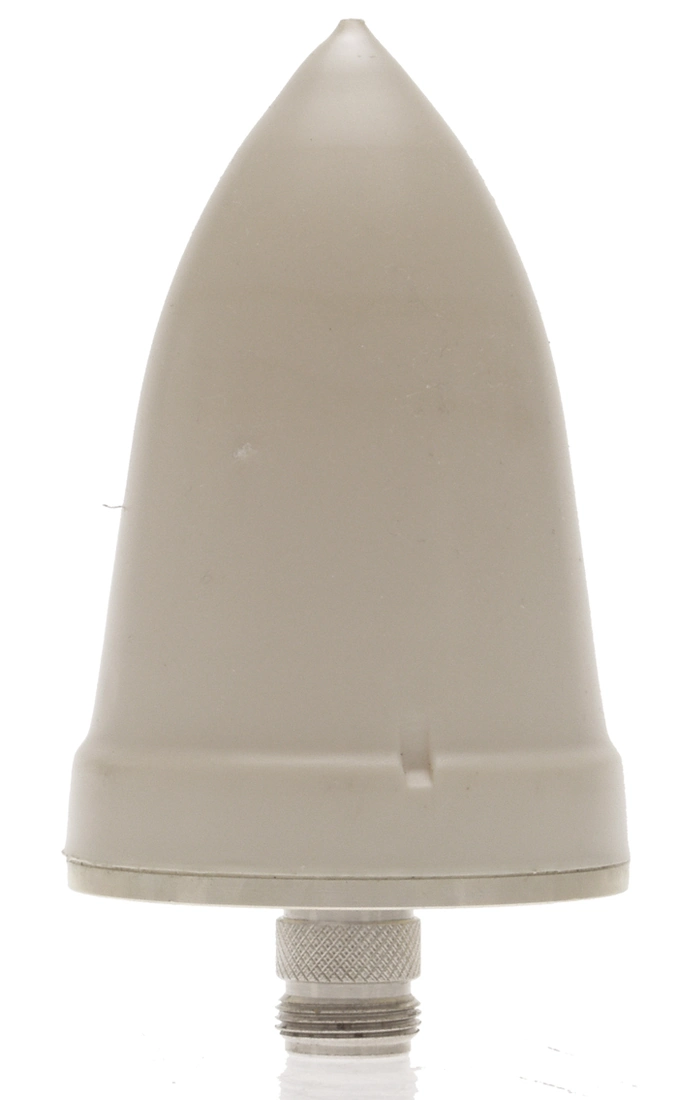

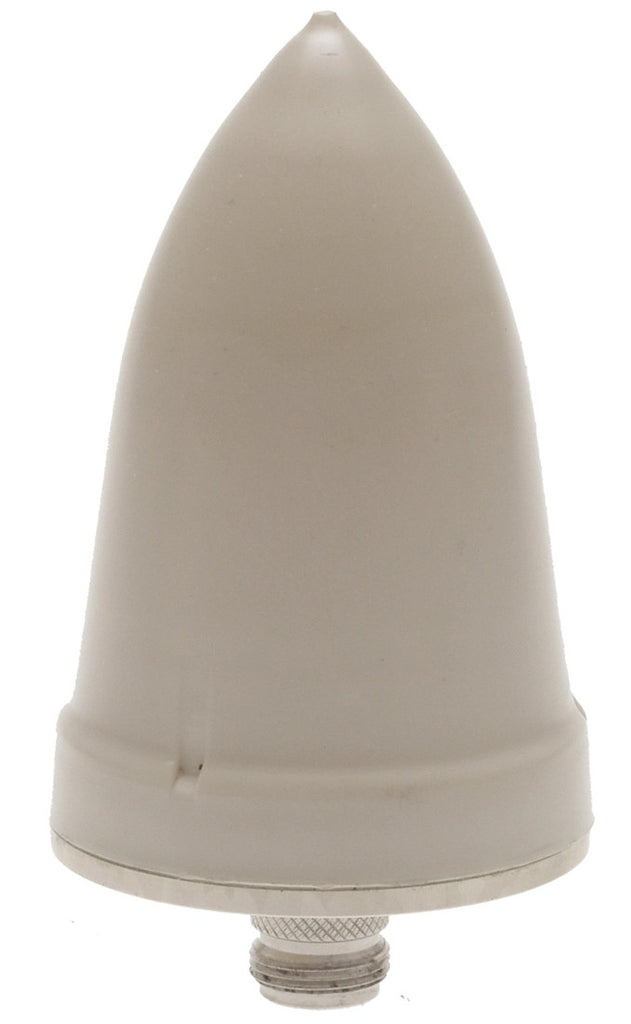

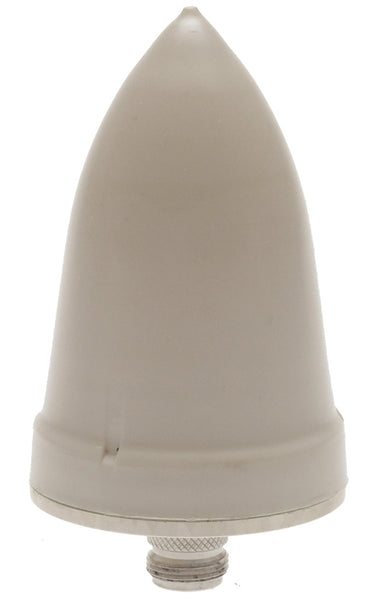

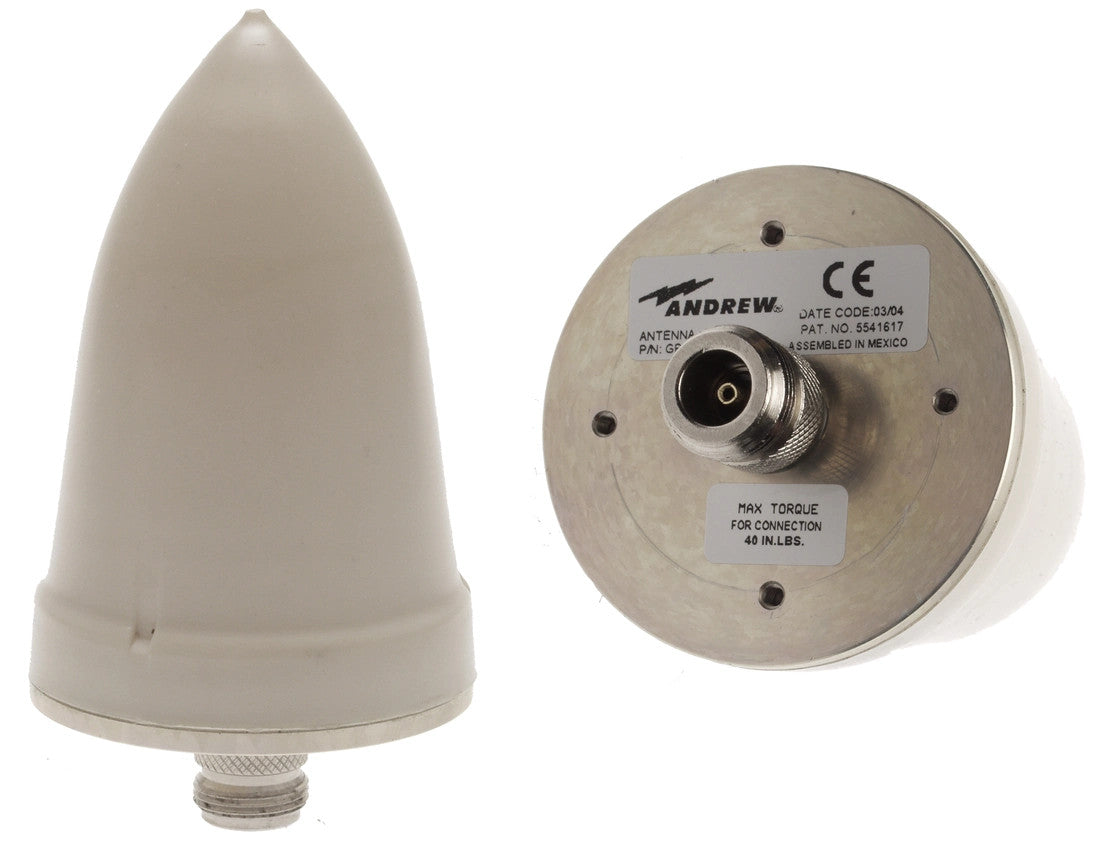

Andrew GPS-PBW-26N/B Small (~2.5") Diameter GPS 26dB Antenna

5V Power • N Connector

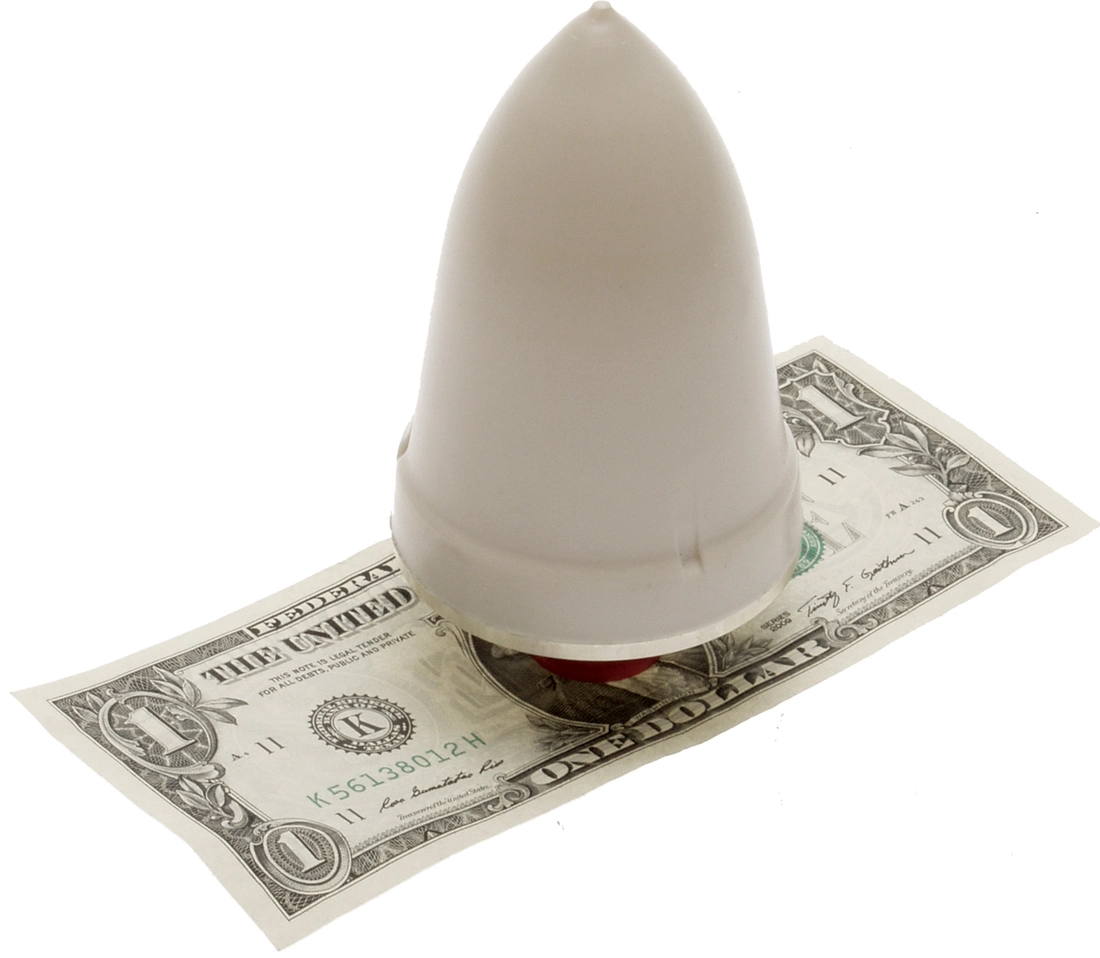

Note that this is the smaller version of the 26dB conical antenna, with an approximate diameter of 2.5 inches. No mounting hardware is included.

Description

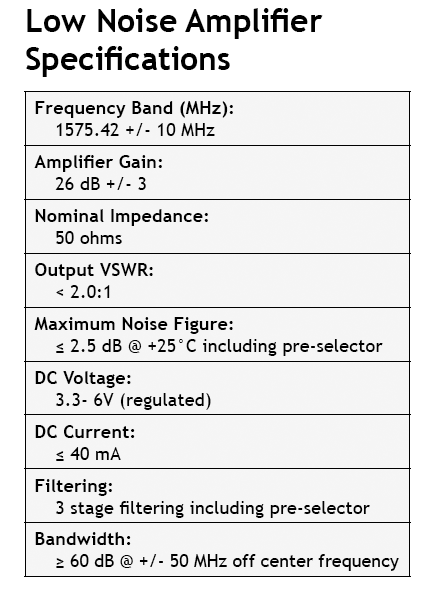

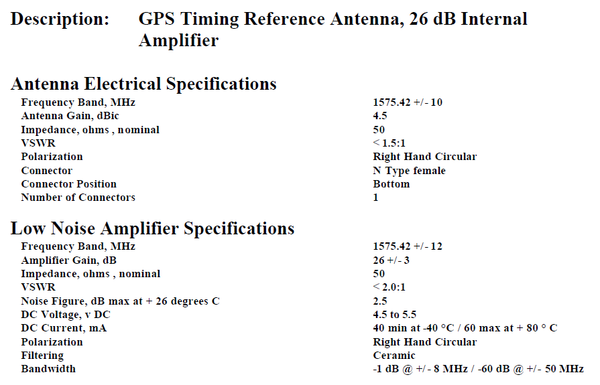

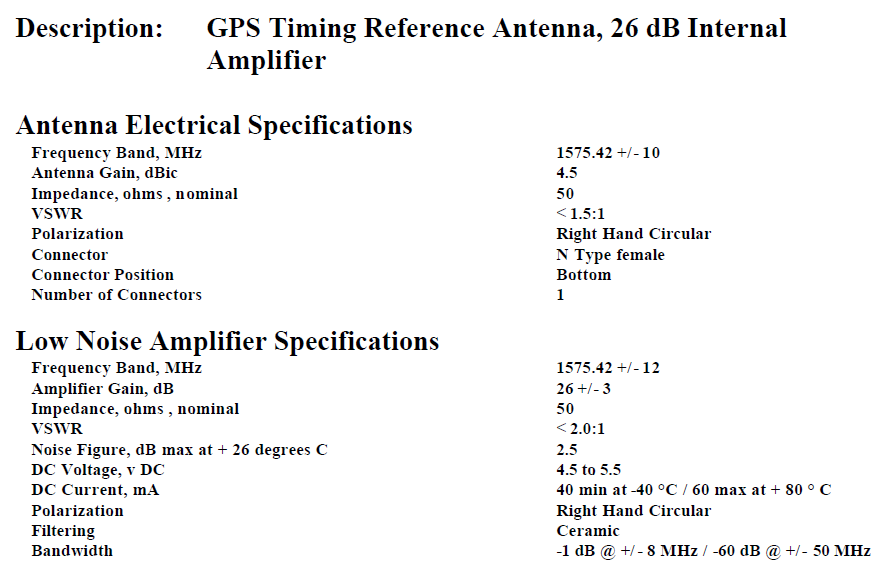

1575 MHz Micropulse GPS Reference Antenna with N Female connector. Antenna incorporates a 26 dB gain low noise amplifier.

3.3Vdc to 6Vdc voltage range

26dB gain

Low loss molding resin

Designed for precision timing applications

Triple pole filter

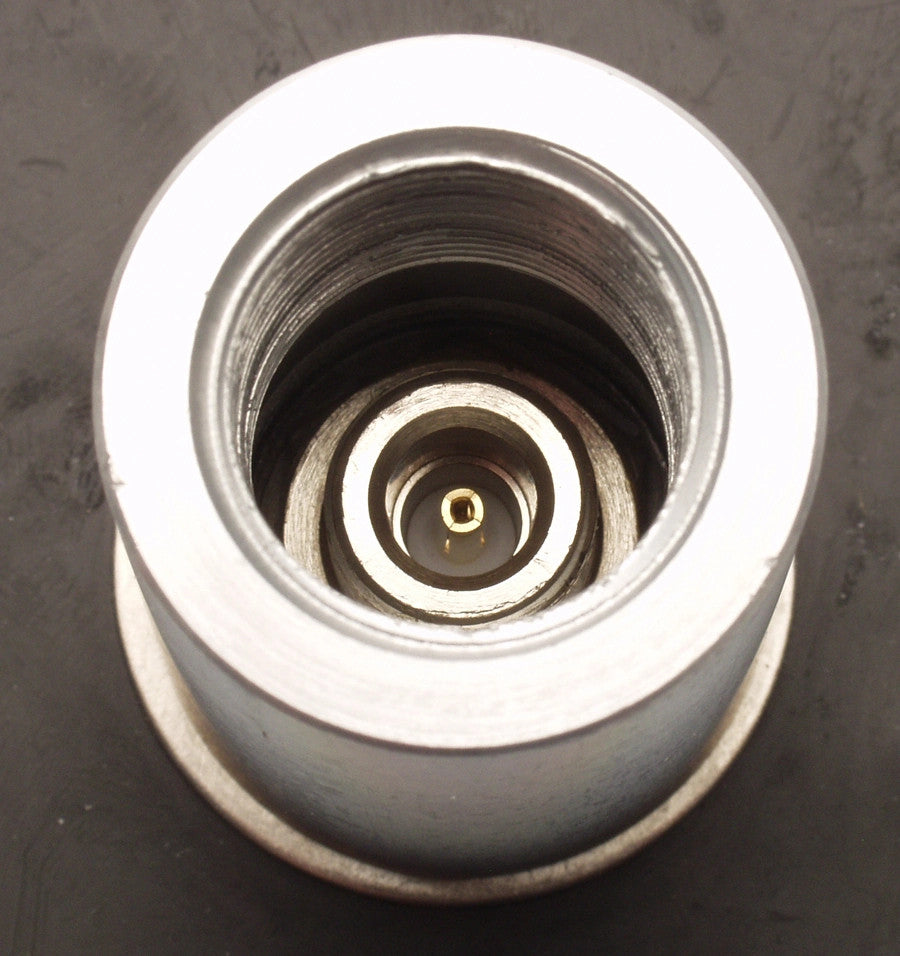

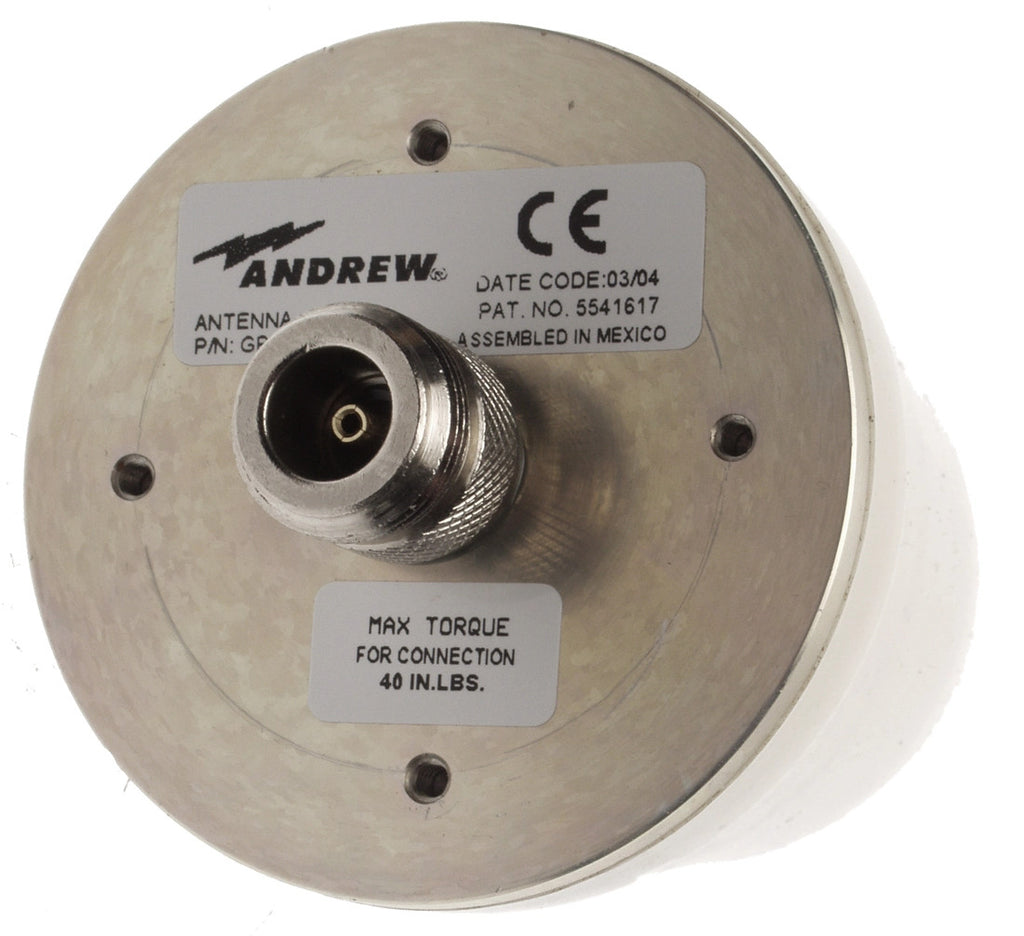

N connector (accepts N Male plug)

This timing reference antenna is specifically designed for long-lasting, trouble-free deployments in congested cell-site applications as well as broadband and WiMAX networks, as well as GPS master clock installations in broadcast facilities.

The proprietary quadrifiliar helix design, coupled with multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. Their unique radome shape sheds water and ice, while eliminating problems associated with bird perching.

This listing is for one GPS antenna. No mounting hardware included.
