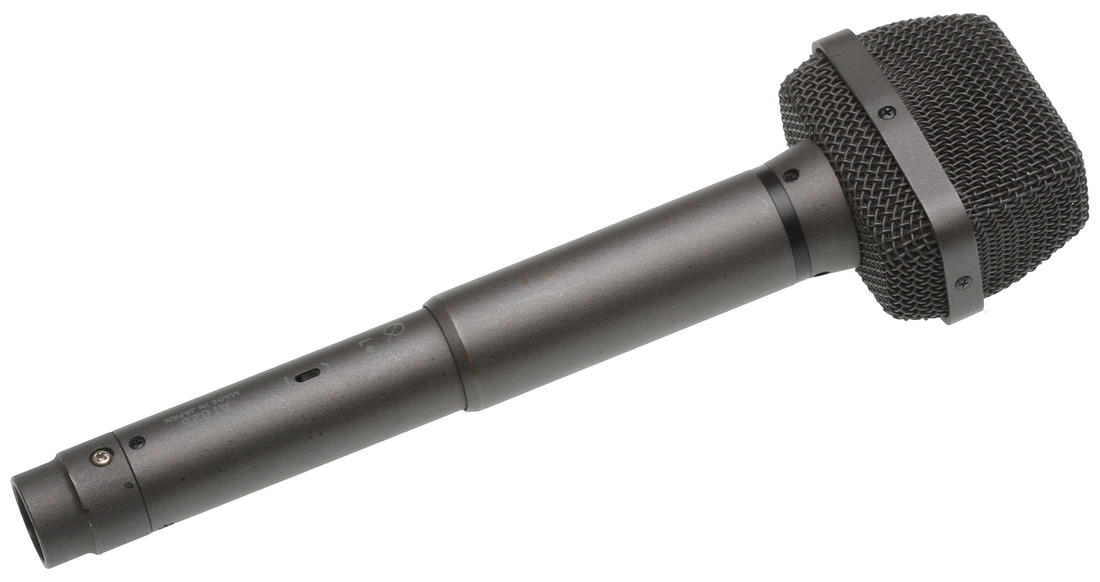

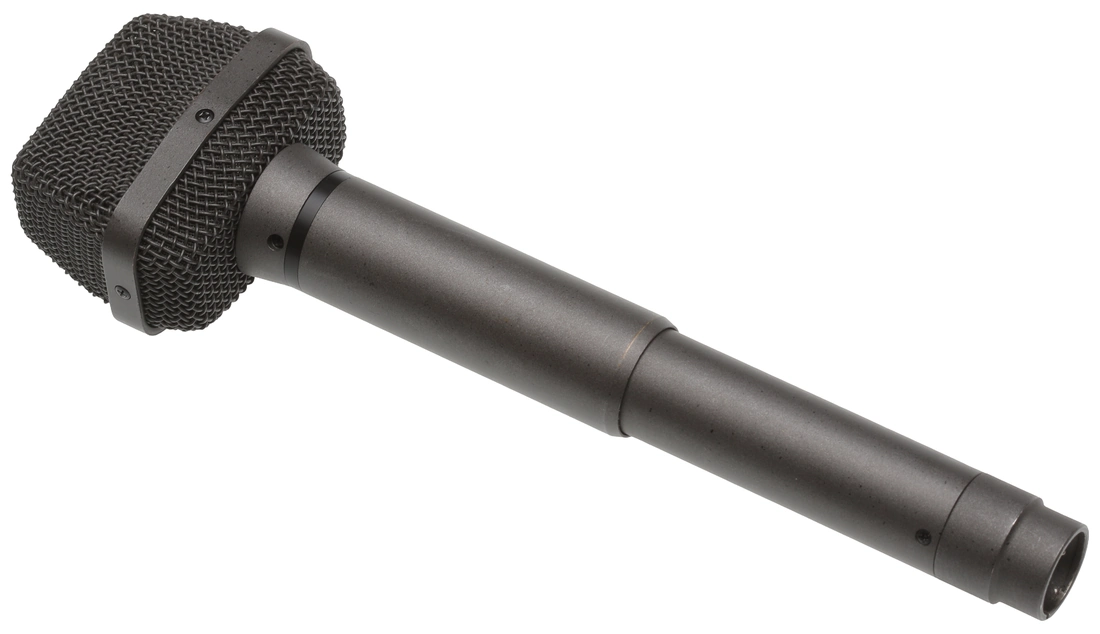

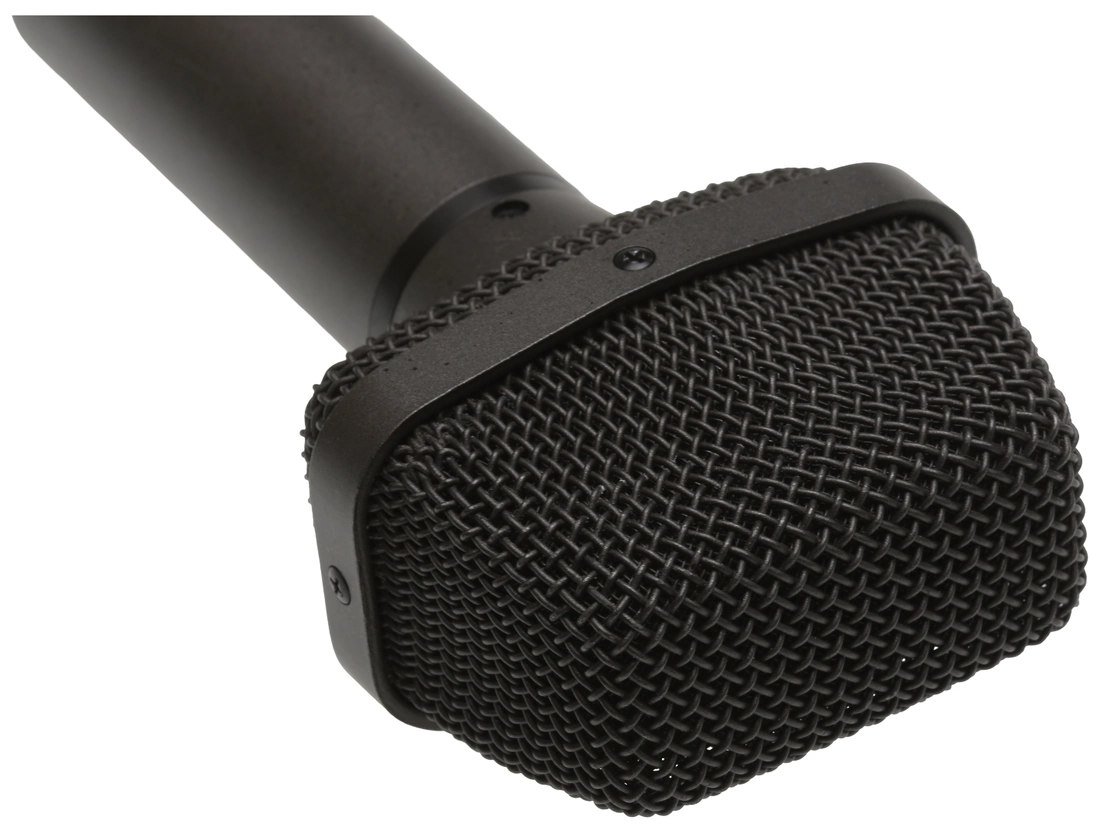

Audio-Technica AT825 Stereo Condenser Field Recording Balanced XLR Phantom Mic
( 366706744839) )
Tested/Guaranteed • New XLR
Breakout Cable • External Windshield Included • Very Good
Condition

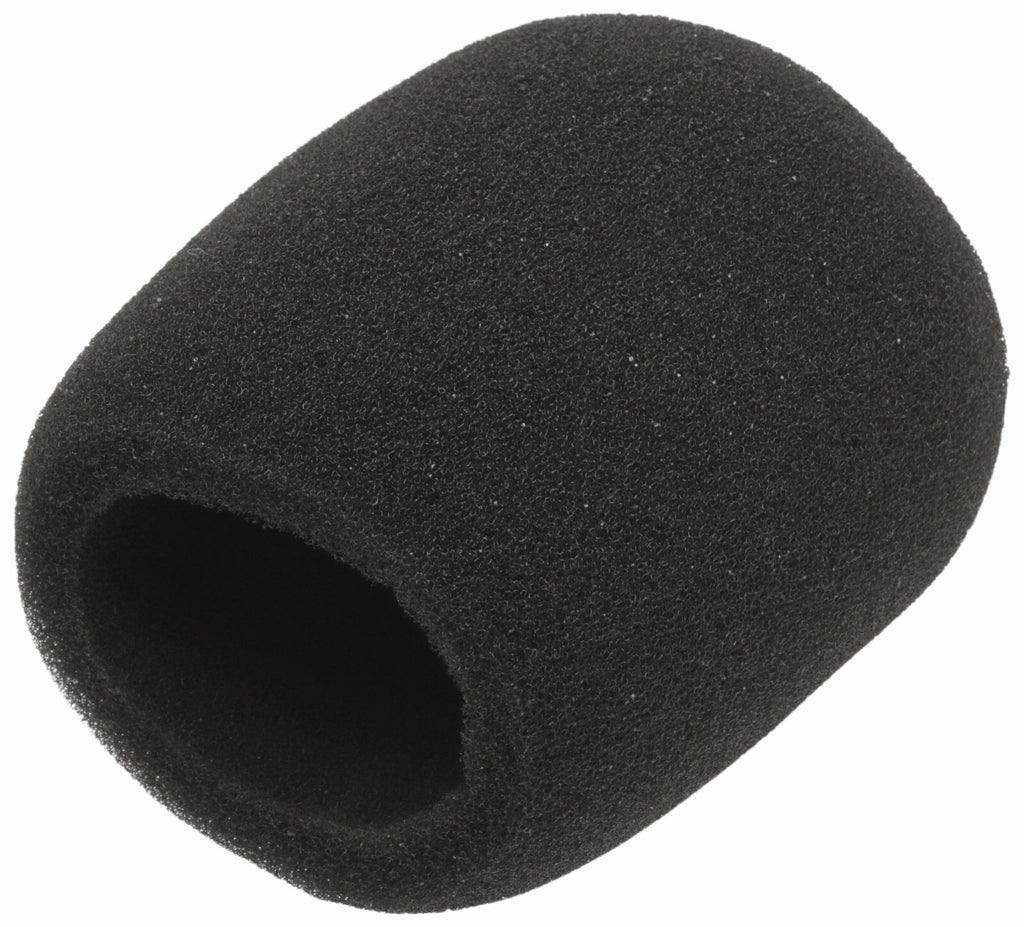

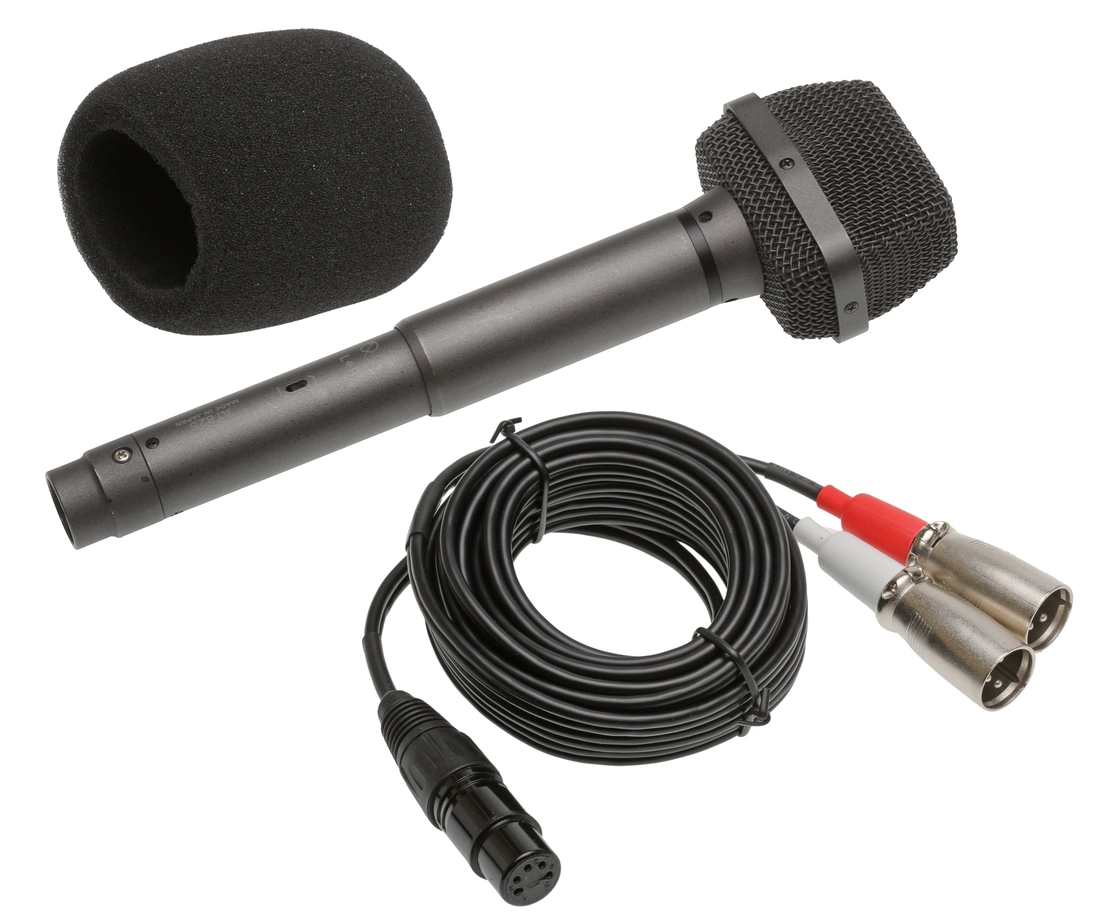

Item is used, fully working and in very good cosmetic condition. Includes a new XLR breakout cable and a generic external windshield. No other accessories are included.

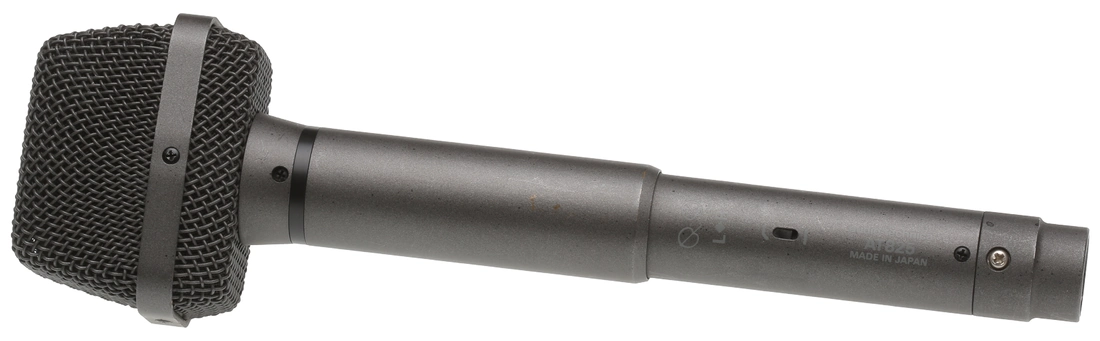

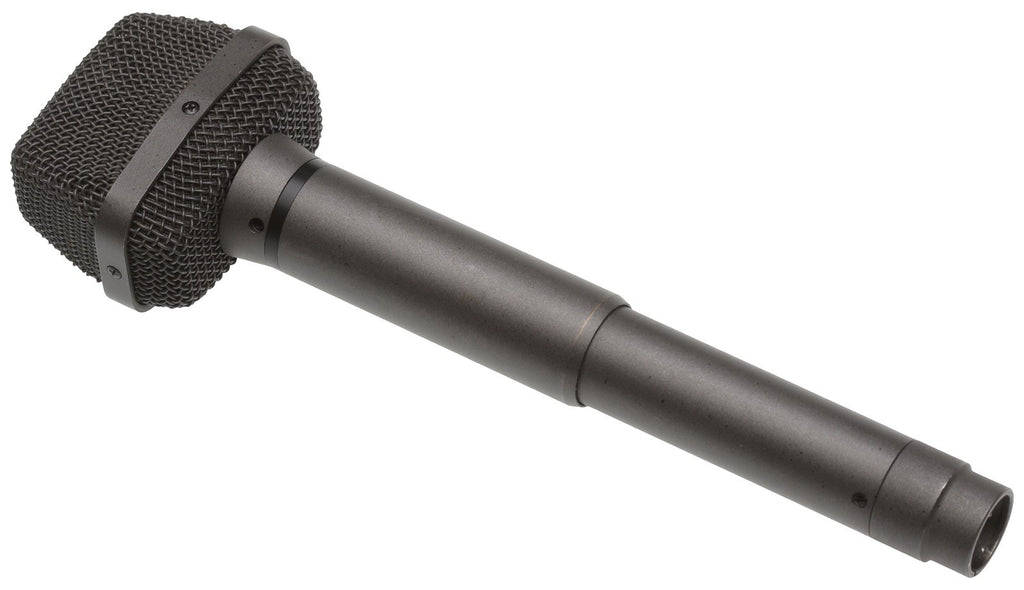

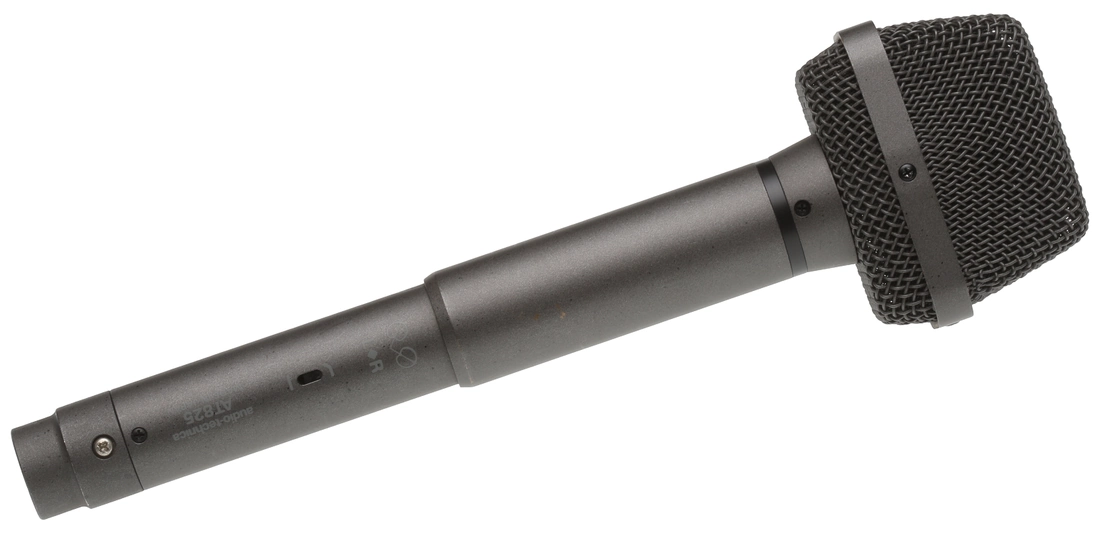

AT825 OnePoint X/Y Stereo Field Recording Microphone, MSRP*
US$549.00
Designed for broadcast, professional recording, and DAT field
use, Audio-Technicas compact, lightweight AT825 is perfect for
camera-mount applications. The microphone is equipped with two
balanced outputs for use with professional audio and video
equipment. Its closely matched elements provide the spatial
impact and realism of a live sound field. With switchable
low-frequency roll-off the versatile AT825 operates on either
battery or phantom power.
- Designed for broadcast and professional recording, and DAT field use
- Compact, lightweight design is perfect for camera-mount applications
- Closely-matched elements provide the spatial impact and realism of a live sound field
- Switchable low-frequency roll-off
- Operates on battery or phantom power

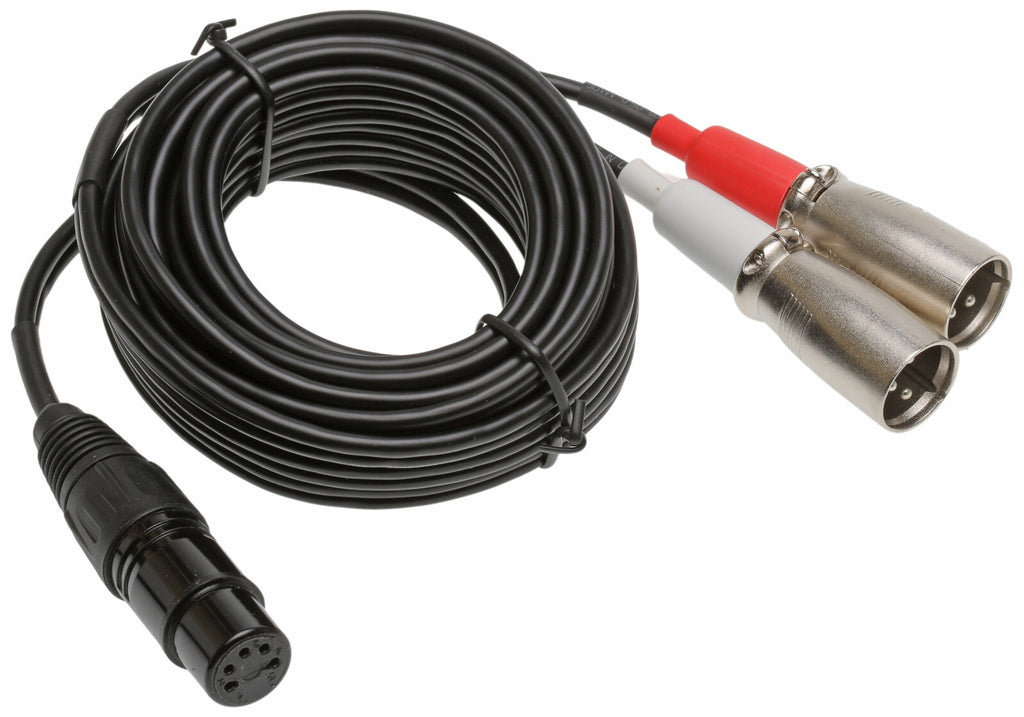

- Includes an aftermarket 15ft cable (5-pin XLRF to two standard 3-pin XLRM connectors), OEM stand clip and generic external windshield
|
SPECIFICATIONS |
|
|---|---|
| ELEMENTS | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | X/Y Stereo |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 150 Hz, 6 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -47 dB (4.4 mV) re 1V at 1 Pa |
| CHANNEL BALANCE | <=2.5 dB |
| IMPEDANCE | 200 ohms balanced |
| MAXIMUM INPUT SOUND LEVEL | 126 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 102 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 70 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 5-52V DC, 2 mA typical (each channel) |

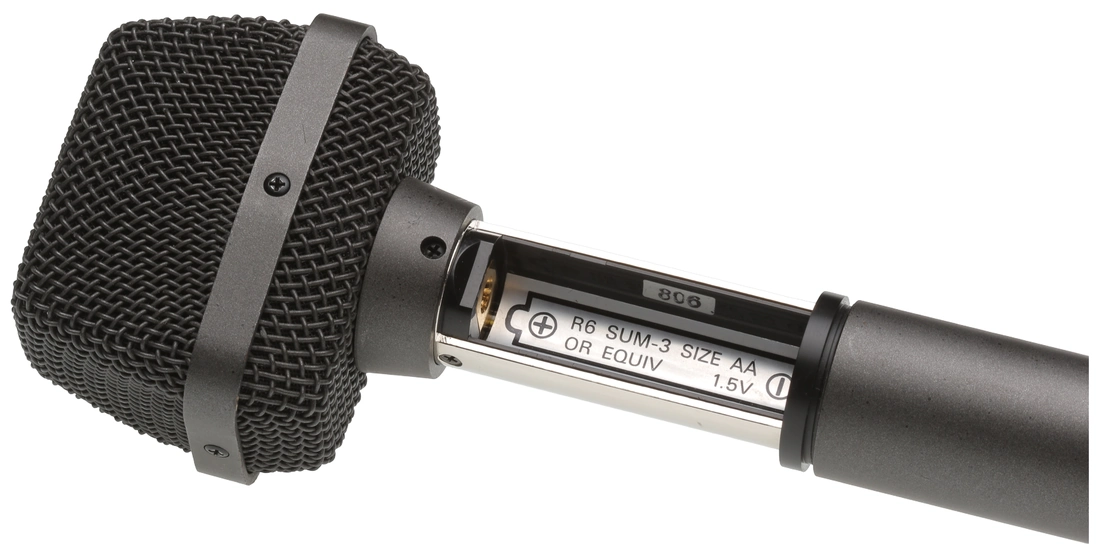

| BATTERY TYPE | 1.5V AA/UM3 |
| BATTERY CURRENT / LIFE | 2 mA / 1000 hours typical (alkaline) |

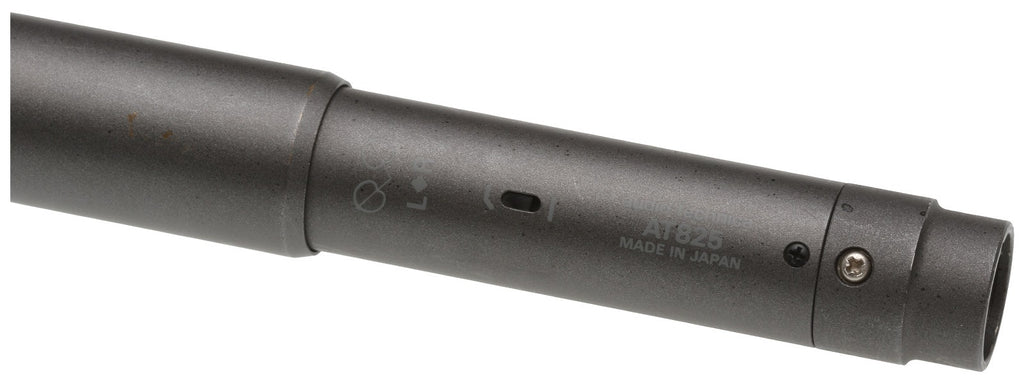

| SWITCH | Flat, roll-off (recessed) |
| WEIGHT | 8.5 oz (240 g) |
| DIMENSIONS | 8.43" (214.0 mm) long, 2.44" (62.0 mm) head width, 0.83" (21.0 mm) body diameter |

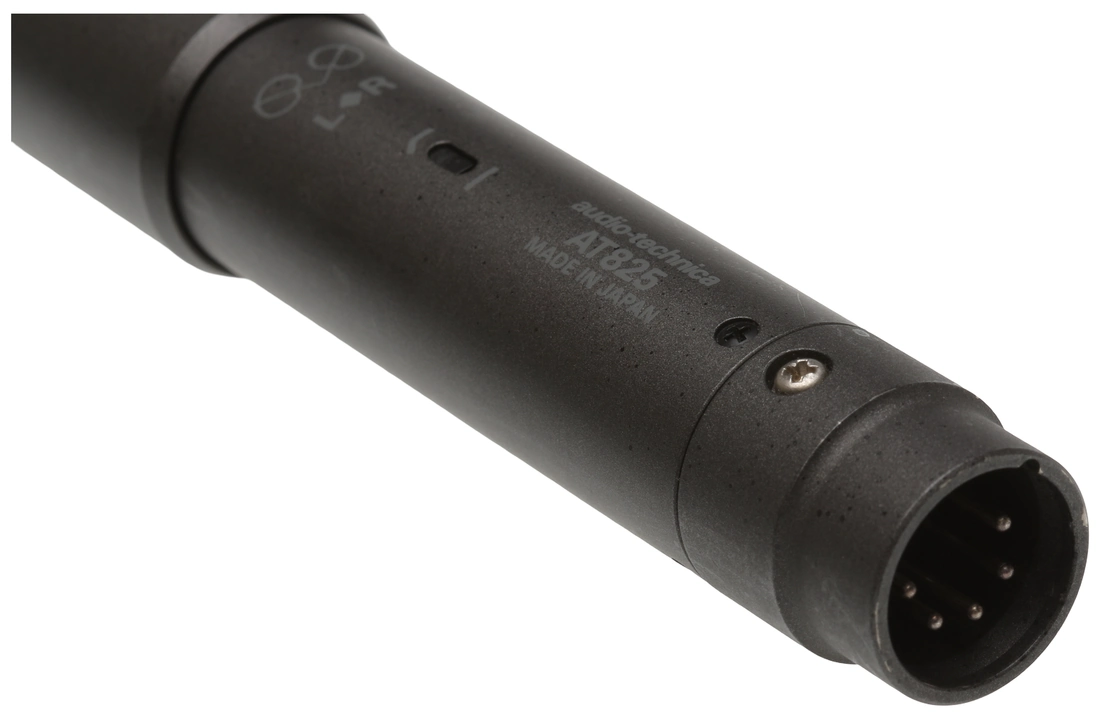

| OUTPUT CONNECTOR | Integral 5-pin XLRM-type |
| CABLE | 15' long, vinyl-jacketed, stereo cable with 5-pin XLRF-type connector at microphone end, two 3-pin XLRM-type connectors at output end |
| ACCESSORIES FURNISHED | Microphone, XLR Breakout Cable, Case, Clip, generic external windshield. |
| AUDIO-TECHNICA CASE STYLE | S3 |
