Audioarts Wheatstone PS-50A Broadcast Console Power Supply +/-18V 5V 48V PS50A [Used]
( 285158257496) )
Tested/Guaranteed • +/- 18V, 5V, 48V Outputs • Quiet Fan • Good Cosmetic Condition • Audioarts PS-50A • Broadcast Console Power Supply

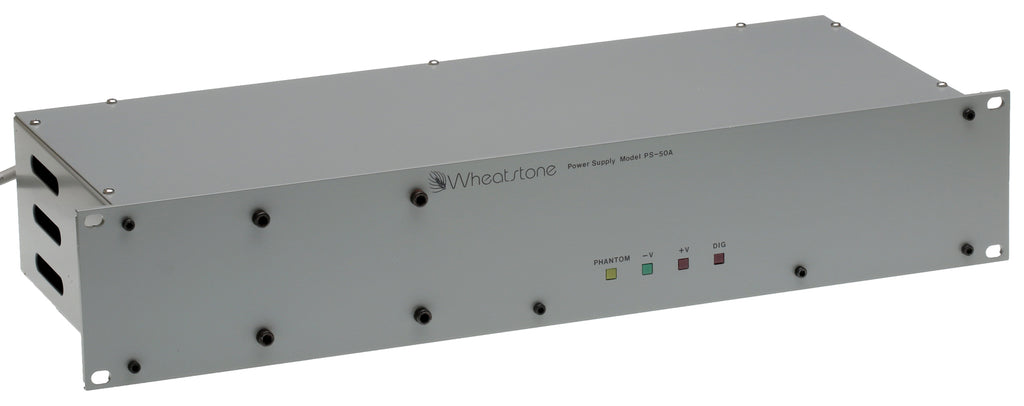

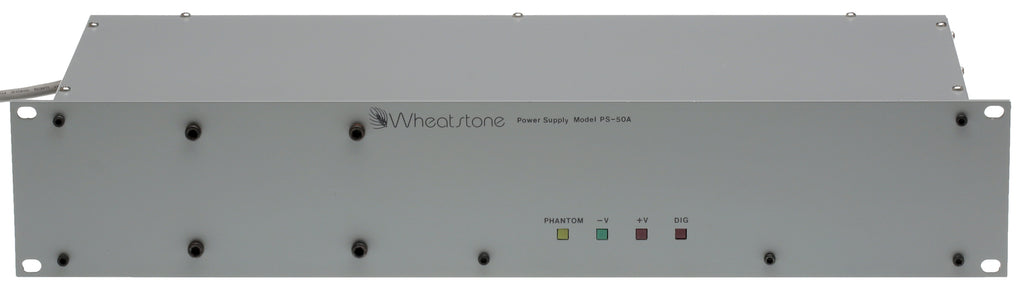

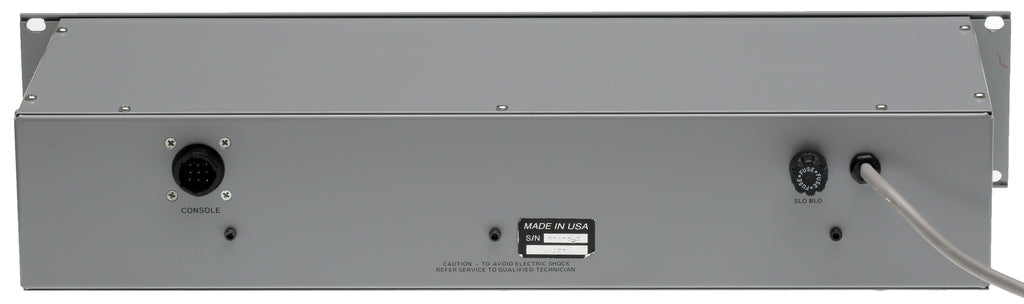

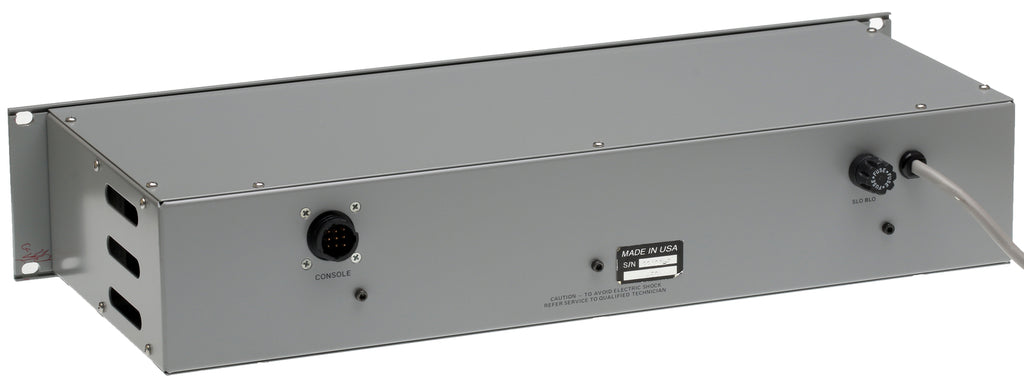

Photos show the actual item for sale
Used, good condition, tested for correct output voltages. The umbilical cord to connect to the console is not included.

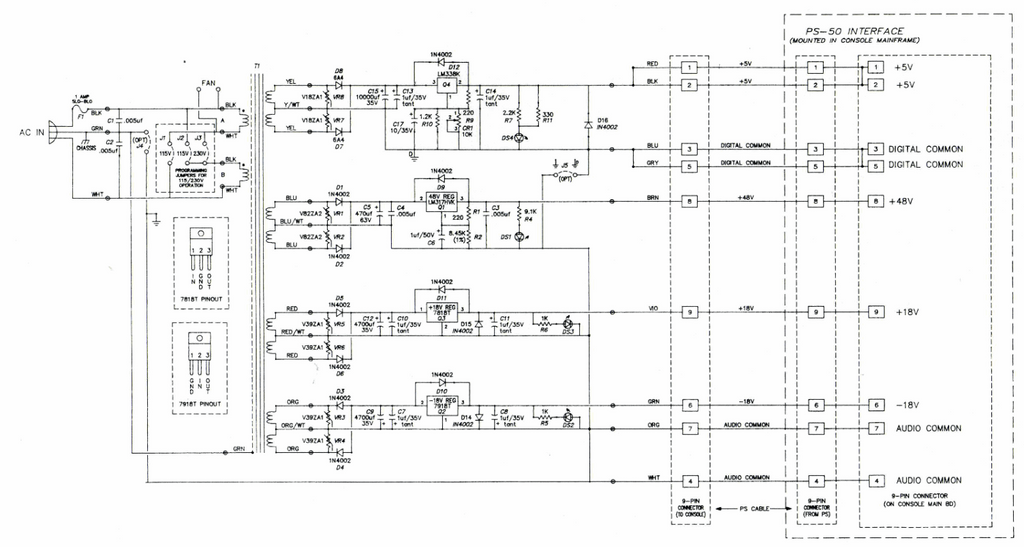

The schematic may be obtained from https://www.prostudioconnection.net/1411/PS-50_Schematic.pdf
Buying a replacement power supply from the manufacturer is an expensive proposition if yours has failed - or just become separated somewhere back in time.
Here's your chance to pick up a replacement, spare or standby Wheatstone/AudioArts PSU.
This supply has the following outputs
1. +18V
2. -18V
3. 48V (nominal) for microphone phamtom power
4. 5V DIG output

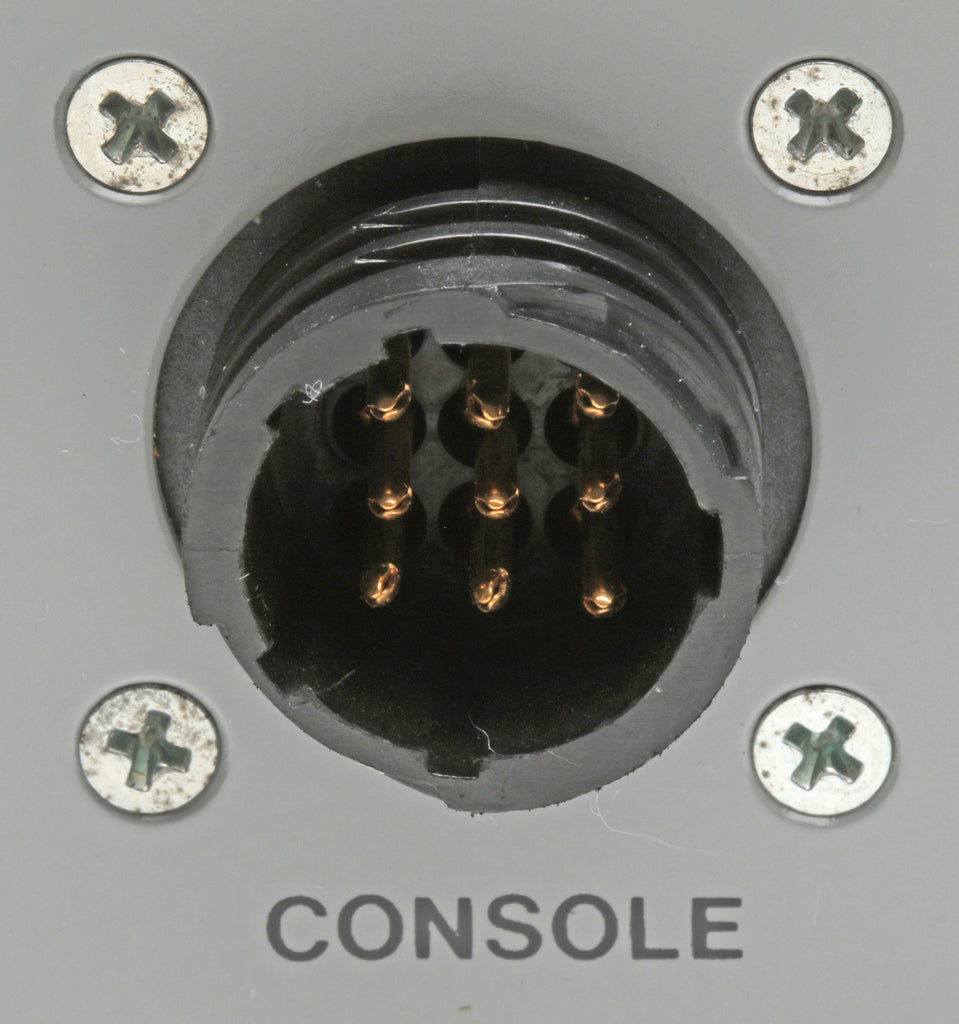

Does not include cable to connect to console but a matching AMP 9 Pin plug can be obtained from supply houses such as Mouser.
The power supply can be adjusted to work on 230V power by means of changing the straps on the PCB.
