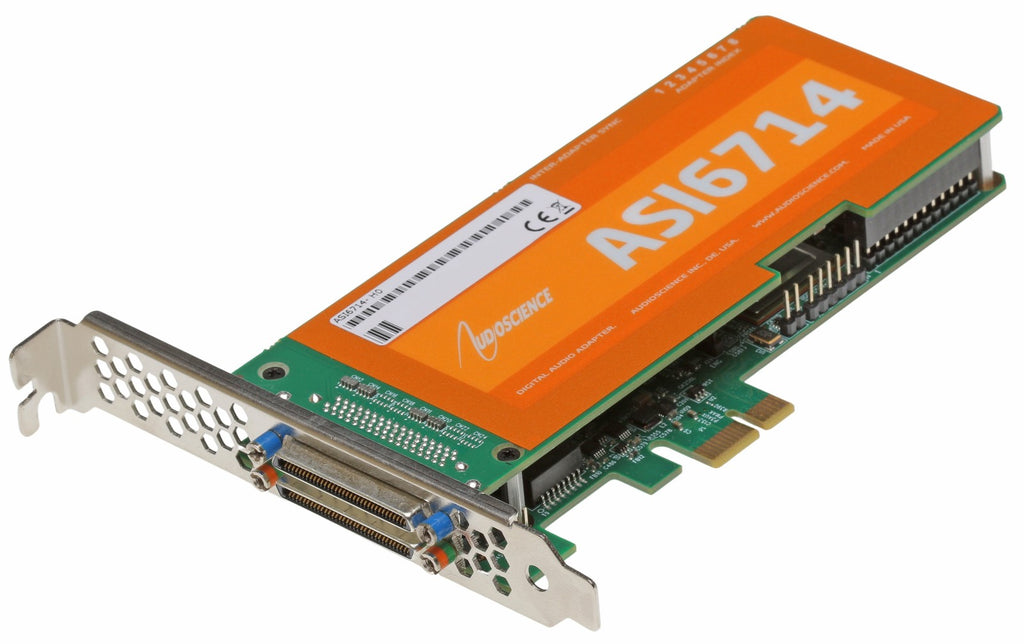

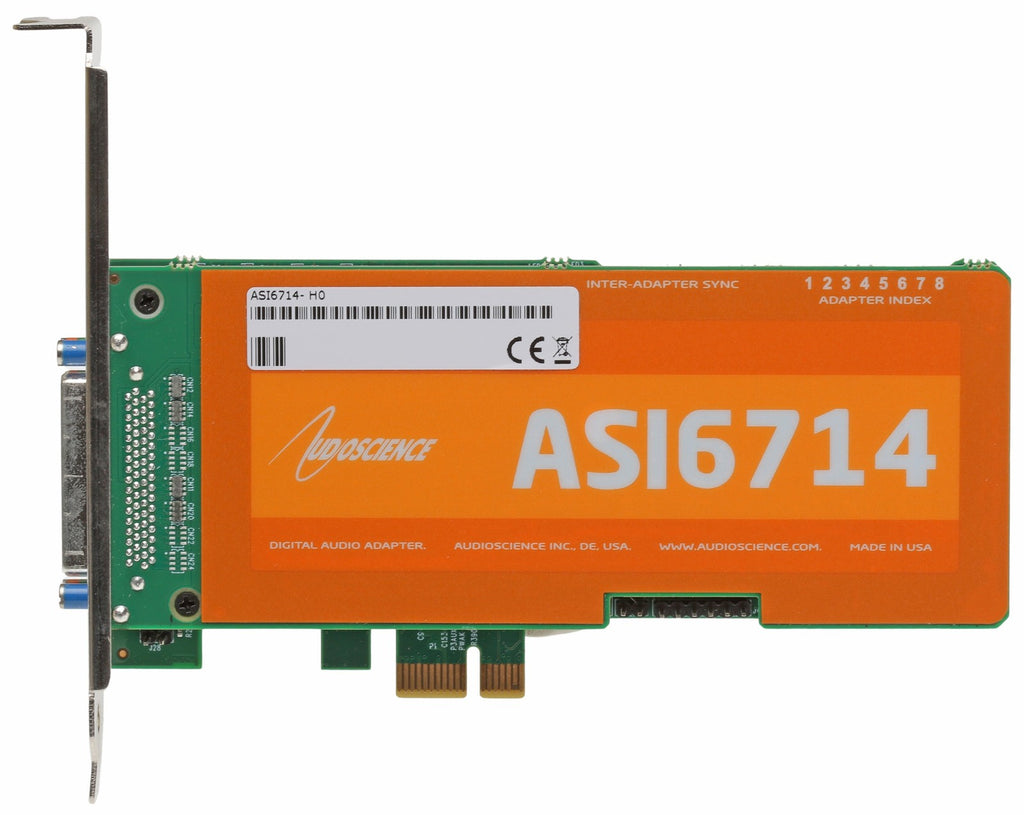

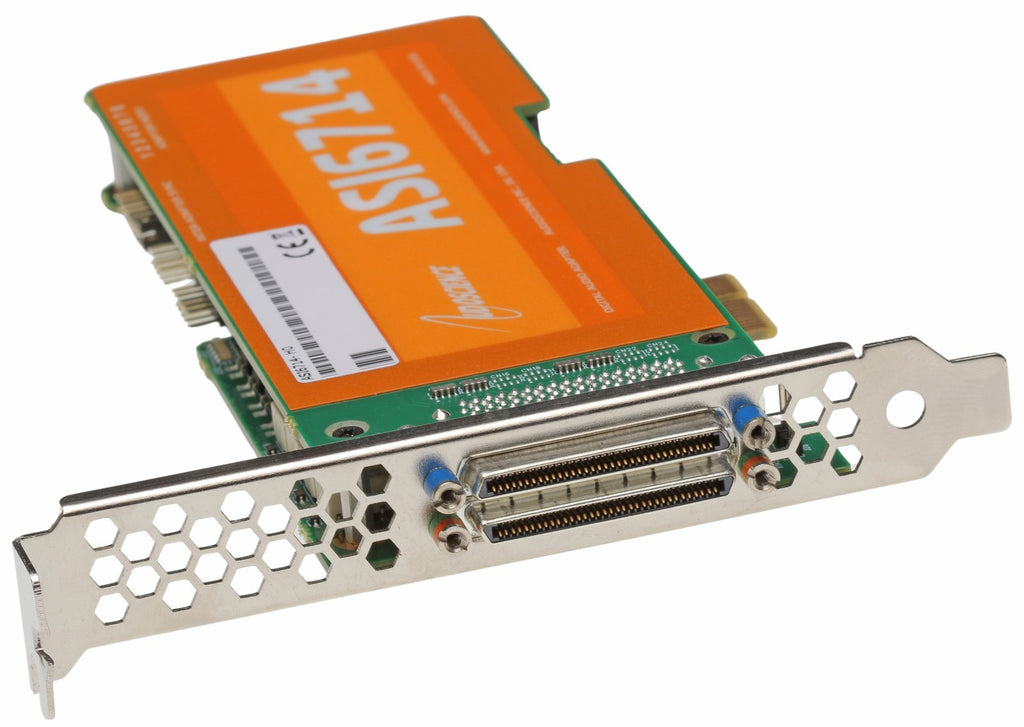

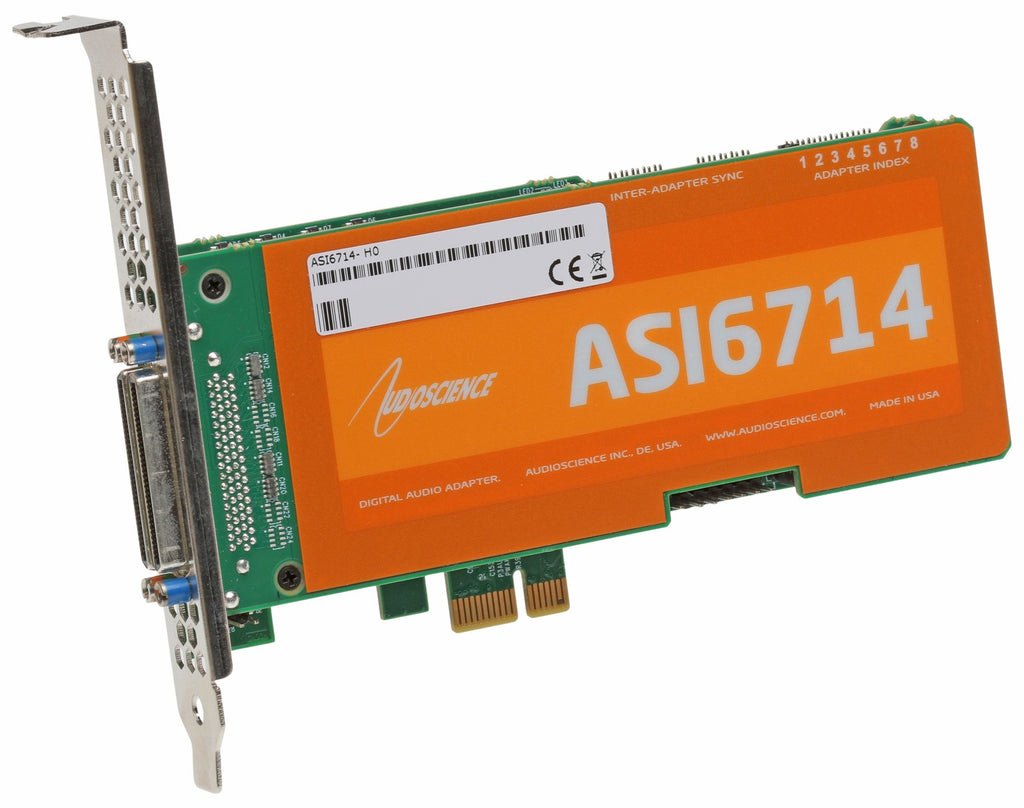

AudioScience ASI6714 Broadcast 4Ch AES Digital & Balanced Analog PCIe Sound Card

4 Stereo Outputs and 1 Stereo Input • Balanced Analog and AES Dgital Connections • 192KHz Capable • PCIe Express Interface • MRX and TRX Capable

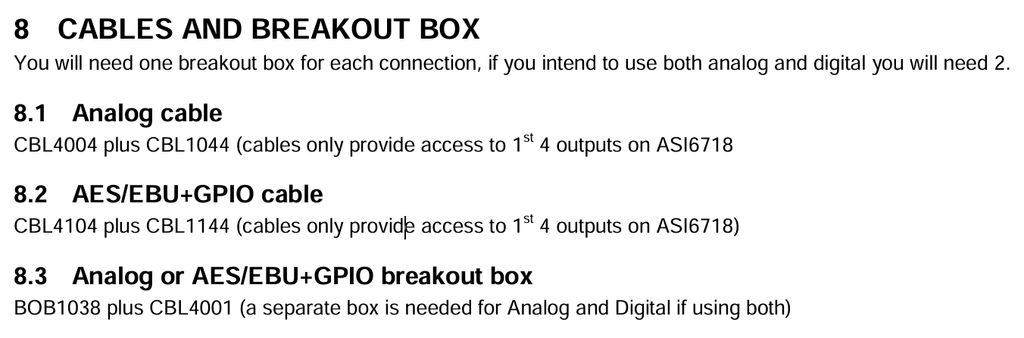

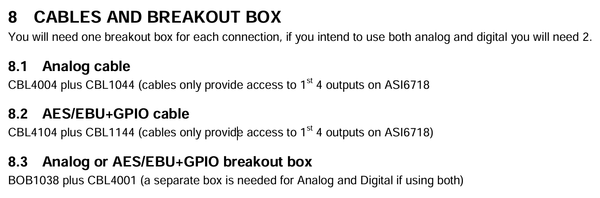

In excellent, near mint condition. Tested to confirm that it is fully working. Note that no breakout cable or breakout box is included. This listing is for the bare sound card only. See below for the part numbers of the matching cables. This is a PCI Express (PCIe) card. This card requires driver version 4.16.00 or later under Windows 10 or Windows 11. Suits a full height ATX case - no Low Profile bracket is included.

Description

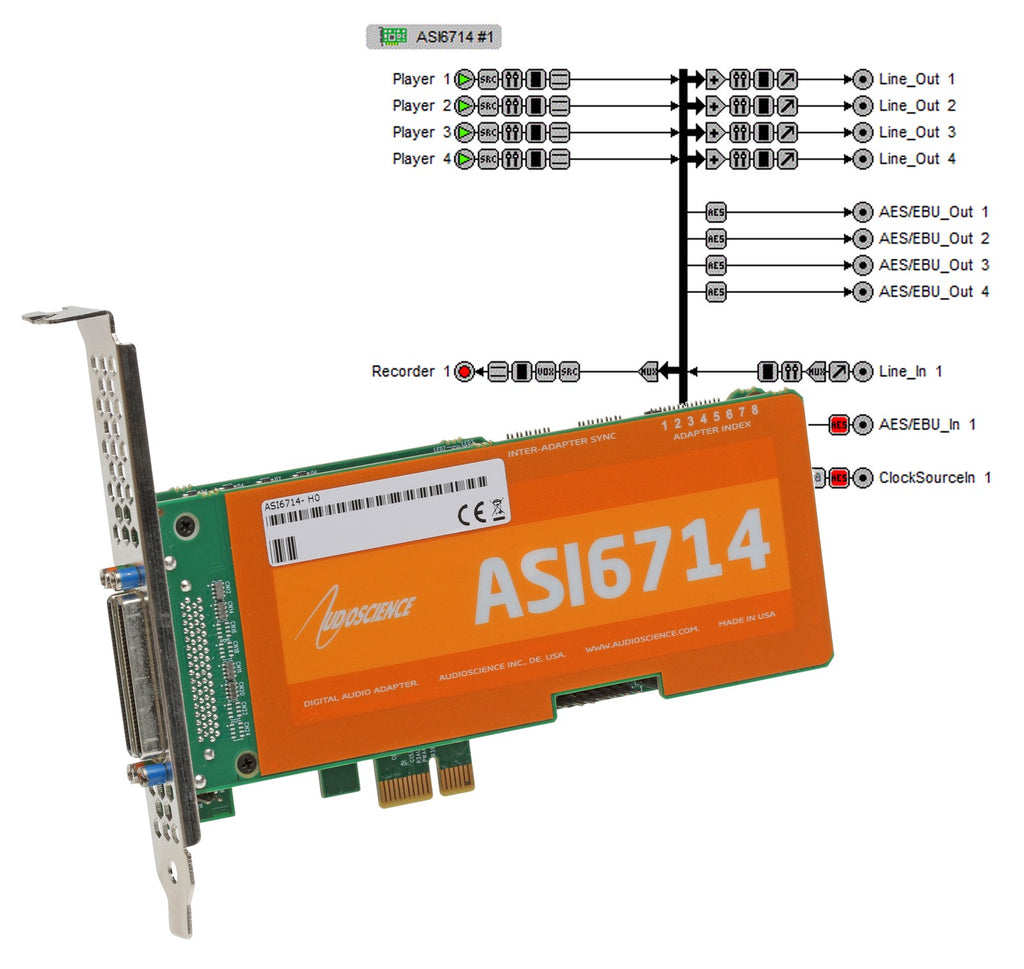

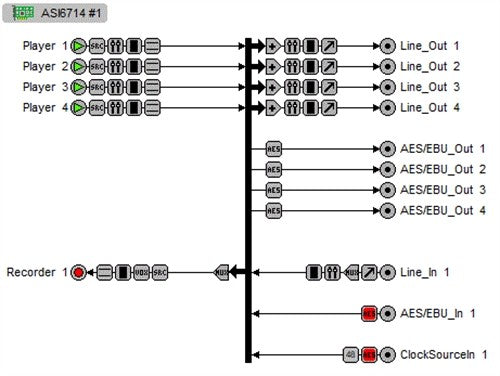

The ASI6714 is a professional PCI-Express sound card designed for use in radio broadcast automation. Providing 12 play streams that are mixed to 4 balanced stereo outputs and 2 record streams fed from one balanced stereo input, the ASI6714 features AudioScience’s unique “anything to anywhere" mixing and routing.

The ASI6714 provides both balanced analog and AES/EBU inputs and outputs. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6714 functionality includes MRX multi-rate mixing technology which allows streams of different sample-rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

FEATURES

• 12 mono/stereo streams of playback into 4 stereo outputs
• 2 mono/stereo streams of record from 1 stereo input.
• PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz.
• MRX technology supports mixing of multiple formats and rates.
• TSX time scaling by up to +/-20%
• Balanced stereo analog I/O with levels to +24dBu.
• 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
• AES/EBU I/O with sample rate converters on all inputs.
• Dedicated AES/EBU and Word clock Sync input.
• Short length/half-height PCIe card format.
• Up to 4 cards in one system.
• Compatible with Windows and Linux, supporting recent software drivers
