Belden 009U1000 WHITE 1000Ft 75 Ohm RG59/U 20AWG Coax Cable GPS Antenna Downlead

( 236159429847) )

$175.00 (1 available in stock)

Belden 9104 009U1000 • WHITE (009) Jacket • 1000 Ft • 75 Ohm • RG59/U • 20 AWG Cable

New Old Stock

New old stock in an un-reel carton.

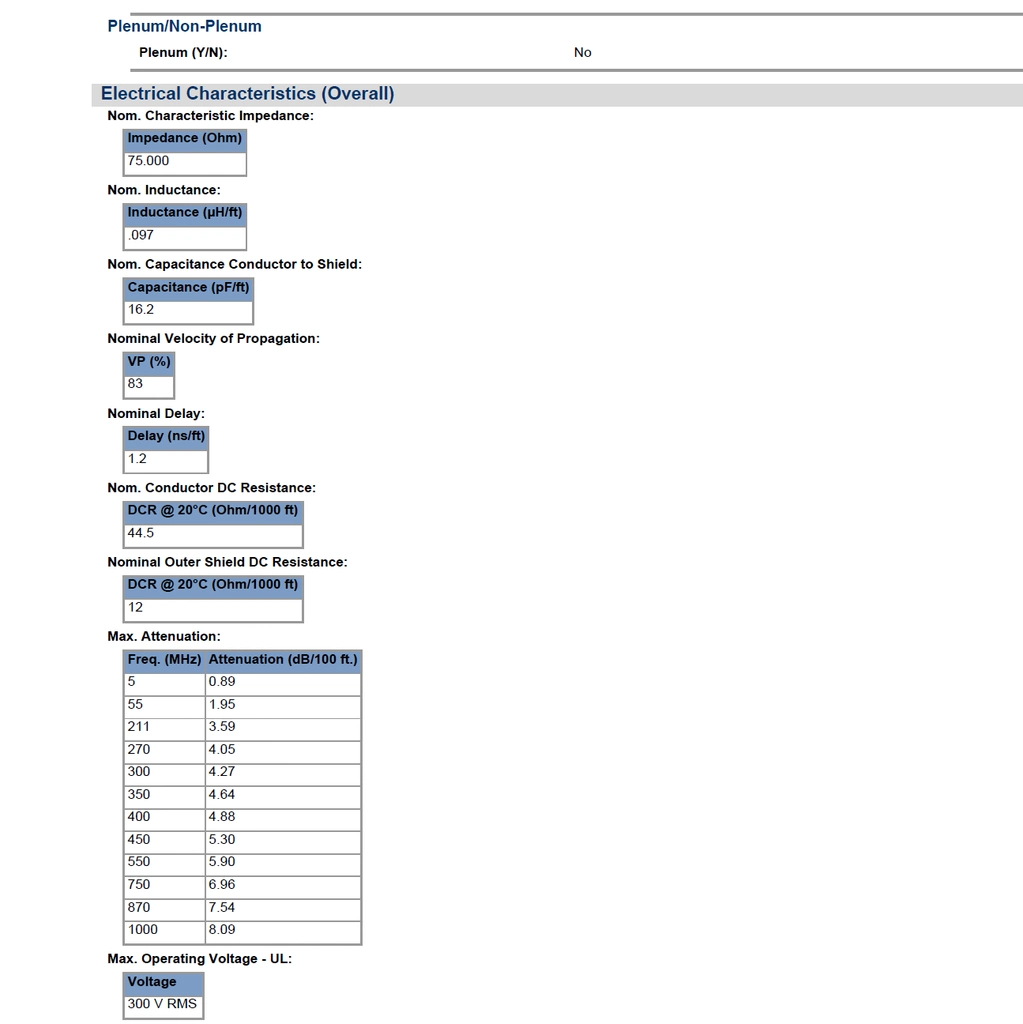

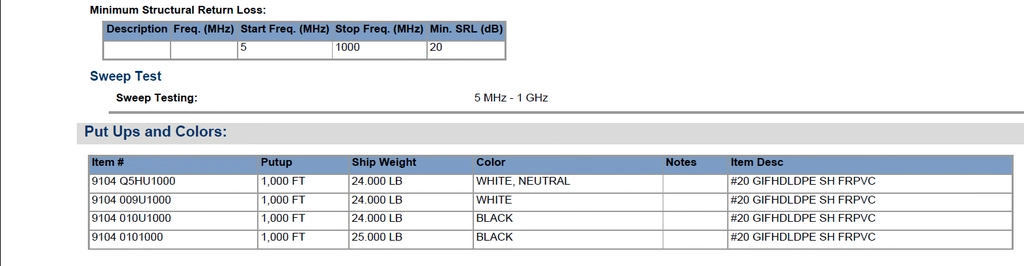

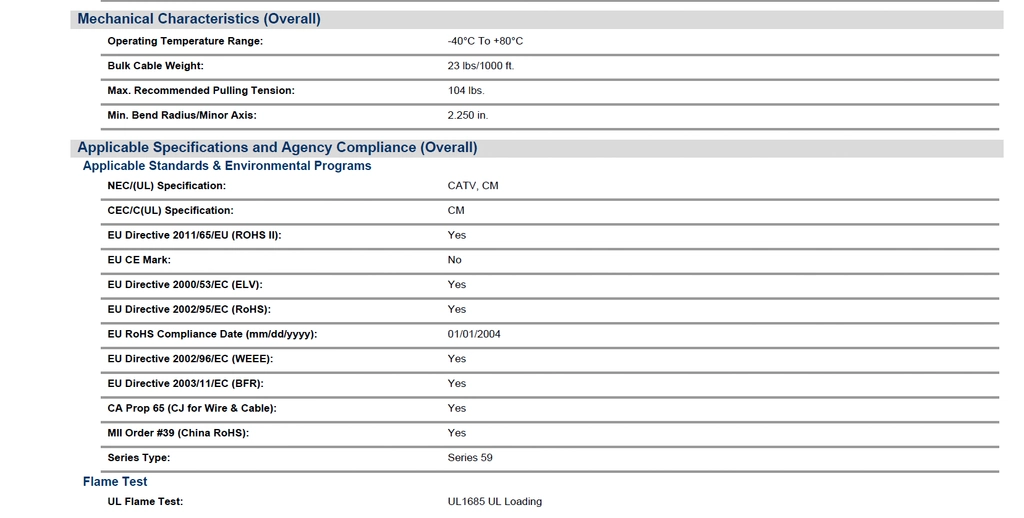

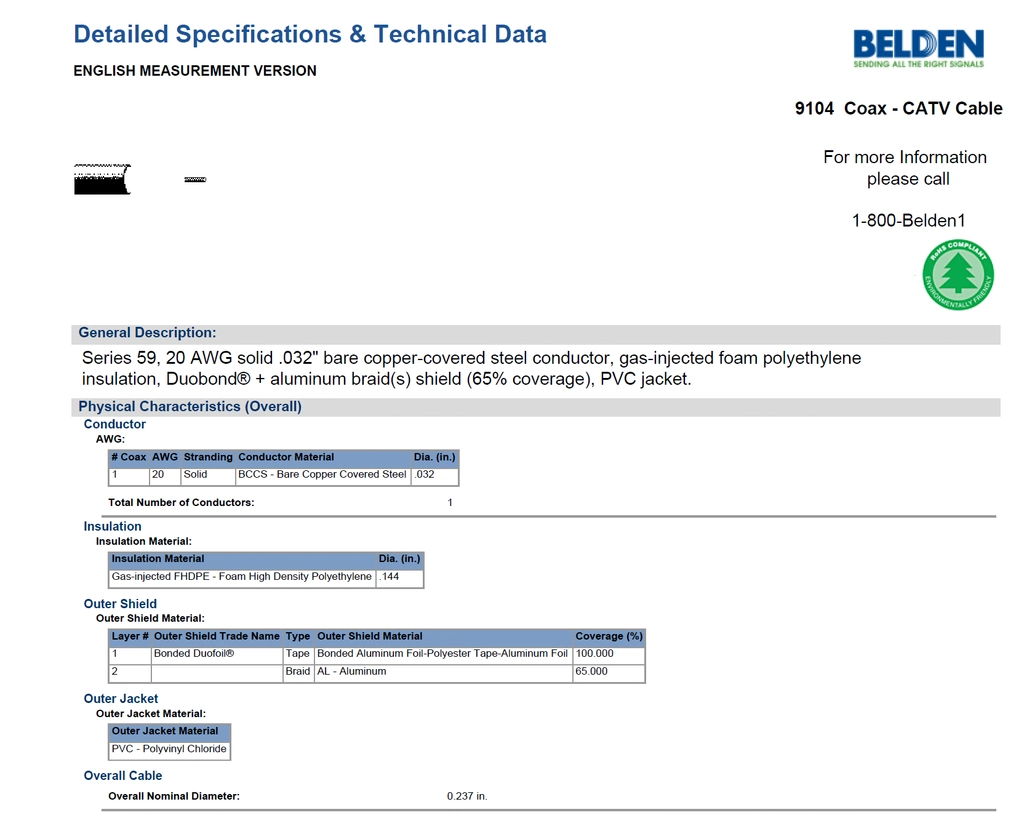

Manufacturer's datasheet available below.
Symmetricom used this cable on their GPS antenna downleads, so this is the type of cable that I use to extend or replace those cable runs.
Most GPS antennae with 26 or 40dB gain work fine with runs of this cable of 50 feet or so.

Description

Manufacturer: Belden Wire & Cable

RG Type: RG-59/U

Conductor Material: Bare Copper Covered Steel

Impedance: 75 Ohms

Jacket Material: Polyvinyl Chloride (PVC)

Length: 1000 ft

Outside Diameter: 0.237 in

Wire Gauge - AWG: 20 AWG

Stranding: Solid

Brand: Belden Wire & Cable

Maximum Temperature: + 80 C

Number of Coaxial: 1

Shielding: Shielded

https://www.prostudioconnection.net/2506/9104-1.png

https://www.prostudioconnection.net/2506/9104-2.png

https://www.prostudioconnection.net/2506/9104-3.png

https://www.prostudioconnection.net/2506/9104-4.png
