Broadcast Tools 8x2 Dual Audio Stereo Switcher Router Silence Sensor ** PARTS ** [For Parts]

*** FOR PARTS OR REPAIR ** • Dual Stereo Audio Switcher/Router • PC Serial Control via RS-232 • Remote GPI Contact Closure Interface • Integrated Silence Sensor

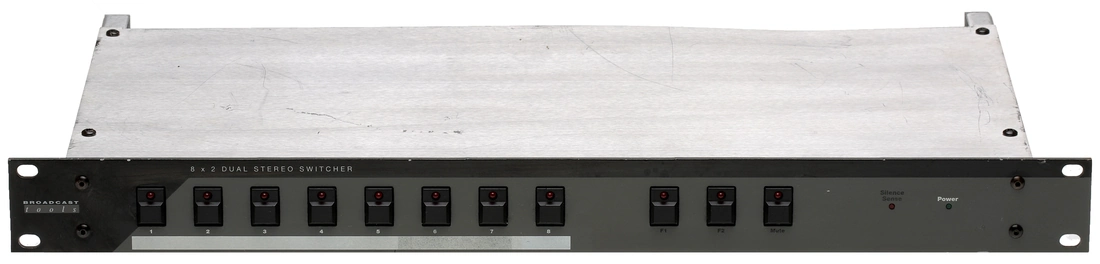

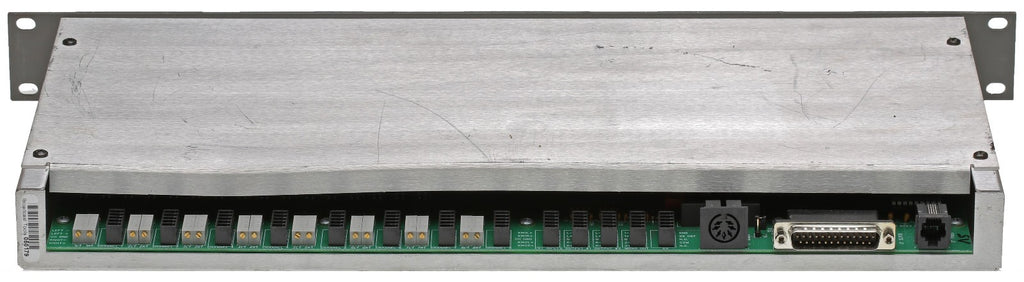

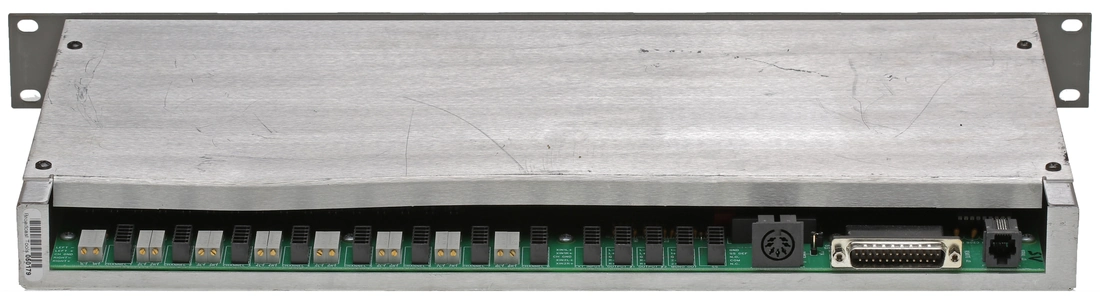

Photos show the actual item for sale

Item does not work properly. It powers up but does not switch channels when the channel select buttons are pressed. Offered as-is, final sale, no returns or refunds. No unpictured accessories, documents or cables are included.

I'm sharing the results of my testing to help you in your purchase decision, but I do not guarantee that you will get the same results or reach the same conclusions. Nor that I haven't missed some important point.

More information many be obtained from the Product Manual at https://www.prostudioconnection.net/1312/Broadcast_Tools_Manual_8x2D_ev.pdf

Description (Conformance NOT Guaranteed)

The 8x2 is designed to accommodate 8 stereo inputs, 2 stereo outputs and 2 monaural outputs. Output selectable silence sense monitoring is also provided.

The 8x2 may be controlled via front panel switches with indicators and/or externally. This may be any momentary contact closure or TTL/CMOS logic. Open collectors are provided for status. The 8 x 2 also has the ability to be controlled by a computer serial port.

The 8x2 features three operating modes:

1. Overlap mode that allows you to overlap one audio source with another while thebutton for the second source is held down. Both channels will be fed to the output until the second button is released, at which time the first audio source will be switched off.
2. Mix mode allows any or all channels to be connected (mixed) to either output channel.
3. Interlock mode provides that when a channel button on the switcher is pressed, the first audio source will be immediately turned off and the second audio source will beturned on.

Another user selectable feature is the way the 8x2 will act when power is first applied (or re-applied after a power failure). You have your choice of having all channels being OFF on power-up or any or all of the eight input channels being assigned to either or both of the two output channels at power-up.
