Broadcast Tools 8x2 Dual Audio Stereo Switcher Router Silence Sensor RS-232 GPI
( 284425826260) )
New Open Box • Tested/Guaranteed • Dual Stereo Audio Switcher/Router • PC Serial Control via RS-232 • Remote GPI Contact Closure Interface • Integrated Silence Sensor

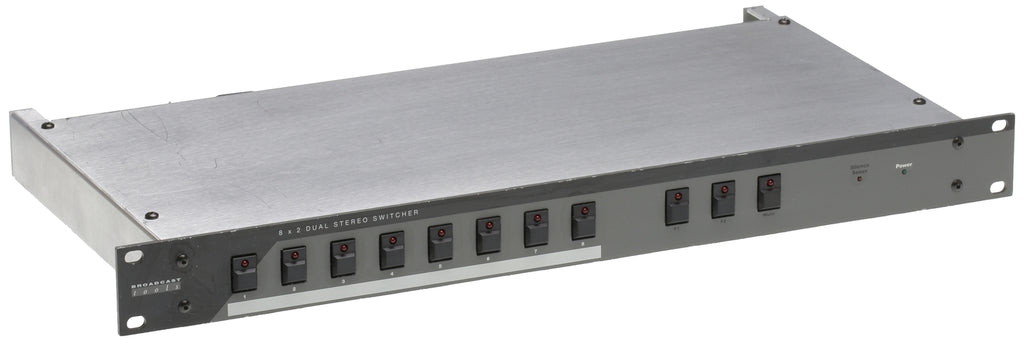

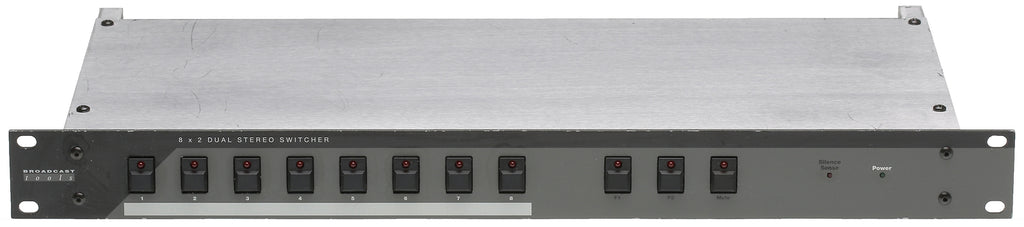

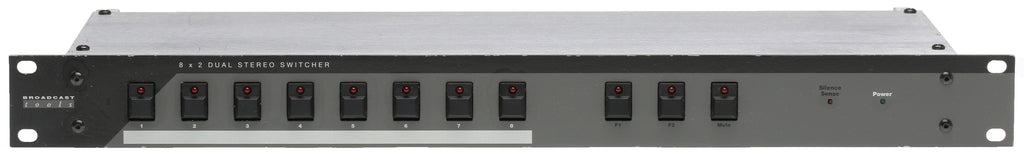

Photos show the actual item for sale

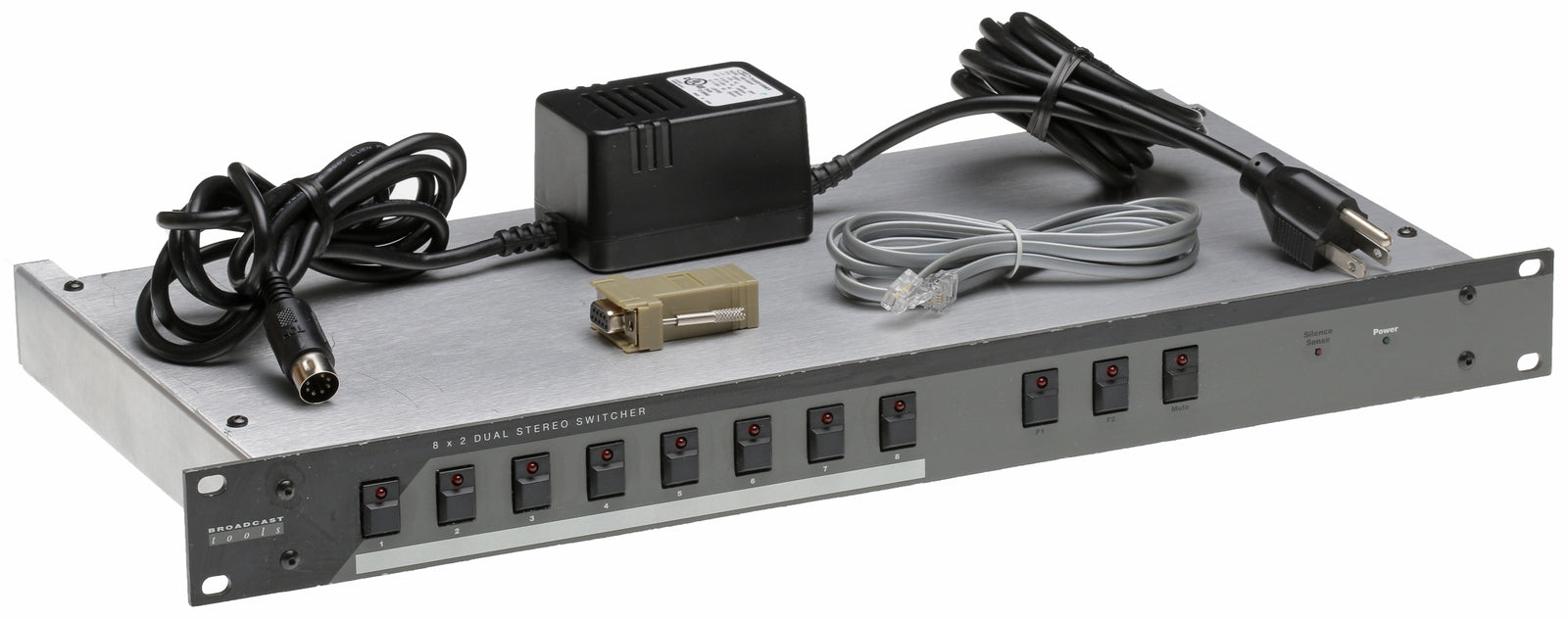

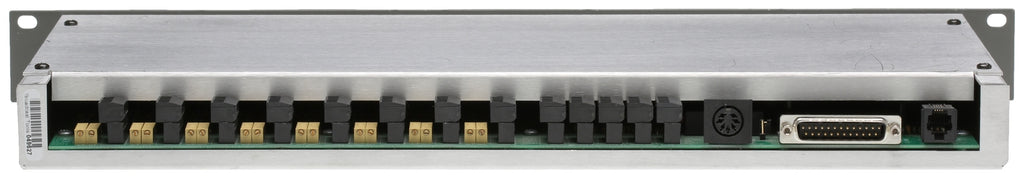

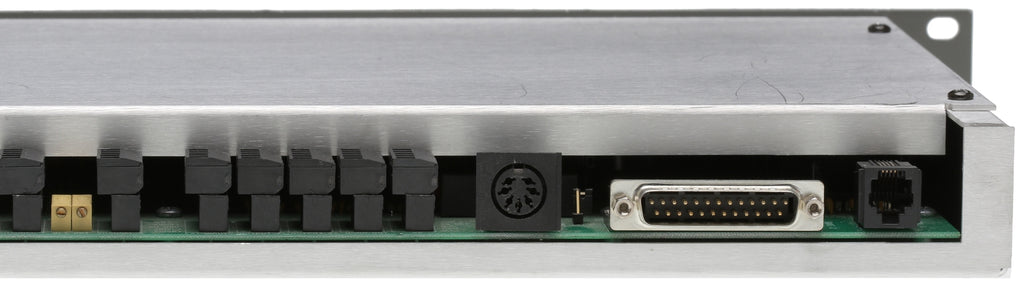

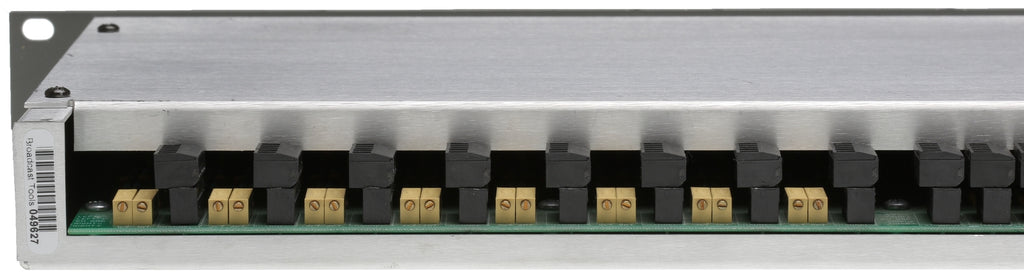

Item is new/never deployed. It ships in the factory carton which has been opened to test the unit and inspect the contents. The rear connectors for the audio signals are punch-down types. A matching punch down tool is included in the package. Listing comprises the items shown in the images only. No other accessories, cables or documents are included. The photos show the actual item for sale.

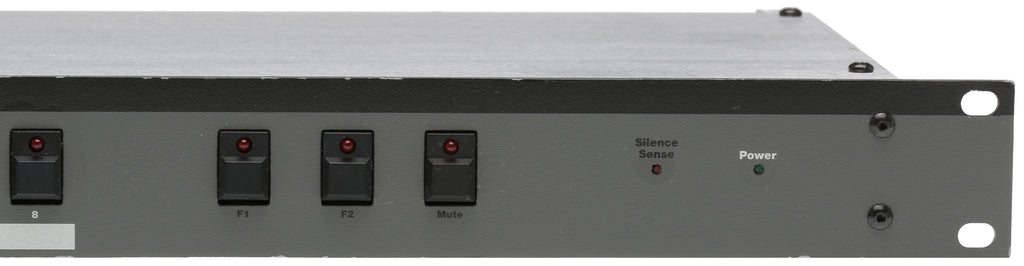

The 8x2 is designed to accommodate 8 stereo inputs, 2 stereo outputs and 2 monaural outputs. Output selectable silence sense monitoring is also provided.

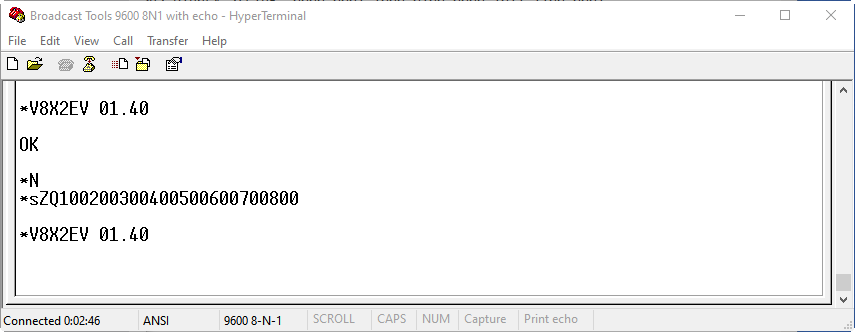

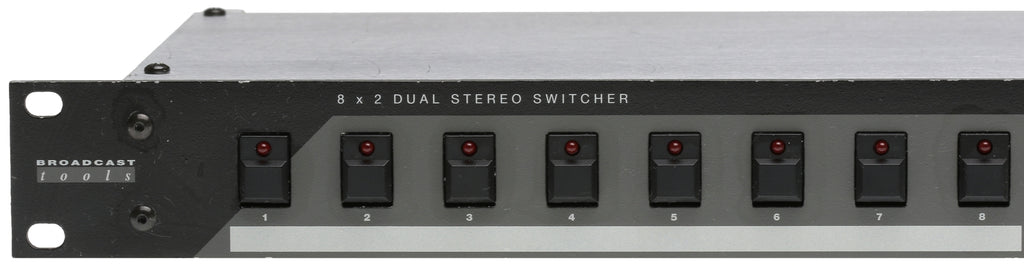

The 8x2 may be controlled via front panel switches with indicators and/or externally. This may be any momentary contact closure or TTL/CMOS logic. Open collectors are provided for status. The 8 x 2 also has the ability to be controlled by a computer serial port.
More information many be obtained from the Product Manual
The 8x2 features three operating modes:
- Overlap mode that allows you to overlap one audio source with another while thebutton for the second source is held down. Both channels will be fed to the output until the second button is released, at which time the first audio source will be switched off.
- Mix mode allows any or all channels to be connected (mixed) to either output channel.
- Interlock mode provides that when a channel button on the switcher is pressed, the first audio source will be immediately turned off and the second audio source will beturned on.
Another user selectable feature is the way the 8x2 will act when power is first applied (or re-applied after a power failure). You have your choice of having all channels being OFF on power-up or any or all of the eight input channels being assigned to either or both of the two output channels at power-up.
