Broadcast Tools SRC-16 Serial Remote Control Relay Contact Closure Output GPI

( 286084164283) )

Regular price $285.00 Sale price $418.00      (1 available in stock)

New Open Box • Fully Working • 115V AC Power Supply Included • Serial Remote Control Relay Contact Closure Box

https://www.prostudioconnection.net/2305/C1021086.jpg

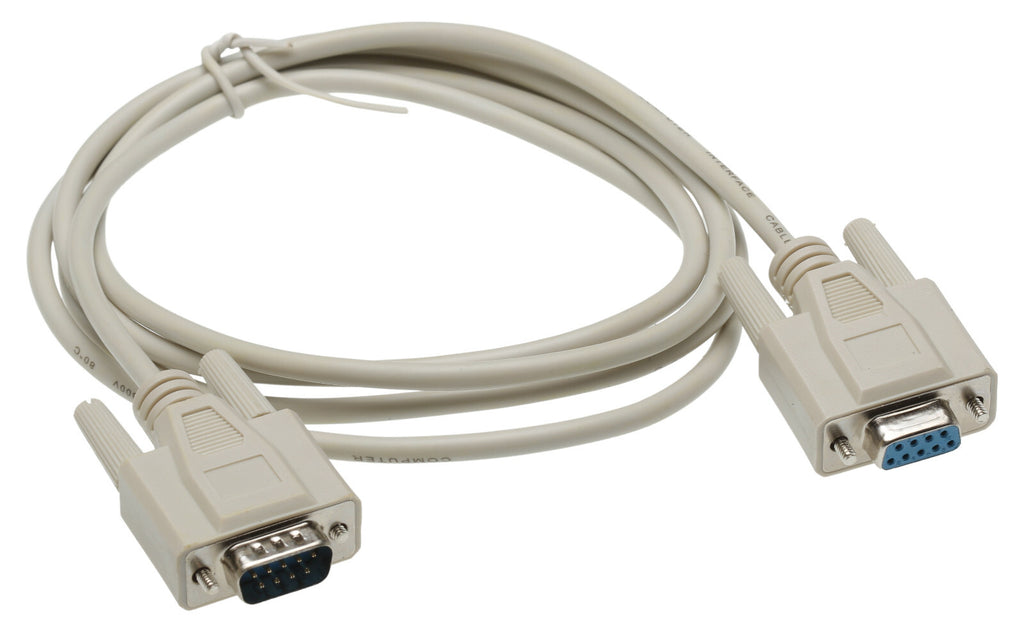

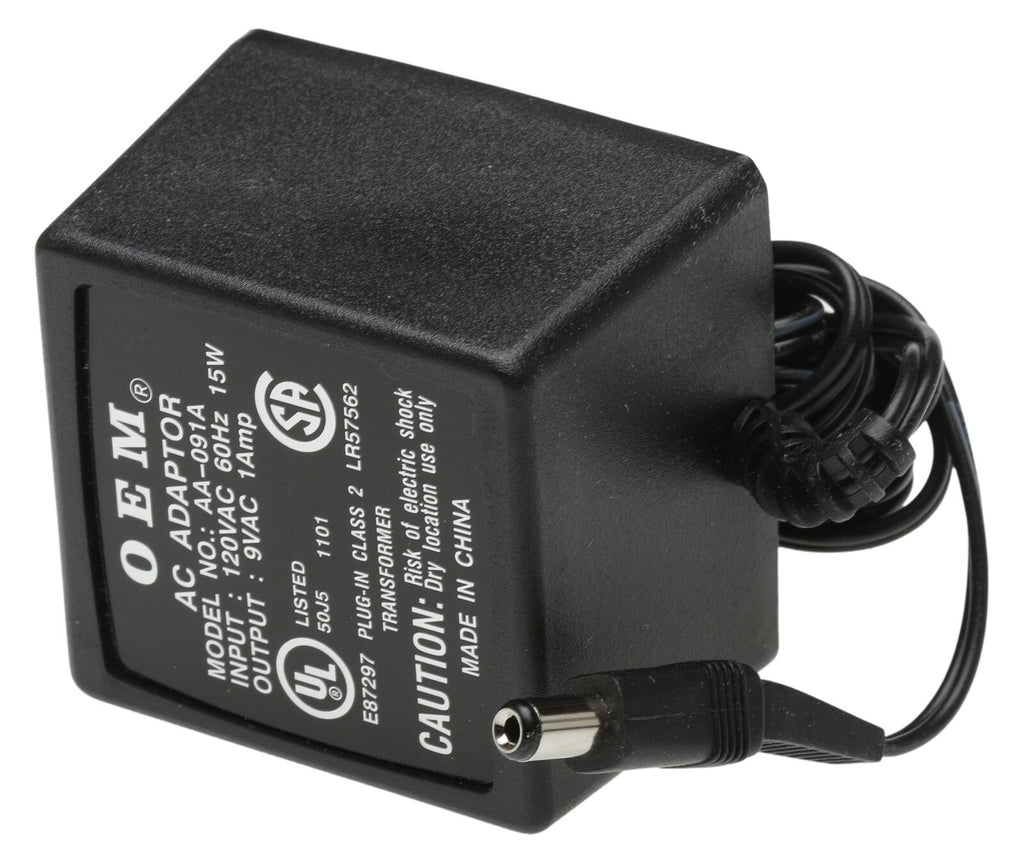

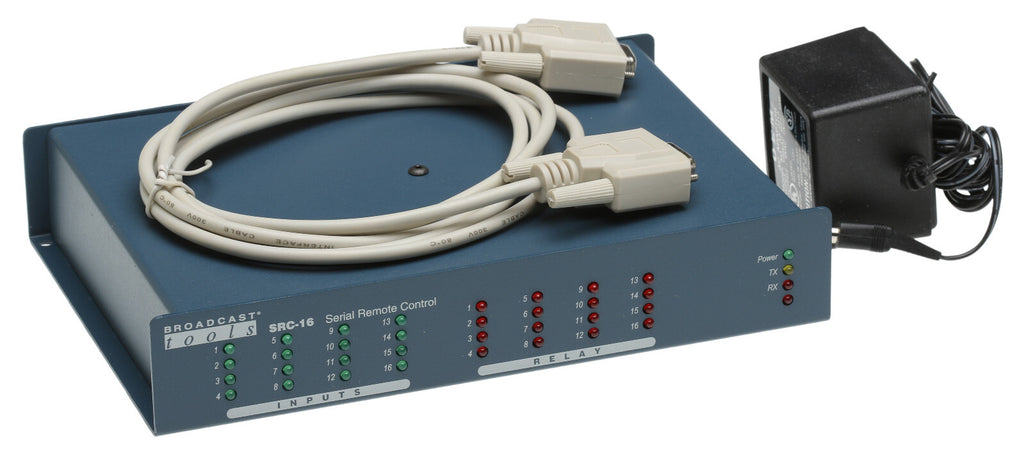

Item is new open box, never deployed and in mint- cosmetic condition. It ships set to the default settings (9600-8-N-1 RS-232 Comms). 115V AC power supply included. Includes a straight-through (extension type) DB9 male to female cable.  This is NOT the Plus version of the SRC-16, so please check compatibility with your intended application.

Description

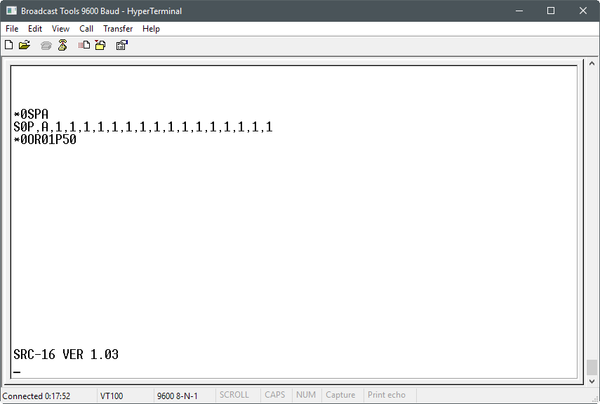

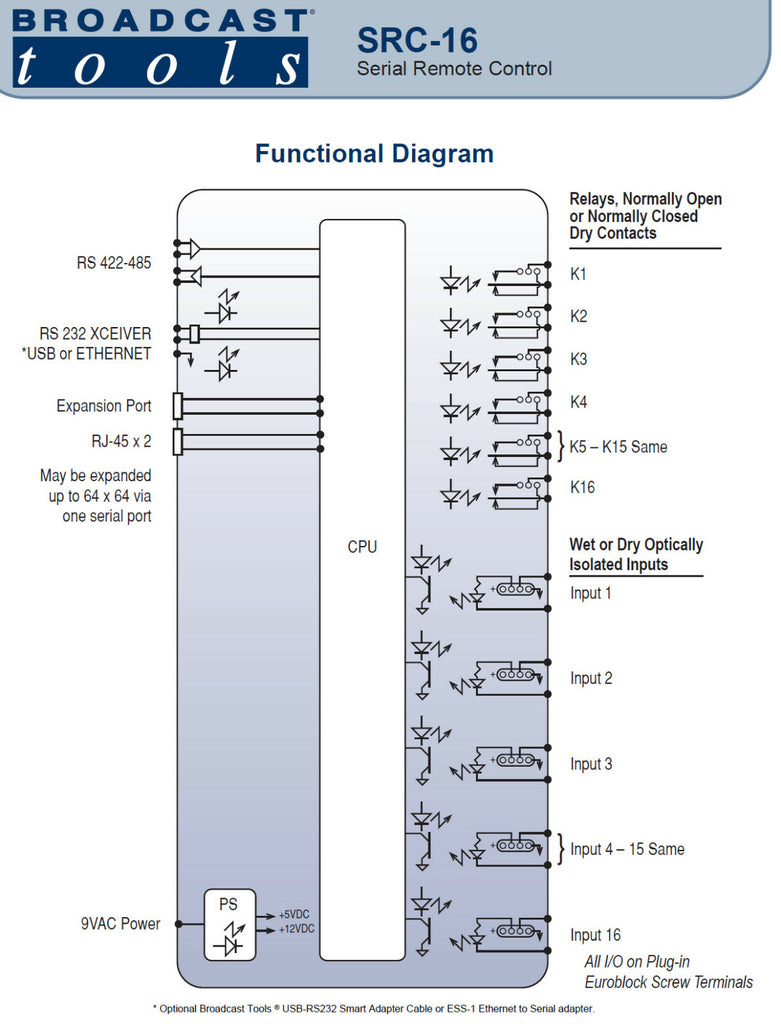

This full-featured interface connects through an RS-232, RS-422 or RS-485 serial port with baud rates up to 38400 and can notify your PC software program that any of 16 optically isolated inputs has been opened or closed, as well as giving you software control of its sixteen SPDT, 1-amp relays. You can configure each input to generate user programmable ASCII, HEX or control character strings on each input transition. Each string can be up to 40 characters long. Programming is a snap using HyperTerminal or your favorite communications program. You also get three additional pre-programmed selections: The "PIP" GPI format, the AT-1616 format and the short ASCII format.

Full details may be obtained from the User Manual at
https://www.prostudioconnection.net/0713/Manual_SRC-16.pdf



https://www.prostudioconnection.net/2305/C1021089.jpg

Two units can also be operated in a standalone mode (master/slave mode) to form a "Relay extension cord," with sixteen channels of control in each direction. The SRC-16 may be expanded to 64 inputs x 64 relays. Optional external Ethernet capabilities may be added with the ESS-1.

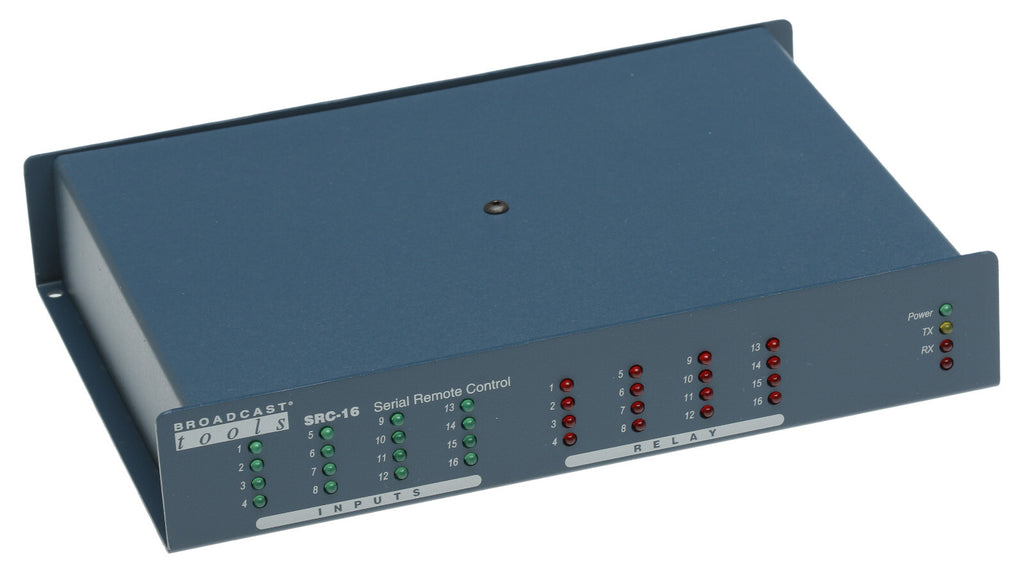

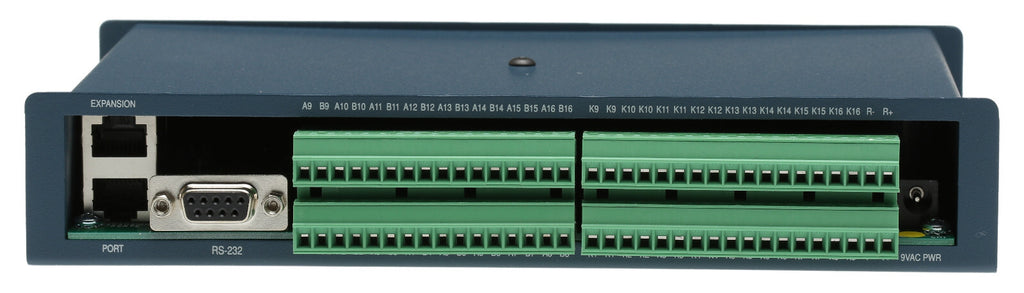

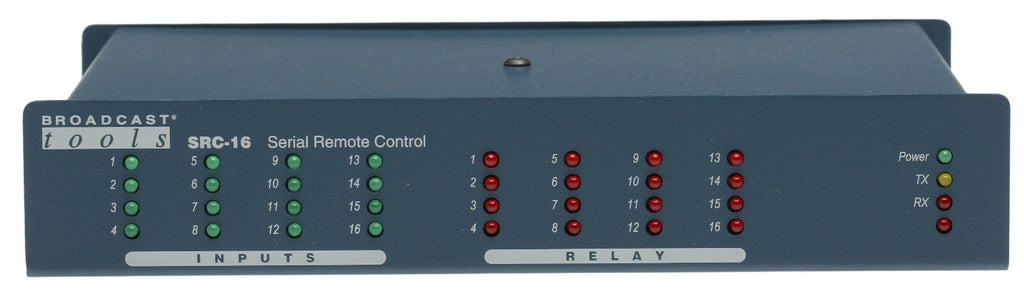

The SRC-16 sports LED indicators to display input and relay status. Three front panel LEDs display power, serial transmit, and receive data. It boasts plug-in euroblock screw terminals for easy wire installation/removal.

https://www.prostudioconnection.net/2305/C1021091.jpg

https://www.prostudioconnection.net/1811/11-14-2018%201-44-26%20PM.png

https://www.prostudioconnection.net/1811/SRC16-1.PNG

https://www.prostudioconnection.net/2305/C1021088.jpg

https://www.prostudioconnection.net/2305/C1021090.jpg
https://www.prostudioconnection.net/2305/C1021092.jpg
https://www.prostudioconnection.net/2305/C1021093.jpg
https://www.prostudioconnection.net/2305/C1021087.jpg
