Comrex ACCESS Portable Five Channel Add-On Mixer XLR Balanced Mic/Line Inputs
( 285512700239) )
Lightly Used • Very Good Condition
• 5 Balanced Audio XLR Inputs • Mic/Line Switchable • Suits
Access Portable Codec (Not Incuded)
Lightly used and in excellent cosmetic condition.
Description
The Comrex ACCESS Portable is a remote broadcast tool that
provides utility and portability, but has limited audio I/O
built-in. The portable includes one mic/line adjustable input on
XLR, one stereo line level input on mini jack, and a headphone and
line-level stereo output on mini-jack.

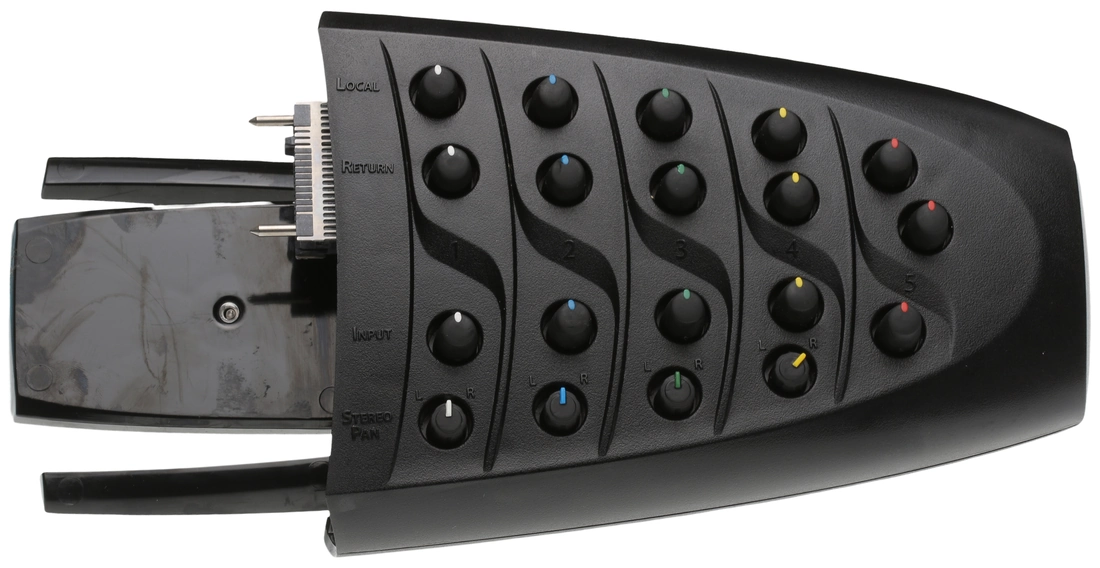

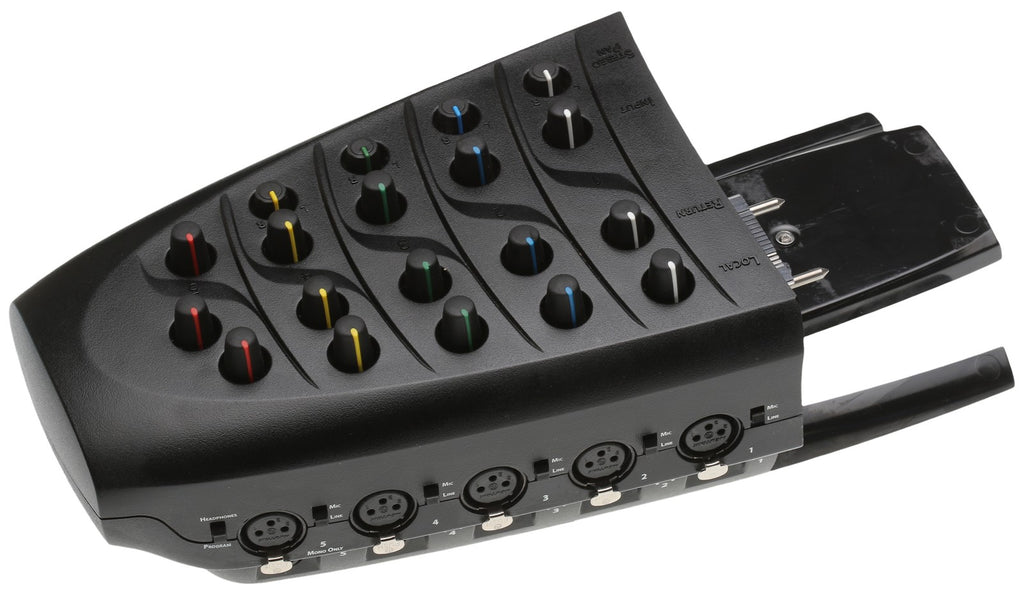

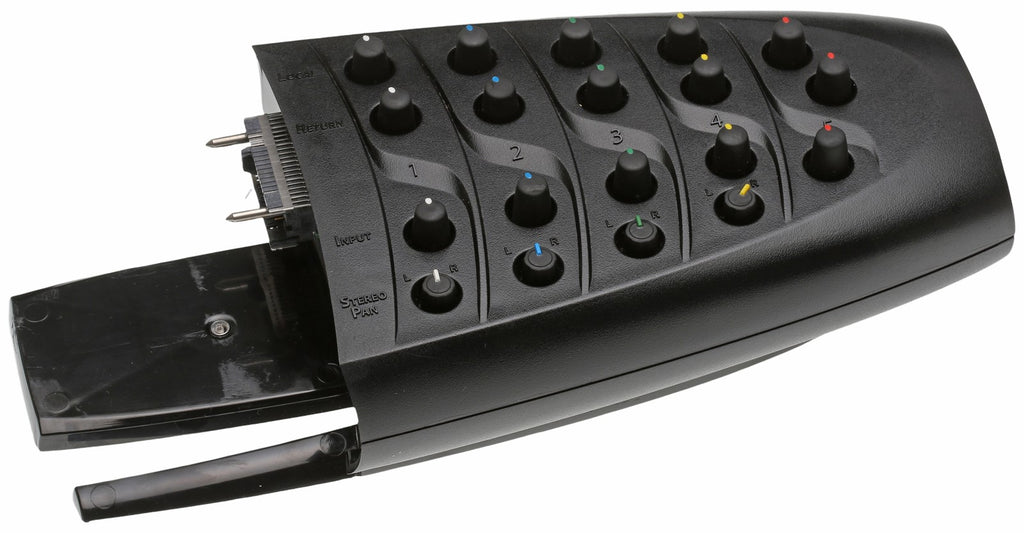

The ACCESS Portable Mixer accessory was designed to address these
limitations for applications that require multiple audio I/O for

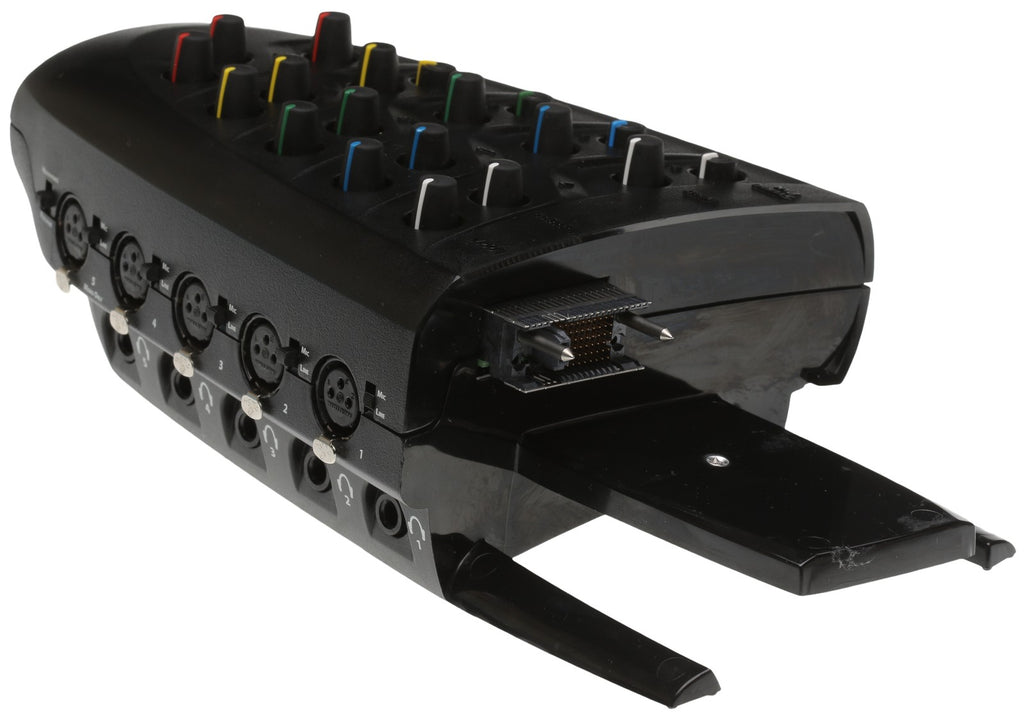

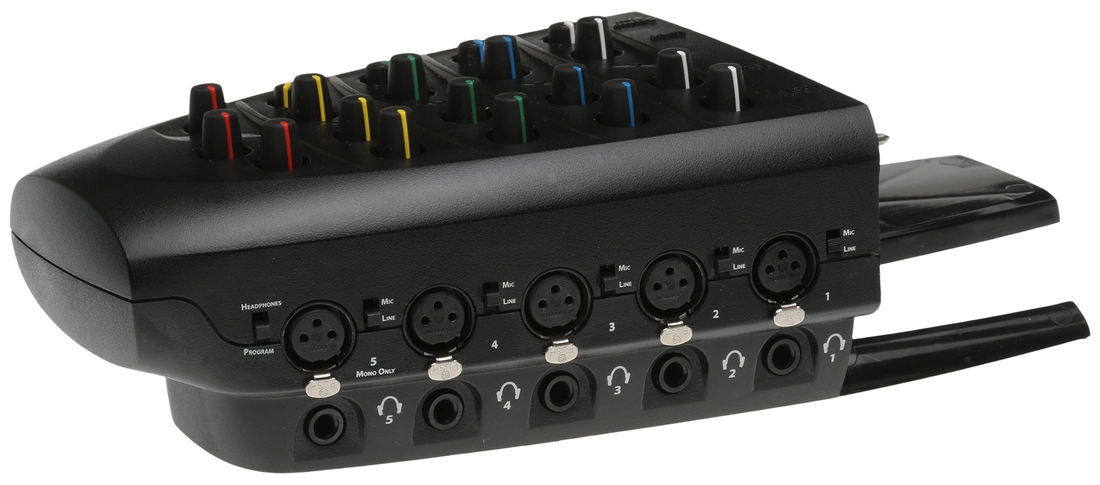

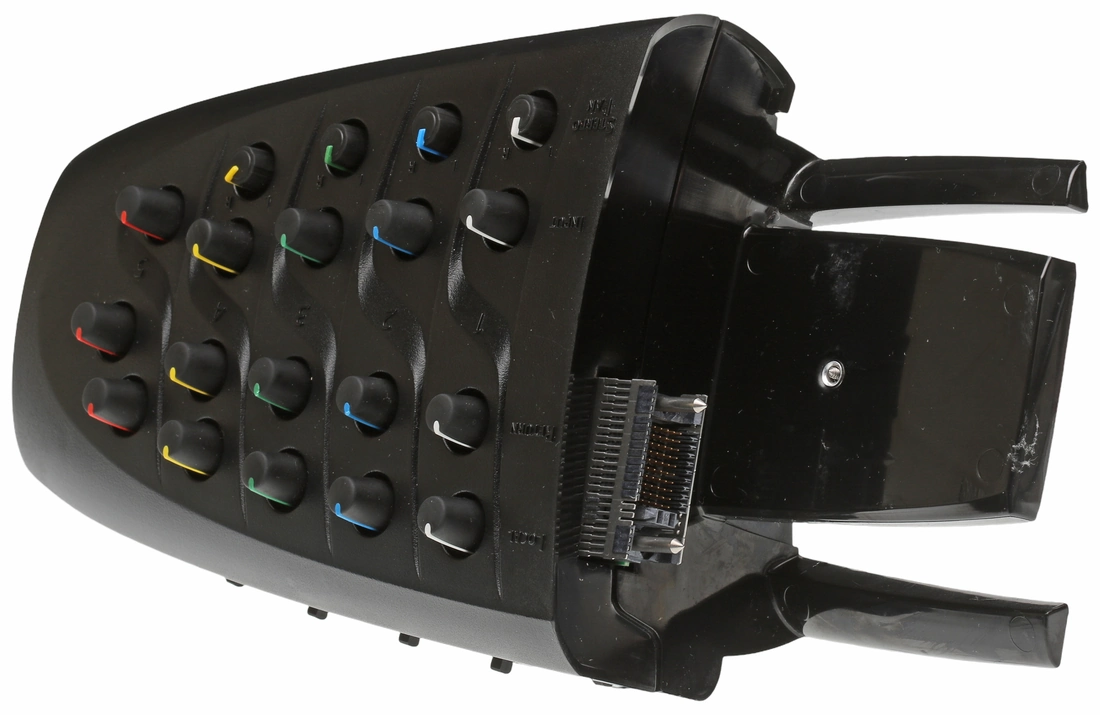

remote broadcasts. The unit “docks" to the ACCESS Portable and

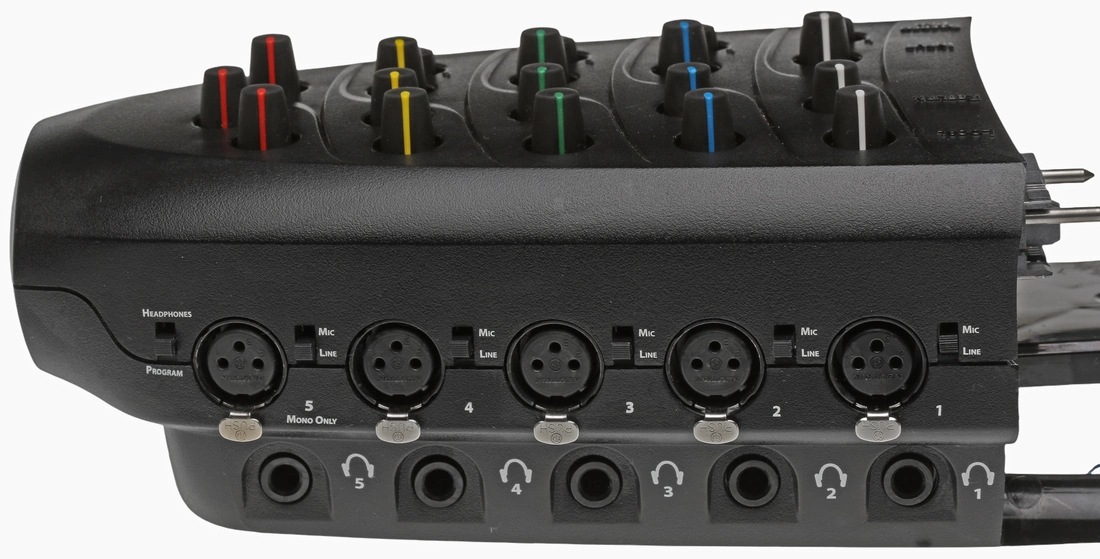

expands the audio I/O to five mic/line selectable XLR Inputs and
five stereo Headphone Outputs on 1⁄4″ jacks. All ACCESS Portable
audio connectors remain active during use of the Mixer, so the
total number of Input/Headphone connector pairs increases to six.
Features
- Five Mic/Line level switchable mono inputs on balanced XLR
- Five 1/4″ TRS headphone jacks
- Powered by ACCESS Portable
Technical
Specifications
- Five Mic/Line level switchable mono inputs on balanced XLR
- Mic inputs offer software selectable 12V phantom power
- Five 1/4″ TRS headphone jacks

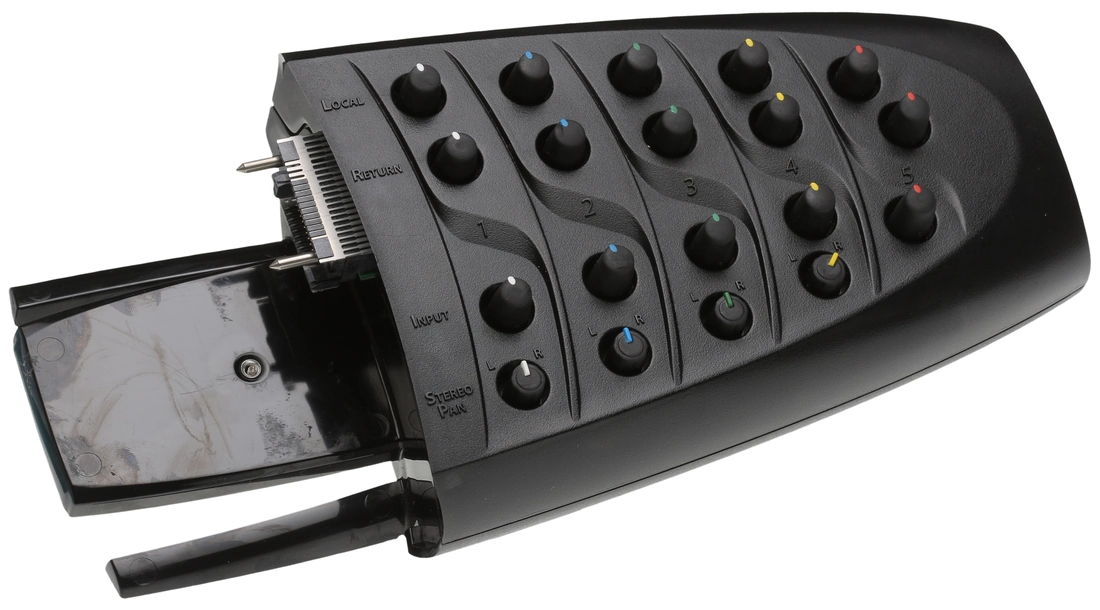

- Audio level adjustments for input, headphone local and return audio
- Stereo pan pots for channel 1 through 4 to accommodate 2 stereo inputs
- Channel 5 selectable for Producer Mode, which may be heard in all headphones but not on-air
- Ability to monitor ACCESS Portable cellphone input on all head- phones for cueing
- Mixer is powered completely by ACCESS Portable, either from external power supply, or integrated battery
