Comrex TCB-1 Telephone Audio Coupler Transmit/Receive Audio To/From POTS Line [Used]

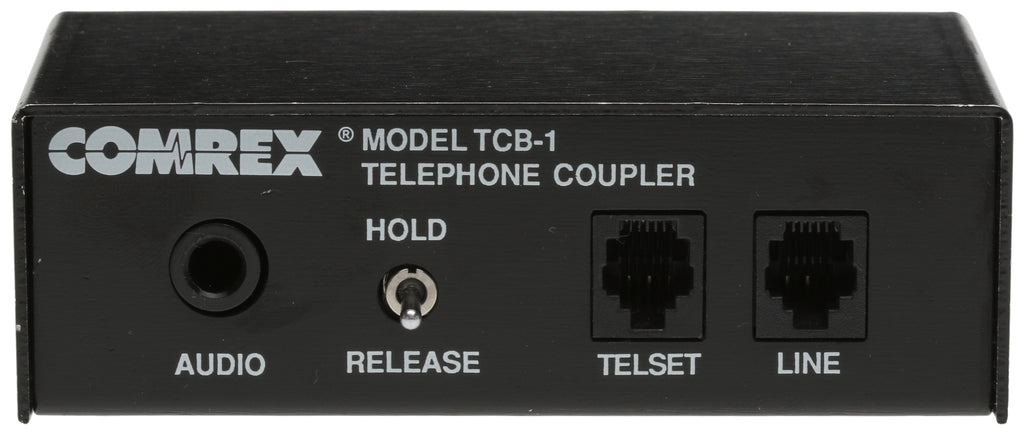

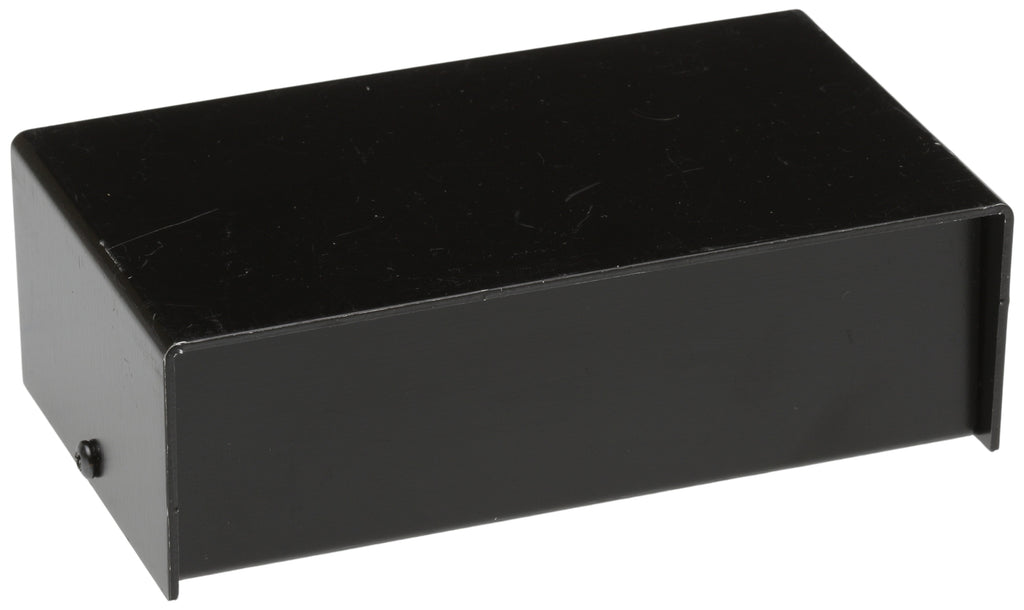

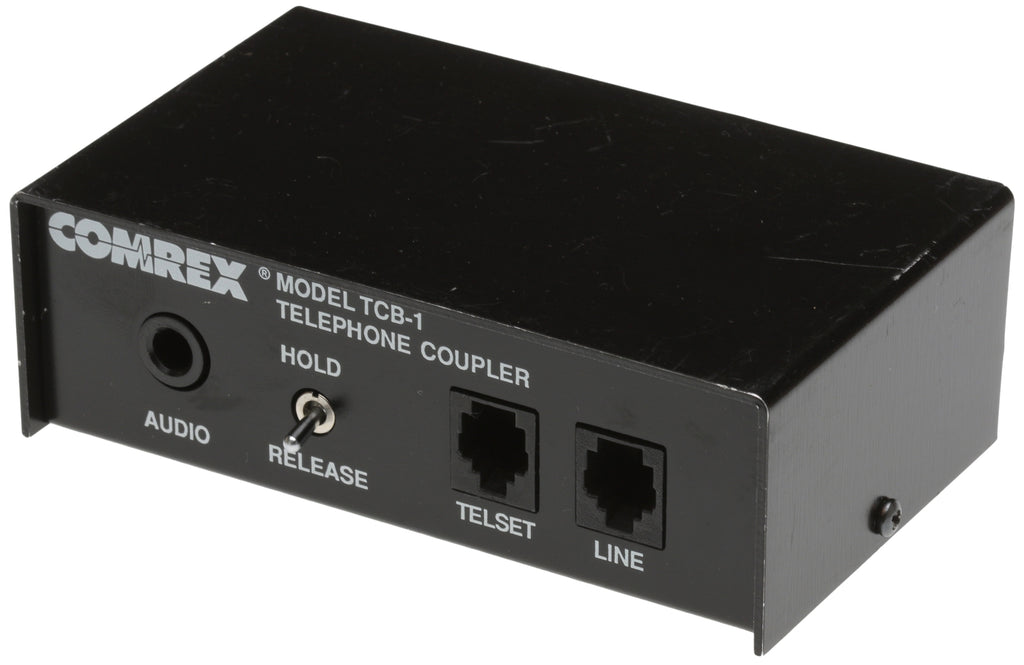

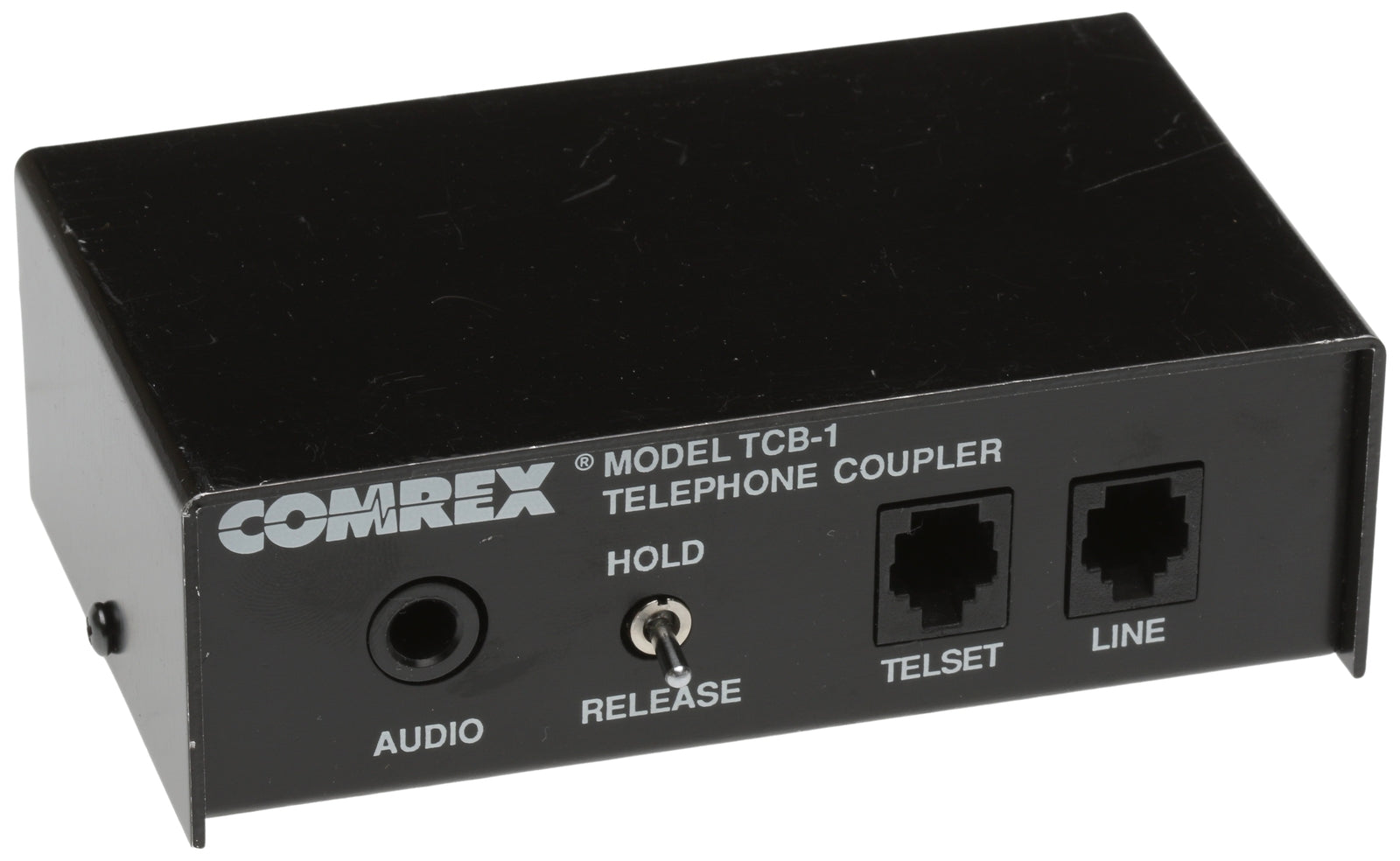

Photos show the actual item for sale

Item is used, in good cosmetic condition and tested to confirm correct operation.

Description

This Comrex Manual Telephone Coupler provides clean, transparent transformer connections from telephone lines to external audio equipment. State of the art circuits and rugged construction assure highest quality and years of reliable service. Both couplers feature modular jacks for quick installation by non-technical personnel. Comrex Telephone Couplers are designed and FCC registered specifically for broadcast use. Program may either be sent or received on both the auto-answer or manual models.

For more details please see the User Manual at
https://www.prostudioconnection.net/1706/TCB-1-Manual.pdf

The TCB-1 provides a switched hold connection to a telephone line so that the telephone set may be hung up during program feeds. This eliminates the need for special telephone instruments with push-to-talk handsets or exclusion keys. Use with any modular phone to send or receive live or taped material. The TCB-1 does not interfere with normal use of the associated telephone instrument and does not require batteries or external power.

Specifications:

• Connections:
  • Telephone line: RJ-11C 6-pin Modular Jack
  • Telephone set: RJ-11C 6-pin Modular Jack
  • Audio In/Out: 3 conductor phone jack
• Power supply: No batteries or AC required
• Controls: Hold/Release switch
• Input/Output impedance: 600 ohms
• Insertion loss: 1 db

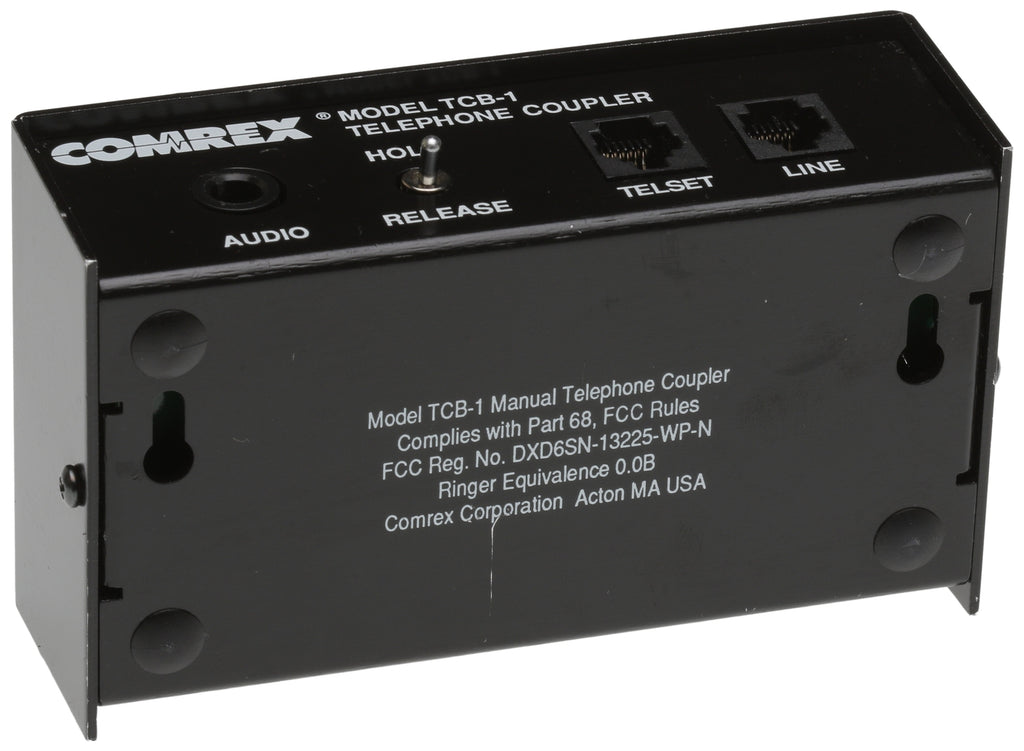

• FCC Registration: DXD6SN-13225-WP-N
• Ringer Equivalence: 0.0B
• Dimensions (W x D x H): 4.6" x 2.5" x 1.5" (11.5 x 6.25 x 3.75 cm)
• Weight: 9 oz. (0.25 kg)
