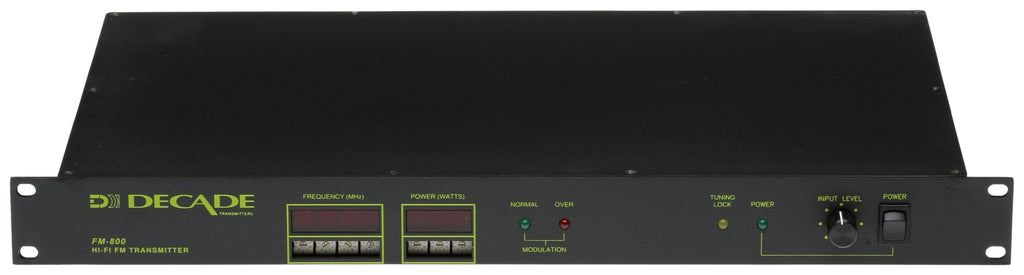

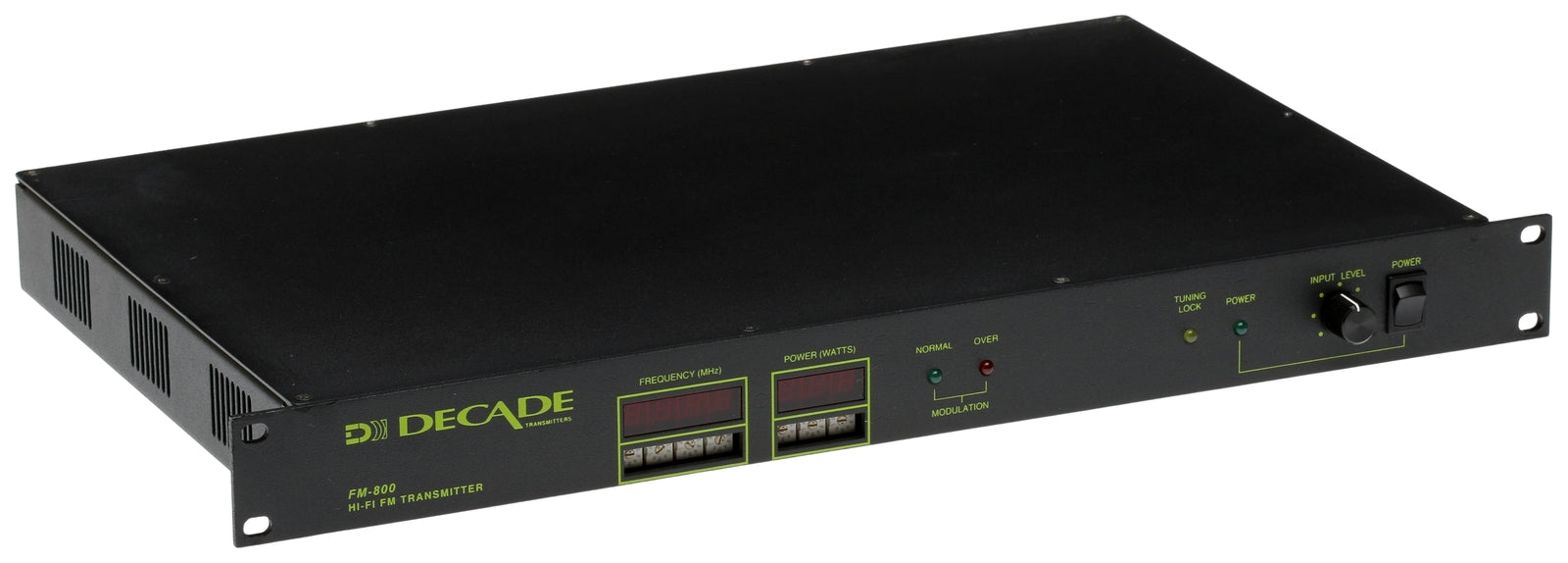

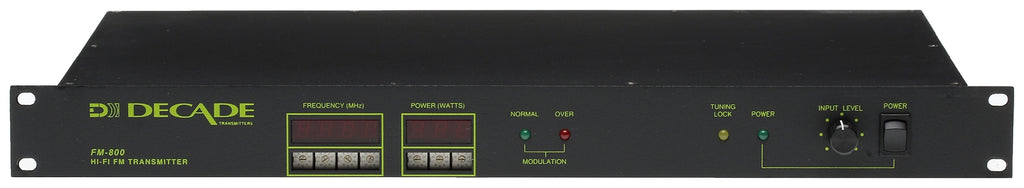

Decade FM-800 1.8W Broadcast Mono Transmitter Exciter LPFM Frequency Agile LP
( 365143887603) )
Tested/Guaranteed • Fully Working • Very Good Condition • Low Power Broadcast Mono Transmitter • Exciter • Usually $1,885 • 50mW to 1.8W Output • Balanced/Unbalanced Input Audio
Item is lightly used in very good cosmetic condition. It has been tested to confirm correct operation. These are easily the best sounding low power transmitters available and the output power is easily adjusted in 0.05W increments via the front panel up to 1.8W so you can dial in just enough power to get the job done while observing any regulatory limits in emitted signals. Further product information may be obtained from the User Manual at https://www.prostudioconnection.net/1501/Decade_FM-850_Manual.pdf. By making a purchase, the buyer indicates that they understand the legal requirements for operation of this device within their jurisdiction and indemnifies the seller against any repercussions of unauthorized use.

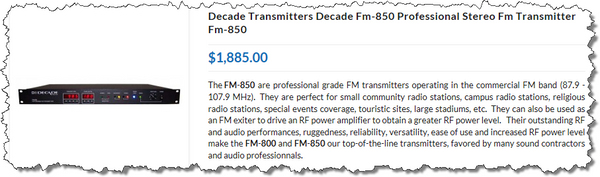

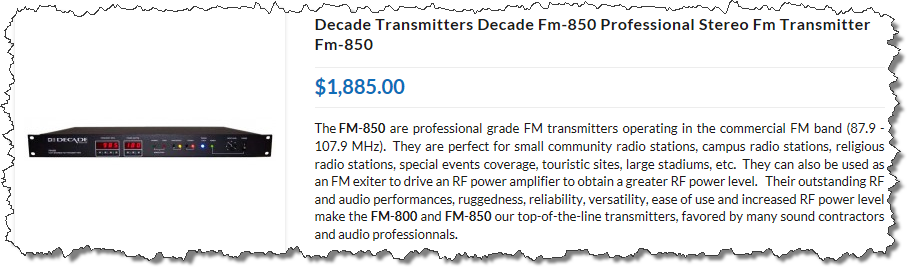

Usually Sells For $1,885
Features
- User programmable frequency (Decimal switches)
- User programmable RF power (Decimal switches)
- No manual tuning or calibration required
- Hi-Fi mono audio mode
- Bass boost mode(selectable)
- Peak indicators with associated volume
- Frequency precision of .0008%25 on the main carrier
- DAFP and DAPP technologies
- Continuous duty
Description
Full information (including the User Manual) may be obtained from the Manufacturer's Website (http://www.decade.ca/en/transmitters/fm-800-fm-850)
- The FM-800 is a professional grade mono FM transmitter operating in the commercial FM broadcast band (87.9 - 107.9MHz/200KHz channel spacing).
- The FM-800 can be used as a stand alone FM transmitter or as an FM exciter for greater RF power (RF power amplifier required).

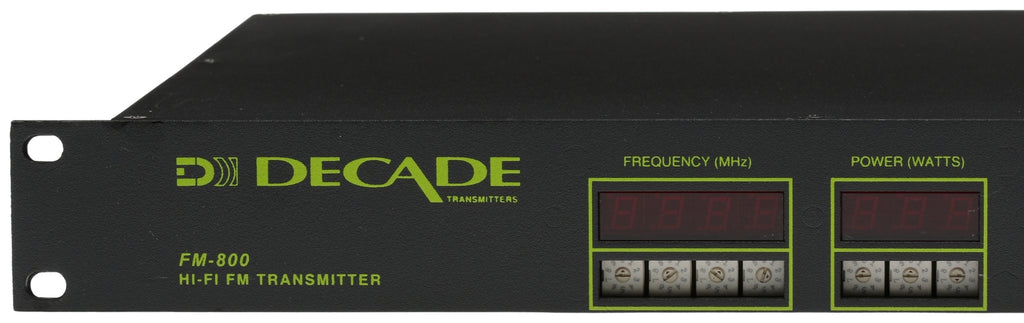

- The FM-800 series are one of the easiest available FM transmitters to program and operate, thanks to the latest devlopment in digital programmation circuitry. It is now possible to digitaly program the frequency and the RF power with accessible direct dial switches on the front panel. Manual tuning or calibration becomes a thing of the past with these FM transmitters.
- The FM-800 series are currently the most affordable, stable and trouble free FM transmitters available on the market today thanks to its new auto-compensation circuitry that will assure optimum RF linearity on a temperature range of -50C to +50C (-58F to +122F).
Applications
Decade transmitters are intended for use in low power broadcast stations, community and campus radio but can also be used (where allowed) for multi-lingual conferences, play by play broadcast inside arenas and stadiums (the FM-800 series are able to cover a 42,000 seats stadium when used with good quality FM walkmans at the receiving end). Applications are endless...

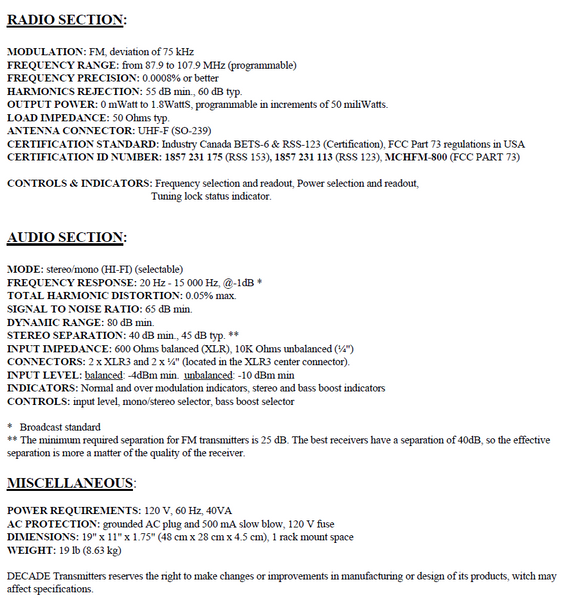

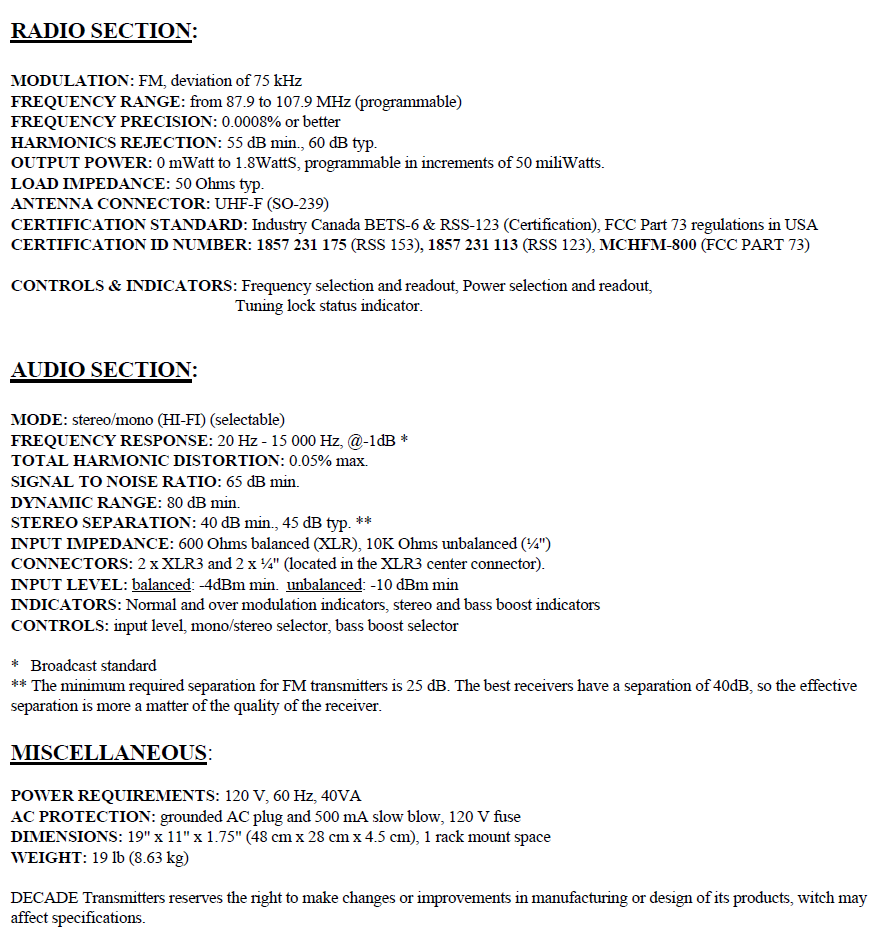

Specifications
RADIO SECTION:
MODULATION: FM, deviation of 75kHz
FREQUENCY RANGE: from 87.9 to 107.9 MHz (programmable in 200KHz increments)
FREQUENCY PRECISION: 0.0008%25 or better
HARMONICS REJECTION: 55 dB min., 60 dB typ.
OUTPUT POWER: 0 mWatt to 1.8Watts, programmable in increments of 50 miliWatts.
LOAD IMPEDANCE: 50 Ohms typ.
ANTENNA CONNECTOR: UHF-F (SO-239)
HOMOLOGUATION STANDARD: BETS-6 , RSS-123

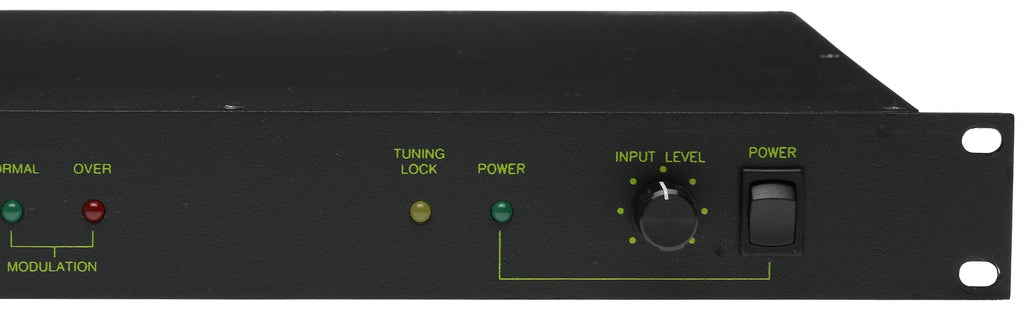

CONTROLS & INDICATORS: Frequency selection and readout,Power selection and readout, Tuning lock status indicator.
AUDIO SECTION:
MODE: mono (HI-FI)
FREQUENCY RESPONSE: 20 Hz - 15 000 Hz, @-1dB *
TOTAL HARMONIC DISTORTION: 0.05%25 max.
SIGNAL TO NOISE RATIO: 65 dB min.
DYNAMIC RANGE: 80 dB min.
INPUT IMPEDANCE: 600 Ohms balanced (XLR), 10K Ohms unbalanced (º")

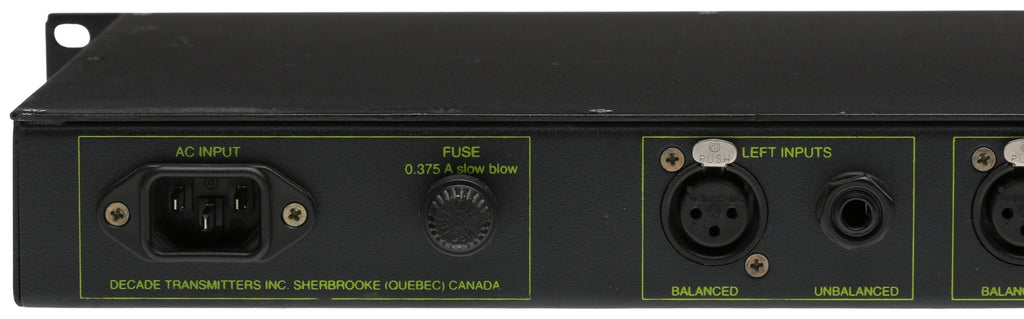

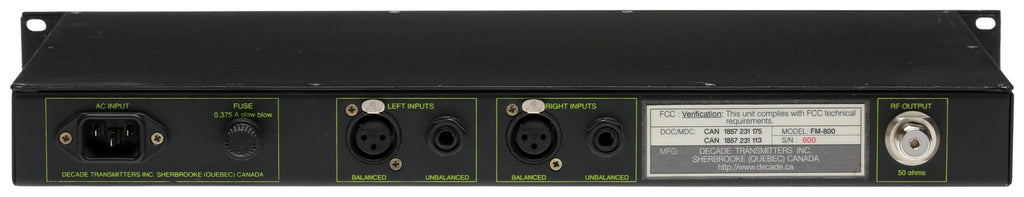

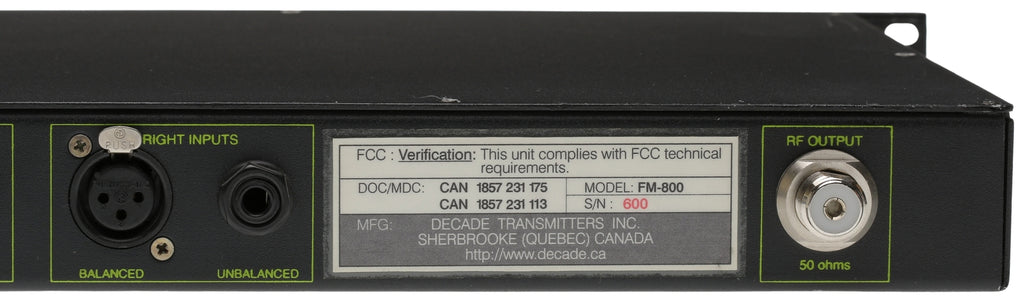

CONNECTORS: 2 x XLR3 and 2 x TRS
INPUT LEVEL: balanced: -4dBm min.. unbalanced: -10 dBm min
INDICATORS: Normal and over modulation indicators , bass boost indicator
CONTROLS: input level , bass boost selector
* Broadcast standard
** The minimum required separation for FM transmitters is 25 dB. The best receivers have a separation of 40dB, so the effective separation is more a matter of the quality of the receiver.
MISCELLANEOUS:
POWER REQUIREMENTS: 120 V, 60 Hz, 40VA AC PROTECTION: grounded AC plug and 500 mA slow blow, 120 V fuse DIMENSIONS: 19" x 11" x 1.75" (48 cm x 28 cm x 4.5 cm), 1 rackmount space WEIGHT: 19 lb (8.64kg)
