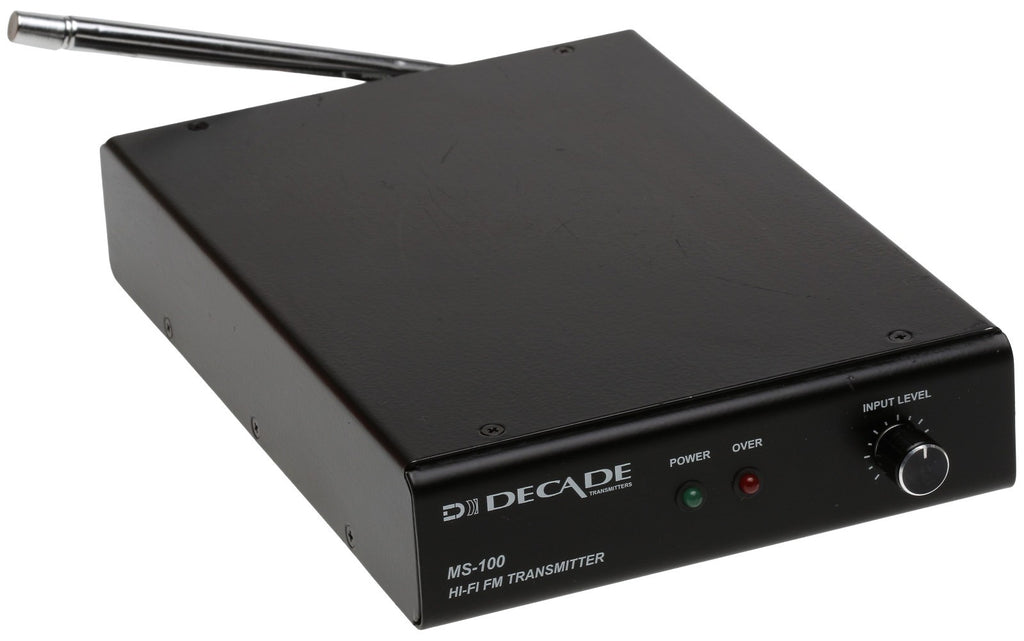

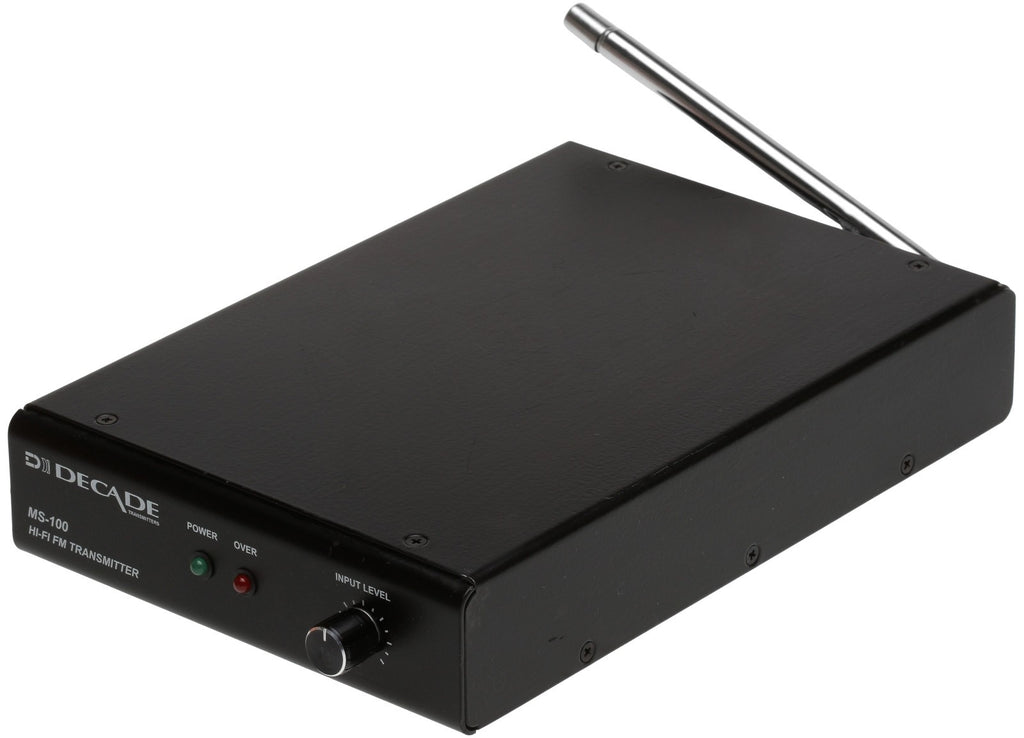

Decade MS-100 FM Mono Professional Grade Low Power Audio Transmitter Church Gym

Tested/Guaranteed • Fully Working • FM Mono Low Power Transmitter • LPFM • Superior Build Quality • Great Audio Quality • Ideal for Church, Home or Office Audio Relay

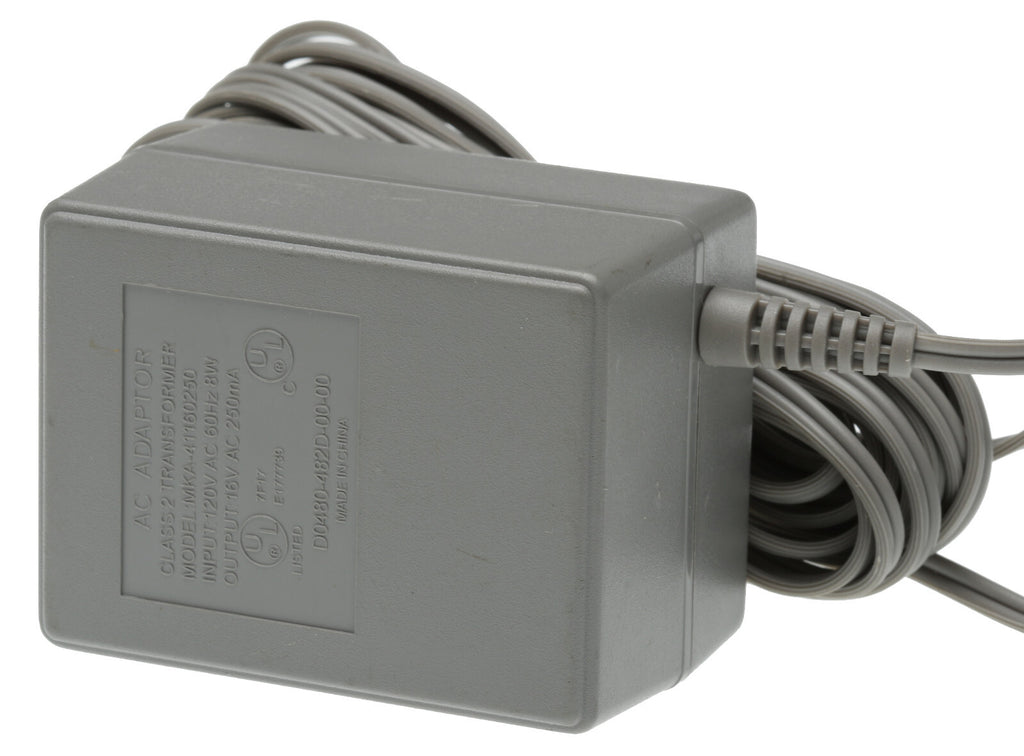

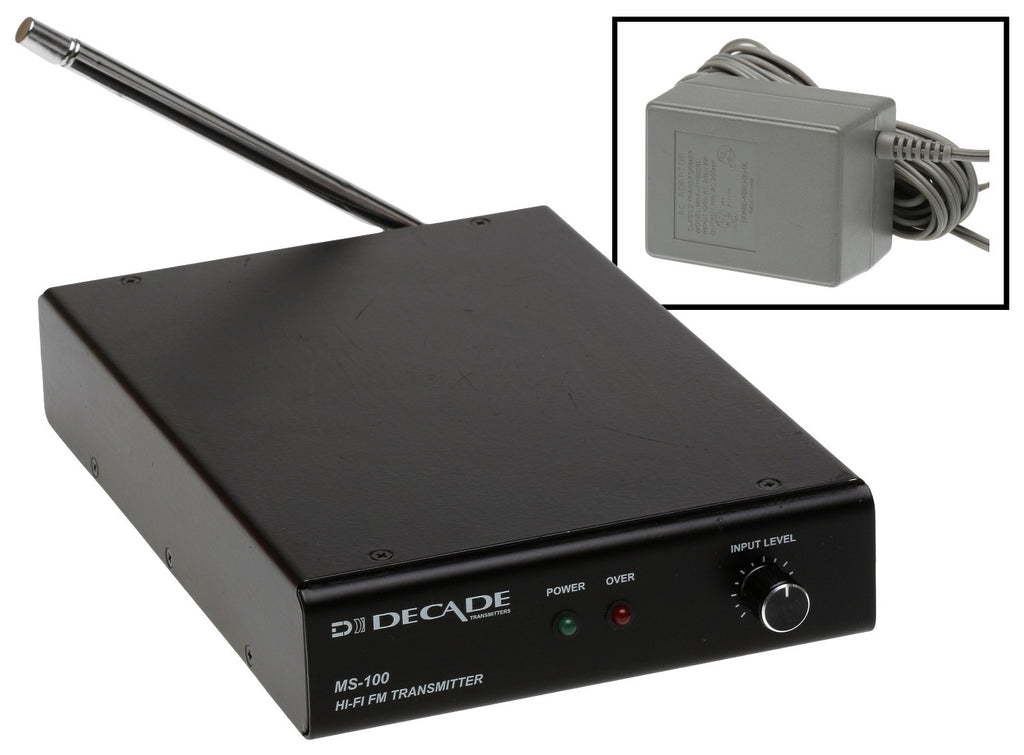

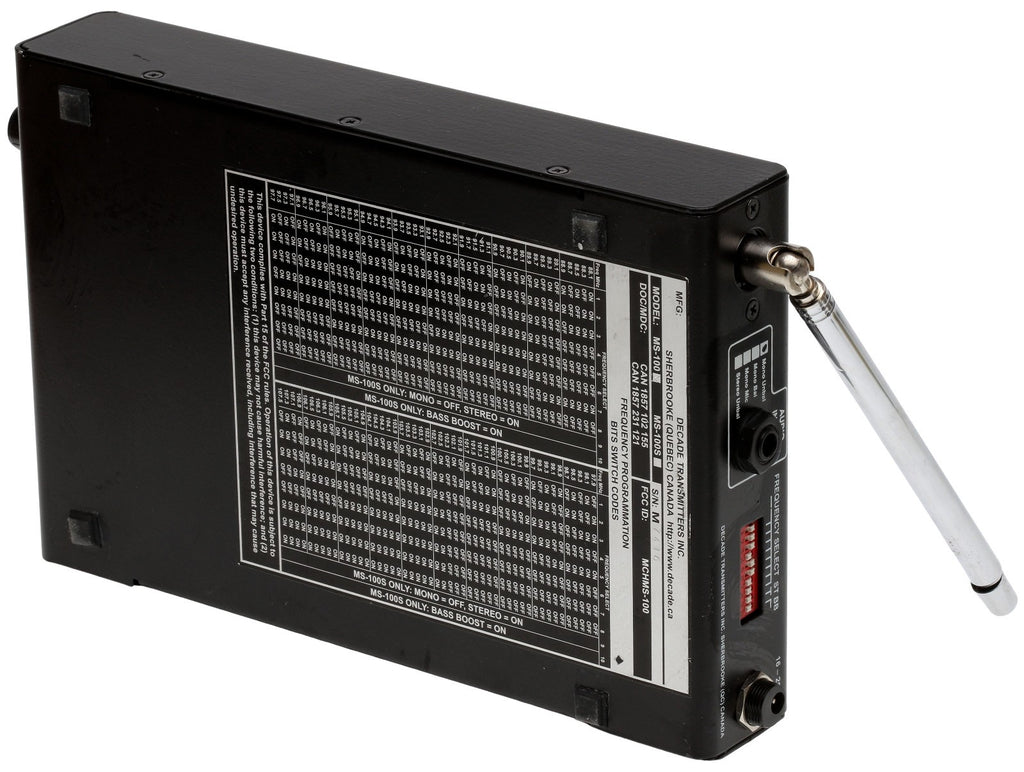

Used, in very good condition and fully working. This unit has tested to confirm that it works as it should. For optimal signal reception, mount the transmitting antenna as high above ground level as you can.   This the improved version with the steel case that provides a more durable mount point for the antenna. Comes with a 115V AC power supply (16V AC output). The buyer is responsible for ensuring legal compliance with any regulatory obligations applying in their locality.

Description

• The MS-100 is a professional quality FM transmitter operating in the commercial FM broadcast band (88.1-107.5 MHz) and can be used in a wide variety of applications like sound re-enforcement, hearing assistance, information and short range broadcasting.
• Its outstanding RF and audio performances, solidity, reliability and versatility make the MS-100 stand out from FM broadcasting systems.
• The MS-100 features Decade's latest technology innovation called DAFP technology (Direct Access Frequency Programming). This new digital technology allows the end user to program the frequency without any manual tuning inside the unit.
• Applications for the MS-100 are endless but here are some popular ones: fitness centers, drive-in theatres, cinemas, museums, house sound linking, concerts, theatrical arts...

Further information may be obtained from the User Manual
(https://www.prostudioconnection.net/1403/Decade_FM100_Manual.pdf)

Features

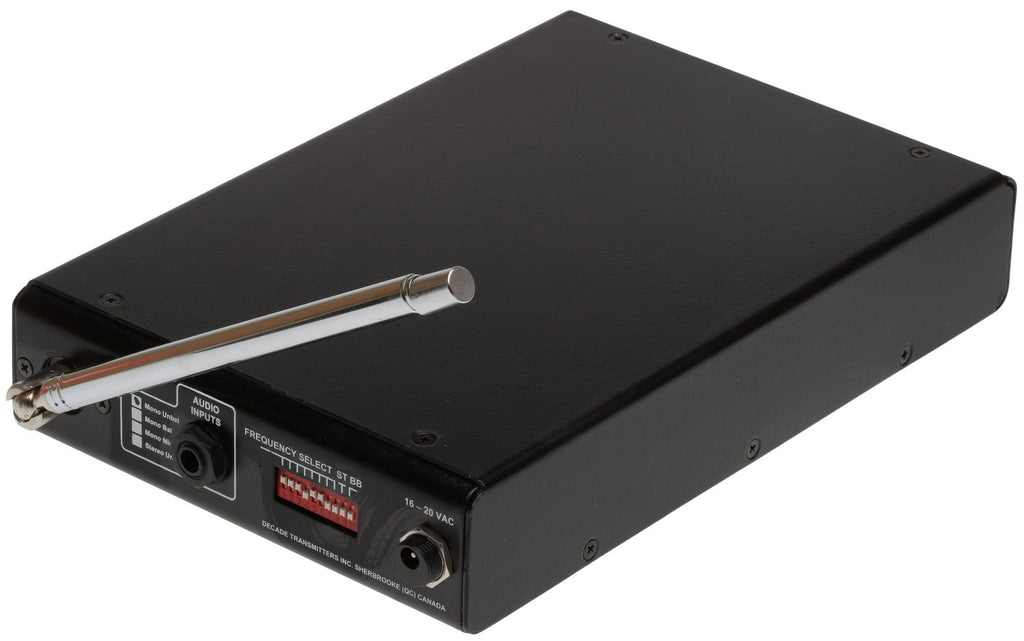

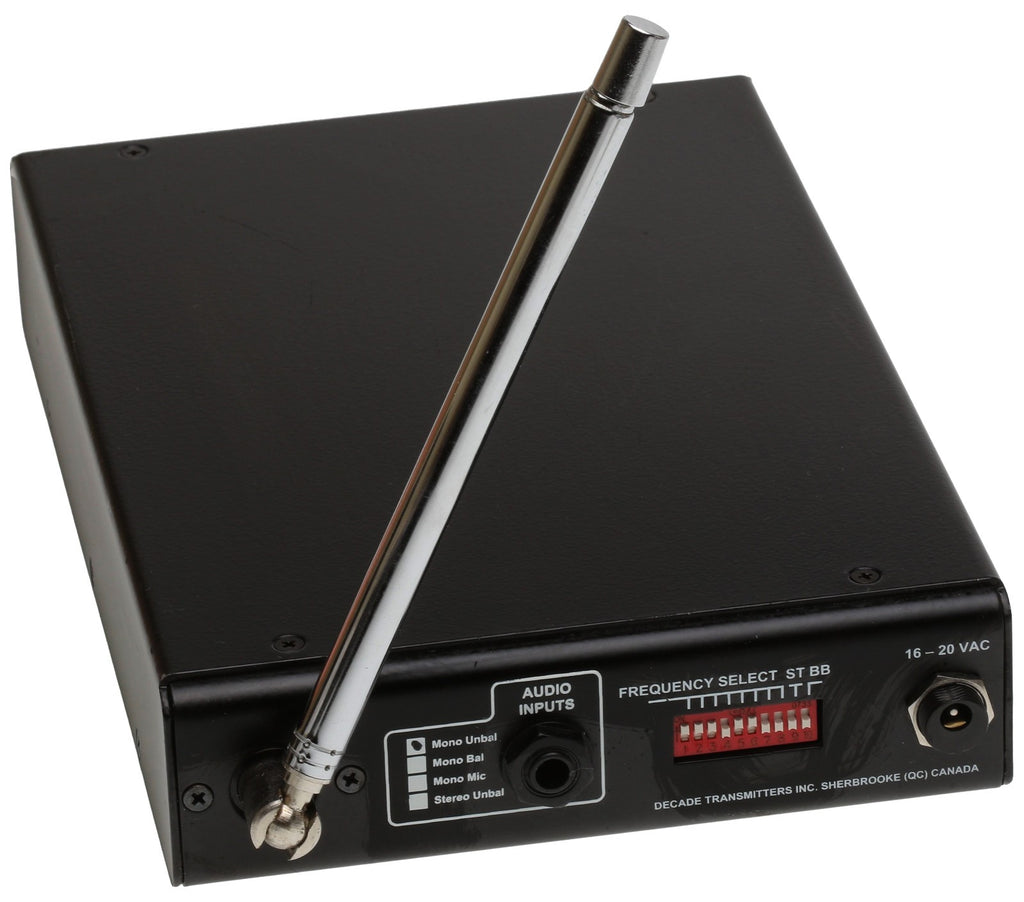

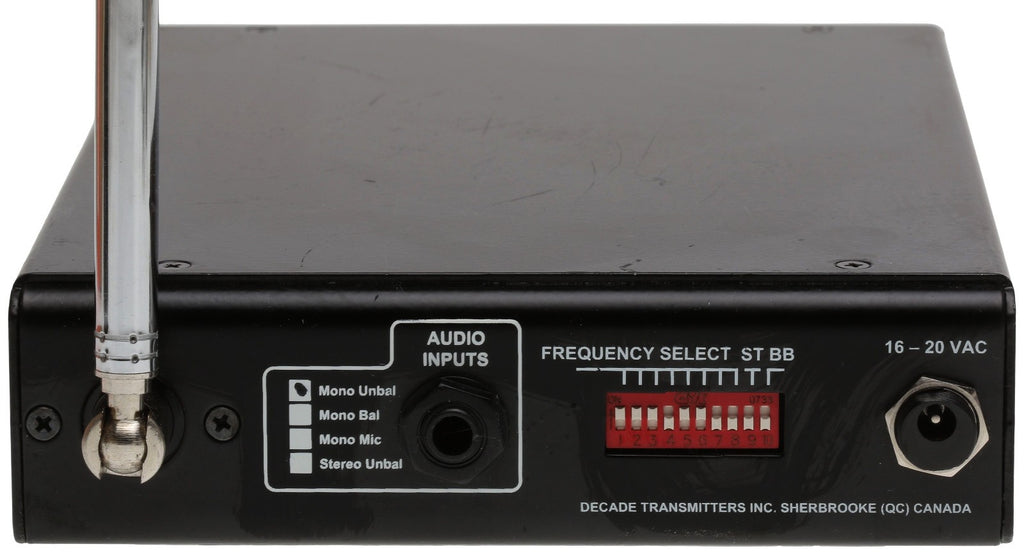

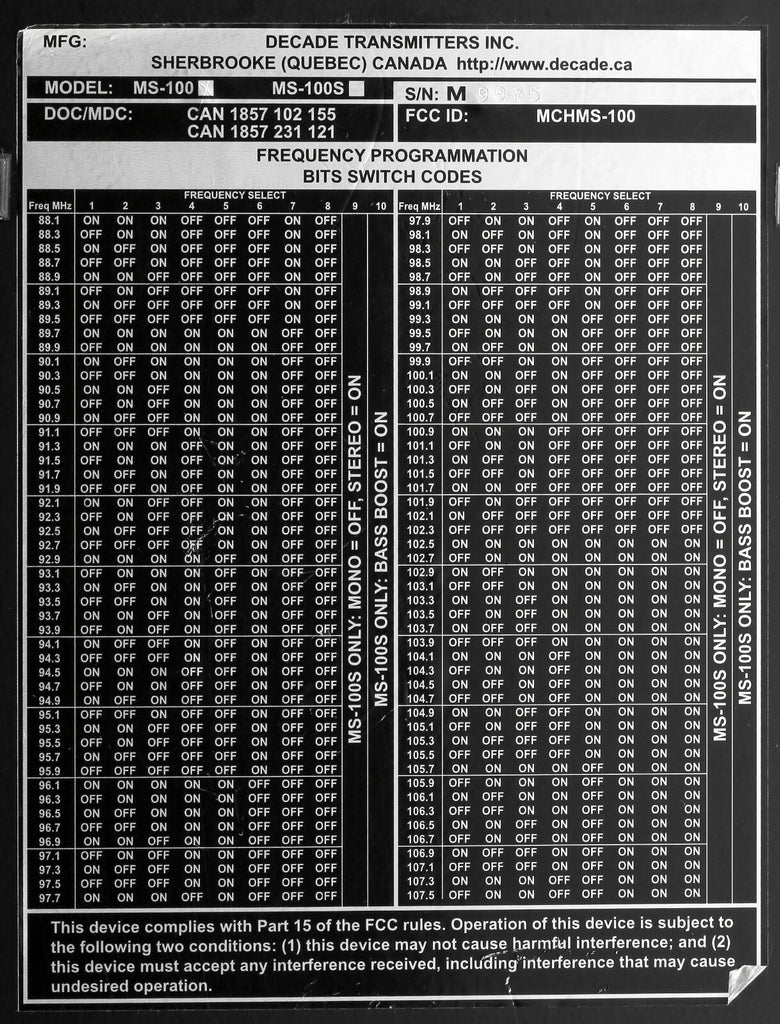

• User programmable frequency (via DIP switches)
• No manual tuning required

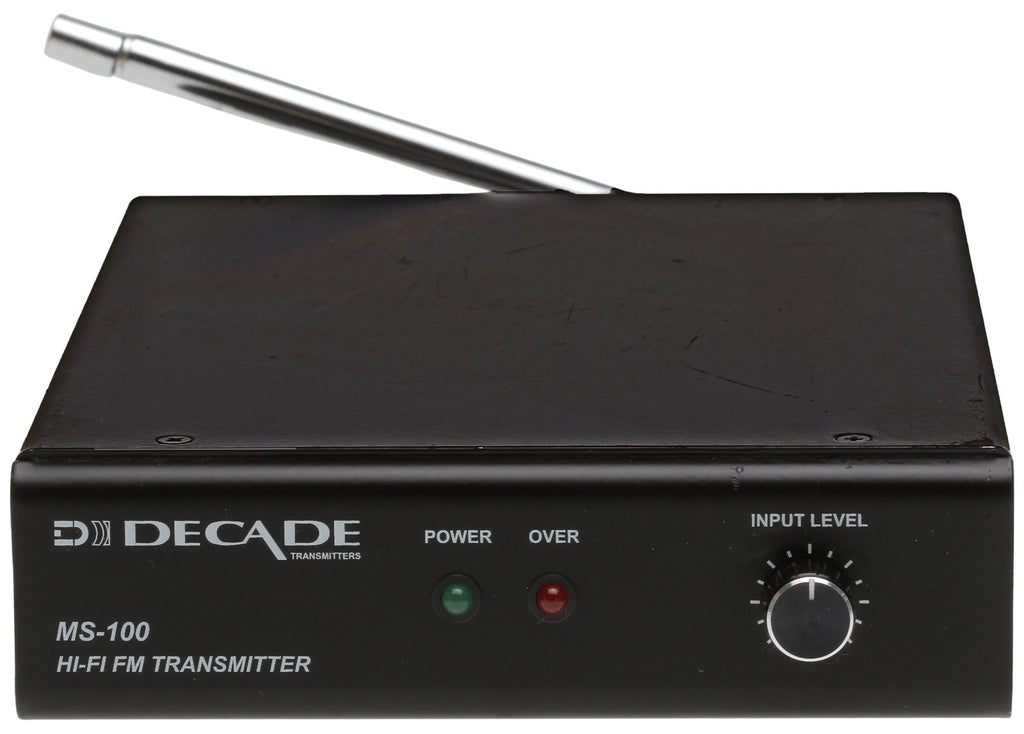

• Peak indicator with associated volume
• Fixed telescopic antenna
• Continuous duty
• DAFP technology

Specifications

• Modulation: FM, 75 KHz deviation
• Frequency selection: 88.1 - 107.5 MHz
• Frequency precision:.005% Crystal.
• RF power: 250 µV/m@3m.(FCC Part 1& DOC RSS-210),
• 1 miliWatt (DOC RSS-123)
• Spurious rejection: 45 dB min.
• Frequency response: 20-15 KHz
• Harmonic distortion: .05% max.
• Signal to noise ratio: 70 dB min.
• Input sensitivity: -15dBm to +15dBm (unbalanced)
• Dynamic range: 80 dB min.
• Power supply: 110/16Vac @ 300mA
• Dimensions: 6.3" x 9.8" x 1.6"
