Decade MS-100S FM HiFi Stereo Low Power Transmitter PLL Frequency Agile LPFM
( 236879406451) )
Regular price
$254.00
Sale price
$373.00
(1 available in stock)
Tested/Guaranteed Fully Working FM Stereo Low Power Transmitter Was $650 Good Condition Great for Home or Office Audio Relay

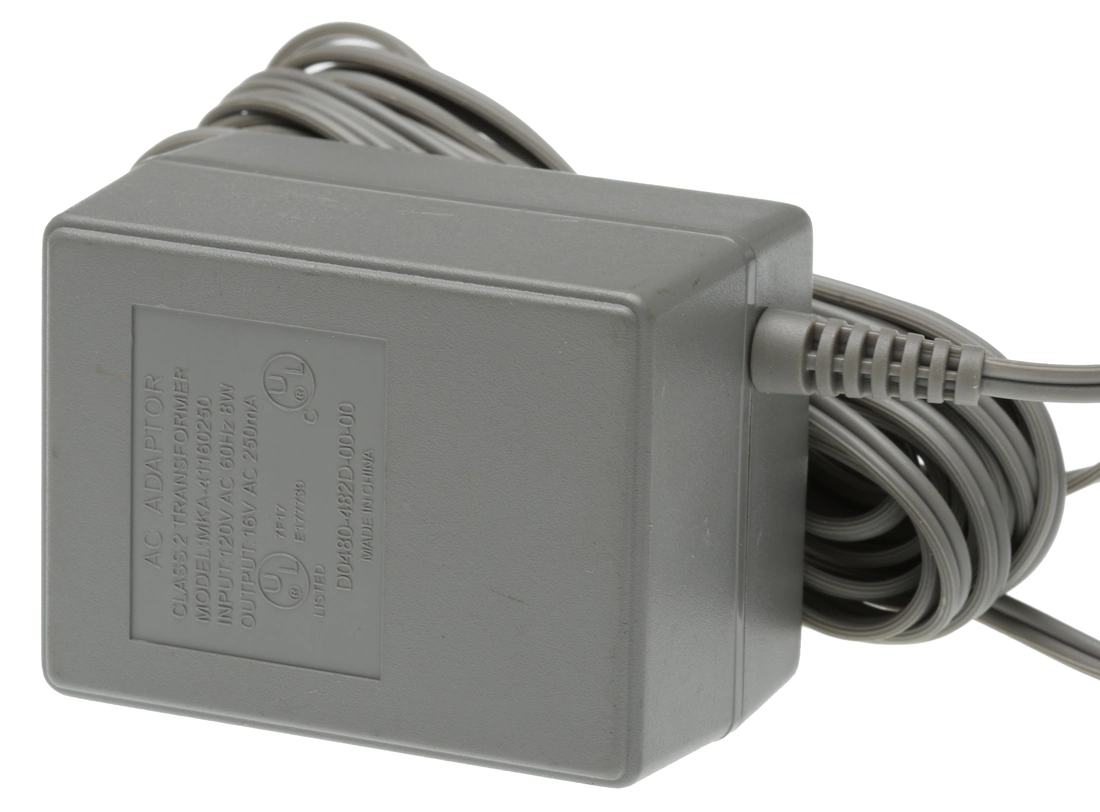

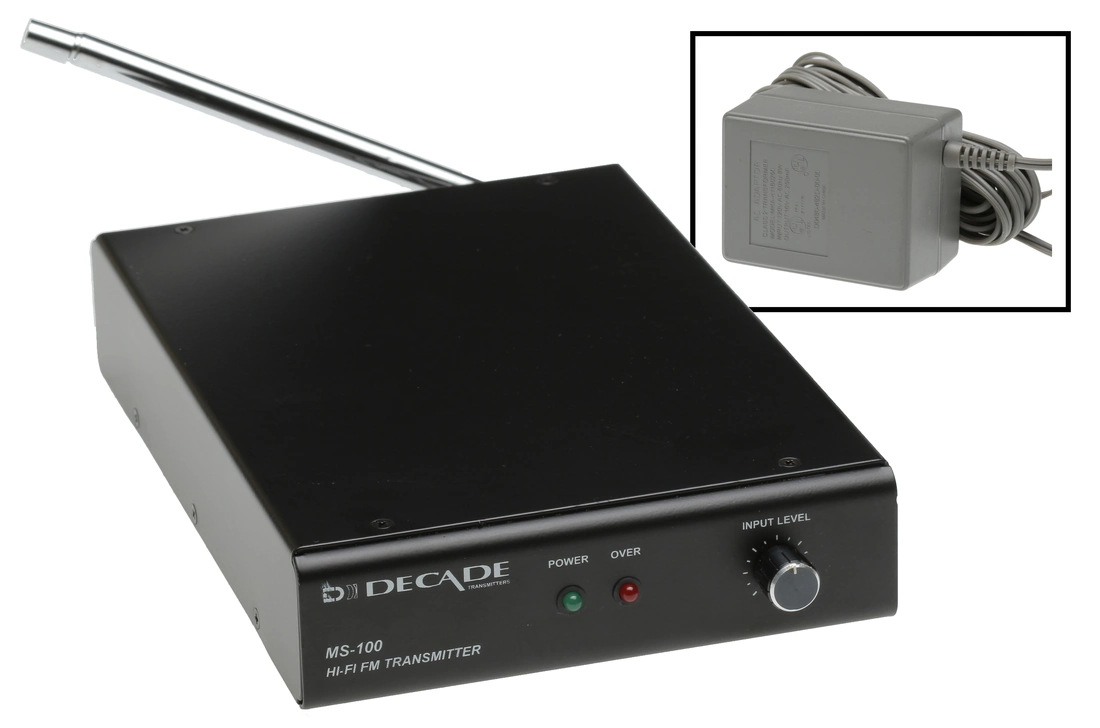

Tested to confirm that it works as it should. This is the Stereo version of the MS-100 transmitter. The photos show the actual item for sale. This the improved version with the steel case that provides a more durable mount point for the antenna. Comes with a 115V AC power supply (16V AC output). The buyer is responsible for ensuring legal compliance with any regulatory obligations applying in their locality.
Description
-

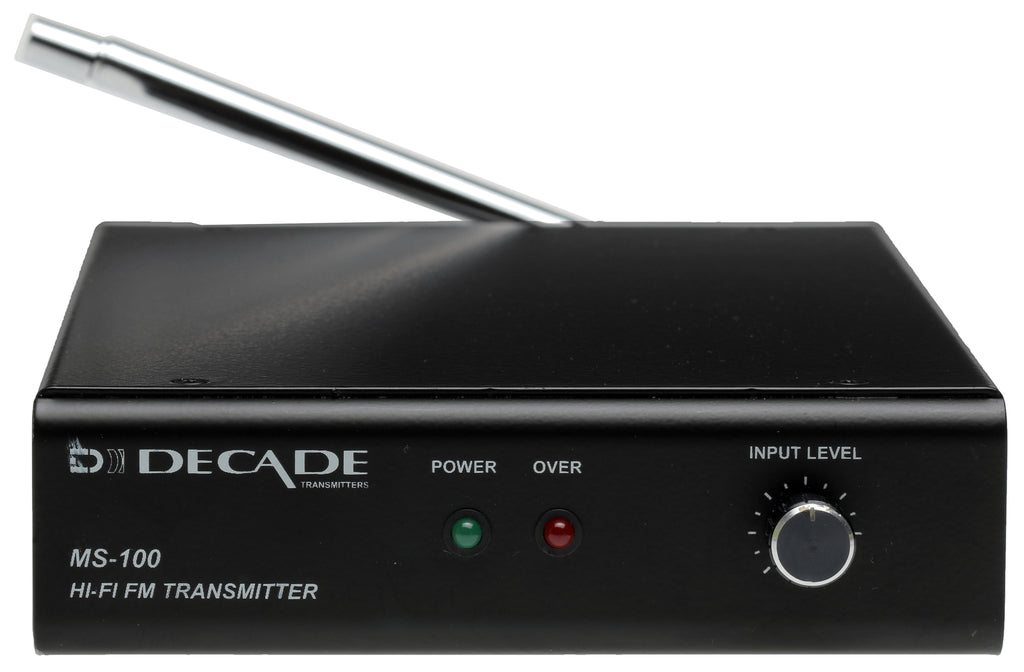

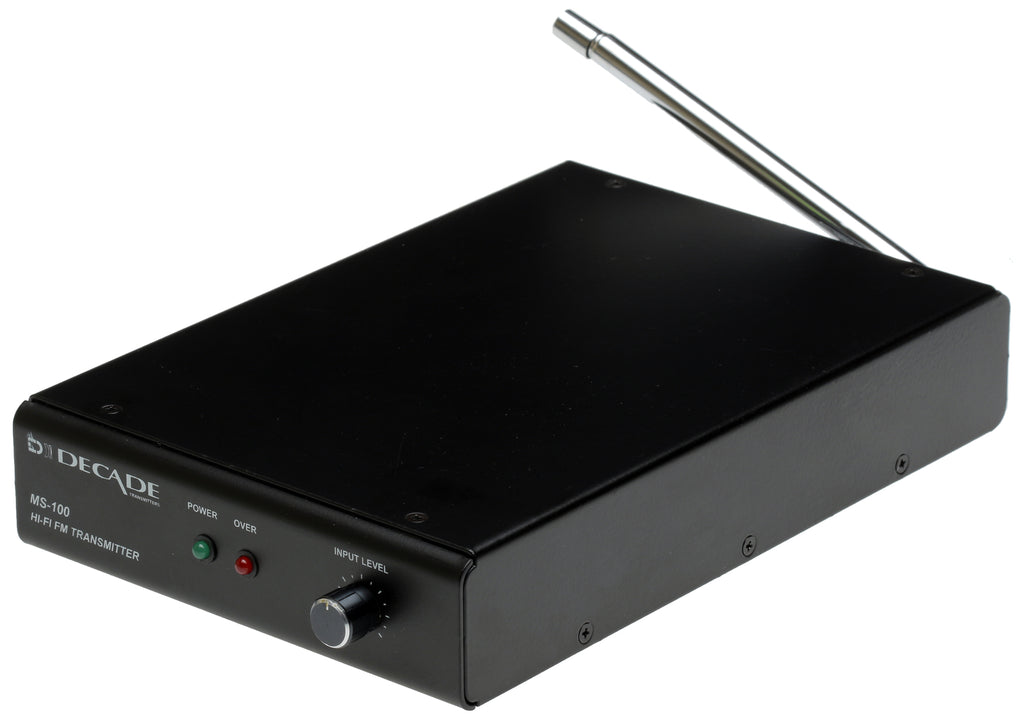

The MS-100S is a professional quality
stereo FM transmitter operating in the commercial FM
broadcast band (88.1-107.5 MHz) and can be used in a
wide variety of applications like sound
re-enforcement, hearing assistance, information and
short range broadcasting.
- Its outstanding RF and audio performances, solidity, reliability and versatility make the MS-100S stand out from FM broadcasting systems.
Further information
may be obtained from the User Manual
(https://www.prostudioconnection.net/0912/MS100-Manual.pdf)
-
The MS-100S features Decade's latest
technology innovation called DAFP technology (Direct
Access Frequency Programming). This new digital
technology allows the end user to program the
frequency without any manual tuning inside the unit.
-
The stereo generator section of the
MS-100S features a full digital circuitry that allows
a stereo separation of over 40 dB. Near CD sound
quality broadcasting is now a reality with the
MS-100S.
- Applications for the MS-100S are endless but here are some popular ones: fitness centers, drive-in theatres, cinemas, museums, house sound linking, concerts, theatrical arts...
Usually Sells for $650
Features

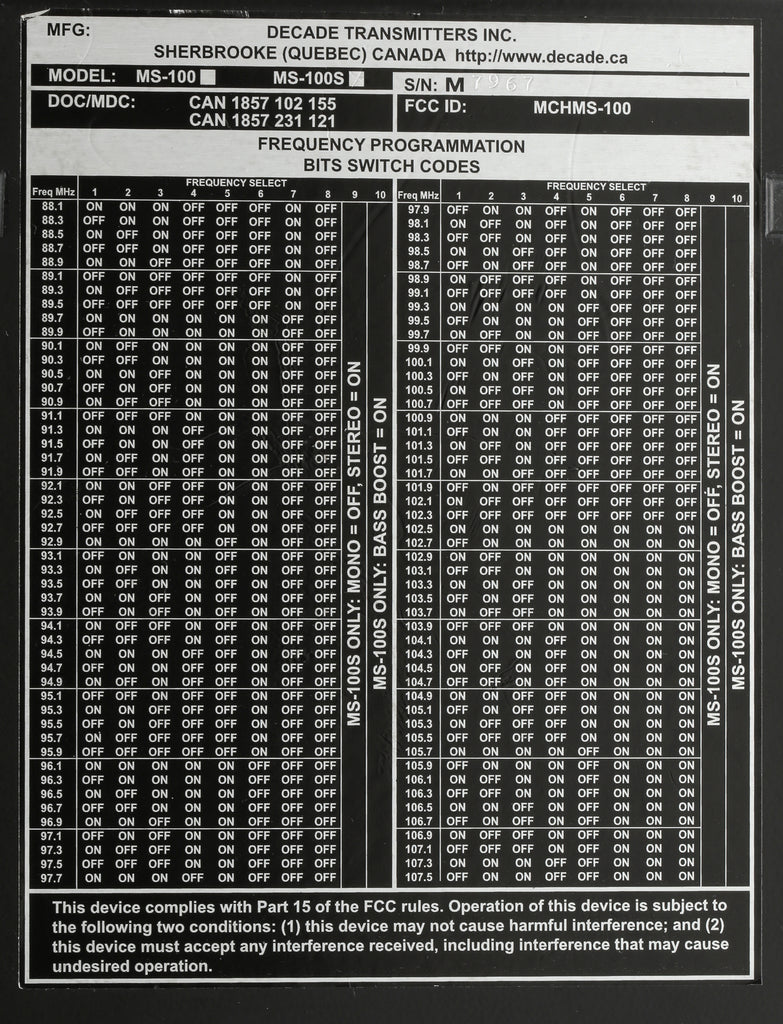

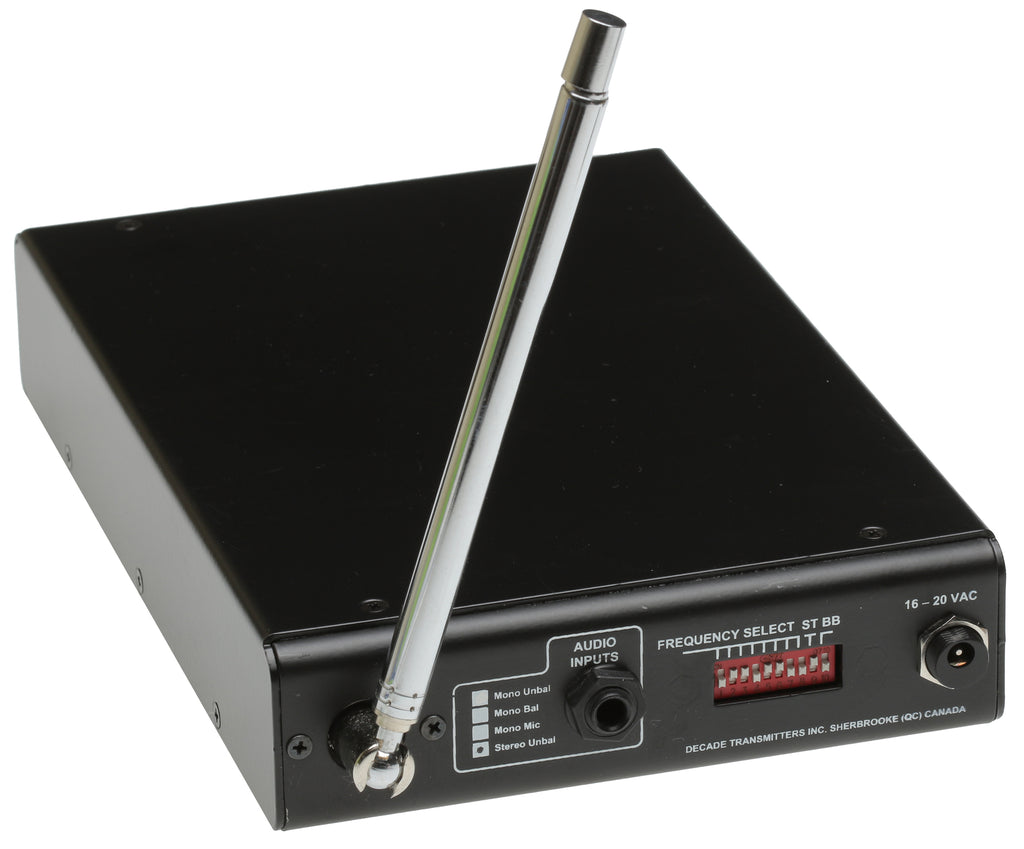

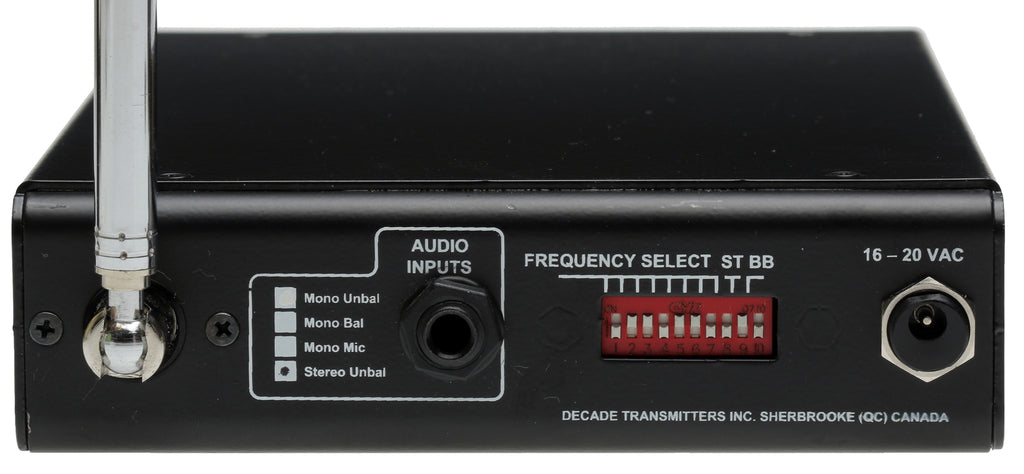

- User programmable frequency (Bit switches)
- No manual tuning required
- Hi-Fi mono/stereo audio mode (selectable)
- Bass boost mode (selectable)
- Digital stereo generator
- Peak indicator with associated volume
- Fixed telescopic antenna
- Continuous duty
- DAFP technology
Specifications
- Modulation: FM, 75 KHz deviation
- Frequency selection: 88.1 - 107.5 MHz
- Frequency precision:.005%25 Crystal.
- RF power: 250 V/m@3m.(FCC Part 1& DOC RSS-210),
- 1 miliWatt (DOC RSS-123)
- Spurious rejection: 45 dB min.
- Frequency response: 20-15 KHz
- Stereo separation: 40 dB min.
- Harmonic distortion: .05%25 max.
- Signal to noise ratio: 70 dB min.
- Input sensitivity: -15dBm to +15dBm (unbalanced)
- Dynamic range: 80 dB min.
- Power supply: 110/16Vac @ 300mA
- Dimensions: 6.3" x 9.8" x 1.6"
