Digigram VX882HR 8 Channel Multichannel Analog & AES/EBU Digital w/ XLR Cable [Refurbished]

( 232998582111) )

Regular price $248.00 Sale price $312.00      (1 available in stock)

Tested/Guaranteed • With XLR Breakout Cable (SC197000101) • Balanced Analog & AES Digital I/O • Excellent Condition • Normally Sells for over $2,000

https://www.prostudioconnection.net/1811/P6010091a.PNG

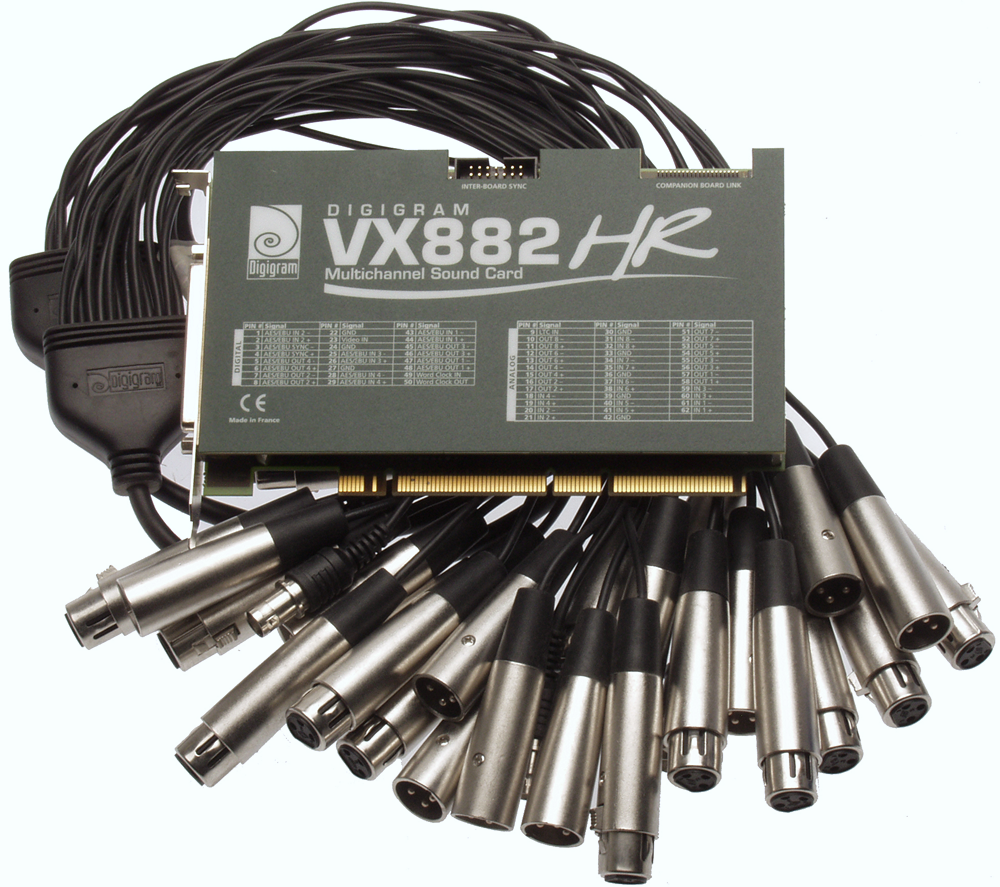

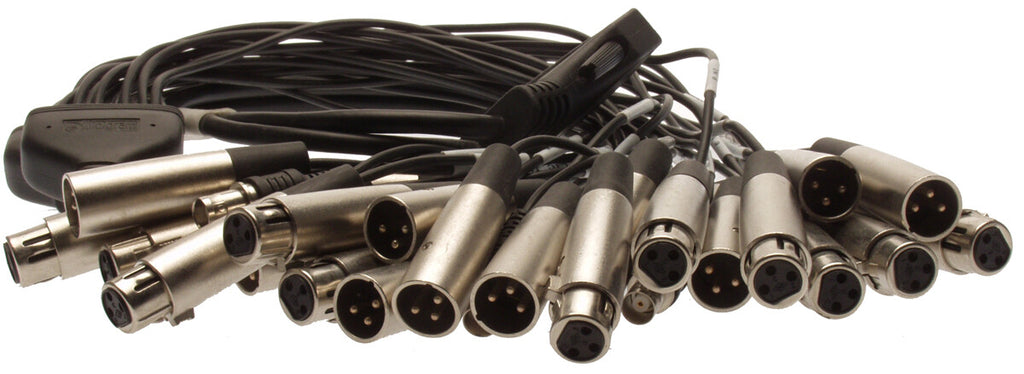

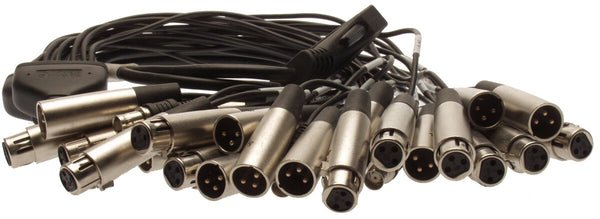

Card has been tested to confirm correct operation. Test results will be included in the package. XLR breakout cable (SC163100101) included as shown. No printed manual is included but a copy may be downloaded here if required. Drivers are available for download here (registration may be required upon first visit). Operation under Windows 10 64bit is supported. This is a PCI-X card however it will work fine in a regular PCI slot.

Description

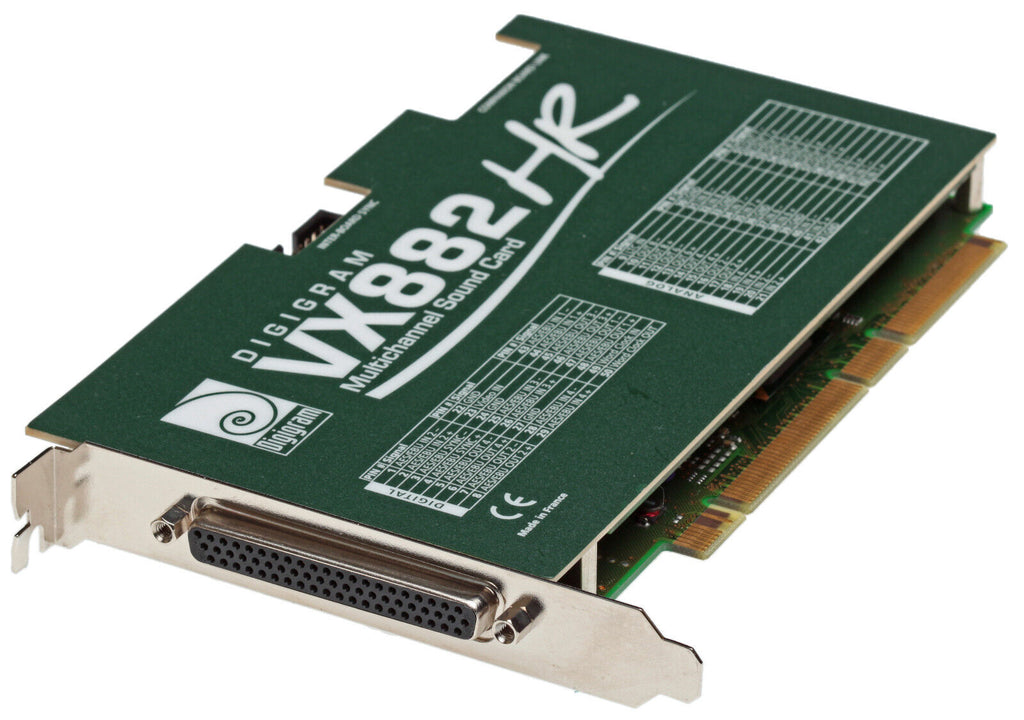

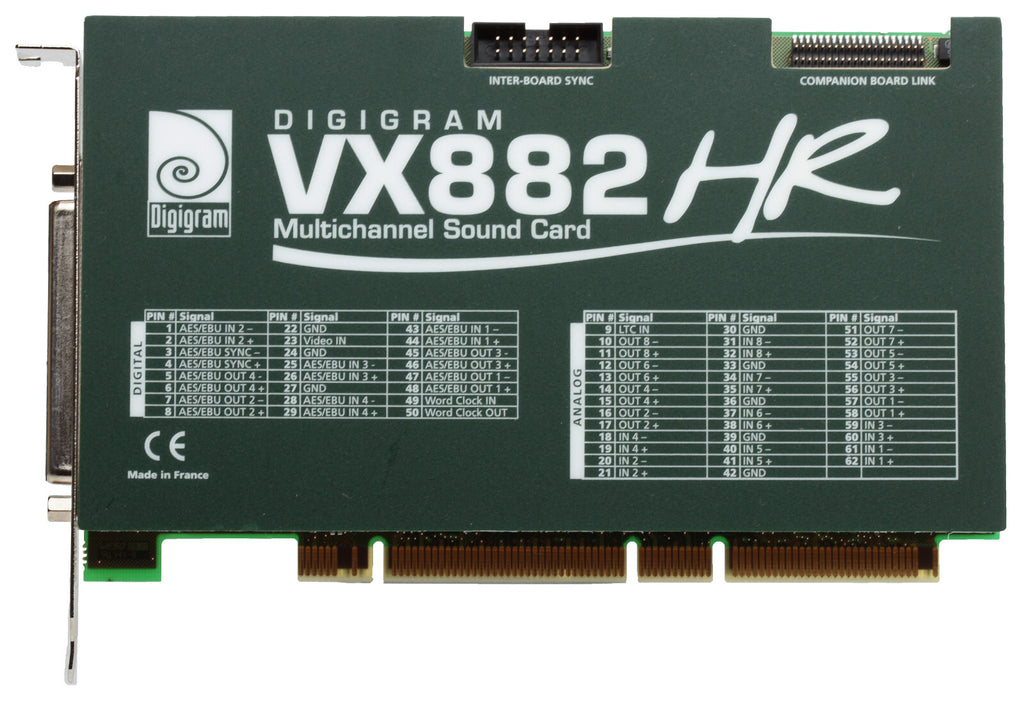

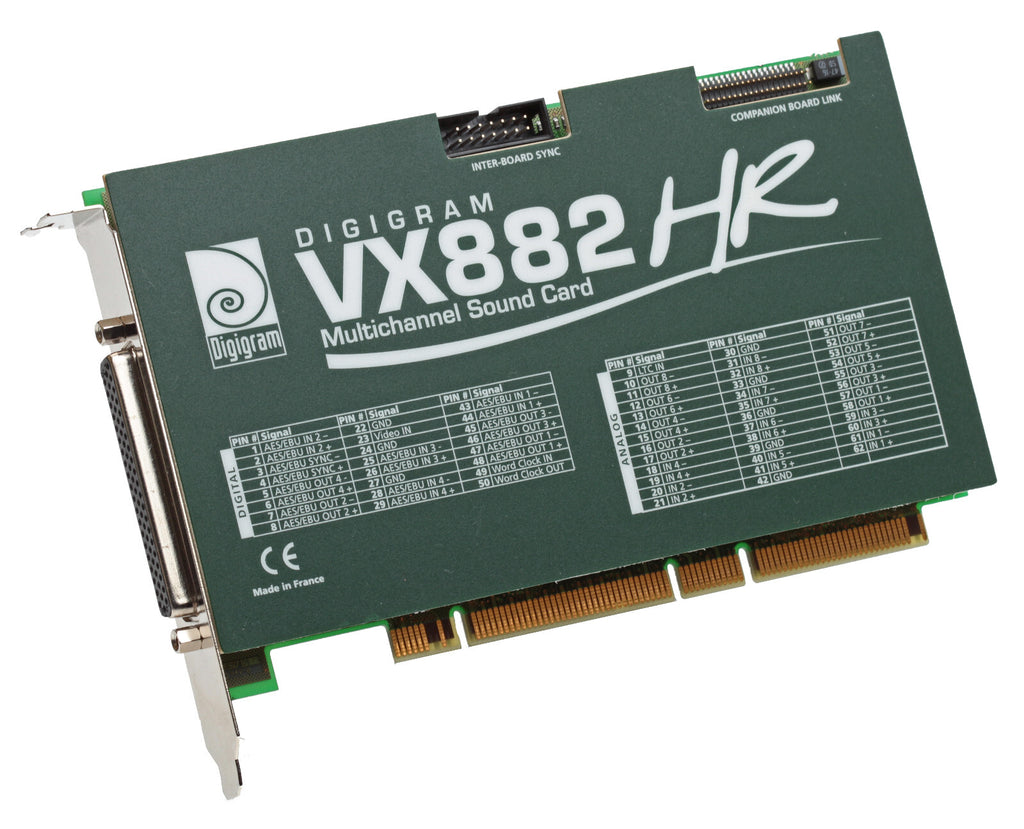

The VX882HR Multichannel sound card is one of the first to benefit from the characteristics of Digigram's new HR (High resolution) series of VX sound cards.

The HR series is the new industry standard for the most demanding applications in broadcast such as production, on-air, permanent playback, and logging. State of the art sound quality, more features, and greater flexibility for custom developments make the new generation the Number 1 choice for pro audio manufacturers and independent software vendors.

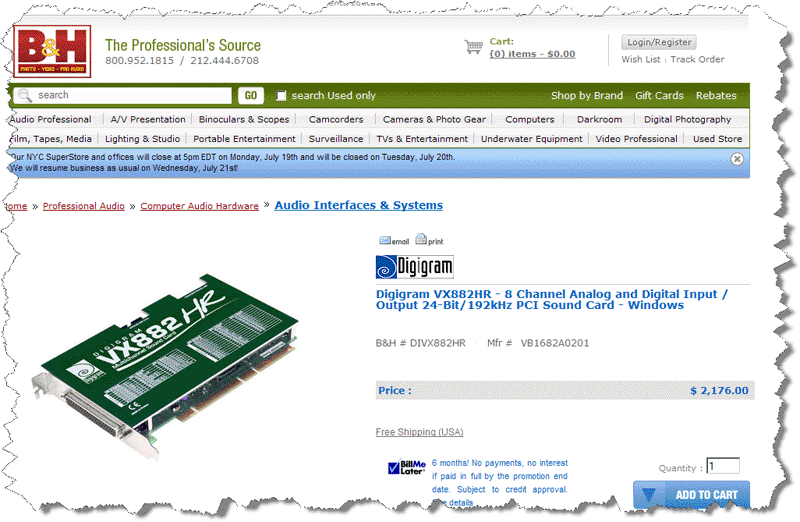

Usual Price is Over $2,000

https://www.prostudioconnection.net/1310/0f03ae7eb4_md.gifKey features

  • VX sound card with 8/8 analog I/Os and 8/8 digital I/Os
  • 24-bit/192 kHz converters
  • Hardware sample rate converters on all inputs for simultaneous recording of digital signals with different sample frequencies
  • 66 MHz/64-bit PCI interface
  • Maximum input and output level: +24 dBu
  • Comprehensive set of drivers: Digigram np, WDM DirectSound, Wave, ASIO
  • Short-length PCI format (only 175 mm/6.875 inches long)
  • Companion board connector for Digigram or custom add-on cards
  • Optional breakout box
  • Universal PCI compatibility (3.3V ready)

https://www.prostudioconnection.net/1811/C0218393.PNG

Specifications

Format: Universal PCI, PCI-X compatible Converters 24-bit Sample Rates Programmable from 8kHz to 192kHz (Note:Digital inputs handle up to 96kHz only)
Analog In: 8 x XLR (on included breakout cable) Analog Outputs 8 x XLR (on included breakout cable)
Digital Input Connectors: 4 x XLR AES/EBU (on included breakout cable) (Note:Can function as S/PDIF)
Digital Output Connectors: 4 x XLR AES/EBU (on included breakout cable) (Note:Can function as S/PDIF)
MIDI In/Out: No
Sync In/Out:
AES/EBU In
Wordclock I/O
Video Sync In
LTC In

Headphone Output: No
THD + N:
Input: <-97dB, 1kHz @ -1dBfs
Output:<-94dB, 1kHz @ -1dBfs
Dynamic Range: >104dB, A-weighted
Frequency Response: 20Hz to 20kHz, +/-0.2dB
Minimum System Requirements:
CPU power and memory required depend on the operating system and the audio application used
One free PCI or PCI-X slot (5V or 3.3V)
Windows 2000/XP/Server 2003 and Vista
Specialties: Can be used in 32-bit/33MHz 5V PCI slots as well as in 64-bit/66MHz 3.3V keyed PCI slots

https://www.prostudioconnection.net/1811/C0218396.PNG

https://www.prostudioconnection.net/1811/C0218394.PNG

https://www.prostudioconnection.net/1811/P6010093.PNG

https://www.prostudioconnection.net/1811/C0218395.PNG
