ESE ES-102U GPS Disciplined SMPTE TC90 Timecode Generator Clock Time Receiver [Used]

Tested/Guaranteed • Used, Very Good Condition • Fully Working • Usually $1,415 • Outputs SMPTE/EBU, ESE, RS-232, USB Timecode

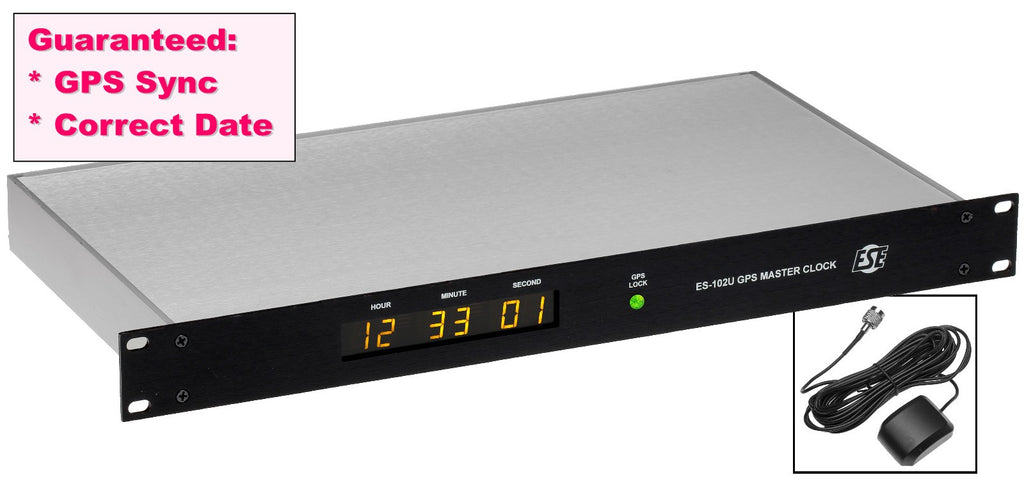

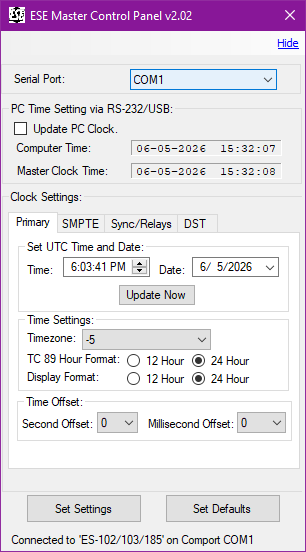

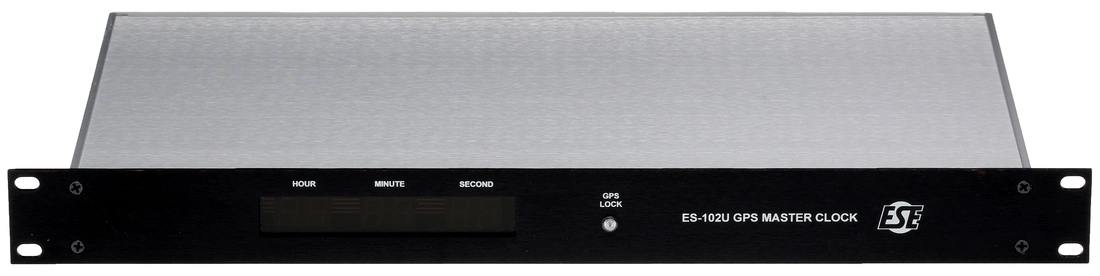

Item is used, in very good cosmetic condition - and fully working. The internal coin cell battery has also been replaced to assist with achieving a faster time to sync to GPS after boot up. No unpictured cables, accessories or documents are included. The basic puck antenna is included to get you started but for optimal results you should ideally plan on using an outdoor antenna with a full view of the sky. Note that you may need the ESE control application which may be downloaded from their website (https://www.ese-web.com/ftp/MasterControlPanelv2.0.zip) to change the timezone and other parameters and possibly to initialize the unit when you start testing. The control applet allows you to set the DST rules manually for worldwide compatibility. No printed manual is included, but a copy may be downloaded here if required (https://www.prostudioconnection.net/1410/ESE_ES-102U_Manual.pdf). The photos show the actual item for sale.

Description

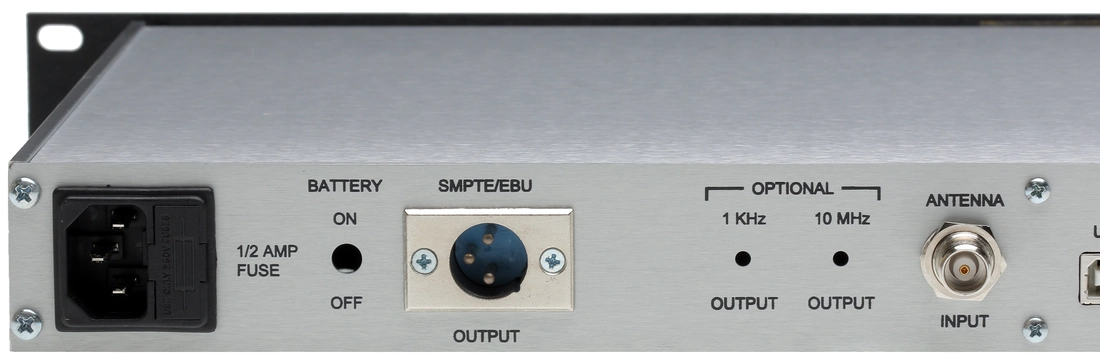

• SMPTE/EBU, ASCII (RS-232C & USB) & ESE Time Code Outputs
• Dual 1 PPS Output (20% and 50% Duty Cycles)
• Rack Mount Enclosure
• Six .56" Yellow LED Displays

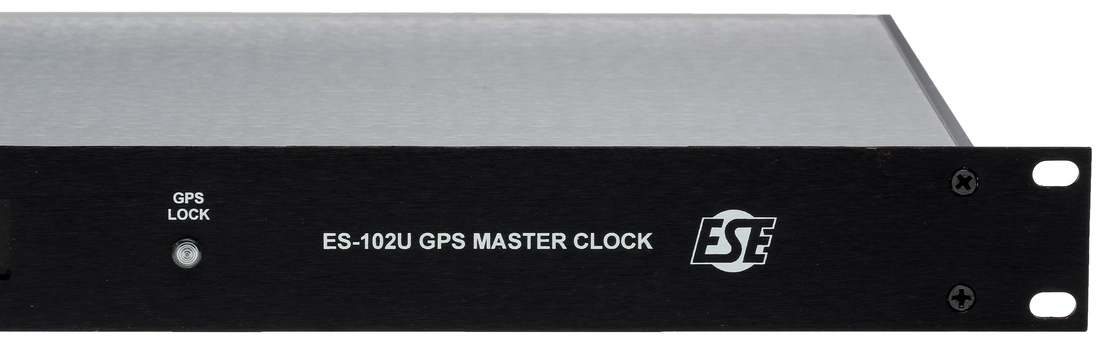

• GPS Lock Indicator
• 500 Nano-Second Accuracy
• Time Zone Offset
• +/- 10 Second Offset
• Automatic Daylight Savings Time Correction
• Digital, Video & Analog Slave Clocks Available
• Legally Traceable to UTC (Universal Coordinated Time)
• Loss of GPS Signal Output
• Basic Indoor Antenna included - outdoor antenna required for optimal timekeeping

The ES-102U is a low-cost yet very accurate GPS Master Clock/Time Code Generator. The unit receives time and date information from Global Positioning System satellites and supplies this data to the user in the form of four different types of time code ... SMPTE/EBU, ASCII (RS-232C & USB), ESE-TC89 and ESE-TC90.

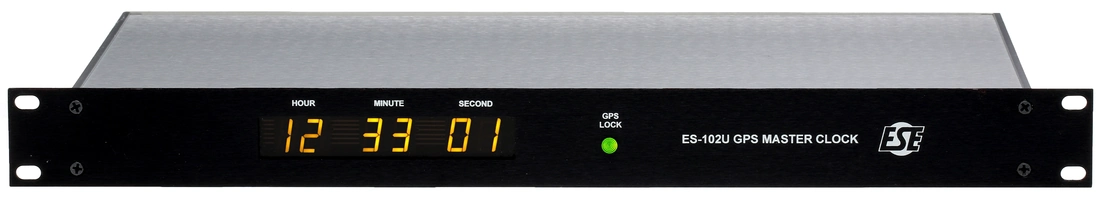

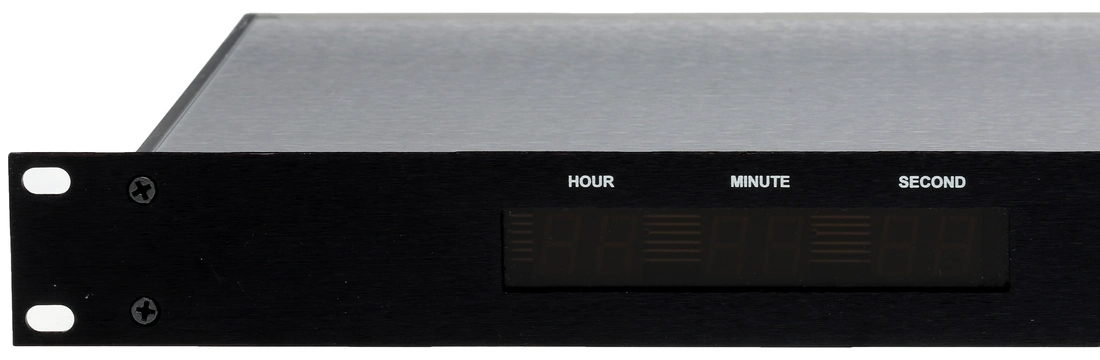

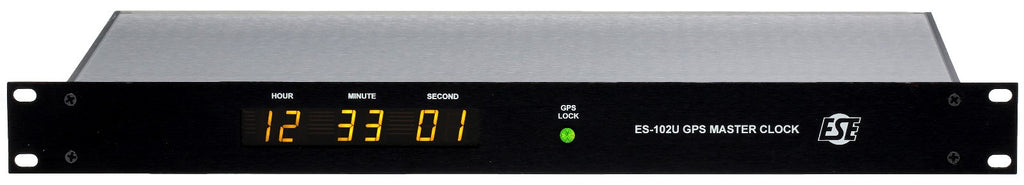

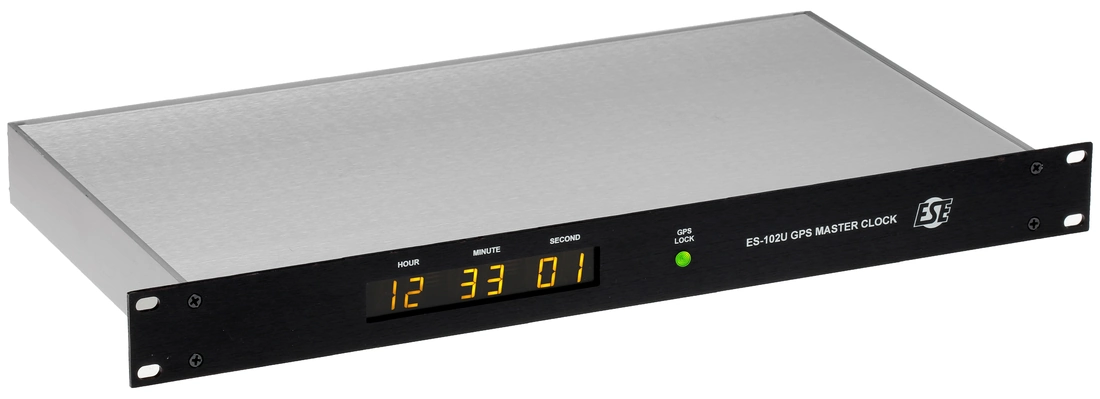

Six yellow LED displays (.56") provide a digital display of the Hours, Minutes and Seconds data.

Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features.

A twelve-channel receiver is employed that is capable of tracking up to twelve satellites simultaneously, although reception of only one is required for time data to be output.

Usually Sells for $1,415
