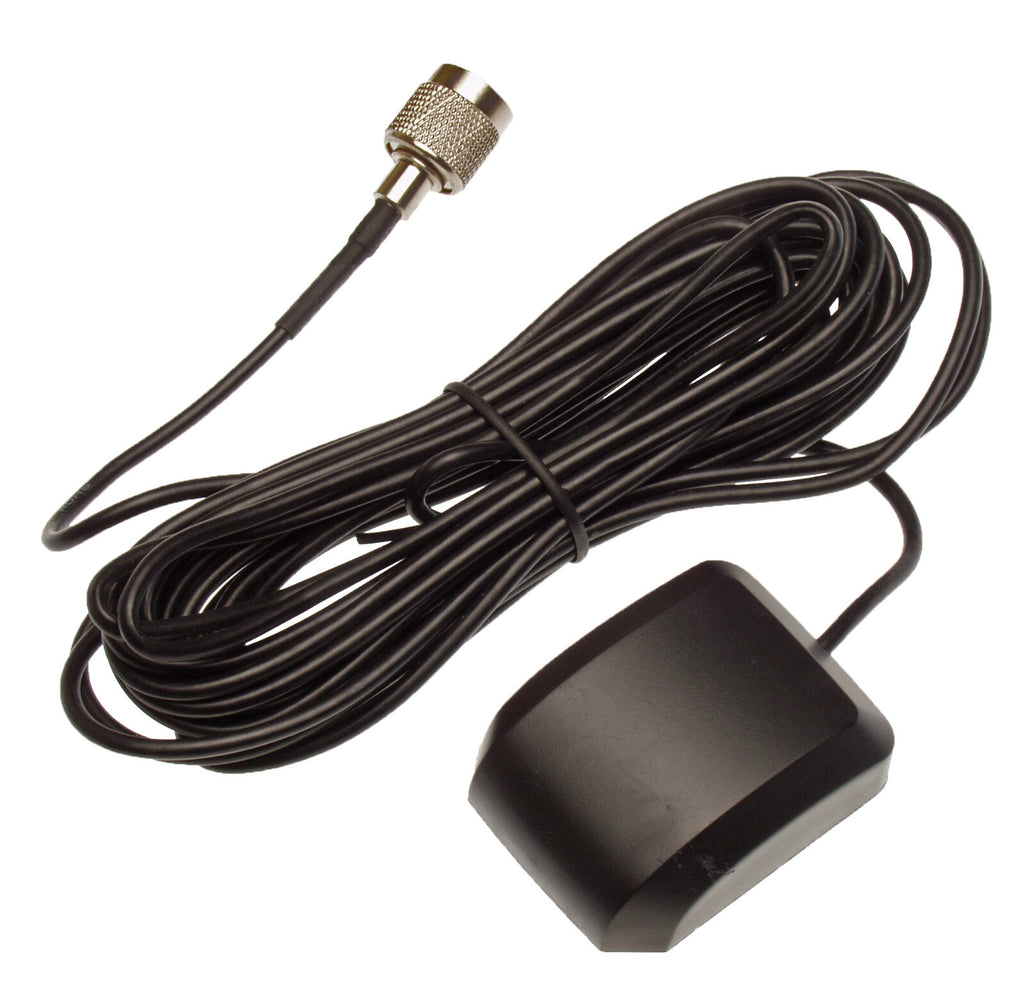

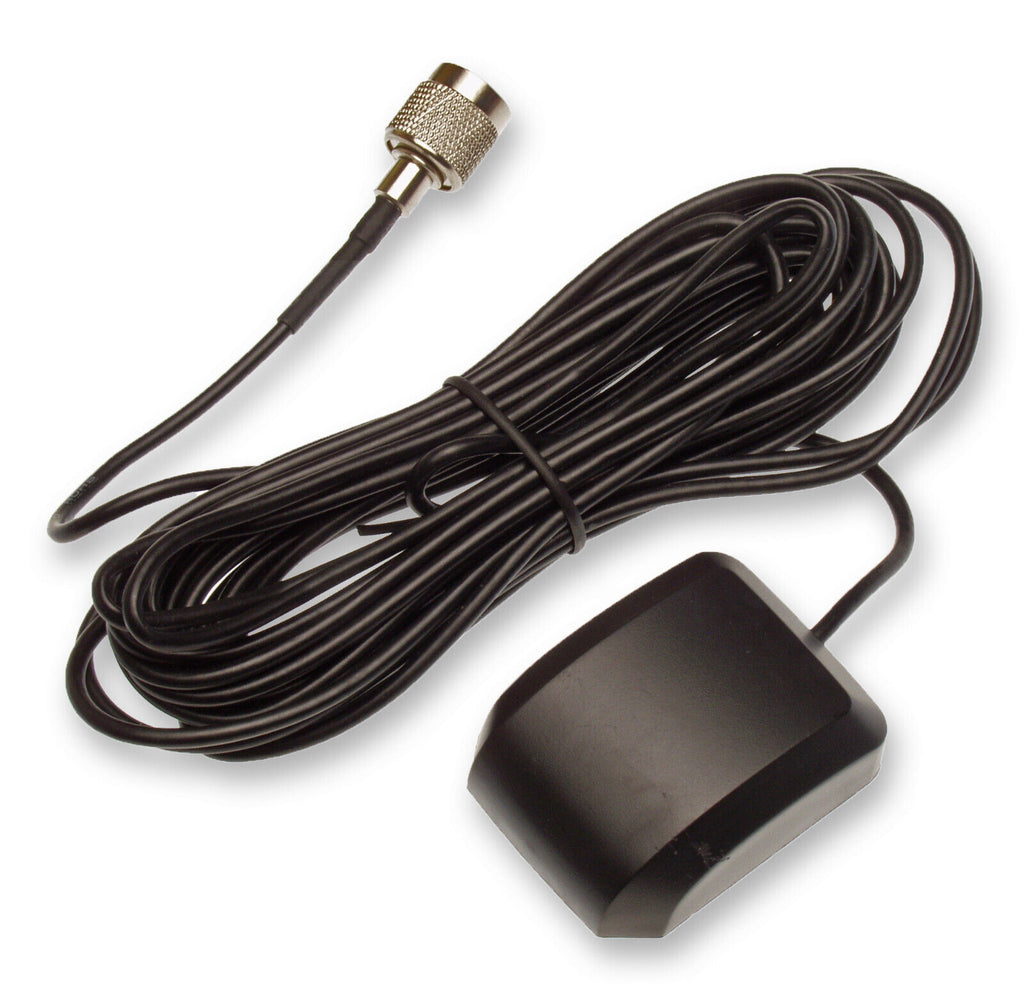

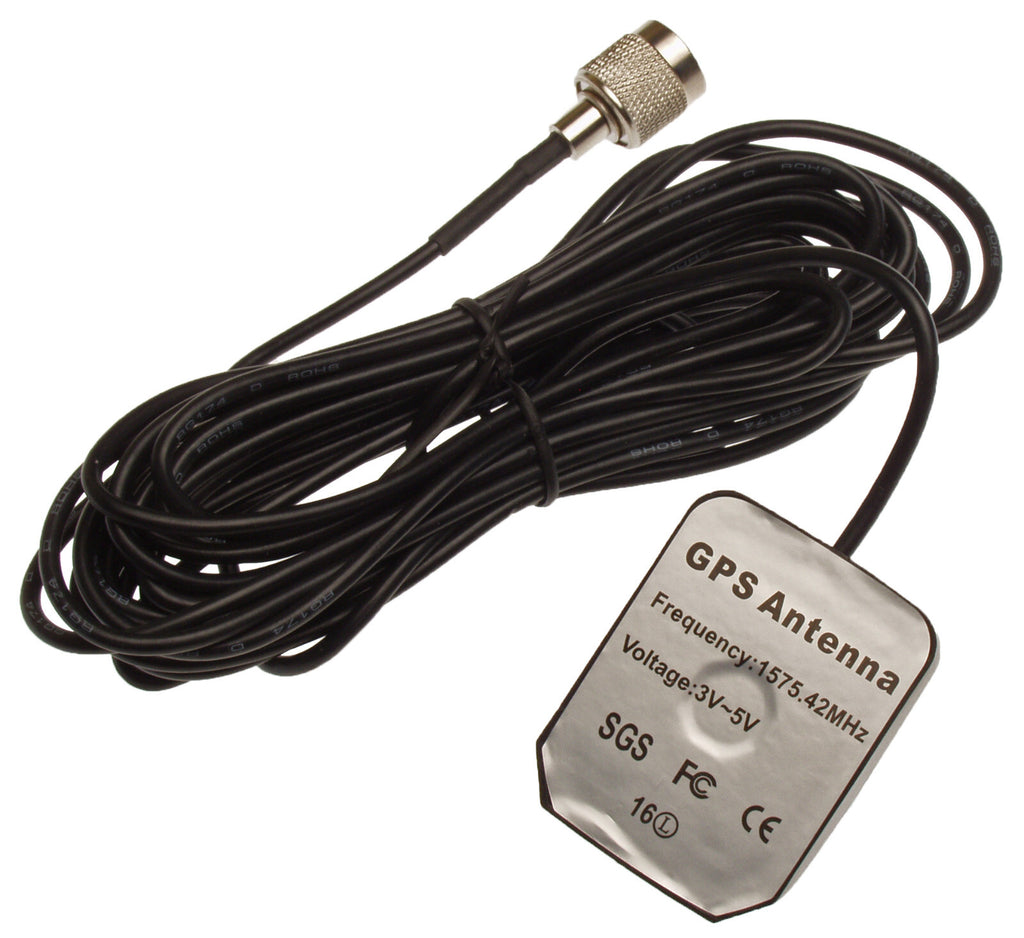

GPS 28dB TNC Male 3V-5V Mobile Antenna Miniature Mag Mount w/ 16ft Downlead NEW

Active GPS 28dB Antenna 5V TNC Magnetic Mount

16ft RG-174 Flexible Downlead

New. Ships in a padded mailer. 30 day refund or replacement warranty.

Description

These antennas are ideal for GPS devices providing 3-5V antenna voltage feed (which is almost all devices apart from some Symmetricom and most Meinberg units). If in doubt measure the voltage across the TNC antenna jack on your receiver using a voltmeter.

Key Features

• Active GPS antenna with internal low noise amplifier
• Magnetic Mount
• TNC Male Connector
• 3V to 5V supply voltage

Specifications

• Centre Frequency: 1575.42MHz ± 3MHz
• VSWR: =1.5
• Impedance: 50 ohm
• Polarization: RHCP
• LNA Gain : 28 dB +/-2dB
• Noise Figure: =2dB
• DC Voltage: 3—5V
• DC Current: 12±3mA
• Dimensions: 49 x 37 x 16mm (1.9 x 1.5 x 0.63") approx.
• Cable: RG174 5m/16 feet

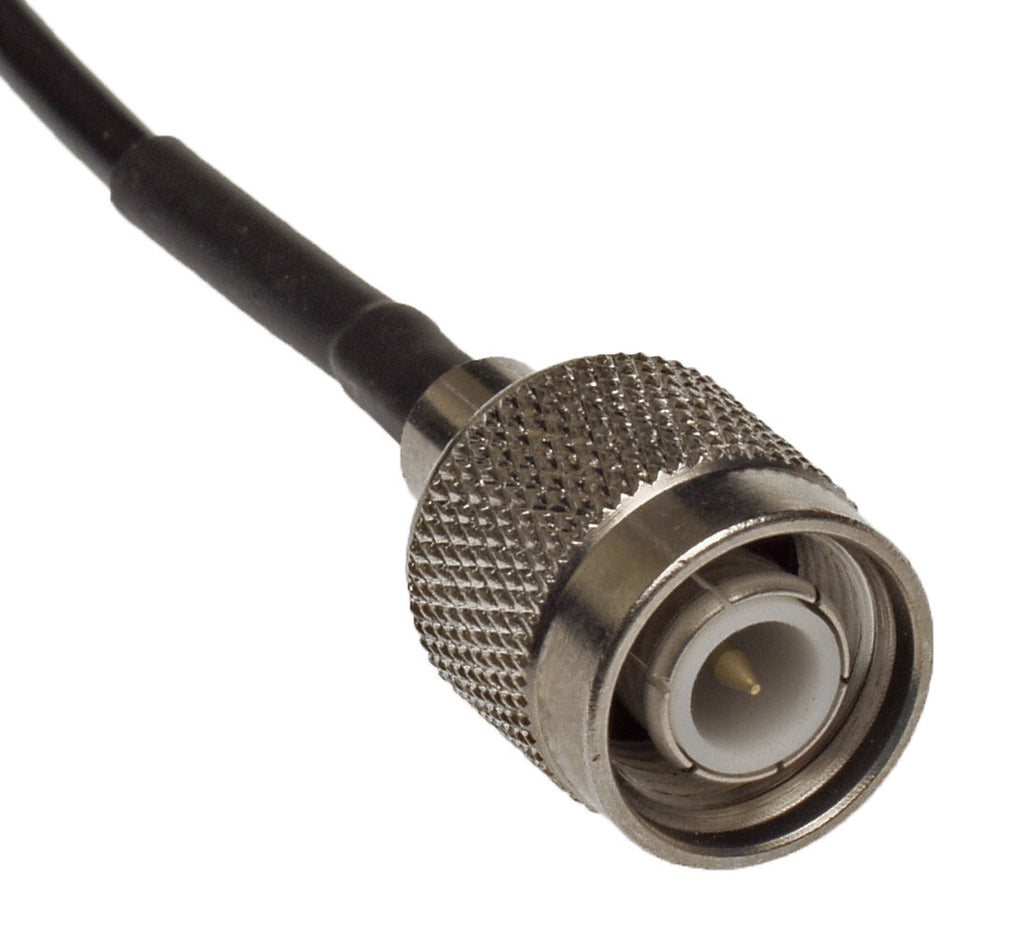

• Connector: TNC Male
• Mounting: Magnetic
• Housing Color: Black
• Working Temperature: -40°C to +85°C
• Humidity: 95% to 100% RH
• Waterproof: IP67
