Henry Engineering 2x4 S/PDIF AES XLR Digital Audio Distribution Amplifier 6700
( 236850563828) )
Tested/Guaranteed β’ Henry
Engineering Part 6700 β’ 2x4 AES/EBU Digital Audio Distribution
Amplifier β’ 192/96/48/44/32 KHz Sample Rates Supported β’ Was
$395 β’ 115/230V Modifiable

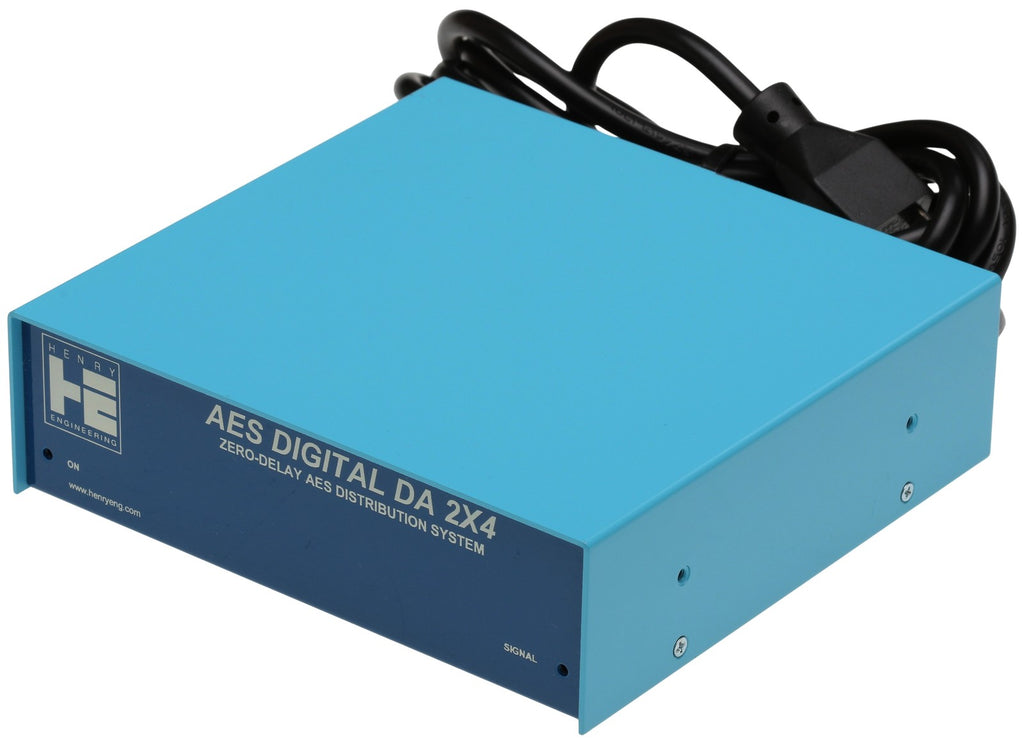

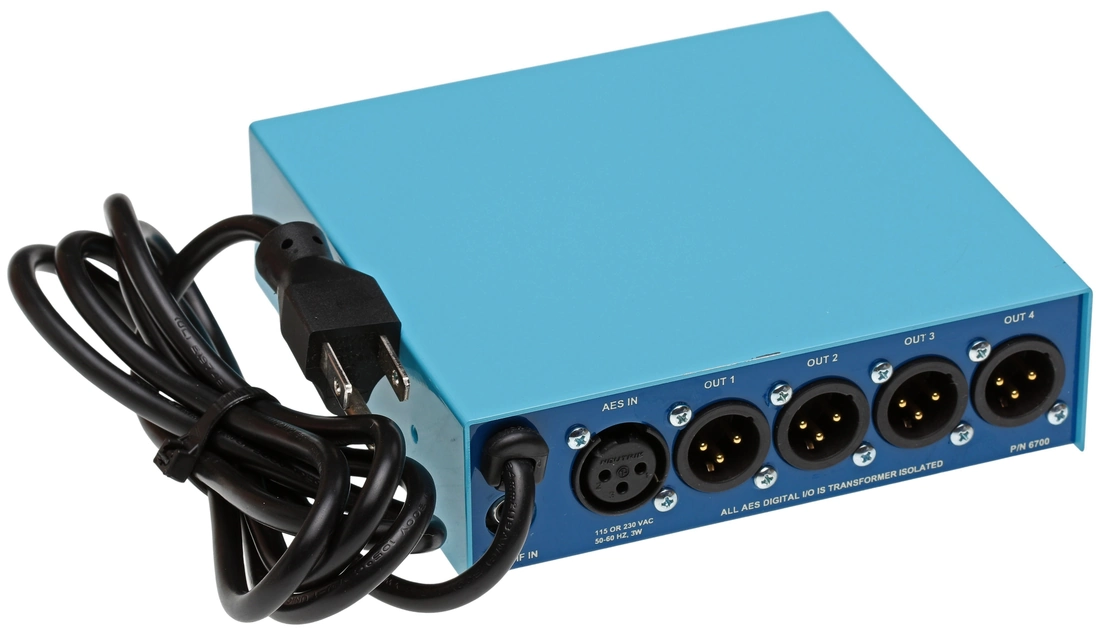

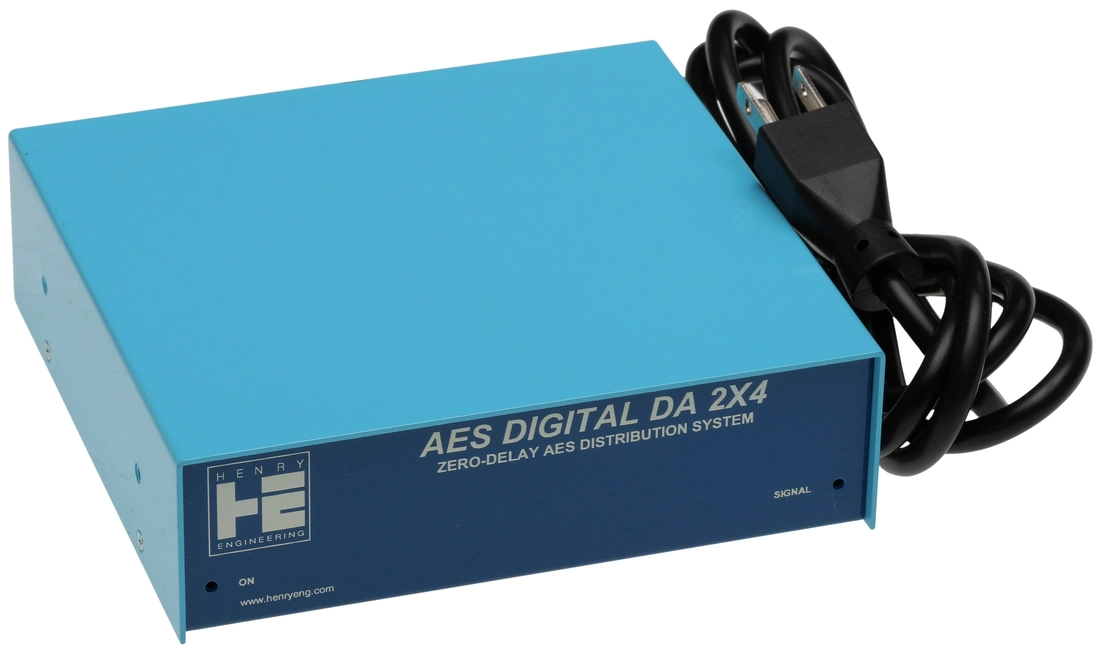

Photos show the actual item for sale
Lightly used in very good condition. Fully
working. Can be re-strapped internally for 230V

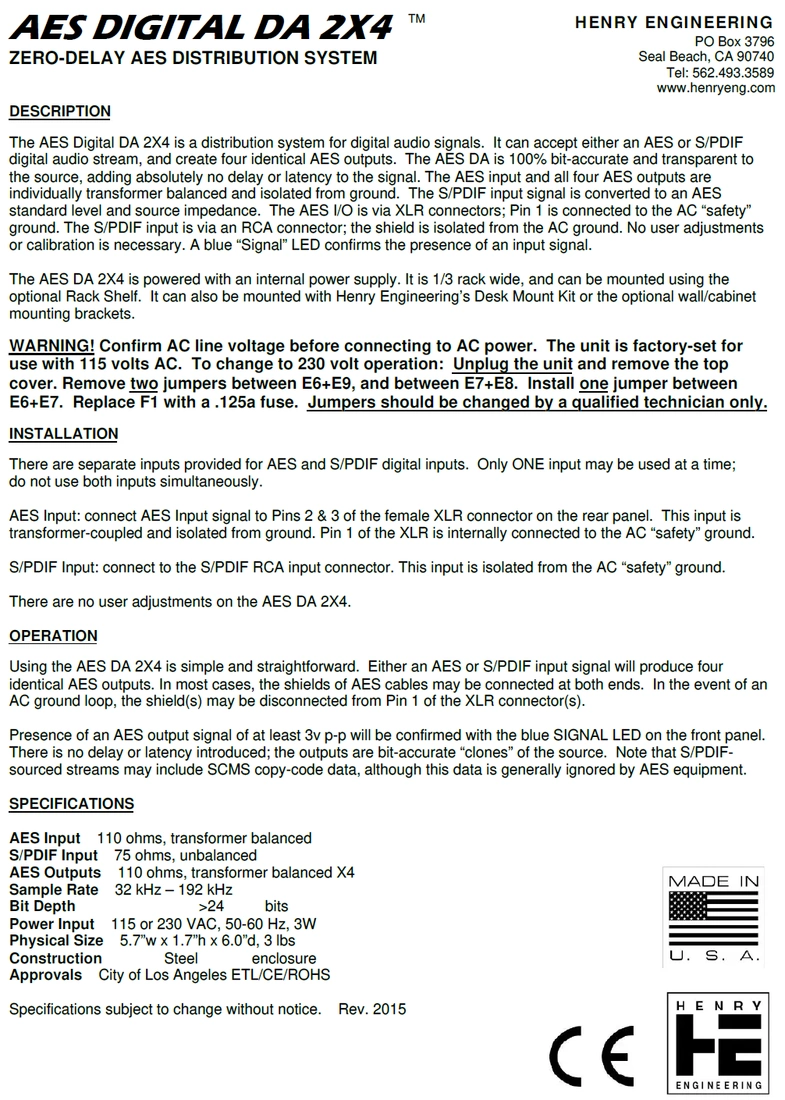

working. Further product information may be obtained from
the User Manual - copied below.
Product Overview
The Henry Engineering AES Digital DA 2X4 is a distribution
system for digital audio signals. It can accept either an AES or
S/PDIF digital audio stream, and create four identical AES
outputs. The AES DA is 100% bit-accurate and transparent to the
source, adding absolutely no delay or latency to the signal. The

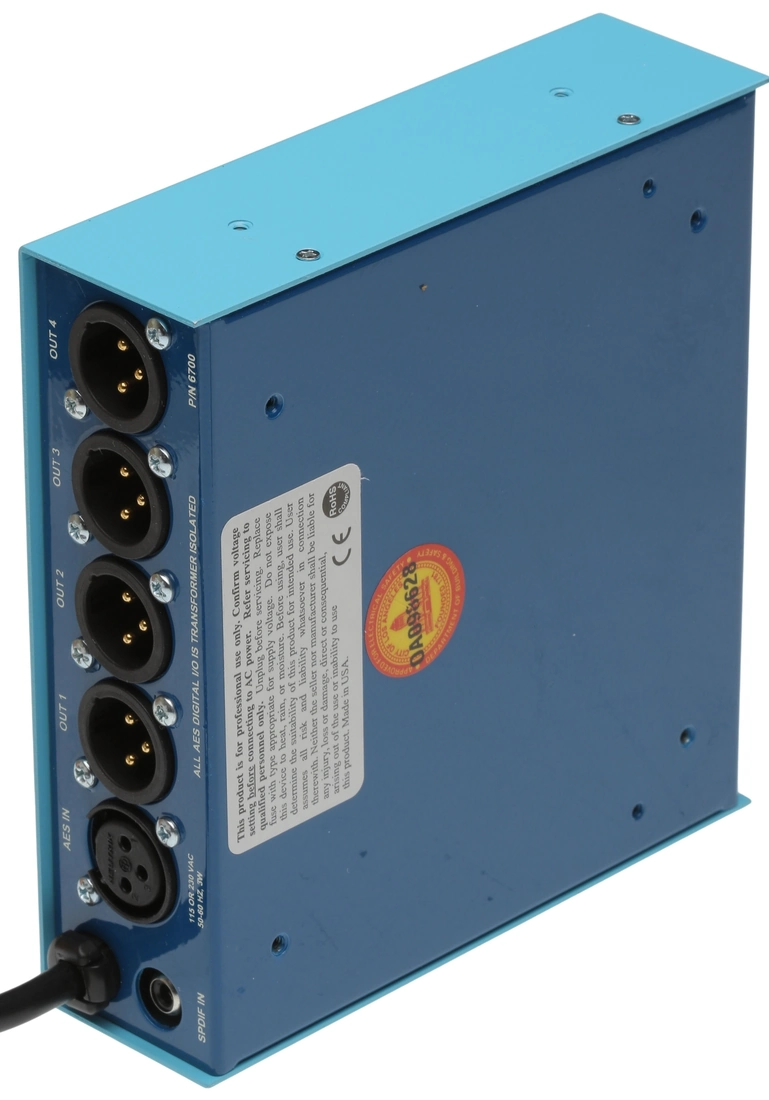

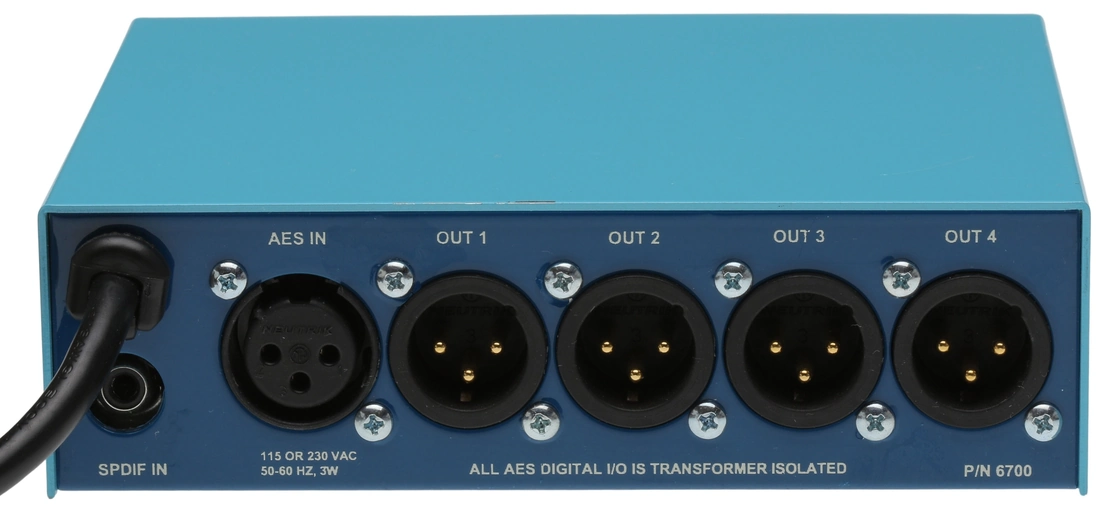

AES input and all four AES outputs are individually transformer
balanced and isolated from ground. The S/PDIF input signal is
converted to an AES standard level and source impedance. The AES
I/O is via XLR connectors; Pin 1 is connected to the AC "safety"
ground. The S/PDIF input is via an RCA connector; the shield is
isolated from the AC ground. No user adjustments or calibration is

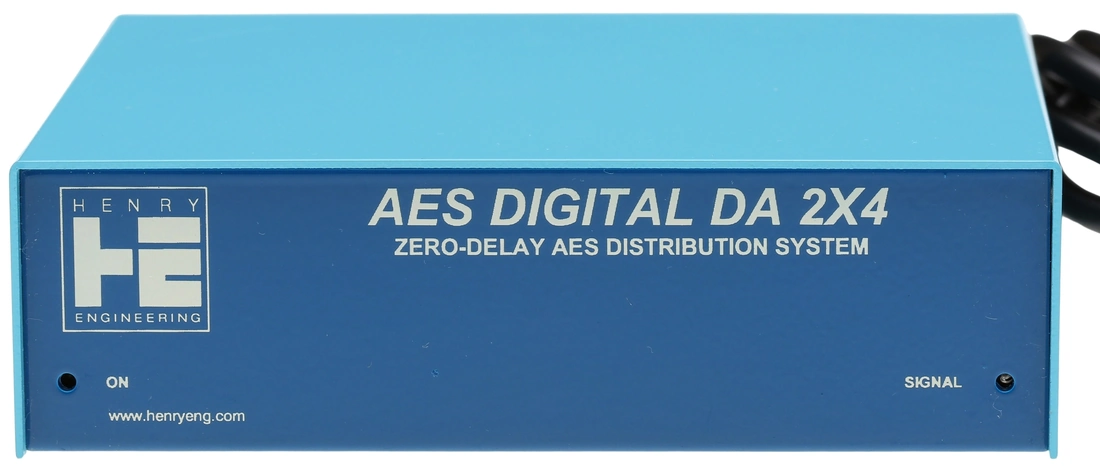

necessary. A blue "Signal" LED confirms the presence of an input
signal.

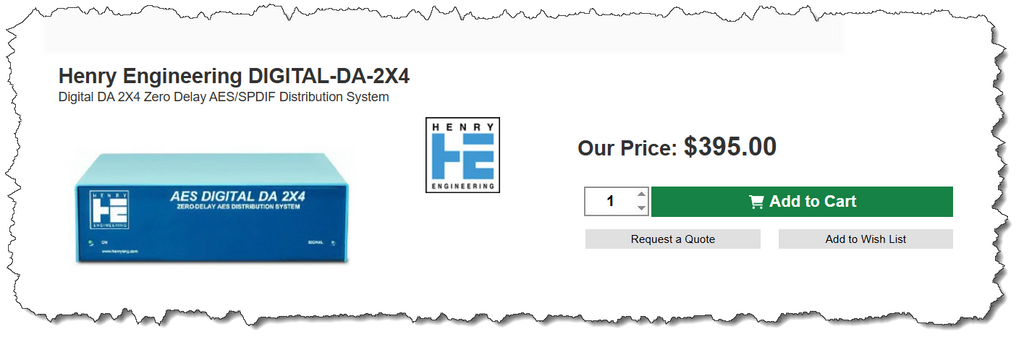

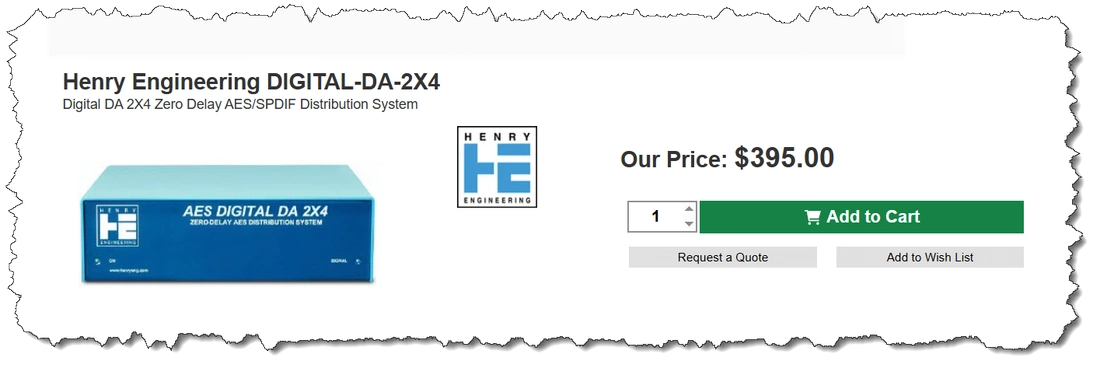

Usually Sells for $395
The AES Digital DA 2X4 is powered with a built-in AC power
supply, which can be set by the user to operate on either 115 or
230 volts AC. The AES Digital DA 2X4 is 1/3 rack wide, and can be
mounted using the optional Rack Shelf. It can also be mounted with
Henry Engineering's Desk Mount Kit or the wall/cabinet mounting
brackets.
Henry Engineering Digital DA 2X4 Specifications:
- AES3 Input: 110 ohms, transformer balanced
- S/PDIF Input: 75 ohms, unbalanced
- AES Outputs: 110 ohms, transformer balanced X4
- Sample Rate: 32 kHz β 192 kHz
- Bit Depth: > 24 bits
- Power Input: 115 or 230 VAC, 50-60 Hz, 3W
- Dimensions: 5.7" W x 1.7" H x 6.0" D
- Weight: 3 lbs
- Construction: Steel enclosure
