Henry Engineering Digimatch 2x6 S/PDIF AES Digital Audio Distribution Amplifier

Tested/Guaranteed • Henry Engineering Part 4300 • 2x6 AES/EBU or S/PDIF Digital Audio Distribution Amplifier • 192/96/48/44/32 KHz Sample Rates Supported • Was $295 • 115/230V Modifiable

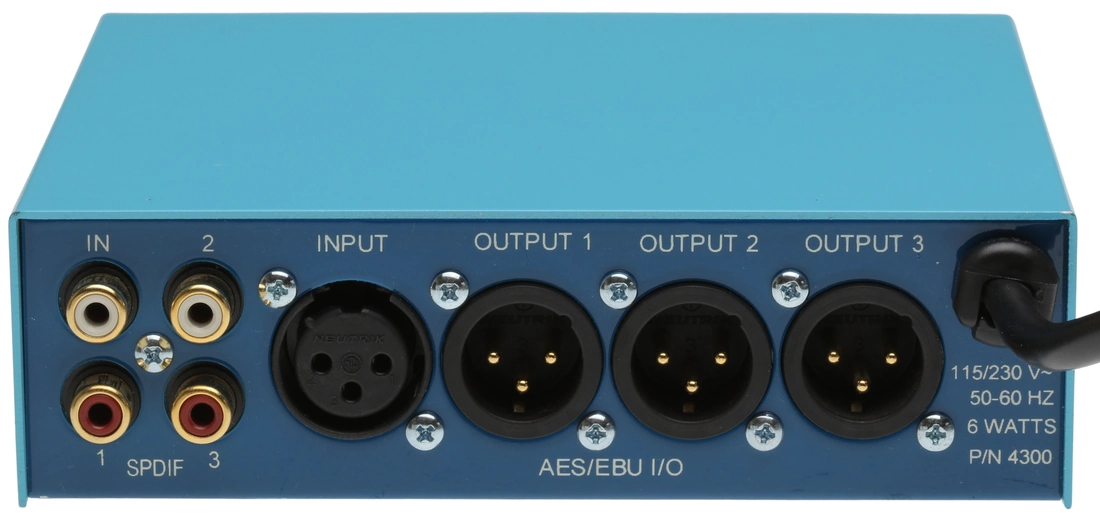

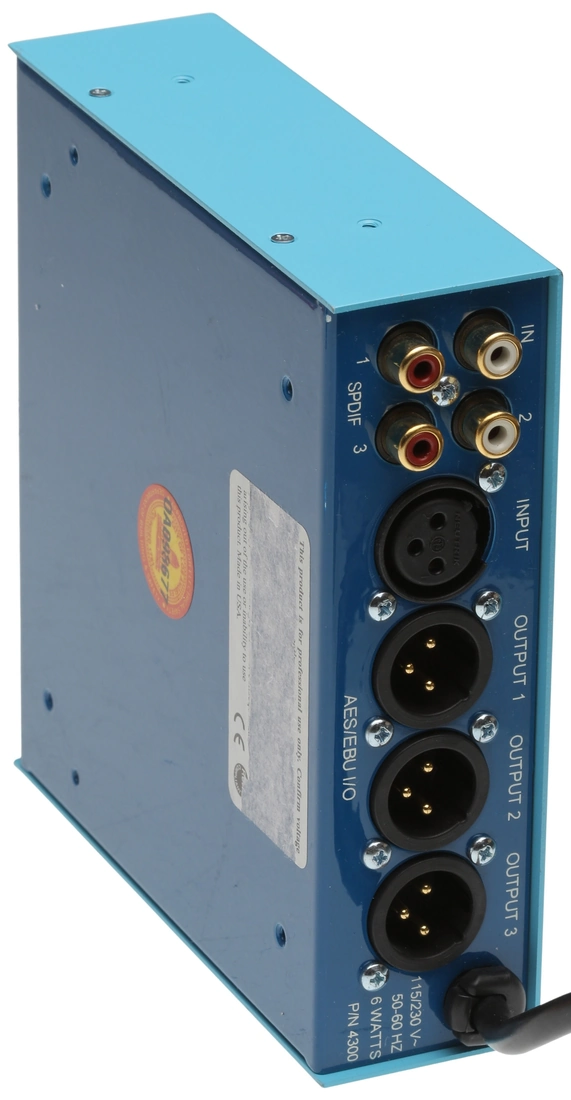

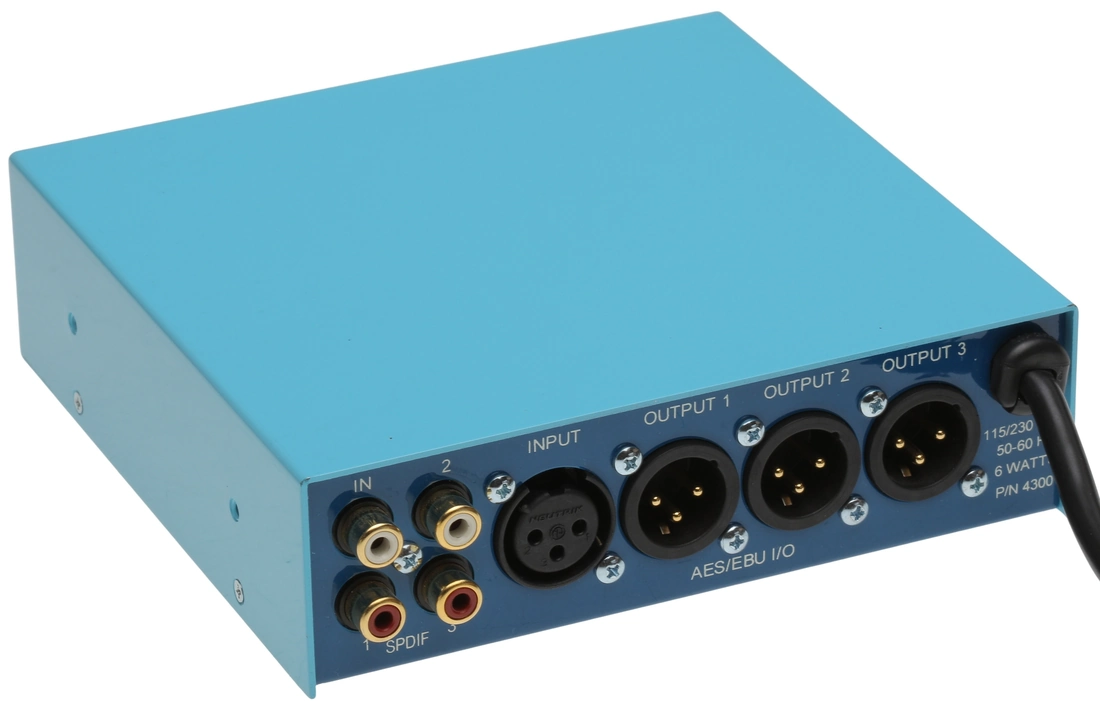

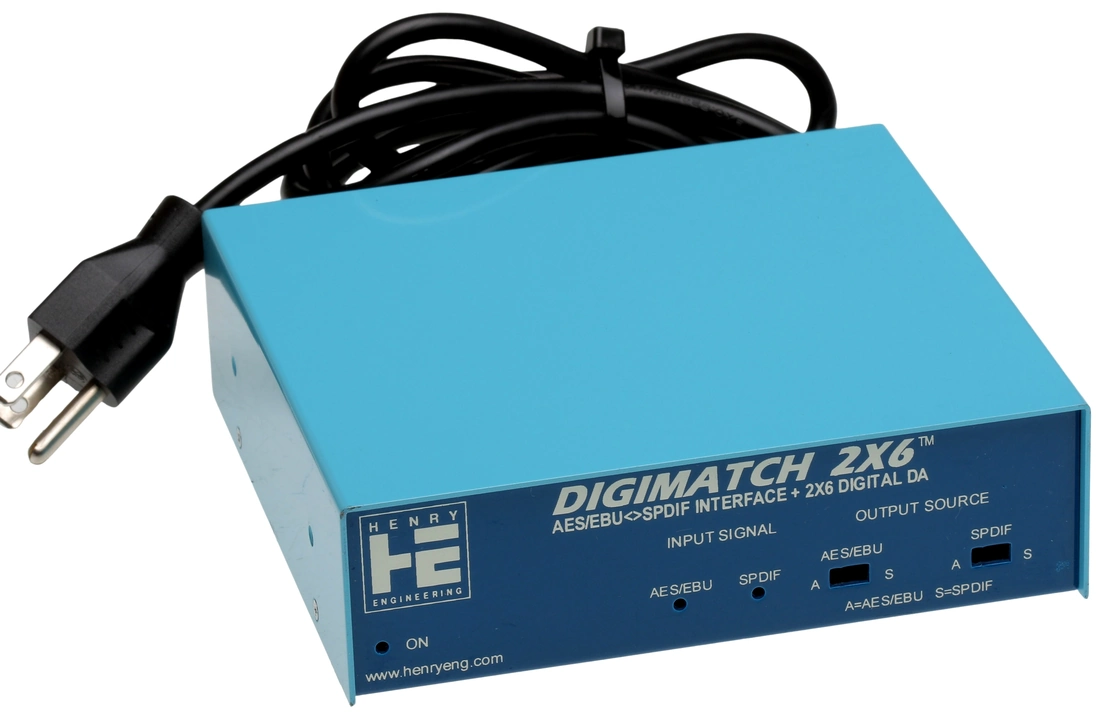

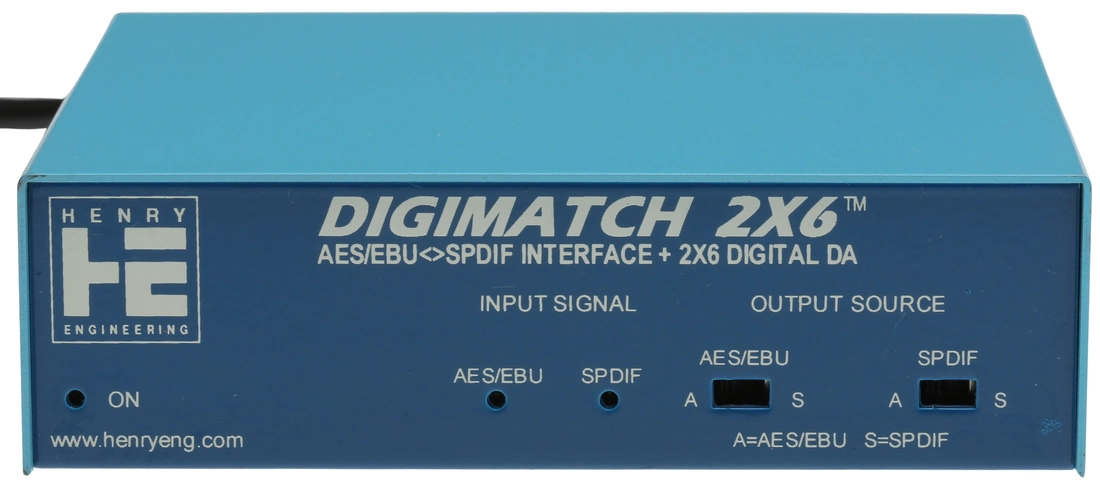

Photos show the actual item for sale

Lightly used in very good condition. Fully working. Can be re-strapped internally for 230V working. Further product information may be obtained from the User Manual - copied below.

Product Overview

The DigiMatch 2x6 from Henry Engineering is an AES/EBU to S/PDIF interface and distribution amplifier designed for the purposes of converting between the two types of digital audio signals and distributing them to multiple outputs. It features single AES/EBU and S/PDIF inputs and three outputs for each format. Either input can feed all six of the outputs, creating four modes of operation, which are selected via the front panel.

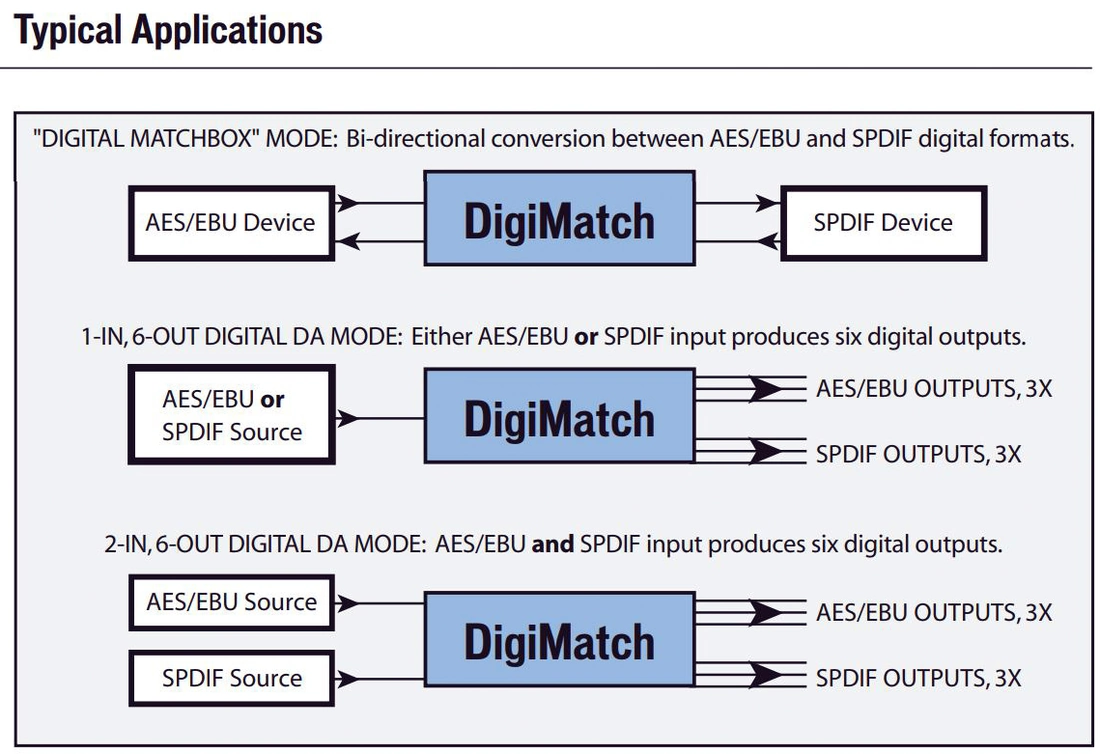

In "convert" mode the AES/EBU input feeds the S/PDIF outputs while the S/PDIF input feed the AES/EBU outputs. In "DA-AES/EBU Only" mode the AES/EBU input feeds all of the outputs. "DA-S/PDIF Only" mode has the S/PDIF input feeding all six outputs. The "DA-Split" mode has each format's input being output through its own corresponding connectors.

Built-in DigiMatch circuitry corrects input levels that are out of tolerance. The AES/EBU connectors are transformer isolated and all of the outputs are short-circuit protected and can drive long cable lines without degrading the signal. All of these features packed into a 1/3 rack space unit make the DigiMatch a great choice for your digital audio conversion and distribution needs.

Usually Sells for $395

Features

• AES/EBU and S/PDIF converter and distributor
• Four operating modes to meet any situation
• Single AES/EBU and S/PDIF inputs, each with three outputs
• Internal signal tolerance correction circuitry
• Transformer-isolated AES/EBU connectors
• Short-circuit protection on all outputs
• 1/3 rack space unit
