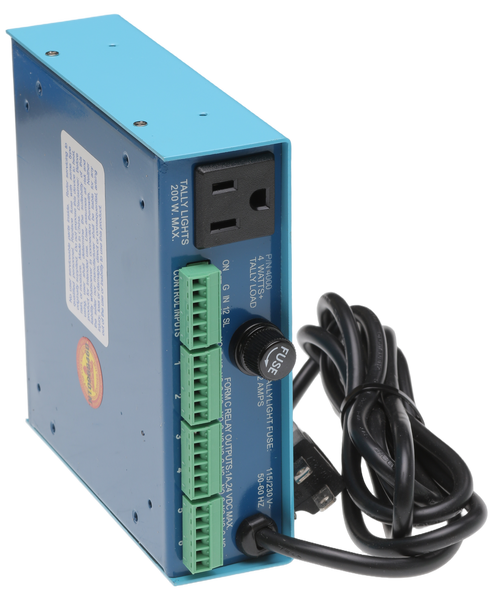

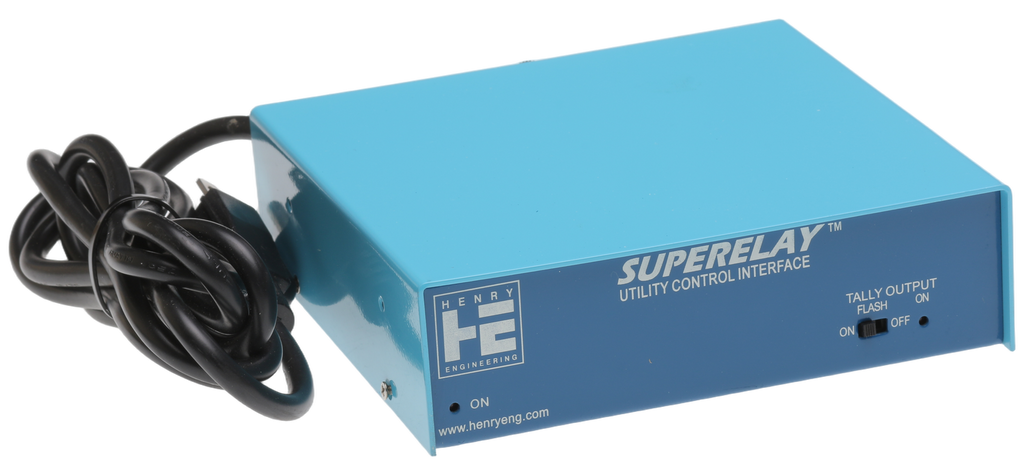

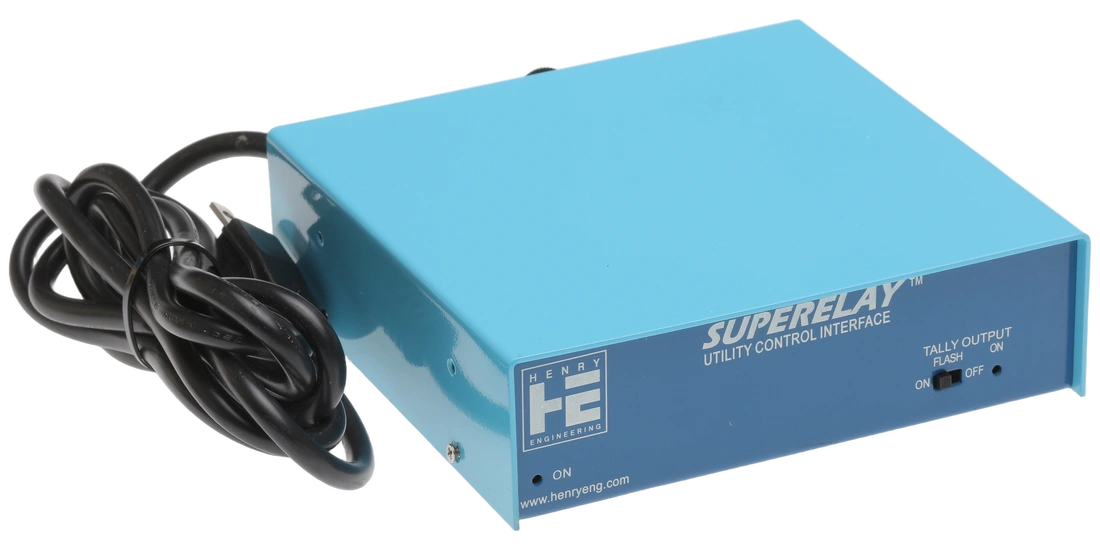

Henry Engineering Superelay On The Air Light Tally Lamp Switch GPI Controller
( 287093667980) )
New Open Box • Studio 'On-Air' Light Interface Relay • Generate Multiple Contact Closures (inc 115V AC) from a 5-24V Trigger
New open box. In factory carton.
Product Description
Superelay is a
multi-circuit controller for any application where
numerous circuits, including AC line voltage, need to be
switched simultaneously. It is ideal for controlling On
The Air warning lights and switching the
various equipment functions that need to be controlled
when, for example, the microphone in a broadcasting studio
is turned on.

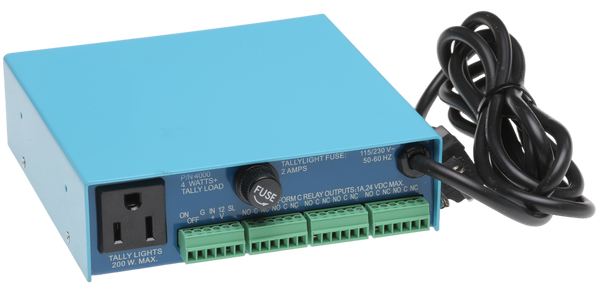

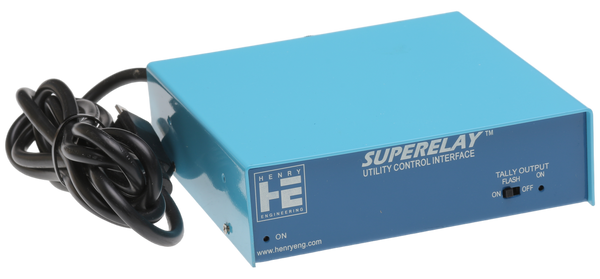

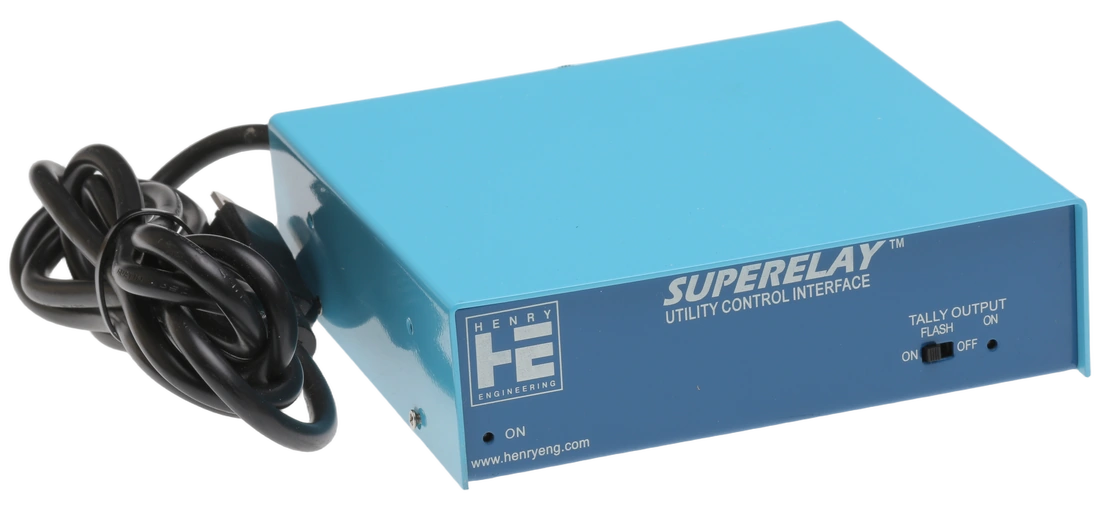

Superelay provides six isolated SPDT relay outputs, plus an AC Tally Light output that can be set to flash. The AC Tally Light output is switched with a synchronous solid-state relay to prevent electrical noise or arcing. All outputs switch simultaneously.
Further
information may be found in the User Manual
at
https://www.prostudioconnection.net/2304/Superelay_Manual.pdf
Superelay can be
controlled with an external DC voltage (5-24v), a
momentary or continuous contact closure, or any circuit
that switches to ground. Control inputs and relay outputs

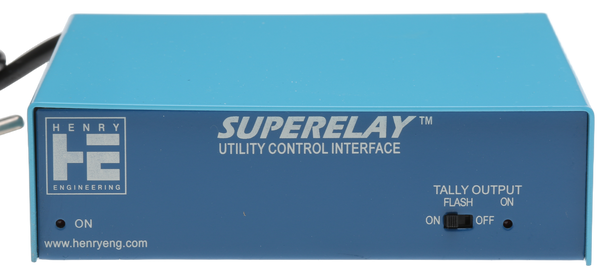

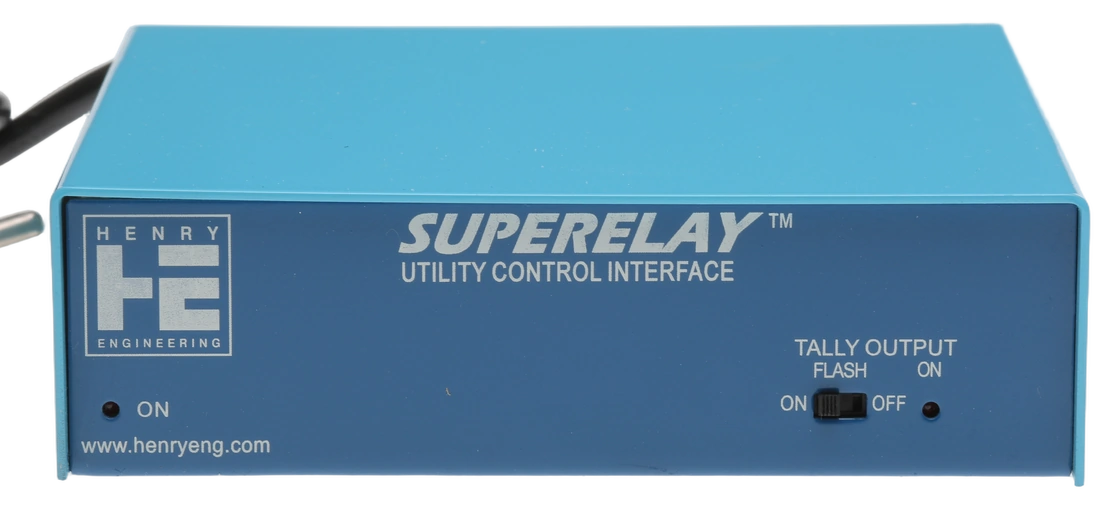

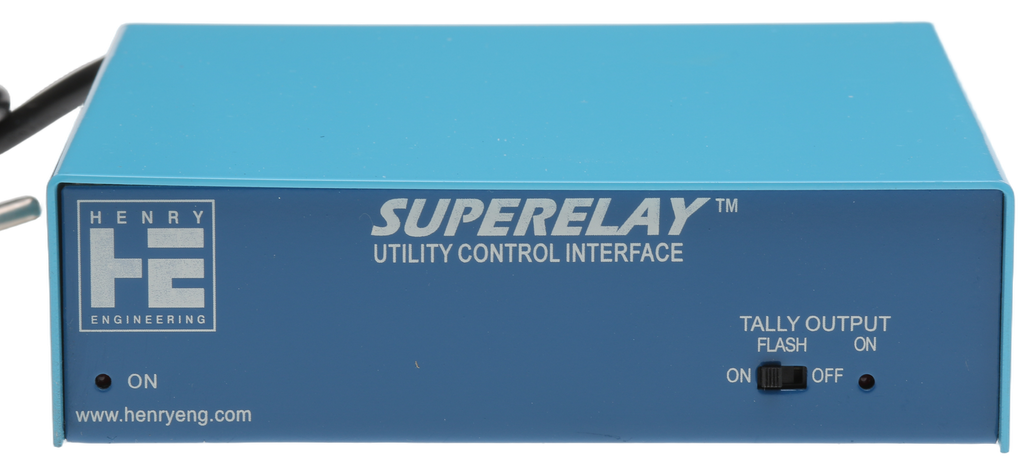

are via plug-in Euroblock connectors. A front panel LED
indicates Tally on/off status. A Slave output permits
multiple Superelay units to operate in tandem from a
common Control input.
Superelay is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets.
Technical Specifications
Control Inputs
ON: Mom. or cont. contact closure
OFF: Mom. or cont. contact closure
DC: 5-24VDC, maintained
Outputs Relays: 6 form-C (SPDT), 1A, 24VDC max.
Tally Light: AC Line Voltage, 200W max.
Connections

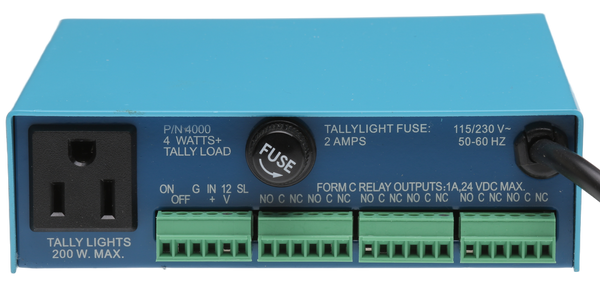

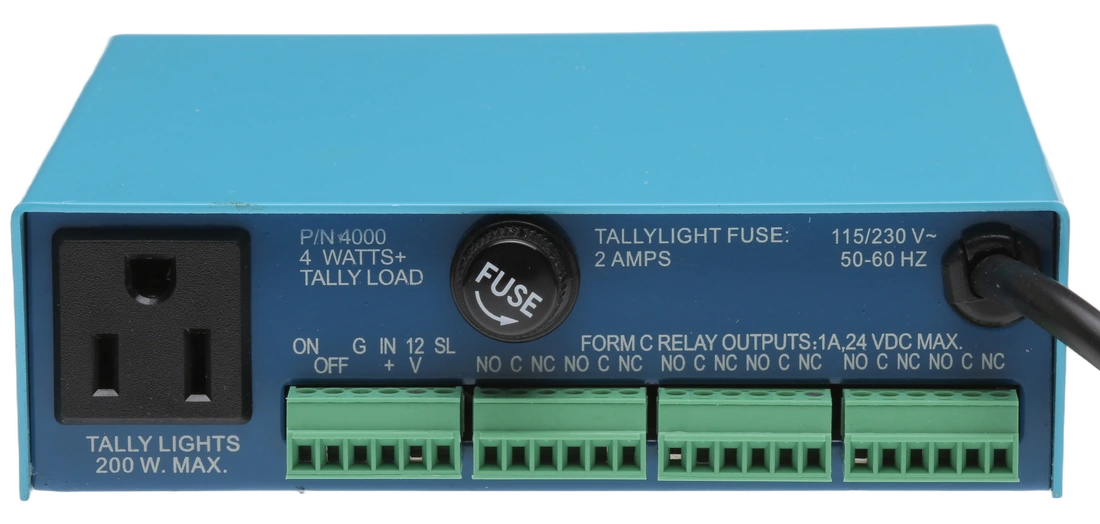

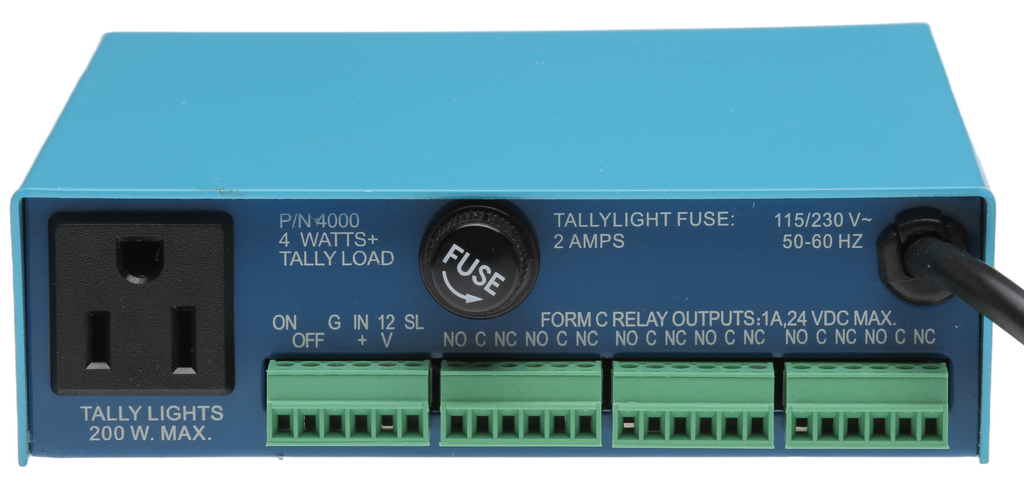

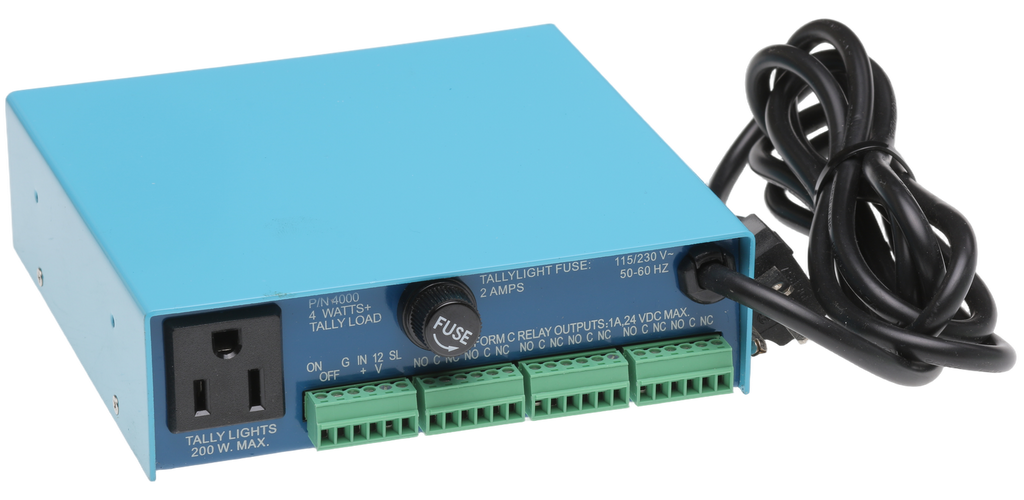

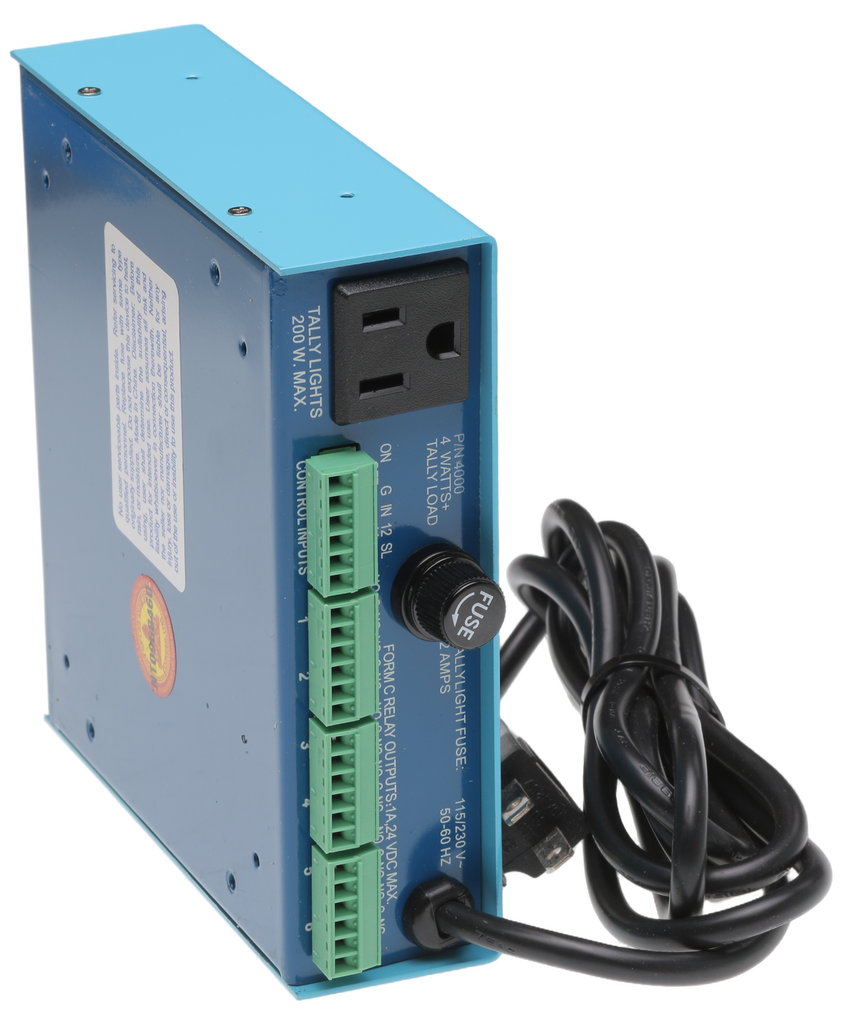

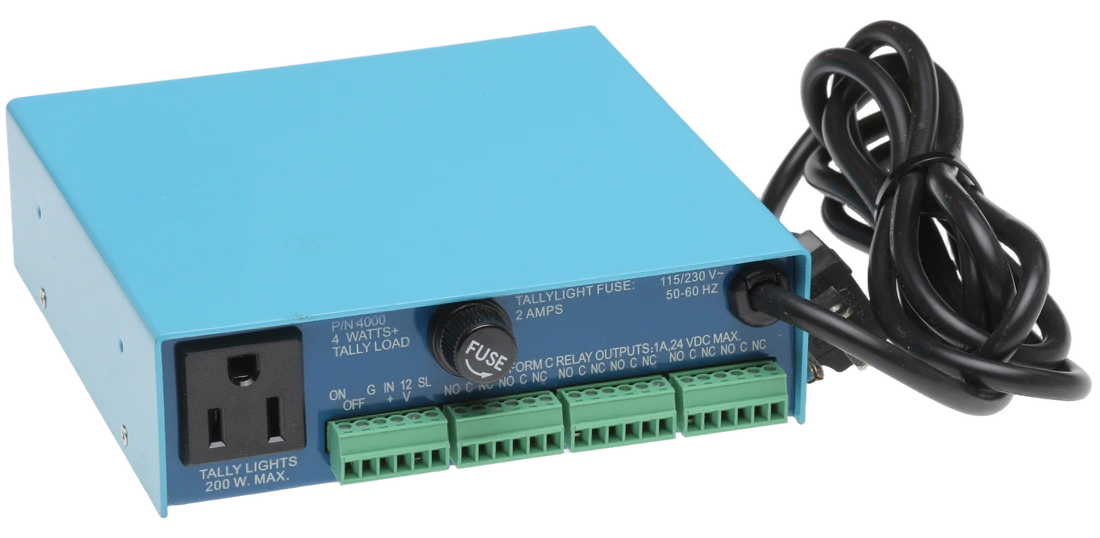

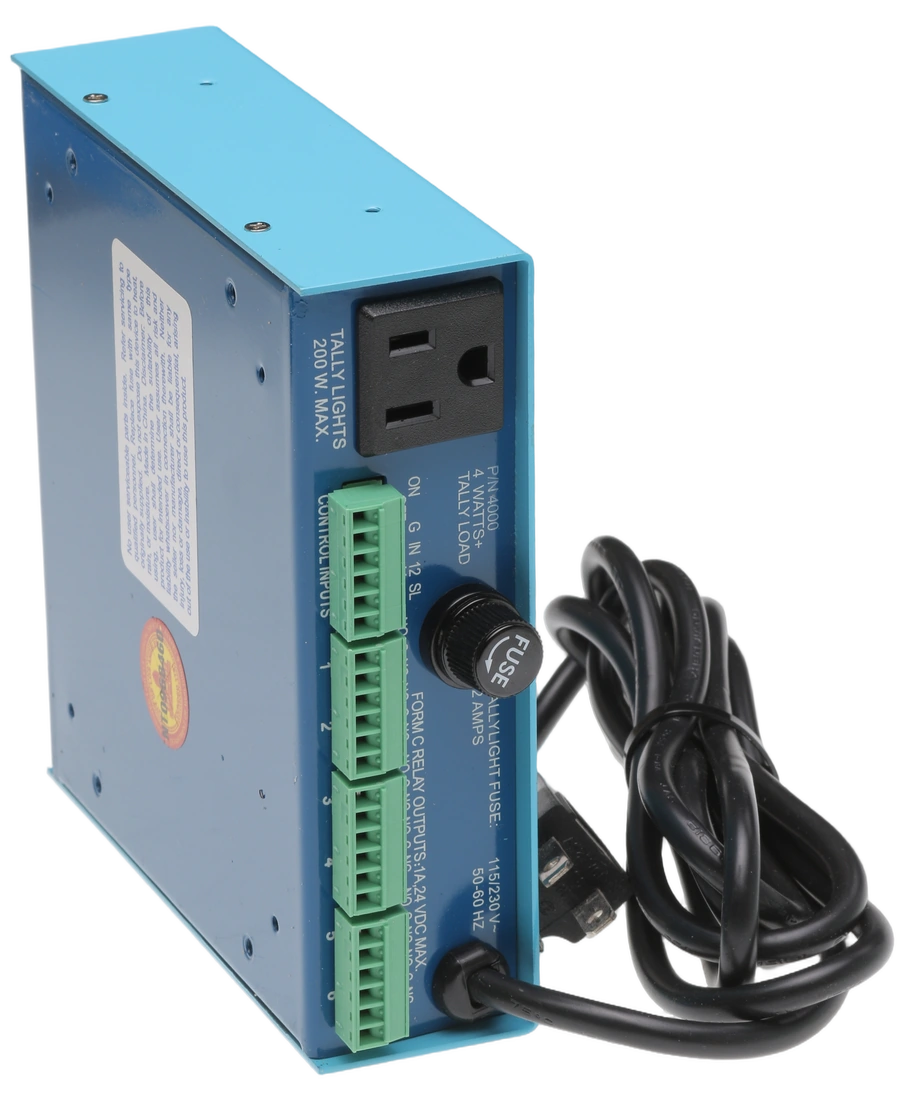

Control inputs, relay outputs: plug-in euroblocks
Tally Light: Grounded AC receptacle
Power Input 115VAC, 50-60Hz, 4W + Tally load
Construction - Steel enclosure
Physical 5.7"w X 1.7"h X 6.0"d, 3lbs
Mounting - Table top
