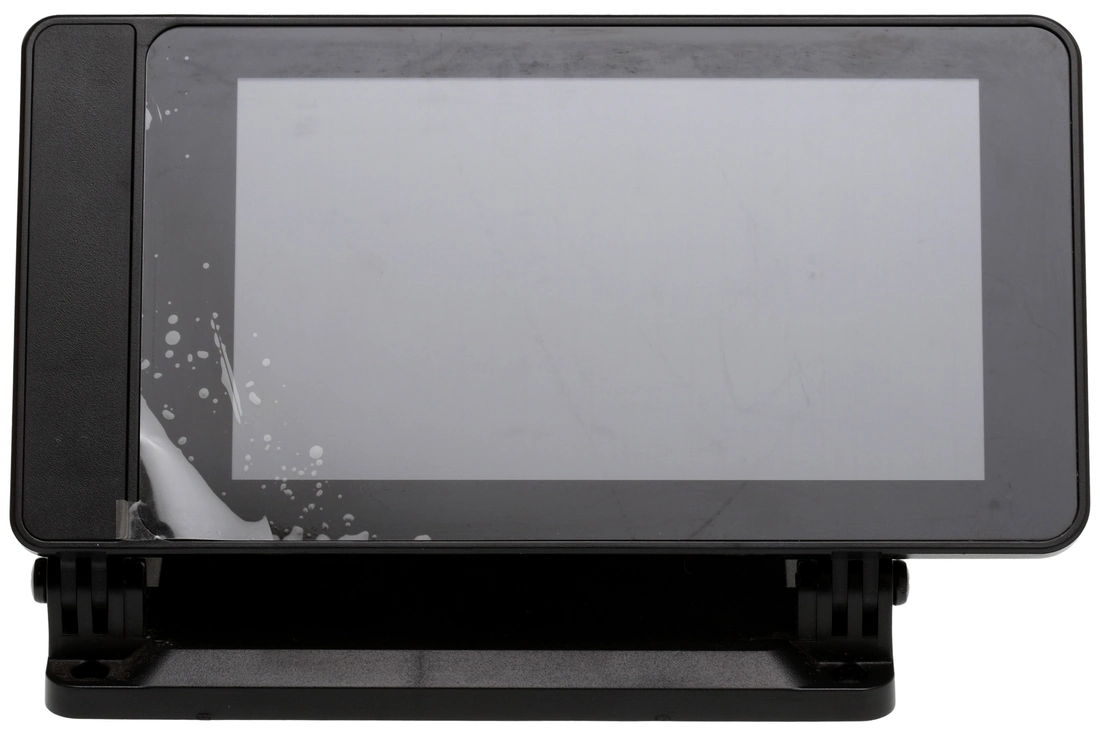

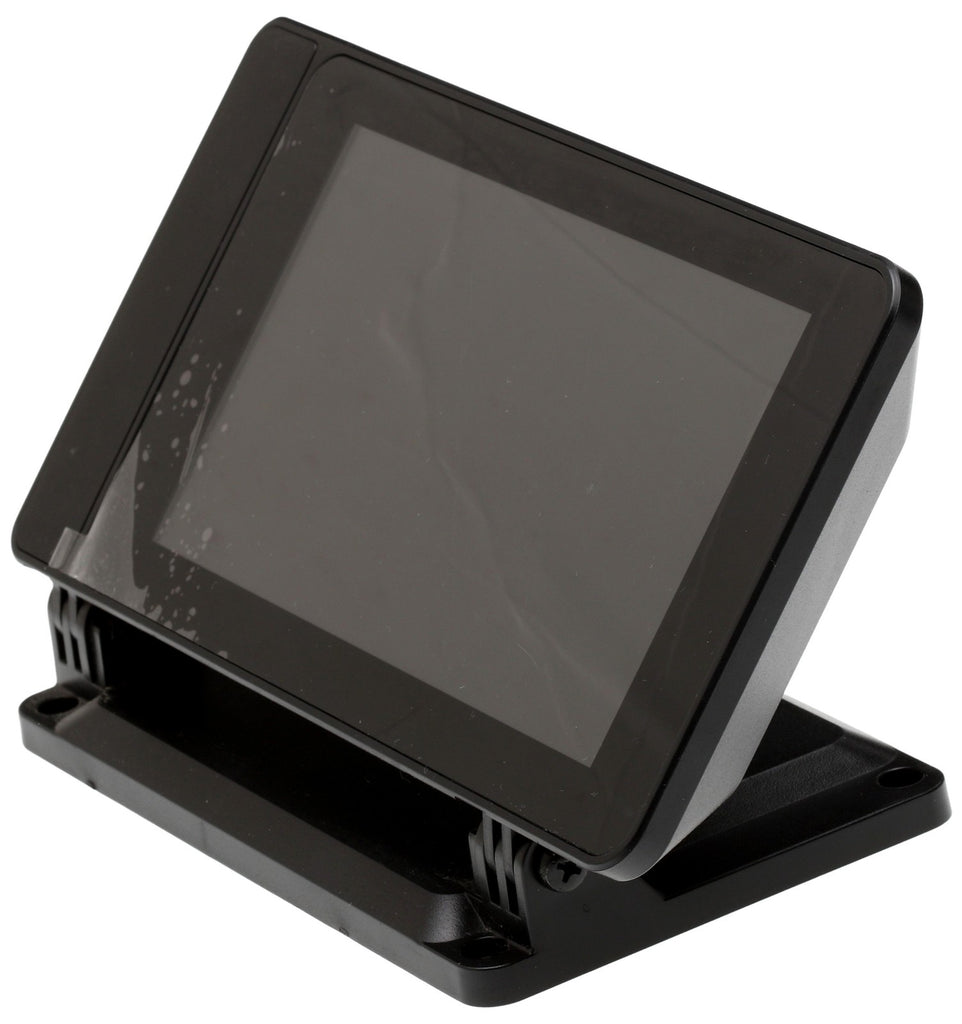

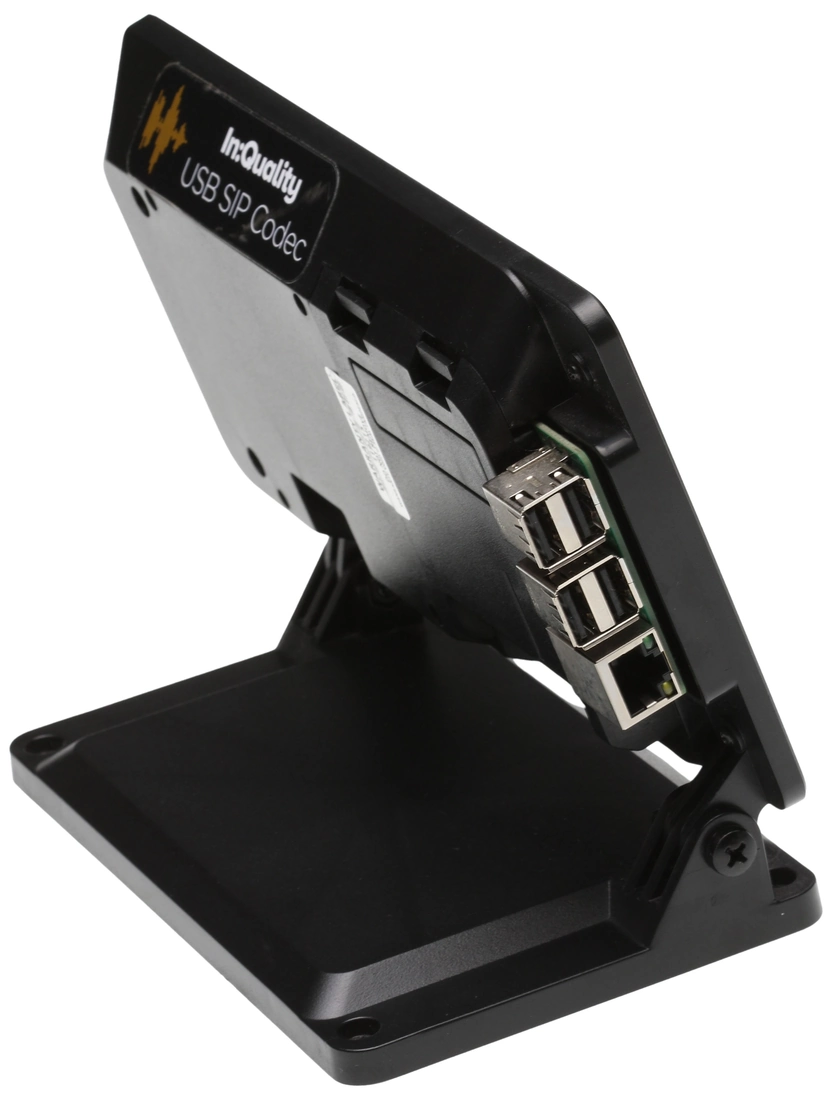

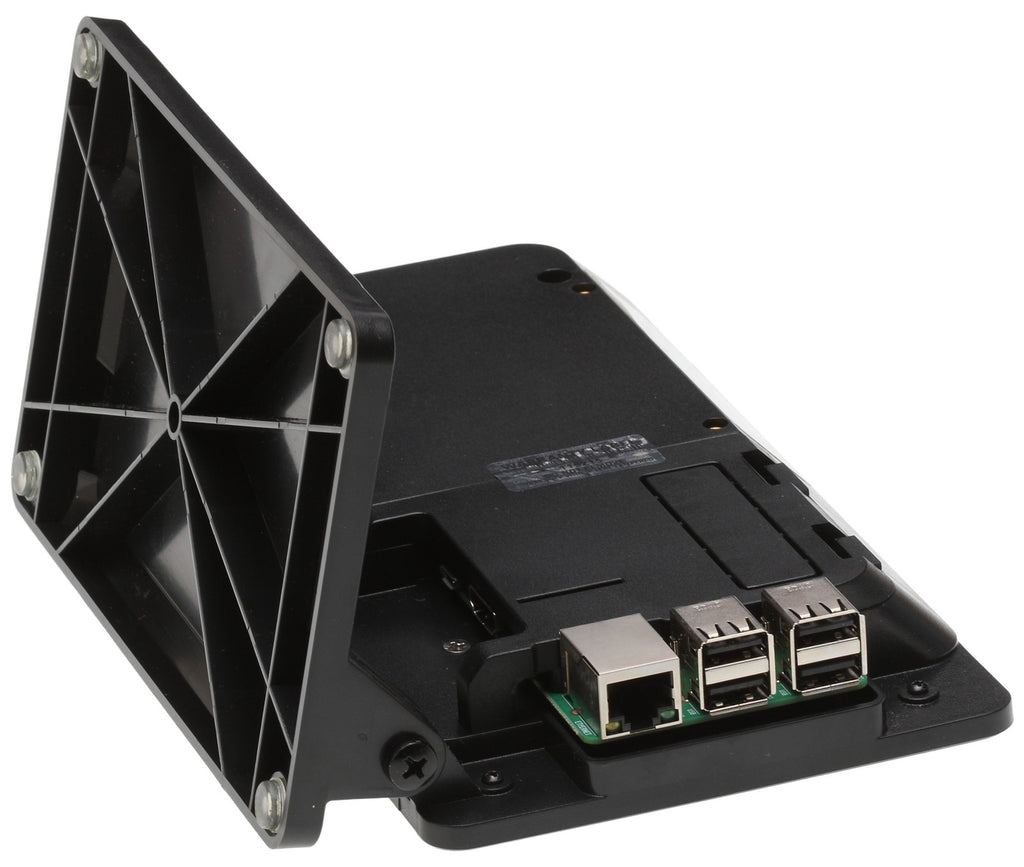

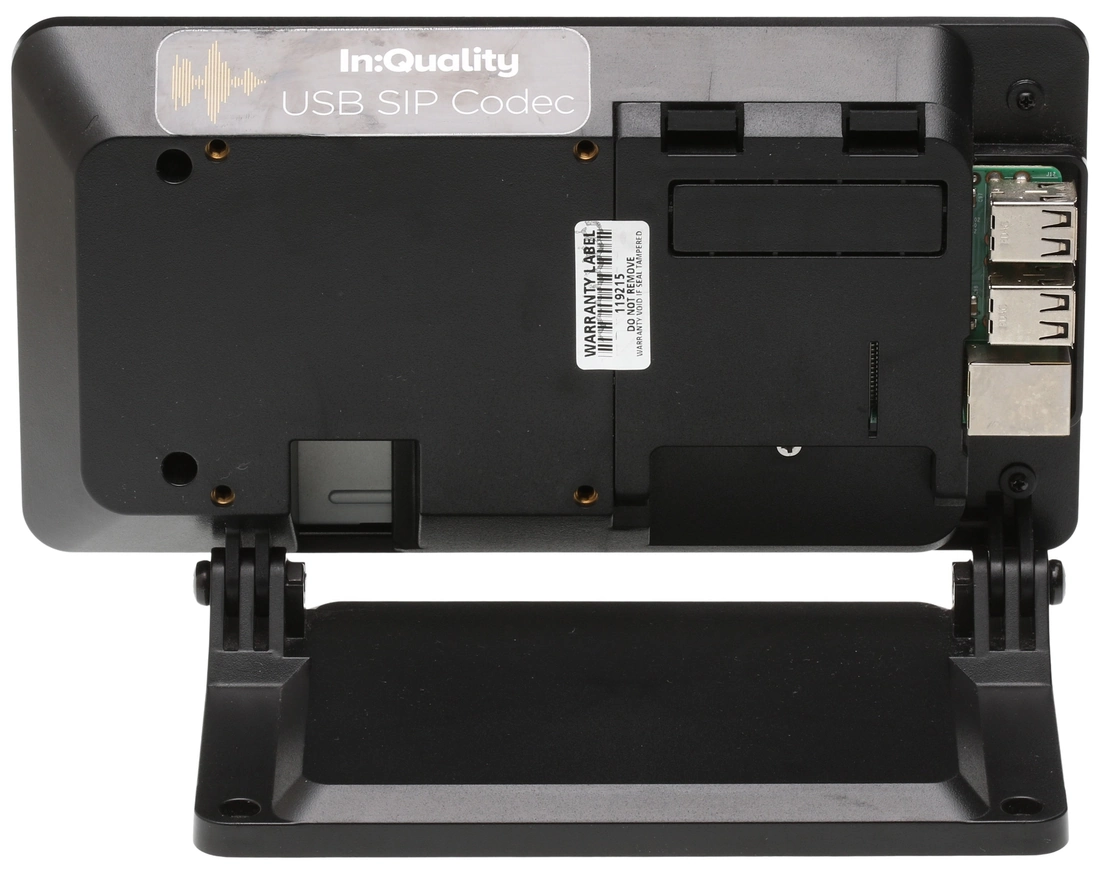

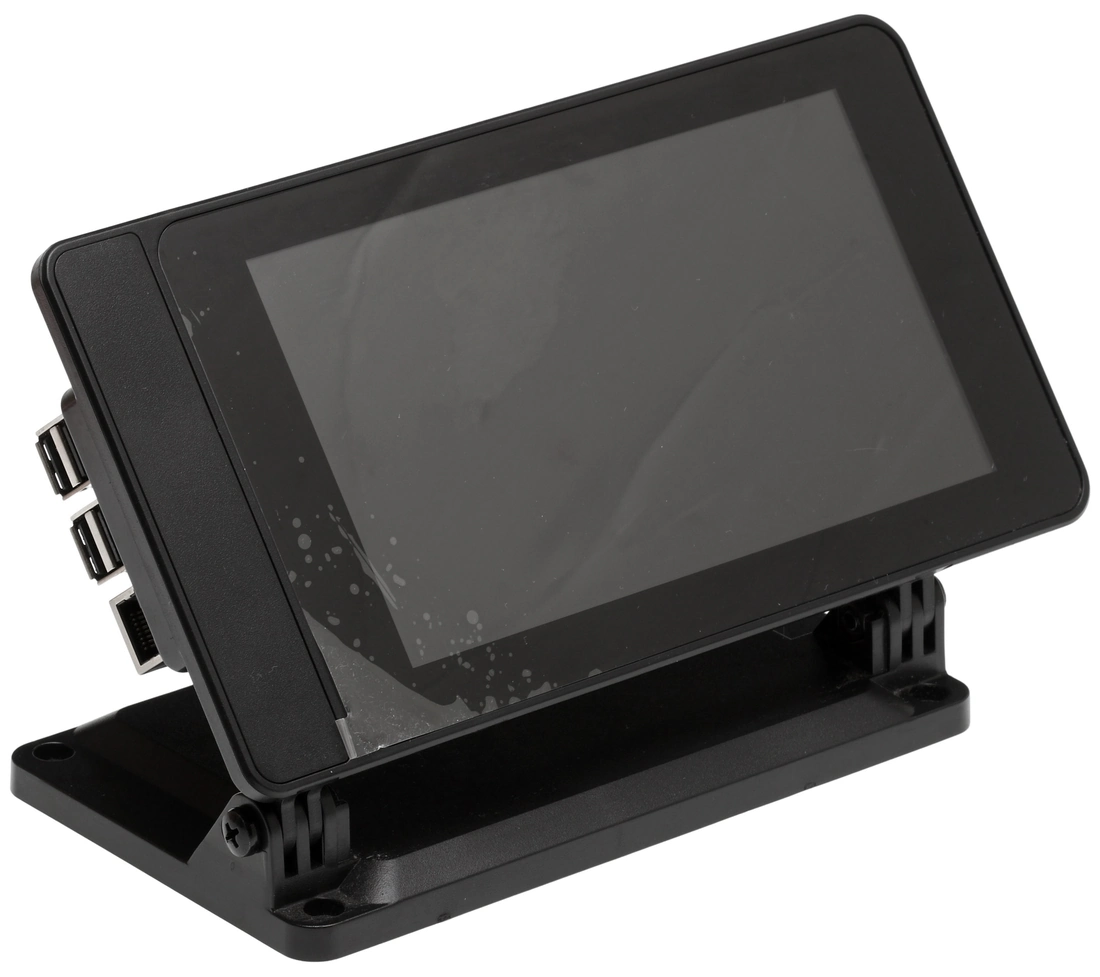

In:Quality SIP Codec Touch Screen Audio Over IP Client Terminal for USB Mics
( 287303378430) )
Regular price
$291.00
Sale price
$427.00
(1 available in stock)
Lightly Used • Very Good Condition • Fully Working • VoIP SIP Interface • Touchscreen Interface • Opus, G722 etc Wideband Audio

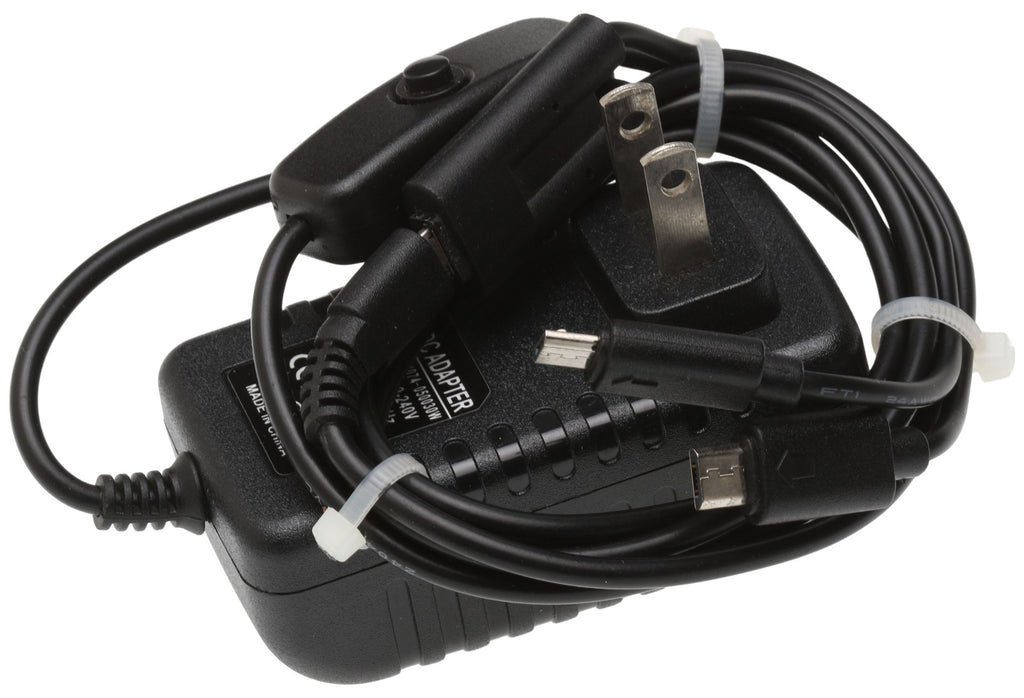

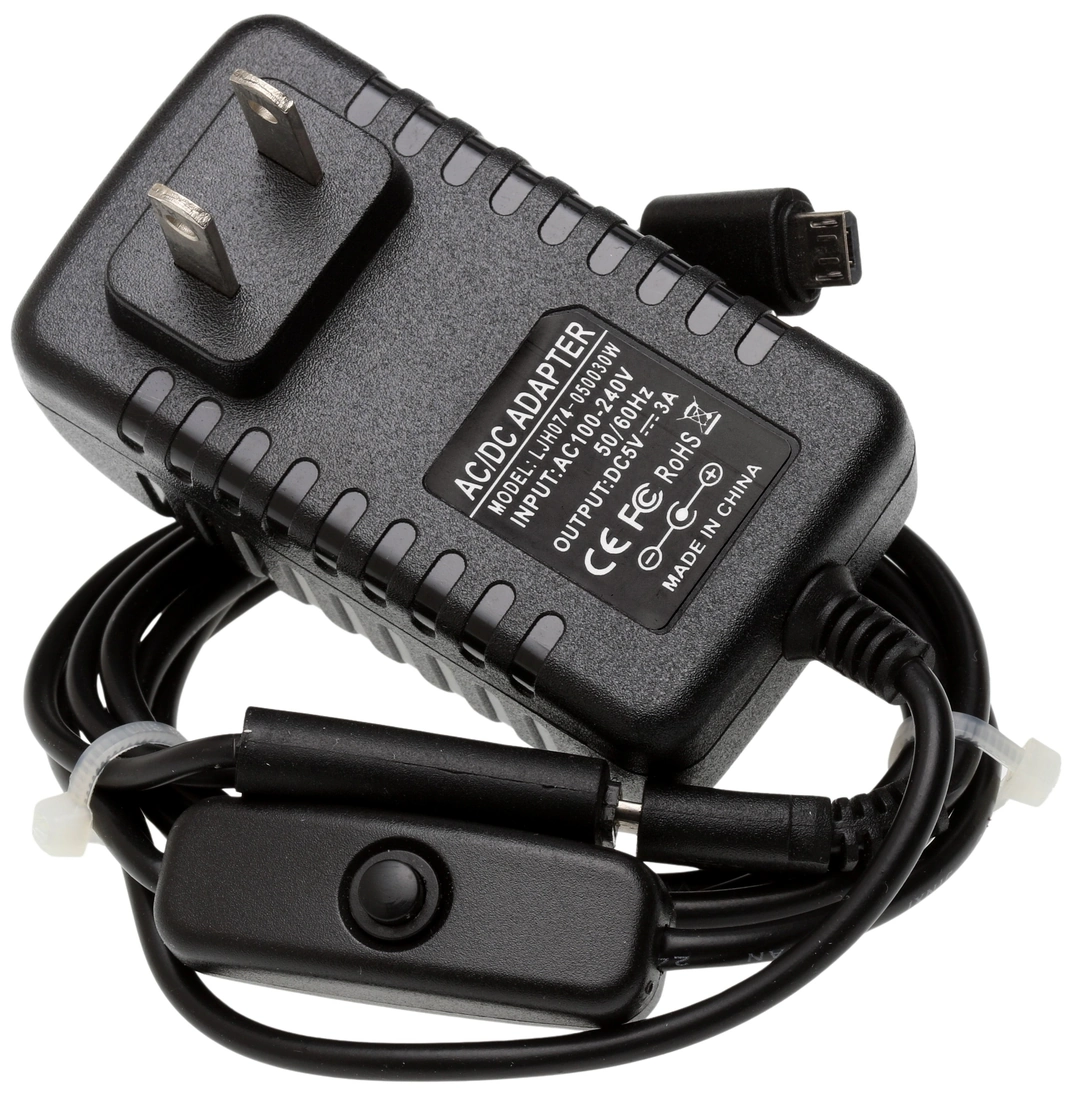

Lightly used in very good cosmetic condition. Mostly just used to do some testing - the protective film is still attached to the LED touchscreen. I'm including the USB power supply I used for my testing (5V @3A) which worked fine for me, but I notice that the unit thinks that it's underpowered - so you may want to swap it for a beefier unit before making a permanent deployment. The unit has been reset back to factory defaults (ie. it is not pre-configured for a specific account) and updated to the latest firmware available at the time of listing. Note that officially only a wired network connection is supported. There is an option to enable WiFi networking (unsupported by the manufacturer) which worked well for me (WiFi dongle not included, but readily available for little cost).
What's good about this device is that it can accept a directly-connected USB microphone (see the manual for tested types) so your laptop remains free to view your show notes etc.
Configuration: I highly recommend that you start testing using the SIP server recommended by the manufacturer (sip.audio) as that way you can just copy the config details from the instructions and it should work with no issues. Changing to a different SIP provider will probably require some experimentation to find the right settings. I was able to use a couple of other providers, after some investment of time and effort trying different configurations. I would only recommend this type of product if you have some familiarity with IPv4 networking and SIP service configuration.
You can find more product information in the User Manual at https://inquality.com/usb-sip-codec-touch-manual/
And the SIP configuration process at https://sip.audio/knowledgebase/InQodec_SIP_opus_IP_codec_configuration.php
Description
Make and receive SIP calls for remote radio shows, media tours and podcast interviews, with this simple desktop touchscreen IP codec. Just connect a USB mic or audio interface, and a pair of headphones.
The USB SIP Codec from In:Quality connects to your existing internet connection and allows you to call radio stations in full studio quality, thanks to its use of the Opus codec. It can be shipped pre-configured with your own unique sip.audio address, and quick-dial buttons for your regular destinations. Plug it in and wait for a call, press a button to dial out, or manually enter a SIP address.
Use the on-screen controls to adjust input and output levels, and to mute the mic for privacy, or to cough. Includes on-screen digital clock.
Technical Specifications
| Protocols | SIP EBU Tech 3326 / N/ACIP (partially compliant) STUN AES67 (beta) |
|---|---|
| Codecs | Opus PCM G.722 G.711 |
| Network | Ethernet (DHCP or Static) |
| Power | AC 100-240v 0.5A 50-60Hz DC 5.1v 2.5A Micro USB |
| USB | 4 x ports Support for audio, keyboard, mouse 1.2A max USB power (0.5A per port) |
| Dimensions | 7 13/16″ x 6 1/2″ x 4 1/2″ 19.9cm x 16.4cm x 11.5cm |
