JK Audio RemoteMix C+ Remote Mixer Broadcast Hybrid Phone Line Interface - PARTS [For Parts]

For Parts/Repair • Very Good Cosmetic Condition • Portable Broadcast Hybrid/Handset Line Tap • Was $595

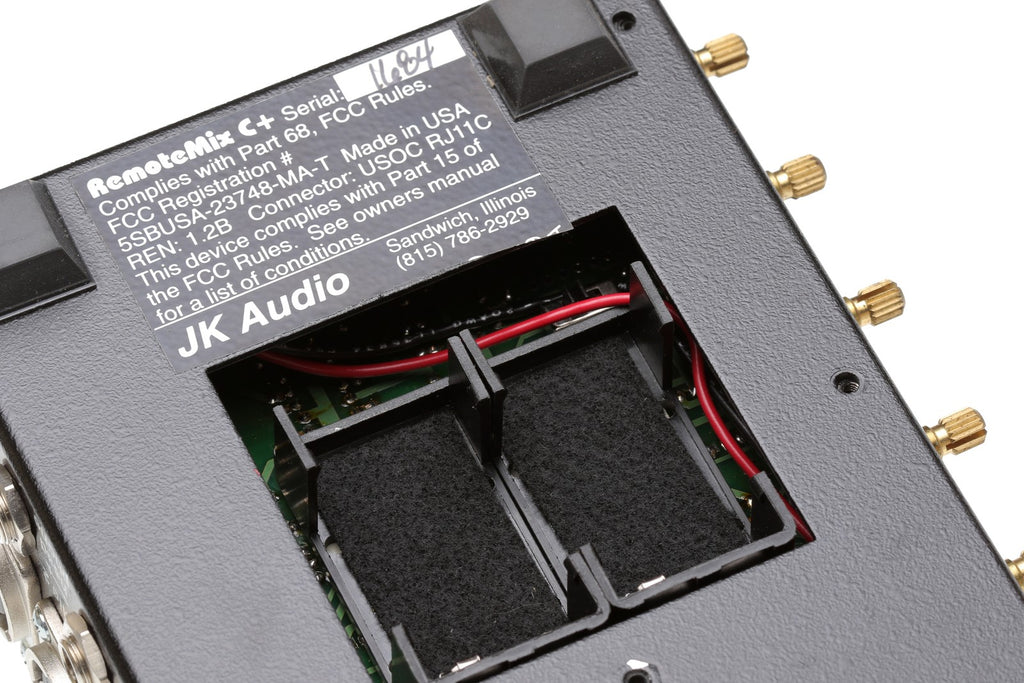

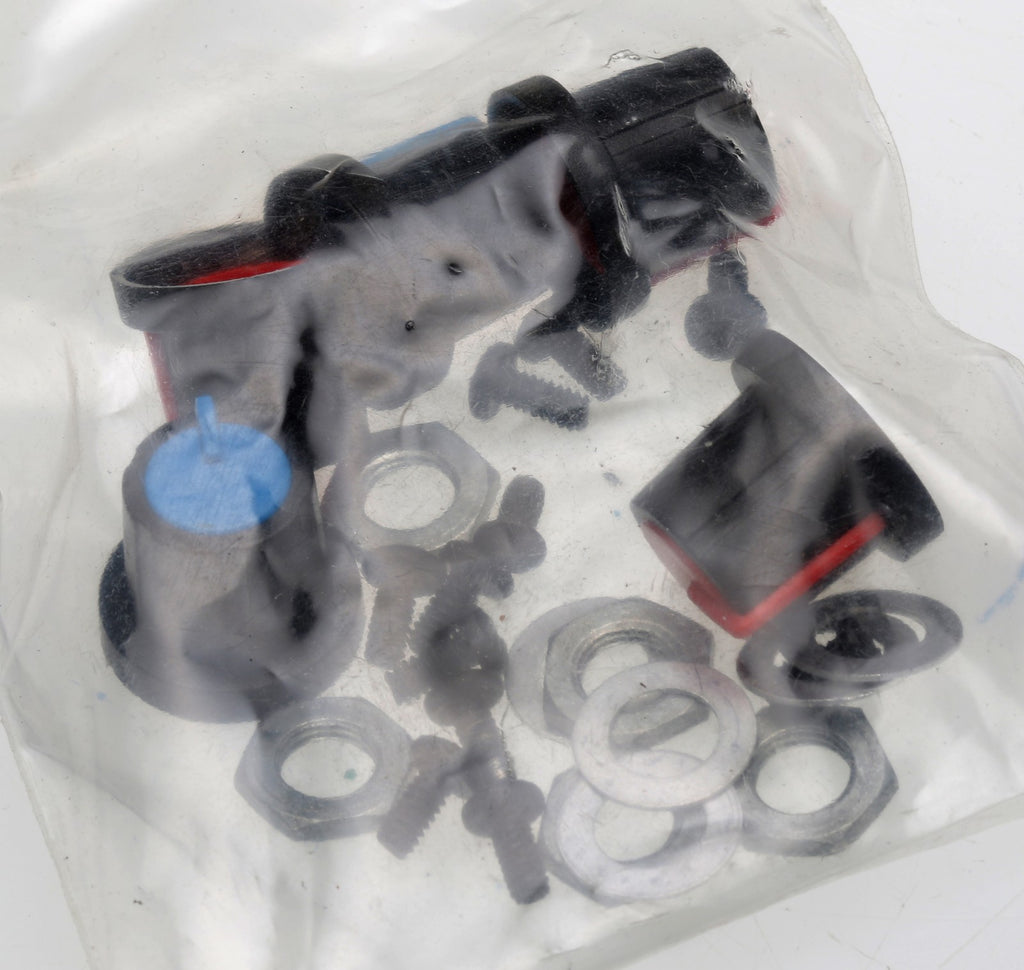

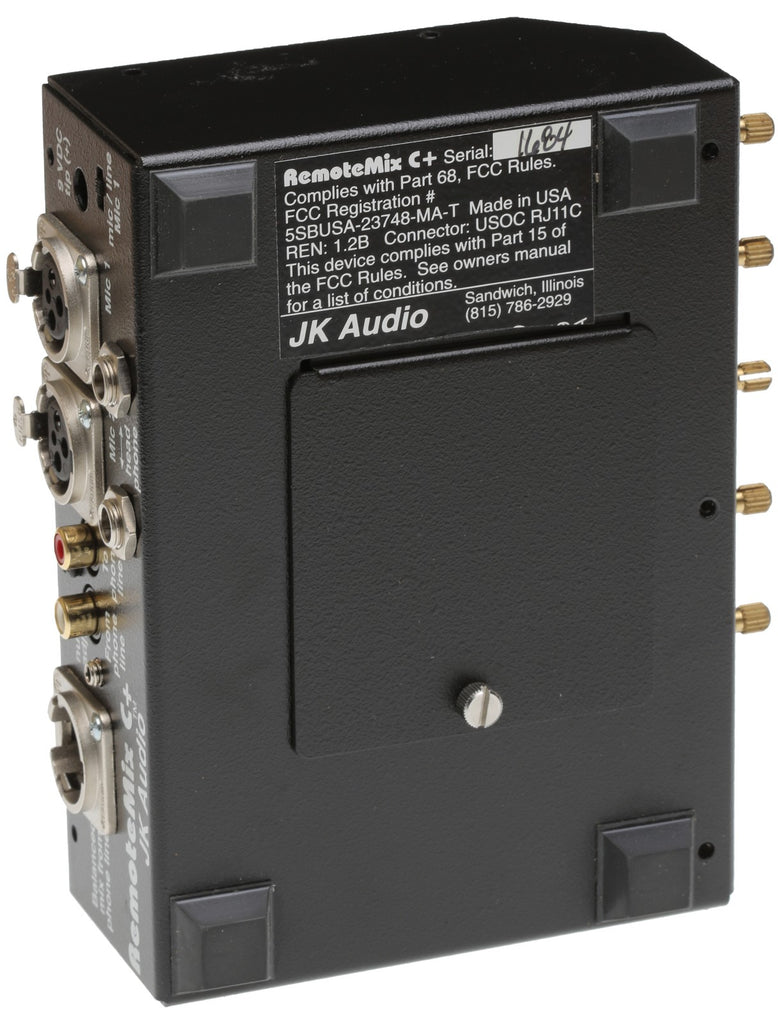

Here's a lightly used RemoteMix C+ phone interface being offered for parts repair on an un-warrantied, final sale basis. The photos show the actual item for sale. As I recall when I tested it quite a while ago it I could not get the unit to apply a loop to the phone line. I think the other functions (eg. amps, mixer etc) were working (but this is NOT guaranteed). I started to try and trace the problem, but never had the time to finish the task. The hardware I removed to get inside the case is included - see photo of the bag small parts for details. No printed manual is included but a copy may be downloaded from https://www.prostudioconnection.net/1509/JK_Audio_RemoteMix_C+_Manual.pdf if required. No power supply is included. A 9V 500mA Regulated low noise type is recommended. I've used Jameco Reliapro units in the past for this application.

Description (Conformance NOT Guaranteed)

The RemoteMix C+ is a combined audio mixer, headphone amplifier and telephone hybrid in one. Its perfect for remote broadcasts, sporting events, and field reporting from any location.

Usually $595

Simply plug the RemoteMix C+ into an analog phone line, connect a couple of microphones and headphones, and youre ready to call into the station.

Full details may be obtained from the User Manual
(https://www.prostudioconnection.net/1509/JK_Audio_RemoteMix_C+_Manual.pdf)

Switch the "Phone Line" switch to "Dial/Talk" and you will hear a dial tone. Now dial using the RemoteMix C+ keypad. In your headphones, you will hear a mix of both microphones and the line in jack, as well as the audio coming back from the other side of the phone call. This headphone mix also comes out of the back of the unit on an RCA jack and on an XLR balanced jack, which are adjustable from line level to mic level for PA system or tape deck feeds. The built-in time-delayed peak limiter helps to control transmit levels.

You can also connect the RemoteMix C+ to a cellular telephone equipped with a fax/modem interface, which converts your cell phone into the equivalent of a standard RJ-11 phone jack. Just connect the interface between the RemoteMix C+ phone line jack and your cell phone and you are ready to go wireless. Contact your cell phone dealer for fax/modem interface availability.

Features

• Two XLR Microphone Inputs with independent level controls. Mic 1 input is mic/line switchable.
• Two 1/4" Headphone Jacks adjustable with "Headphones" control.
• RCA Line Input accepts line level signals. Adjustable with the "Line In" control.
• RCA Line Output delivers a line level signal containing the phone + mic mix. Adjustable to mic level with the "Line Out" control.
• Balanced XLR Output delivers a line level signal containing the phone + mic mix. Adjustable to mic level with the "Line Out" control.
• RJ-11 Jack for use with conventional phone lines. Also has an auxiliary handset input for use as a standard telephone. Handset jack is biased for electret microphone types.
• Time Delayed Peak Limiter helps to control transmit levels. The peak limiter has a three second delay before clipping and audio. This allows for normal speech patterns as well as brief exclamations to be broadcast unhindered.
• Two 9 Volt Batteries (not included) will power the unit for 36 hours. The batteries are installed parallel so the unit can run on only one battery if necessary. An AC adapter is also included with the unit.
• DTMF/Pulse Keypad for dialing out. Tone/Pulse switch located under the battery door.
