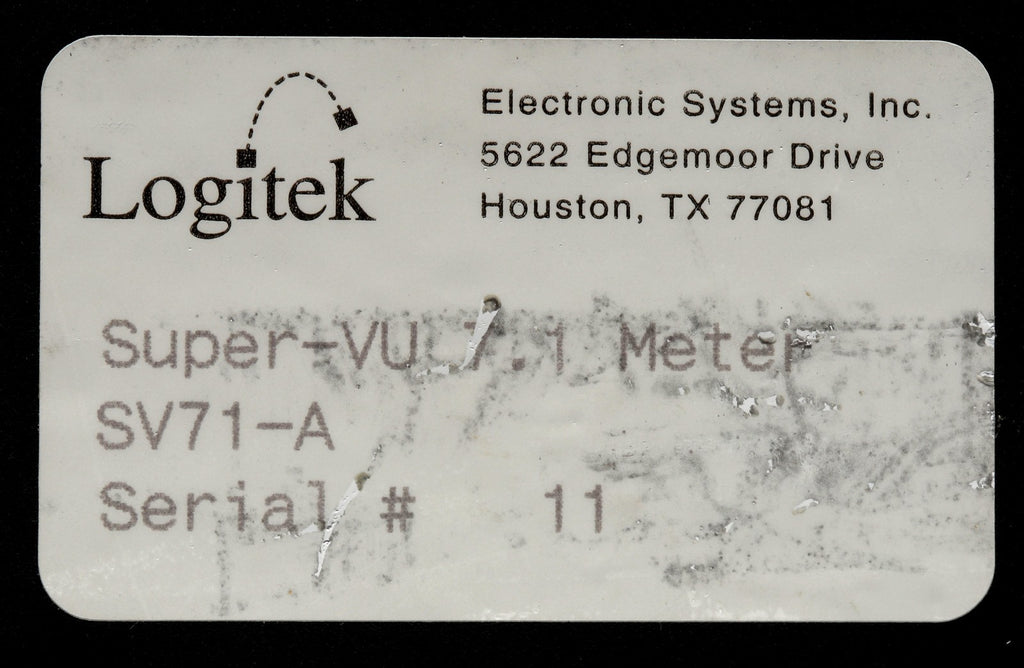

Logitek Super-VU 7.1 Surround Peak Audio LED Meter SV71-A XLR Balanced Analog
( 236923857135) )
Regular price
$461.00
Sale price
$677.00
(1 available in stock)

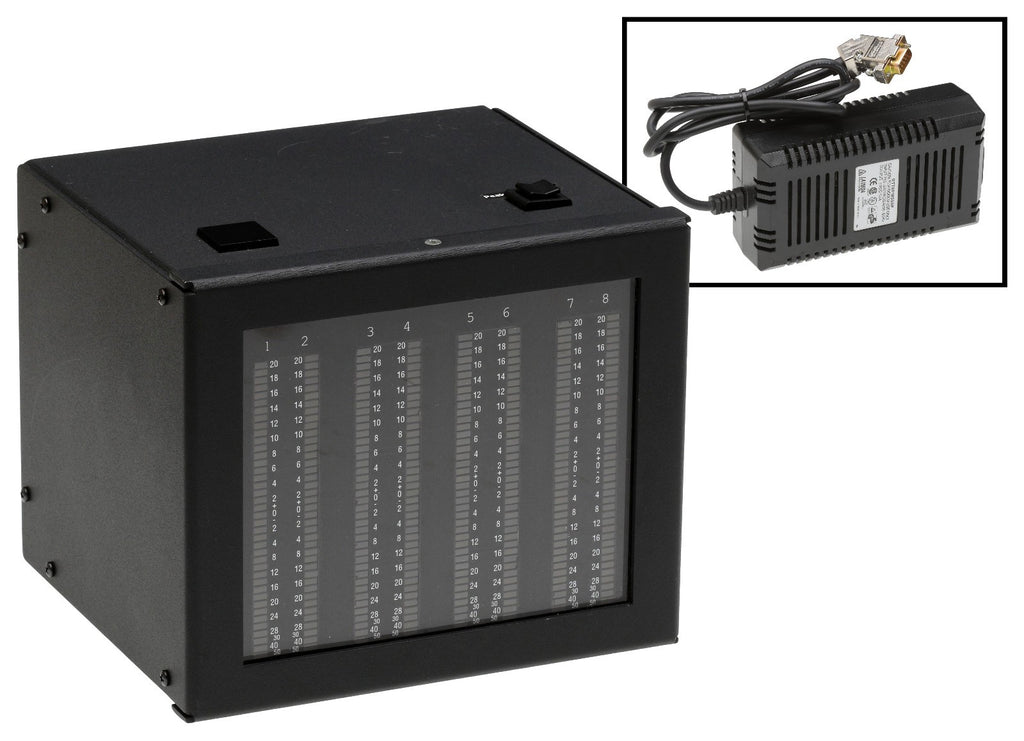

A lightly used surround sound level monitoring meter showing peak and RMS levels on a tri-color LED display. Additional product informatio may be obtained from the User Manual at https://www.prostudioconnection.net/2607/Logitek_Super-VU_Manual.pdf
Description

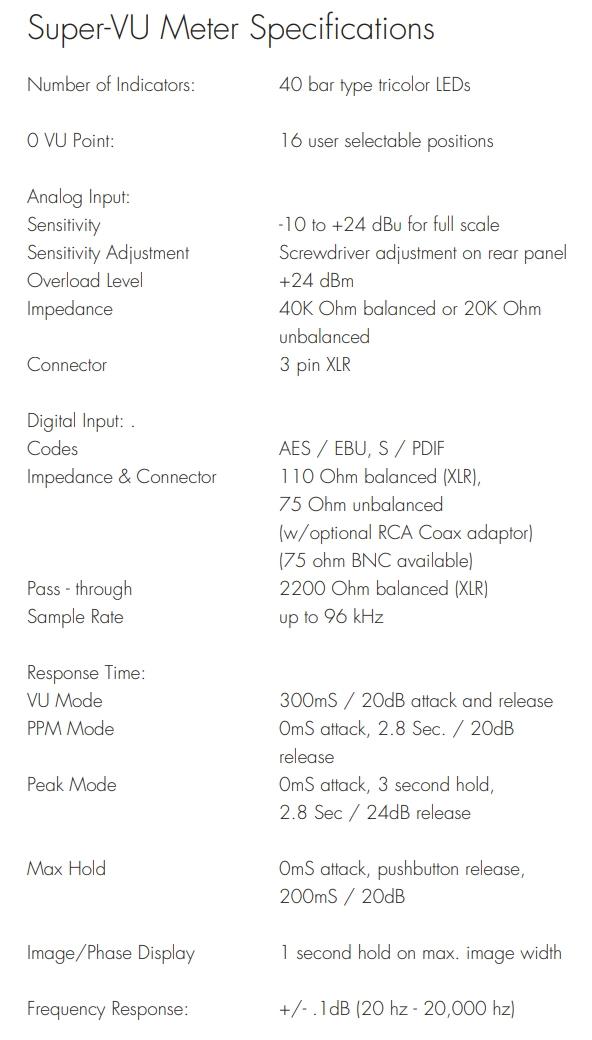

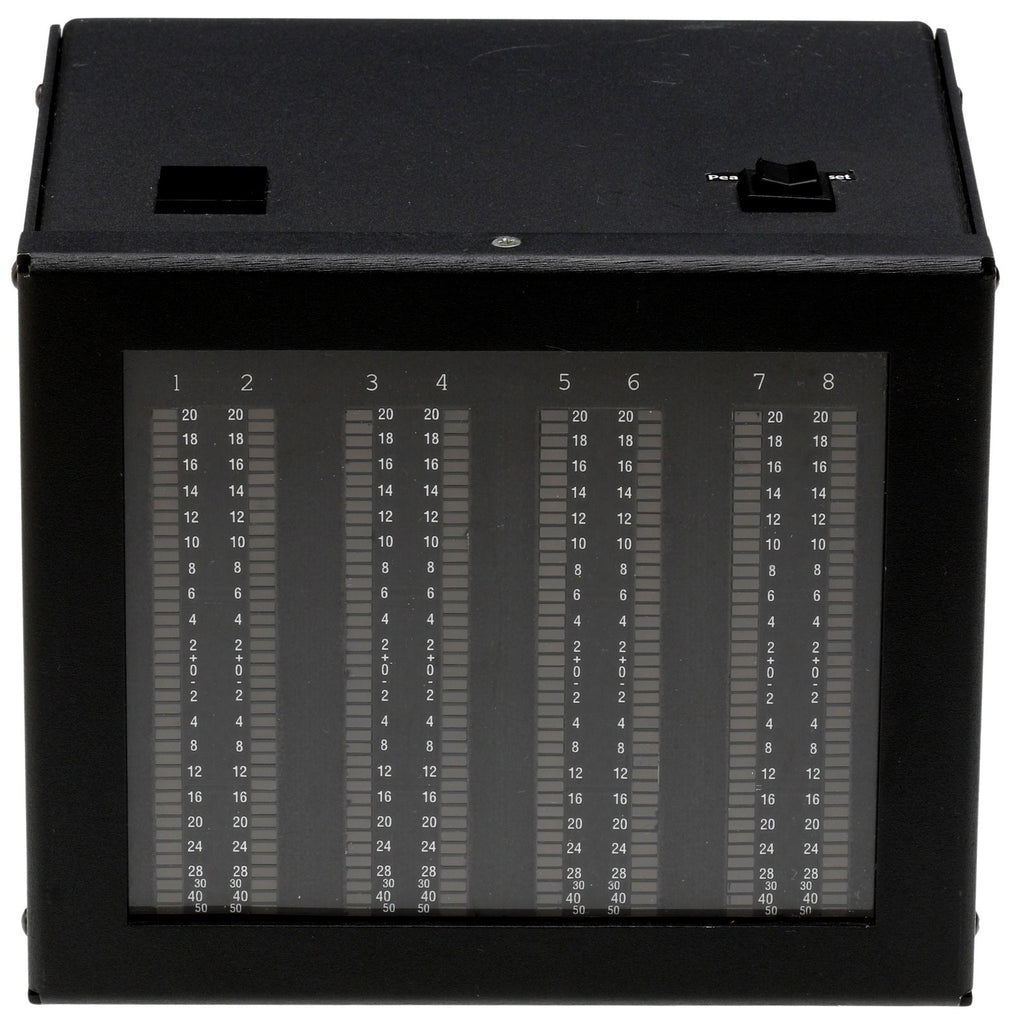

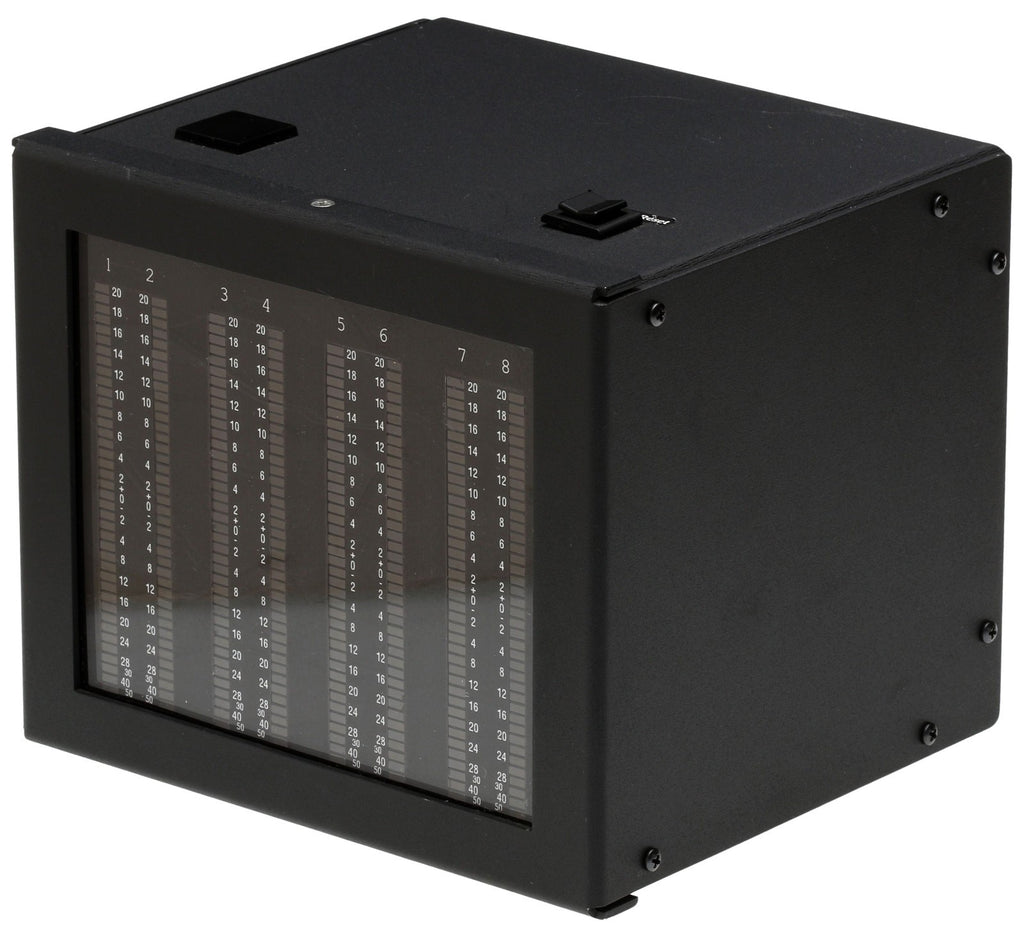

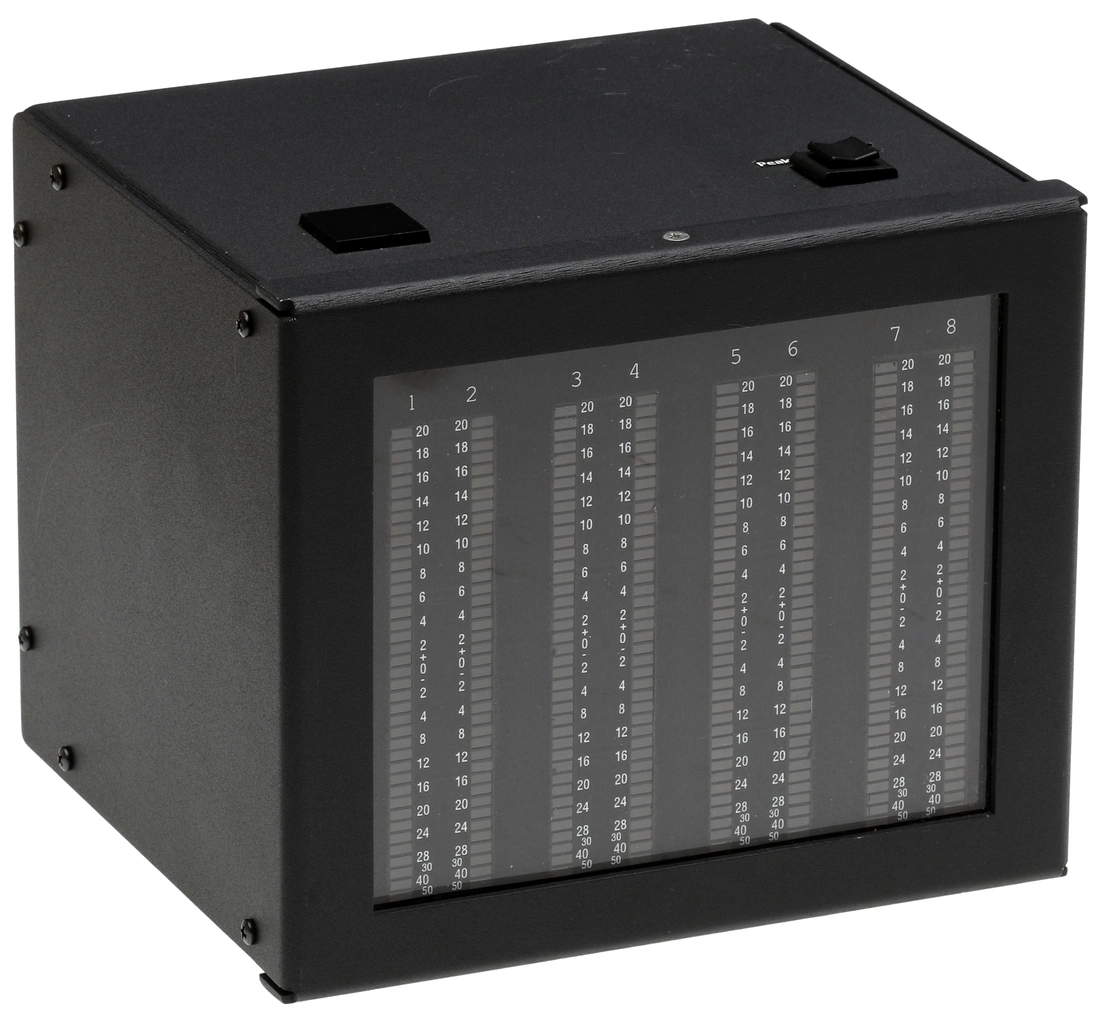

Logitek Super-VU meters are designed for applications requiring higher resolution, such as CD mastering or duplication. Each bargraph is composed of 40 tri-color LEDs; VU is indicated in green with simultaneous peak shown in red. A switchable hold feature provides either a momentary or continuous hold of the highest peak reading. The zero VU point (indicated in yellow) is user adjustable, allowing optimum use of the 70 dB meter range.

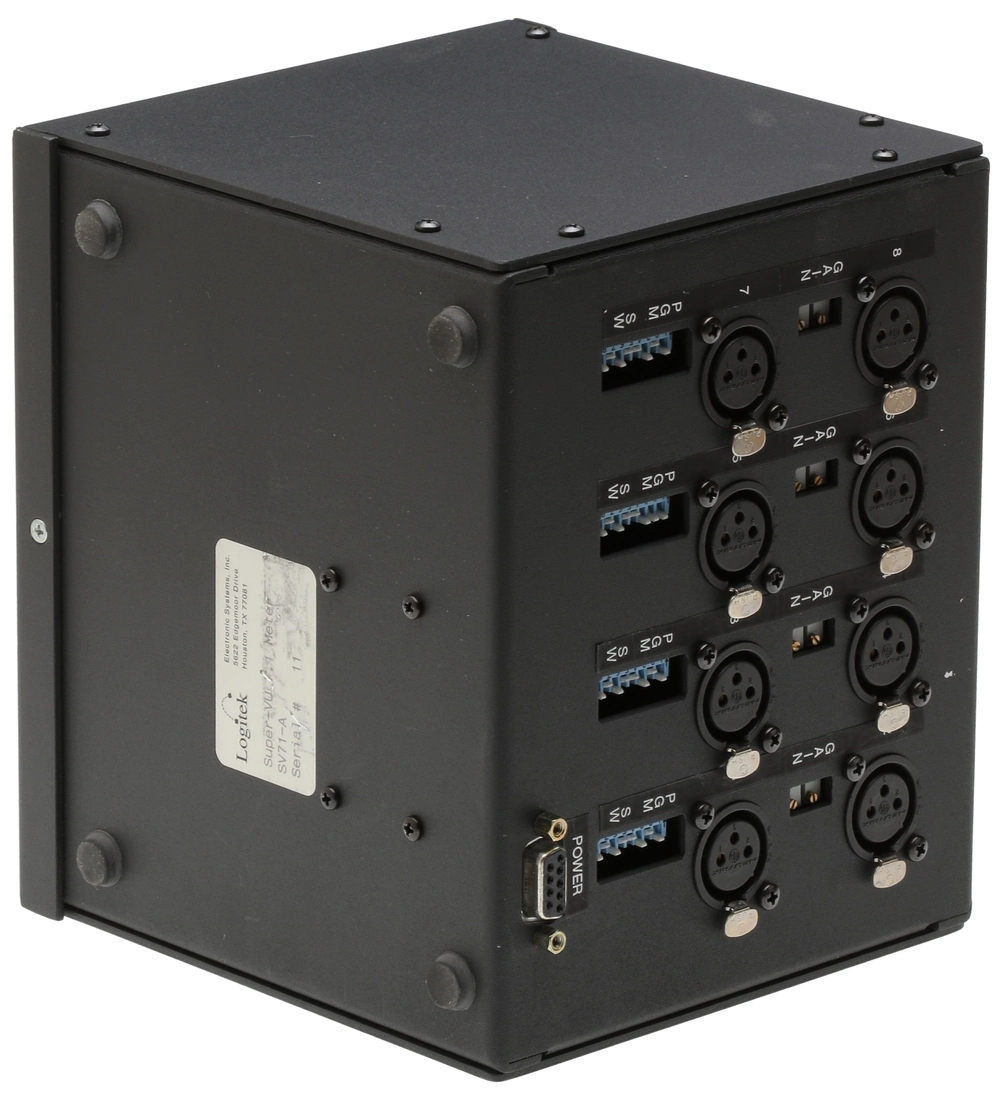

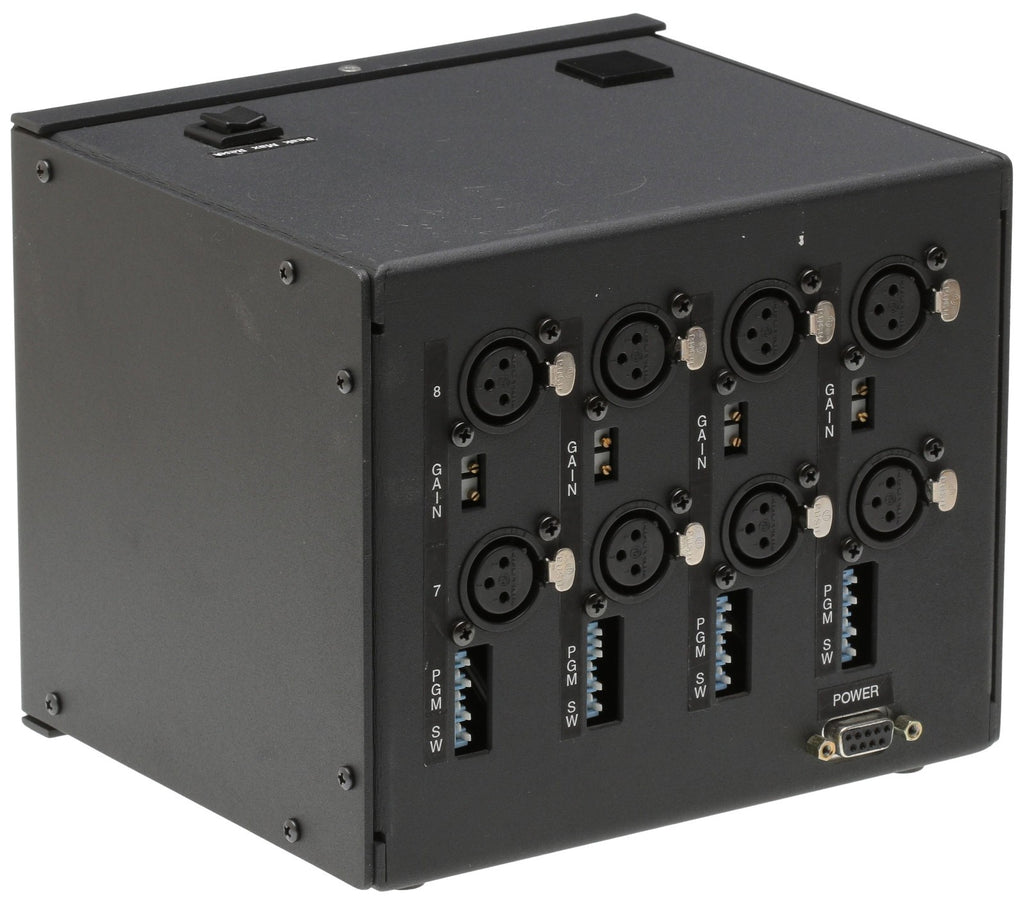

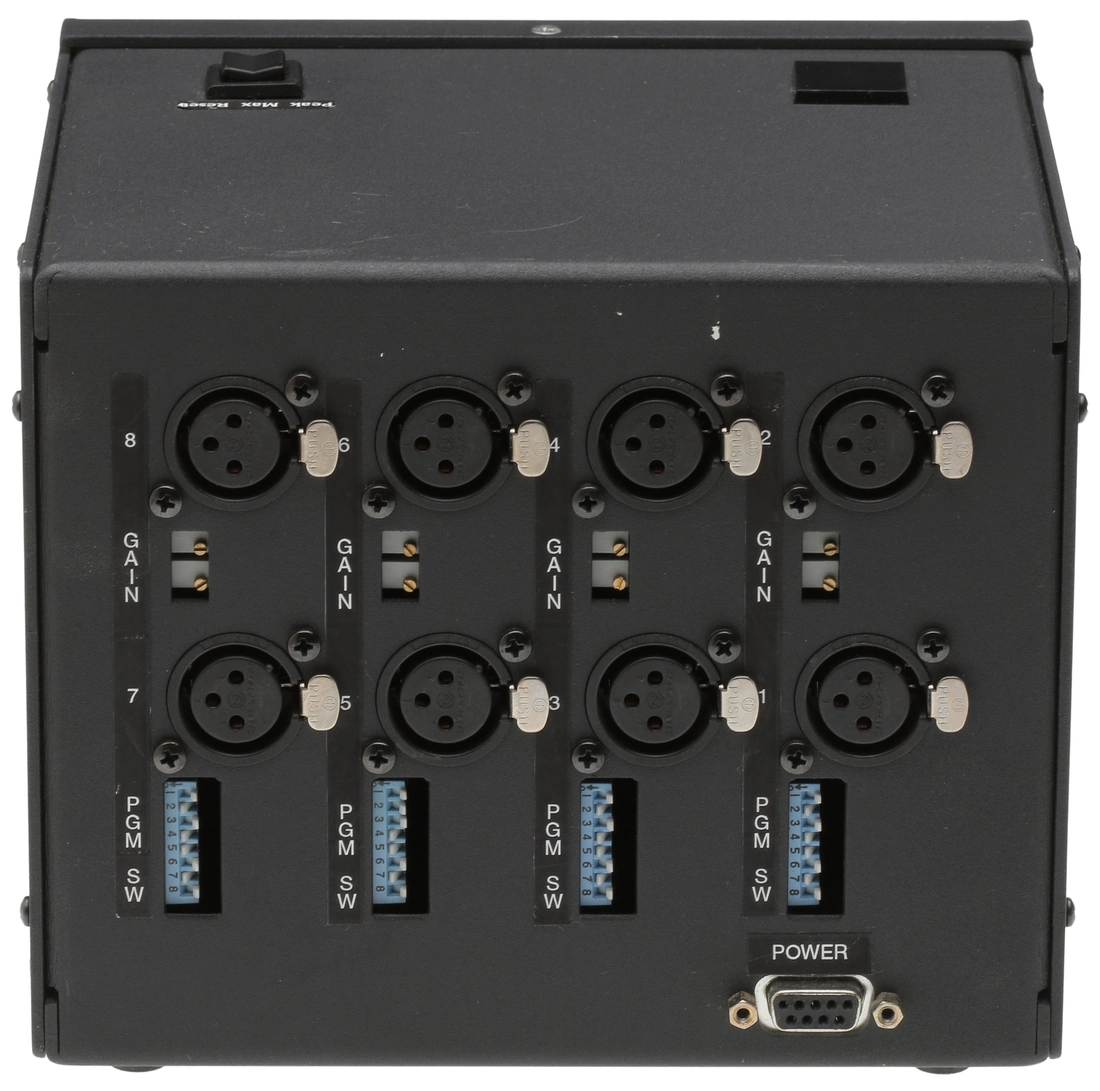

The Super-VU’s dual bar-graphs handle two channels per display. Analog input versions have bridging inputs that accept balanced or unbalanced signals while the gain trim controls allow for easy calibration to any reference level.
