Motorola VP, UT+ and GT+ 8 Channel Receivers Fix WNRO, NO SYNC or WRONG DATE Replacement Upgraded ublox GPS Receiver Timing Card Module

Note this item is subject to a 7 calendar day return policy from the date that it is delivered, as the sales window is very narrow. Please only purchase if you accept this constraint.

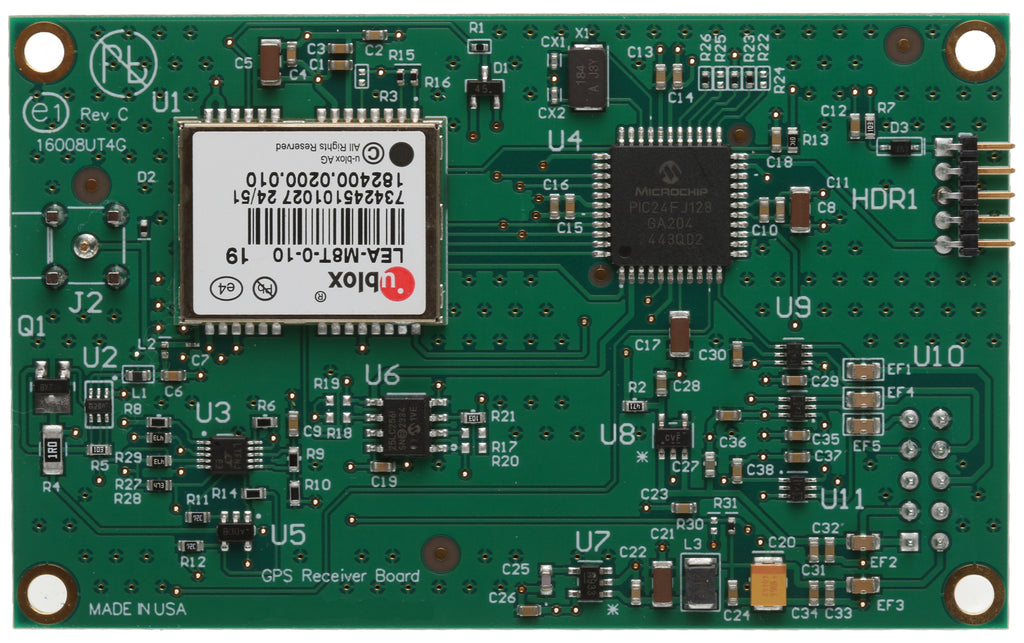

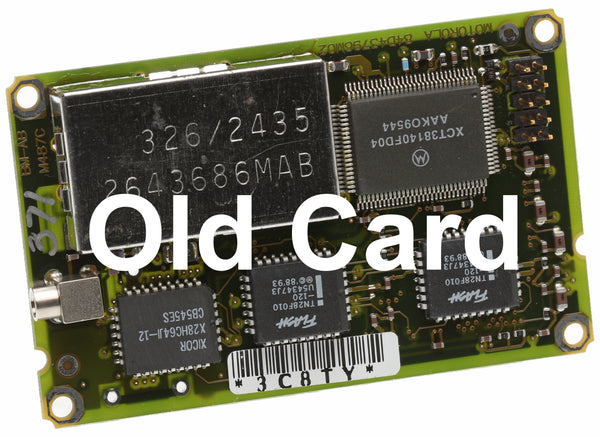

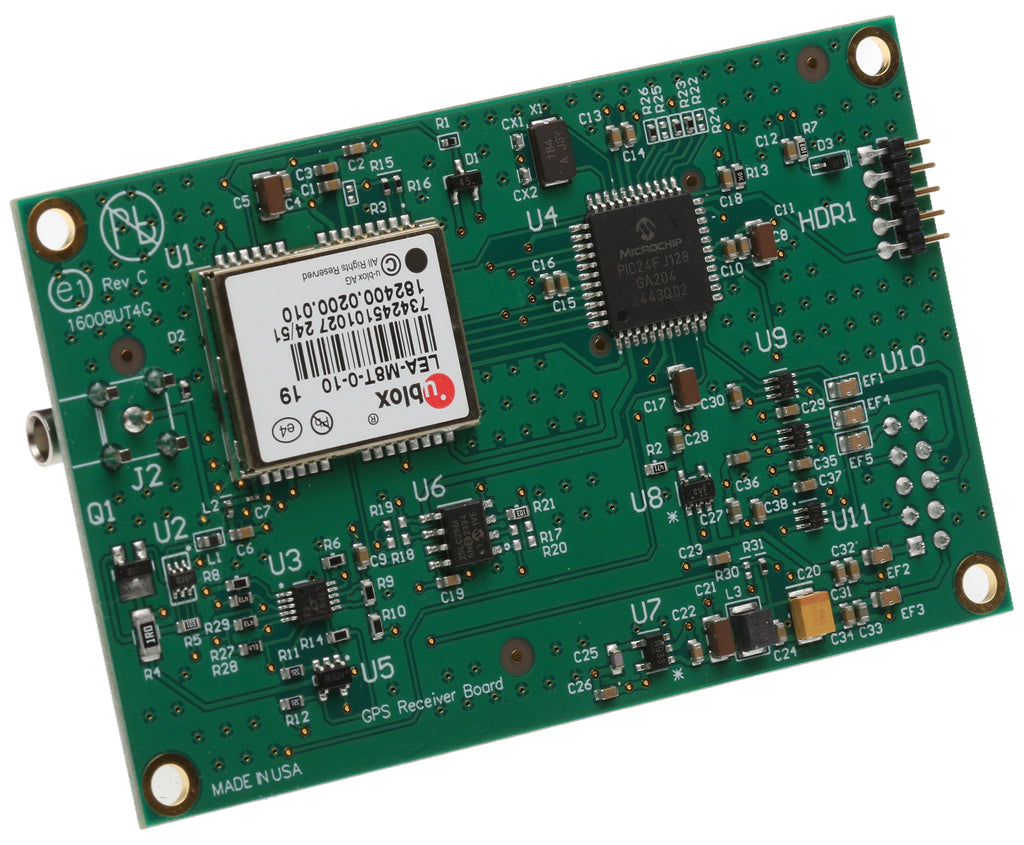

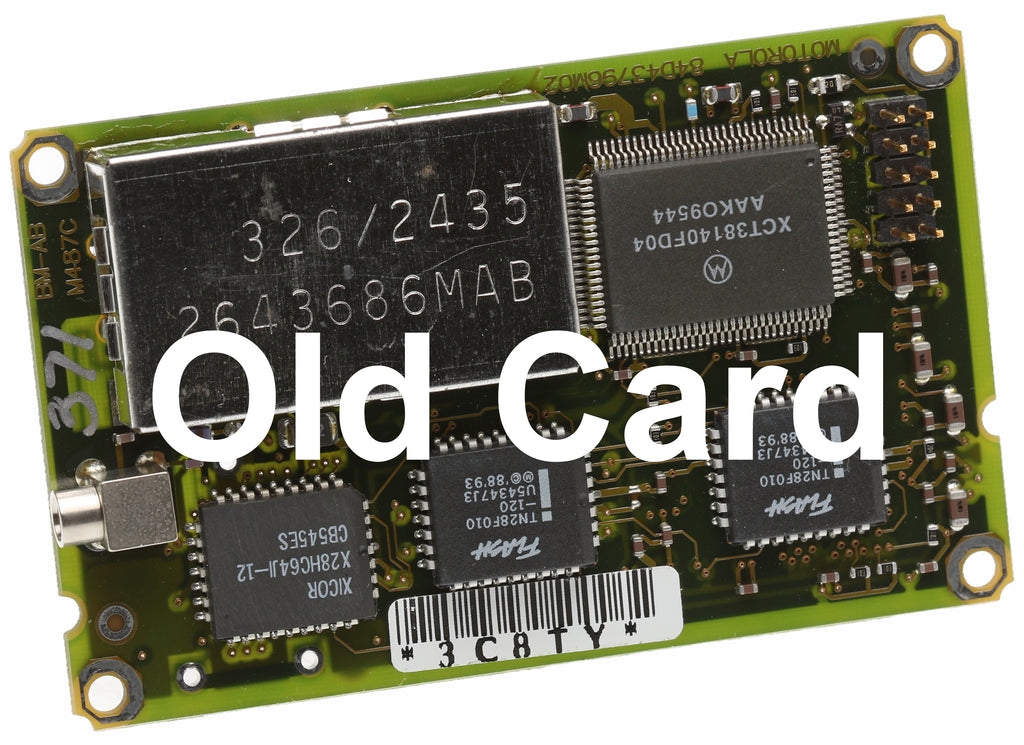

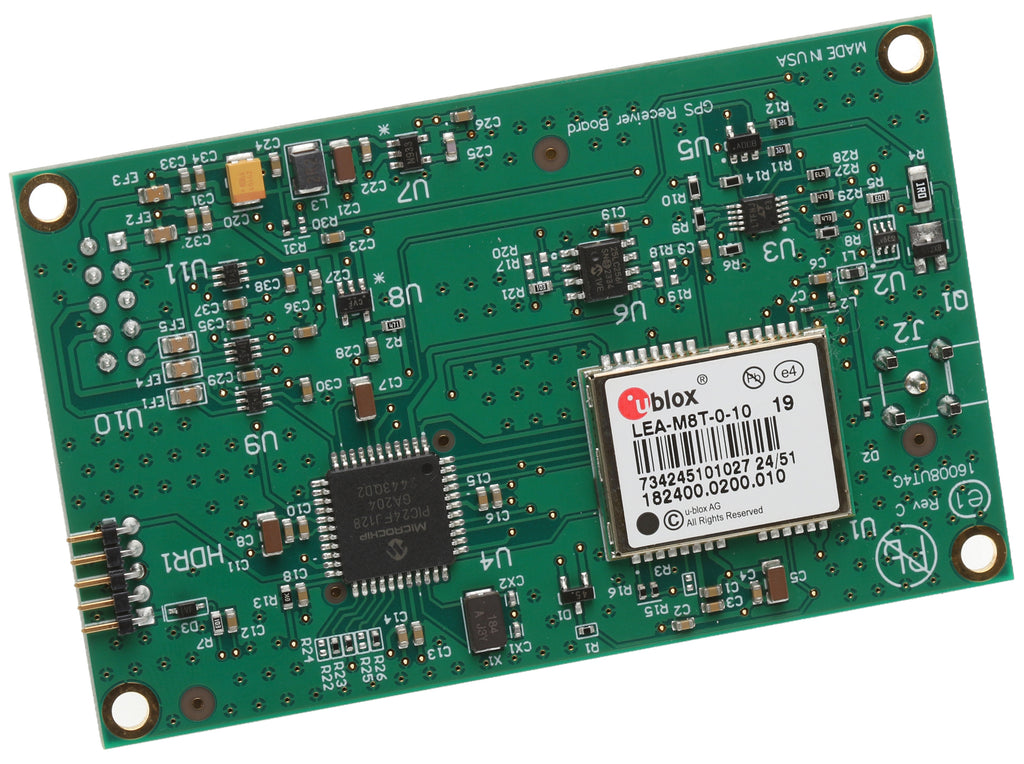

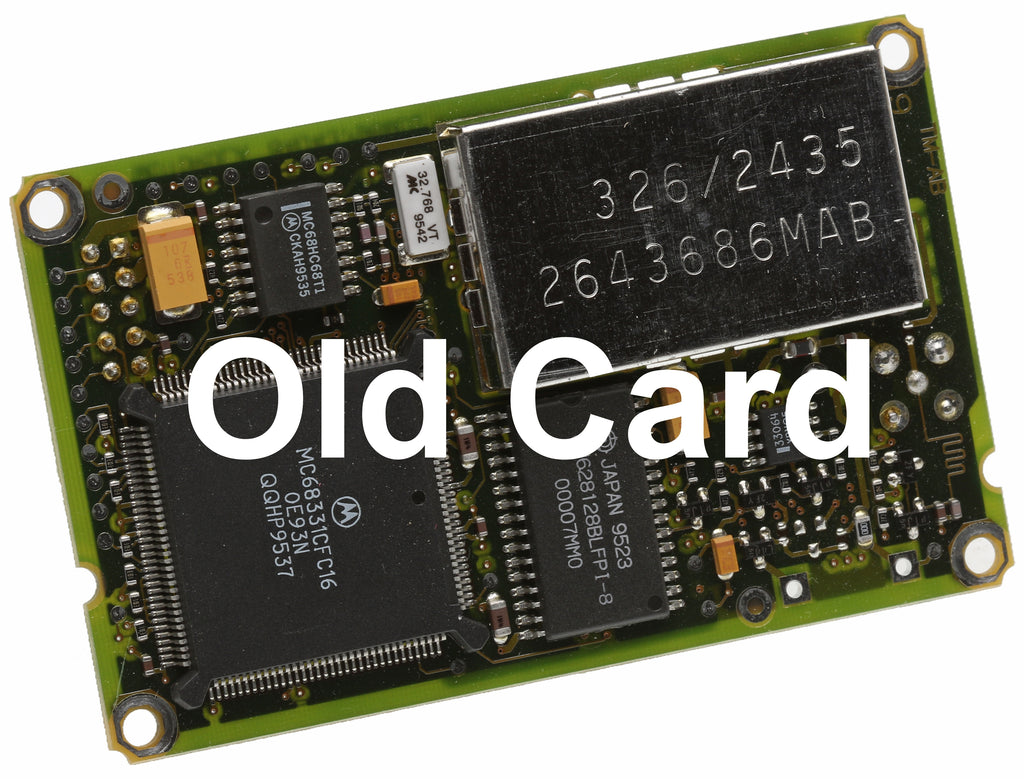

A replacement GPS receiver card for older units that are based on the VP, UT+ or GT+ 6/8 channel GPS receivers (measuring 50.8 mm x 82.55 mm / 2.0 in x 3.25 in - see photos of 'Old Card' to help you confirm compatibility).

This card directly replaces the failed card to restore correct timekeeping.

The buyer is responsible for installing the card and is expected to have basic engineering skills and tools. Note that the antenna connector is fragile and can be damaged with relatively little force. So it is very important that when connecting or disconnecting the antenna pigtail cable you securely hold the socket (and not rely on the connections to the board to provide the opposing forces to the insertion/removal force applied to the plug). Damage done to the surface mounted socket is not covered by the seller's warranty.

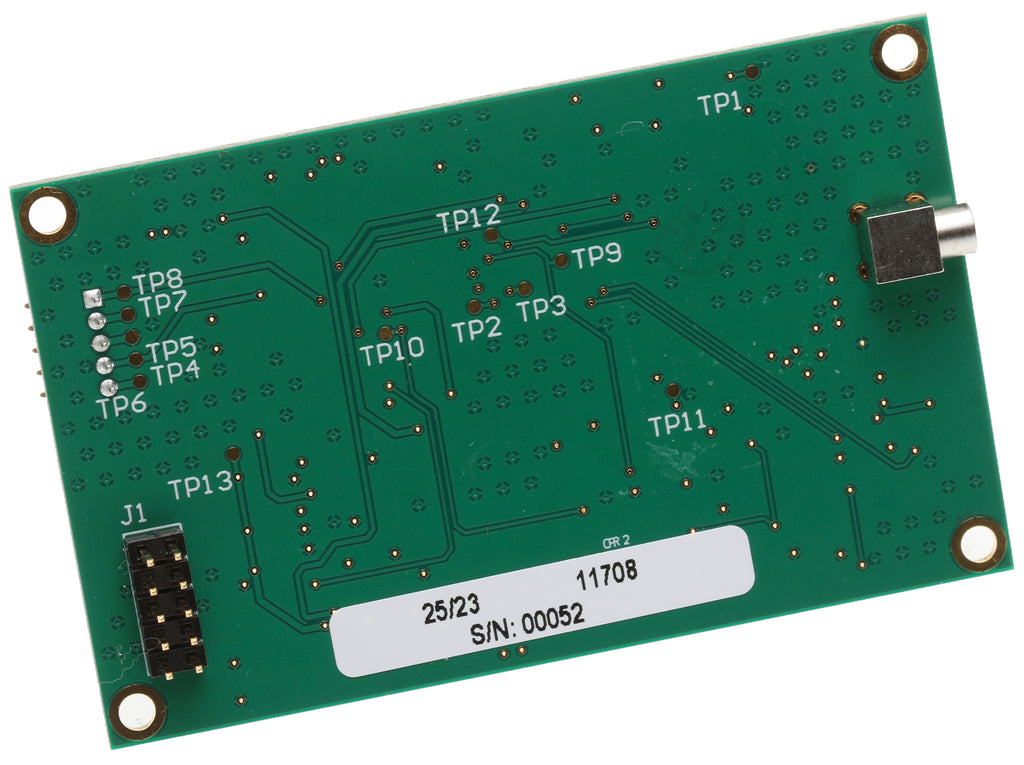

Technical support is not included, but the job is straightforward. The card is held in place by four screws and provided that care is taken to insert the 10 connection pins on the underside carefully before the screws are re-inserted and to re-connect the antenna pigtail cable by pressing the connector square to the circuit board so as to avoid bending the center pin you should be fine. I usually reconnect the antenna pigtail cable before guiding the 10 pins into their sockets. Anti-static precautions should be observed during the procedure and the power cable should be disconnected. The card may take a little longer than normal to achieve lock when first used as it will need to download the GPS almanac and triangulate its position. Subsequent cold starts should be quicker (under 30 minutes to lock, with a good antenna).

• 12 Channel simultaneous operation
• Fully calibrated to UTC at USNO
