NEW Antex DMX8 Rackmount USB Court Recording 8 Channel Mixer PC Interface DMX 8

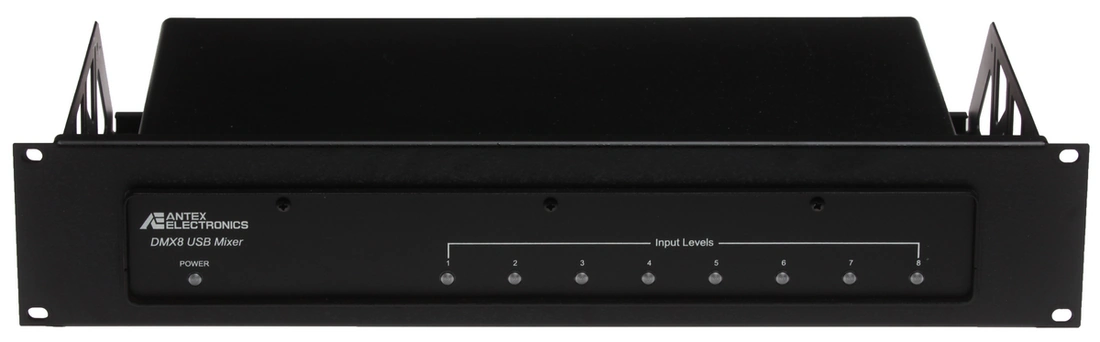

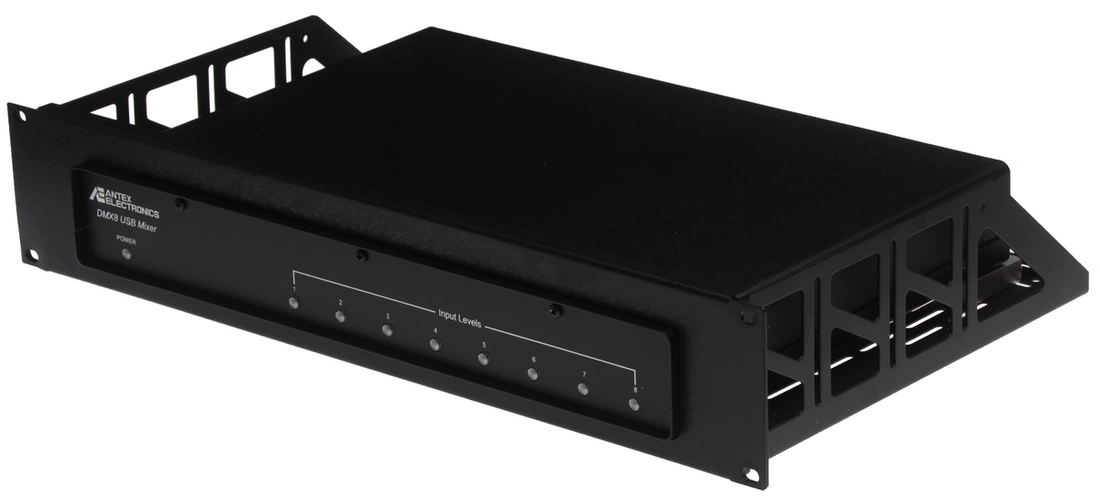

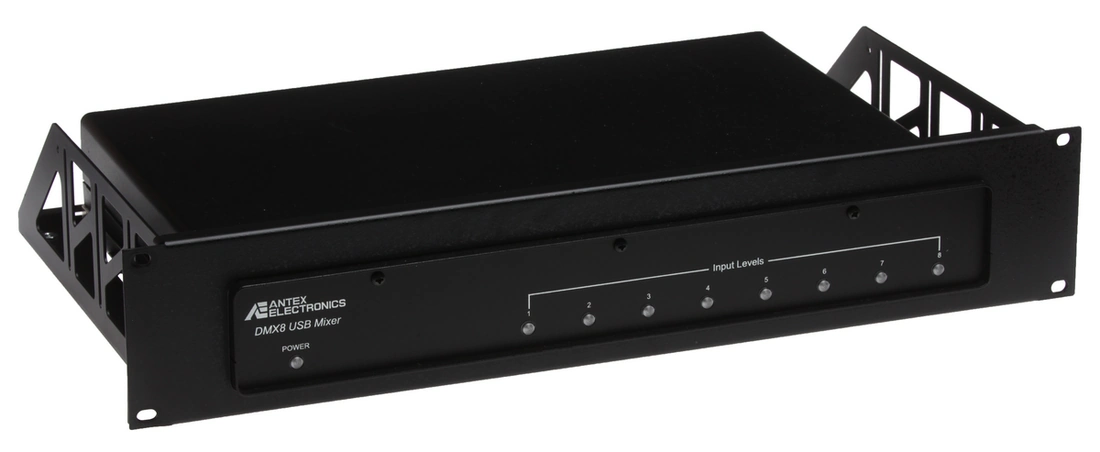

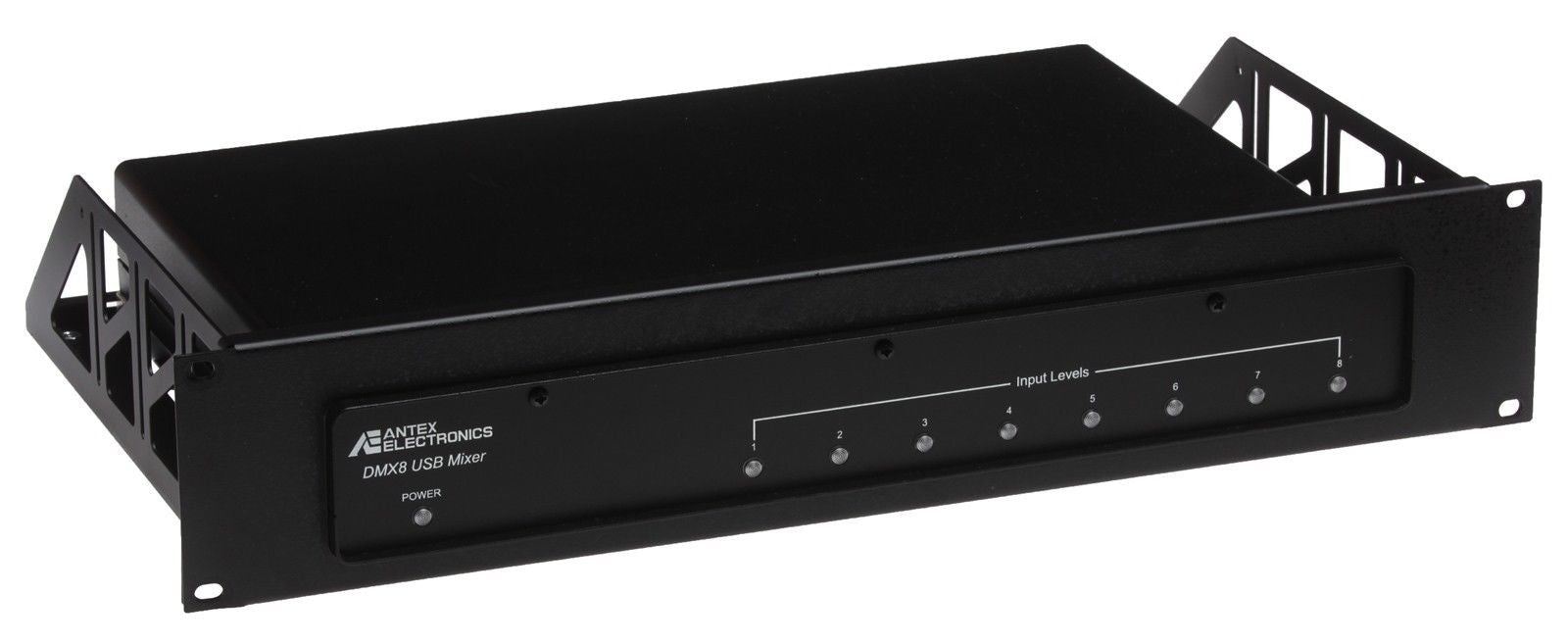

This unit was removed from a new conferencing system that had never been deployed. It may show very slight signs of having been mounted in a custom rack chassis but it was never shipped to site. The Middle Atlantic 2U rackmount frame is included as shown.

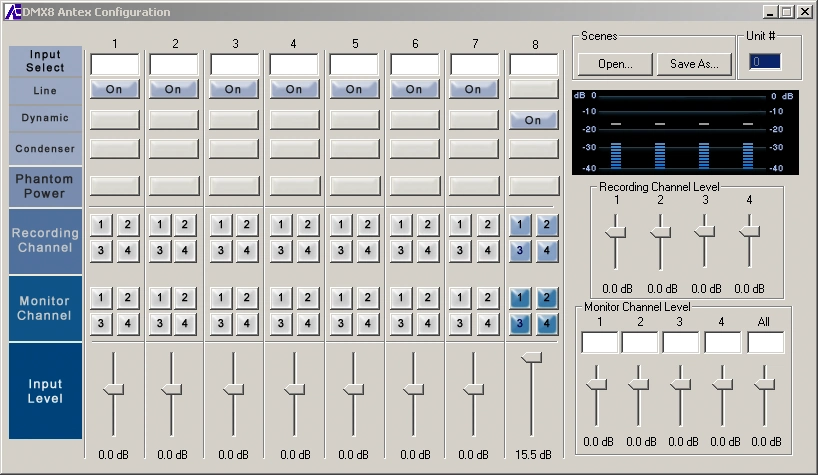

This is an eight channel microphone (or line level) mixer which offers a PC based Graphical User Interface to adjust levels and bus assigments etc. These are commonly used in courtrooms to record transcription audio to a computer hard drive from the various microphones. However it could be used for other similar multichannel recording situations, or the analog outputs could be used to send a mixed signal to a PA system or alternative recording device. The item has been tested for good audio and that it can be configured and controlled via the USB interface. The driver package can be downloaded here.

Introduction

Field proven and FTR approved, the Antex DMX-8 is the industry standard for the court recording market. The DMX-8 is also the ideal mixer solution for parallel audio archiving markets such as city council meetings, school hearing boards, law enforcement surveillance, audio capturing security systems, call center recording/archiving, air traffic control, and other multi-channel audio archiving applications. When combined with a laptop/desktop PC and up to 8-channels of any microphone and telephone inputs, the DMX-8 will immediately streamline your installation for both temporary remote and permanent archiving sites.

Full details may be obtained from the User Manual

Combines 8-input to 4-channel mixer with 4-channel audio encoder card functions in a single device.

Features

• USB 2.0 interface ensures easy installation and configuration.

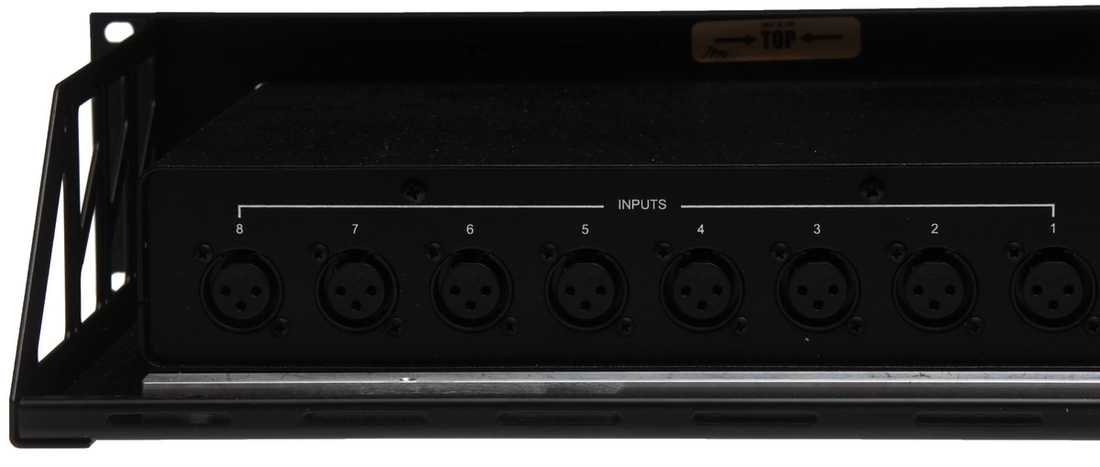

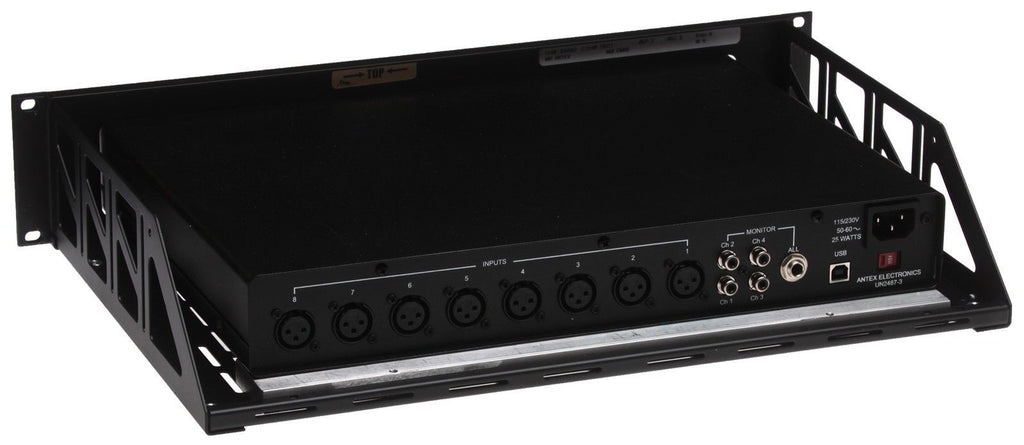

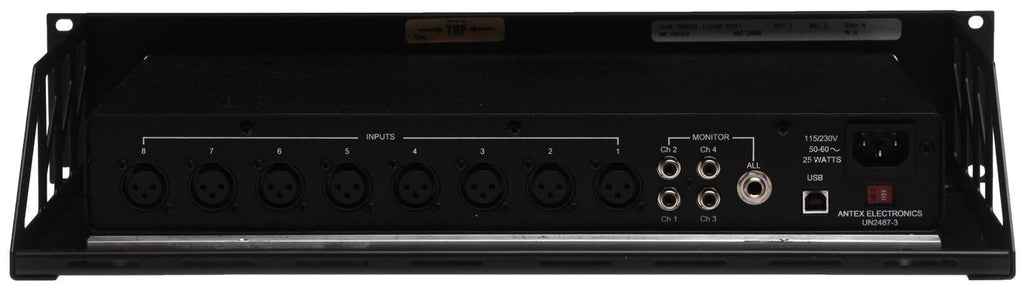

• Includes eight (8) XLR microphone and/or line inputs.

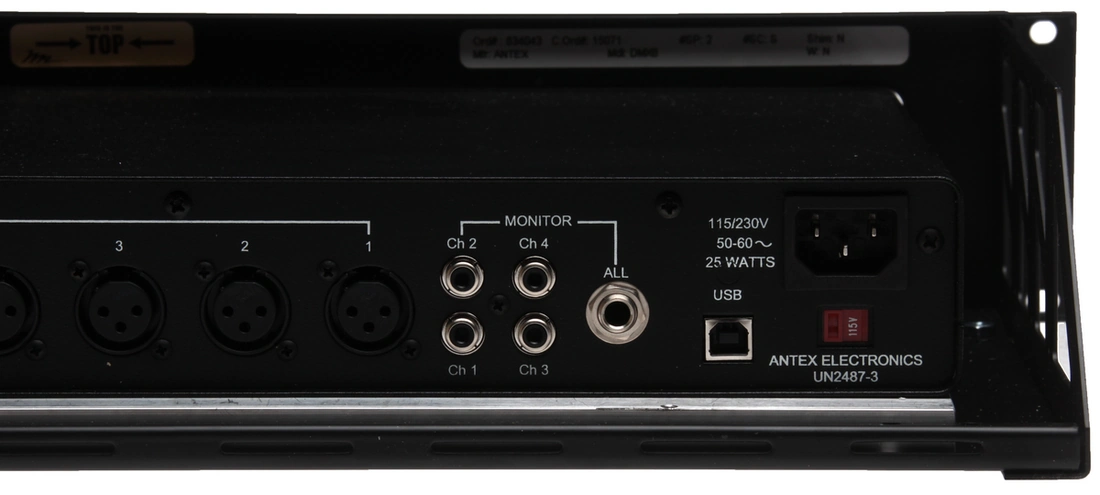

• Includes five (5) general purpose analog audio outputs.

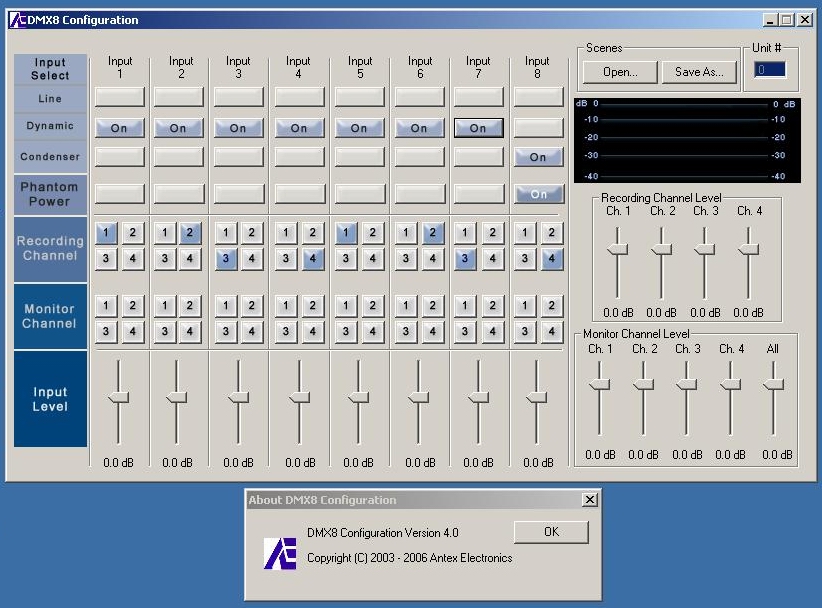

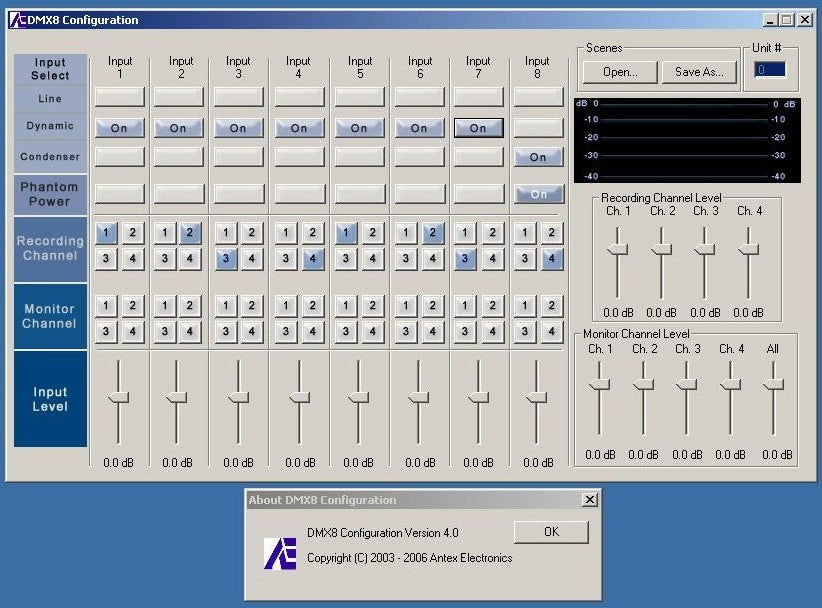

• Host software interface gives you complete control of internal configurations.
• Includes software-enabled phantom power to support different types of microphones.
• Supports audio input and output to telephone and video teleconference systems.
• Compact design works equally well in fixed and portable environments.

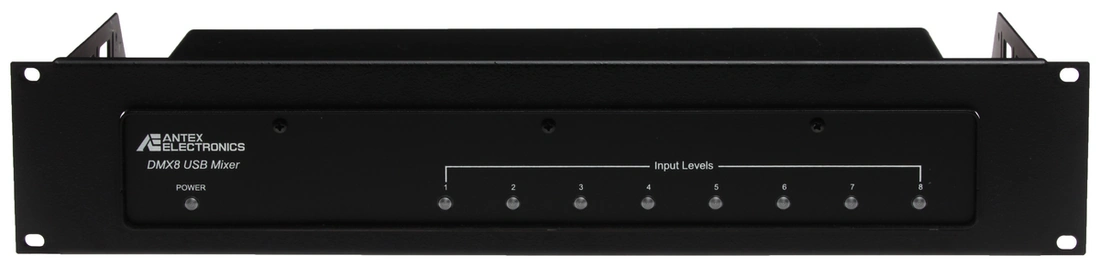

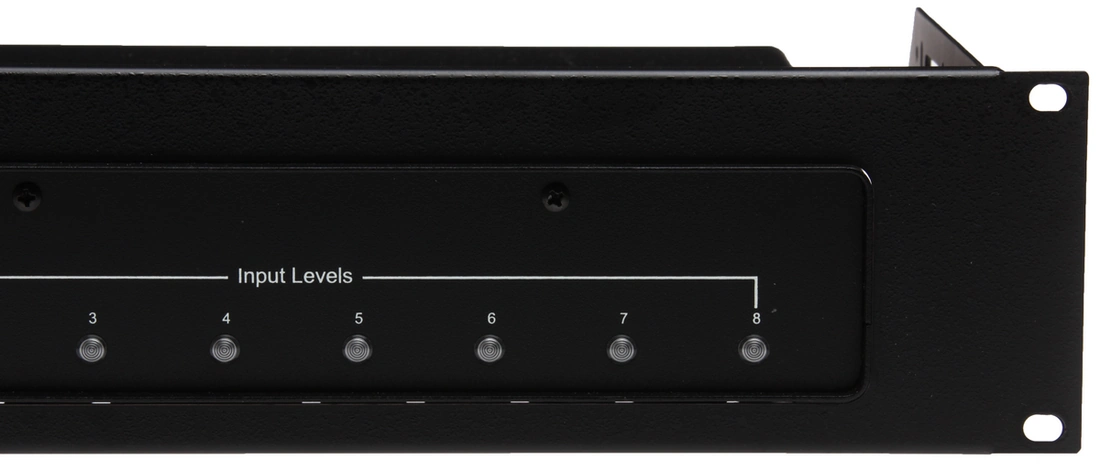

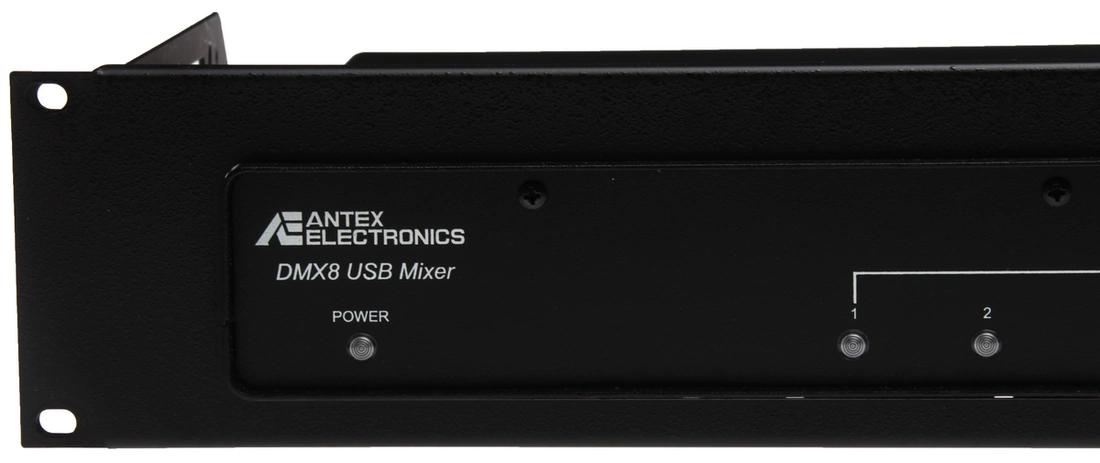

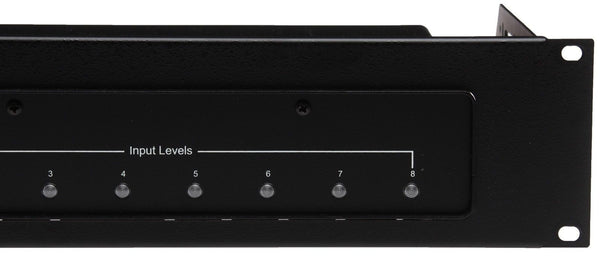

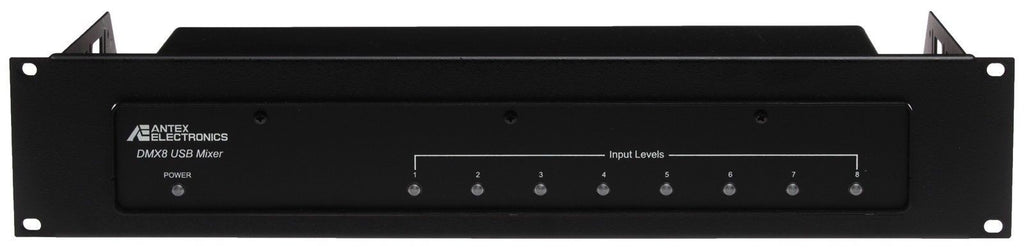

• Power and independent peak input LED indicators for each channel.
• Compatible with all FTR applications.

Description

The FTR DMX8 USB Mixer is a software-controlled hardware solution that combines the functions of an 8-input to 4-channel mixer with a 4-channel audio encoder card in a single compact device. This means that all analog signal processing takes place within the mixer and the four digital recording channels are delivered via PCM stream to the recording computer through the USB 2.0 interface. The DMX8 USB Mixer presents itself as a standard Antex LX 44 sound card to all FTR applications.

The eight inputs are software configurable to accept either dynamic, condenser or line-level inputs. All input channels are mixable to four discrete channels for recording, and four mono (mix-minus) output channels are available for delivery to teleconferencing and videoconferencing applications. A master composite output of all input channels is available for delivery of audio through a public address system.

The simplicity of the DMX8 USB Mixer makes it an ideal choice for courts that need excellent audio performance and reliability in a wide variety of digital recording environments. It’s easy to install and configure because it connects via the USB 2.0 interface and the host software provides complete control of internal configurations. The 4-channel recording capability ensures you’ll capture and understand the entire record.

And because it’s portable, you know you can produce a clear, reliable record whether you’re recording a trial in a court room in the same building, or in one that’s located in a rural or outlying area.

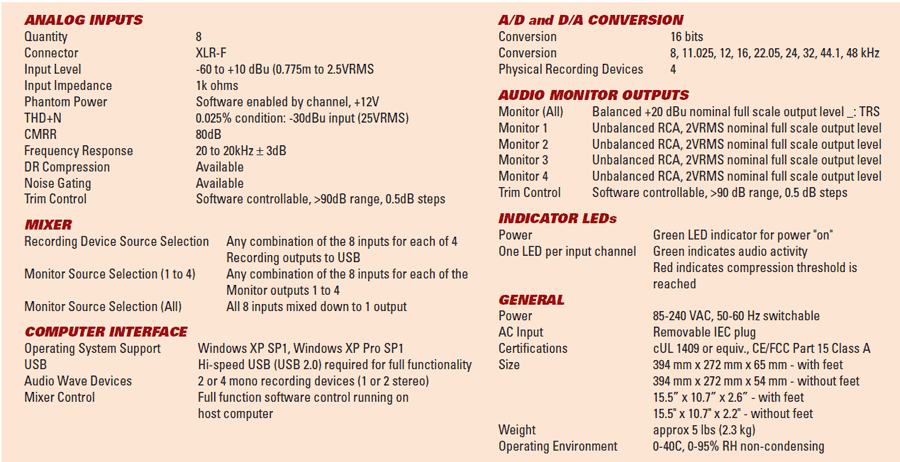

Specifications
