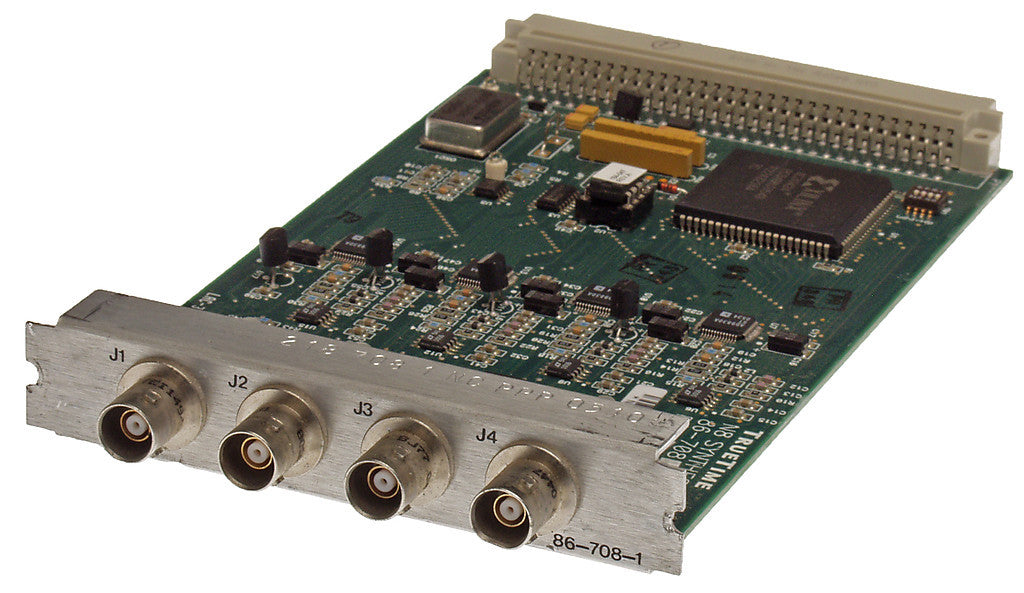

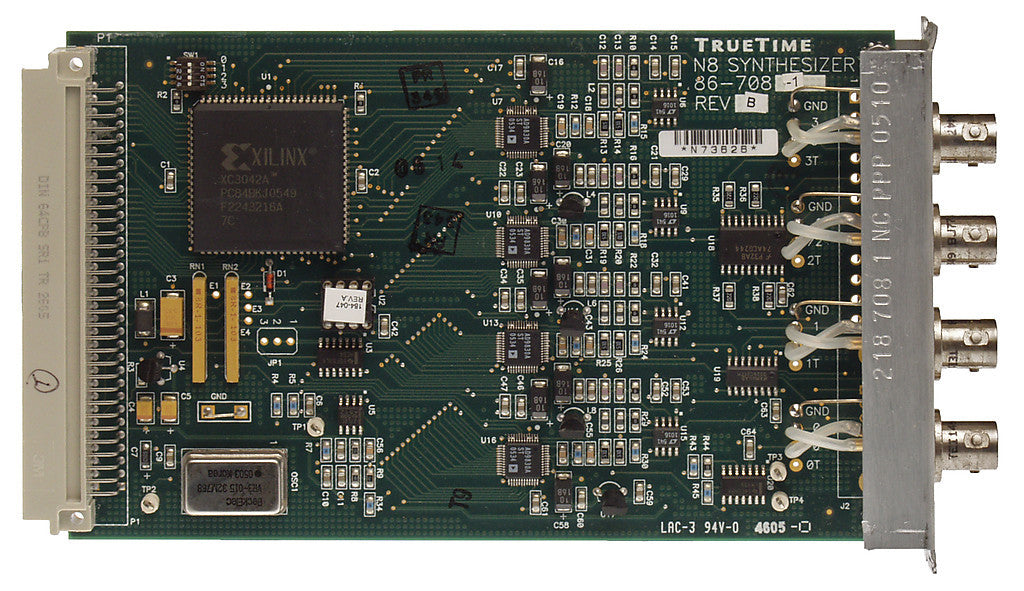

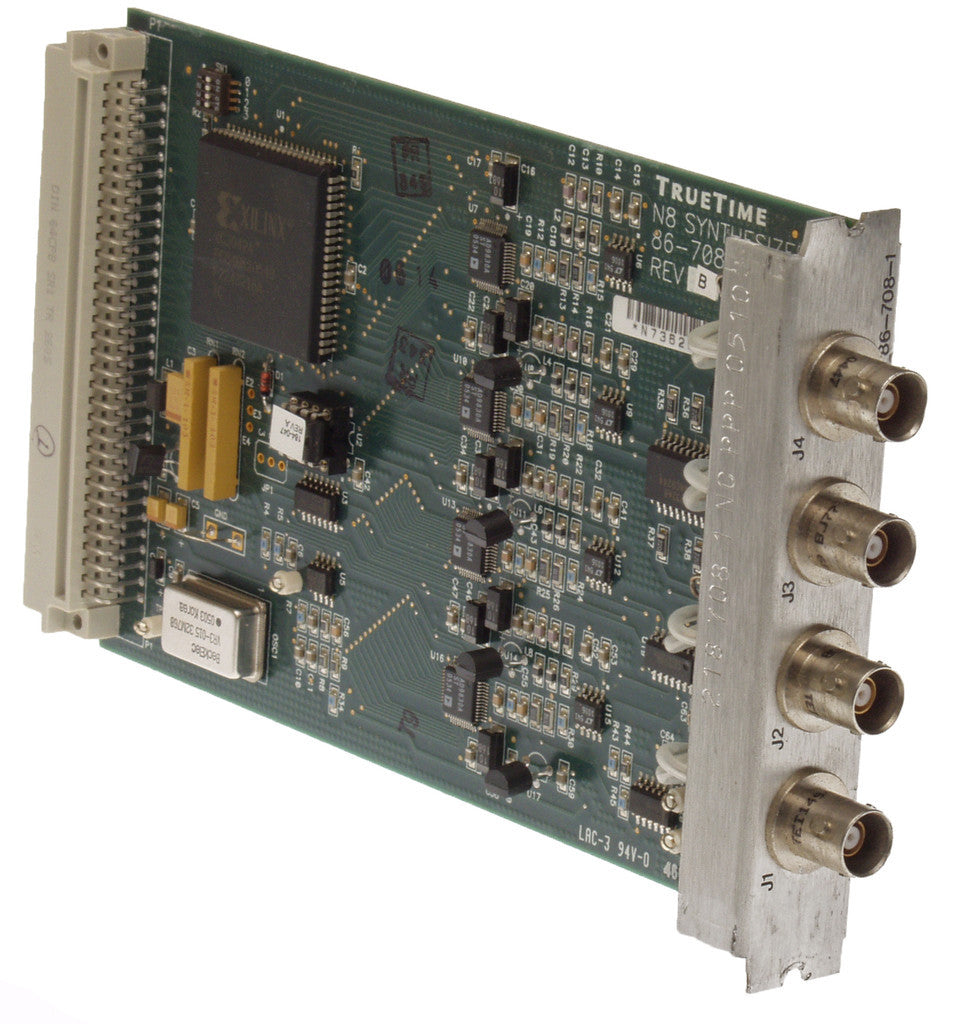

Symmetricom TrueTime 86-708-1 N8 Frequency Synthesizer Add-In Card

Used, Good Condition

https://www.prostudioconnection.net/1709/P9128045b.PNG
Photos show the actual item for sale

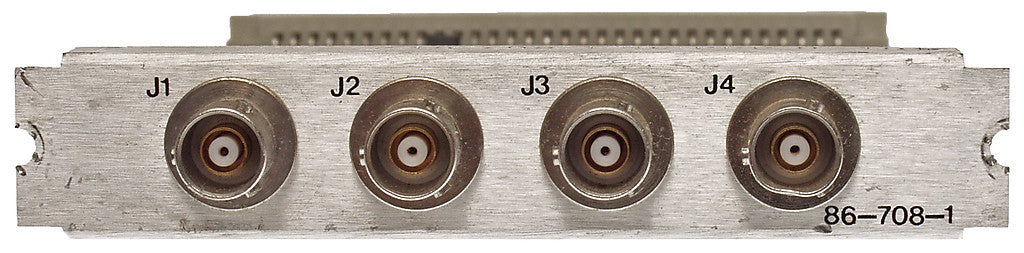

Used, in good condition. Tested within a working XL-DC receiver before removal. Possibly compatible with other TrueTime/Symmetricom/Microsemi GPS receiver units but this is not guaranteed. Note that the connectors are the Triax type and not BNCs. The fourth connector is sligtly out of round, but I believe that it will accept a Triax connector OK if you exercise care.

Description

The card outputs can be programmed via the front panel keypad.

The 86-708-X Frequency Synthesizer is a plug-in option card for the Model XL-DC. This option card offers the user four independently programmable frequency synthesizers that provide pulse rates from
8 kPPS through 8192 kPPS in 8 kPPS steps. This card is configured with one of five different output connector options (determined by the -X assembly number). The five versions are as follows:

  • Assembly: 86-708-1
  • Output Connector: Triax (BJ77)
  • Signal Type: RS-422
  • Mating Connector: Trompeter PL75

Specifications

  • Channels Per PCB: 4 channels, independently programmable
  • Input Reference Frequency: System 1 MPPS
  • Output Pulse Rates: 8 kPPS through 8192 kPPS in 8 kPPS steps
  • Output Drive: Balanced RS-422 into 100? or single ended TTL into 50 ohms (factory set)
  • Wave Form: Square wave
  • Jitter cycle-to-cycle: <10 nS
