Tieline Merlin Plus TLR5200 6 Channel Audio Over IP Codec Internet AoIP Endpoint [Used]

Tested/Guaranteed • Very Lightly Used • Near Mint Condition • Latest Firmware • Audio Over IP Endpoint • Great for Remote Events/Studios or STL Links • Low Delay AAC/G.722/OPUS/MPEG Coding • AES Digital & Balanced Analog Audio I/O • 1U Rackmount Format

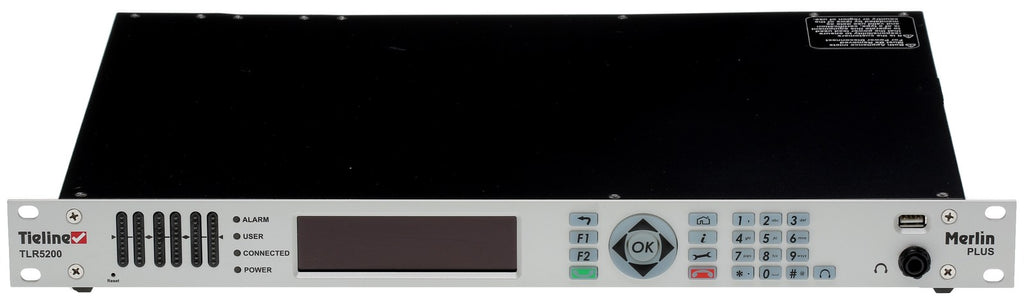

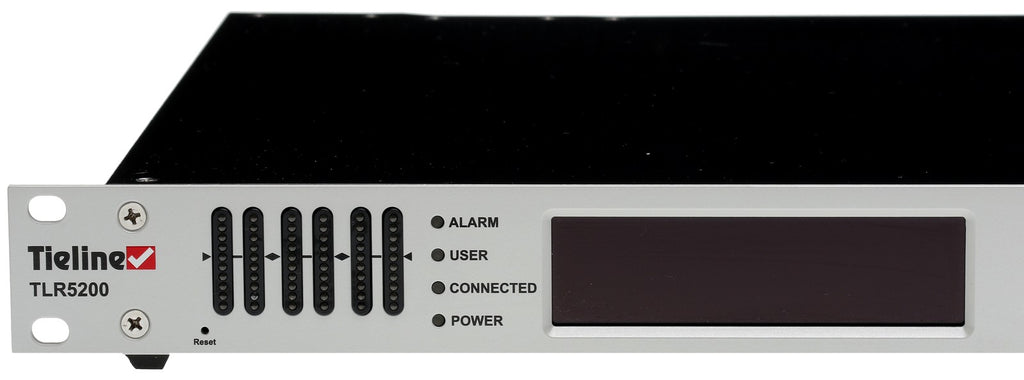

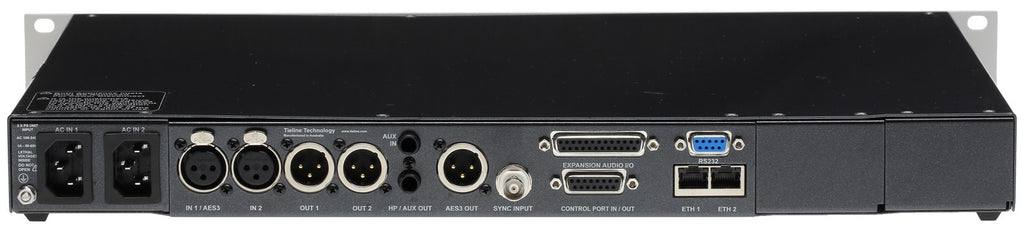

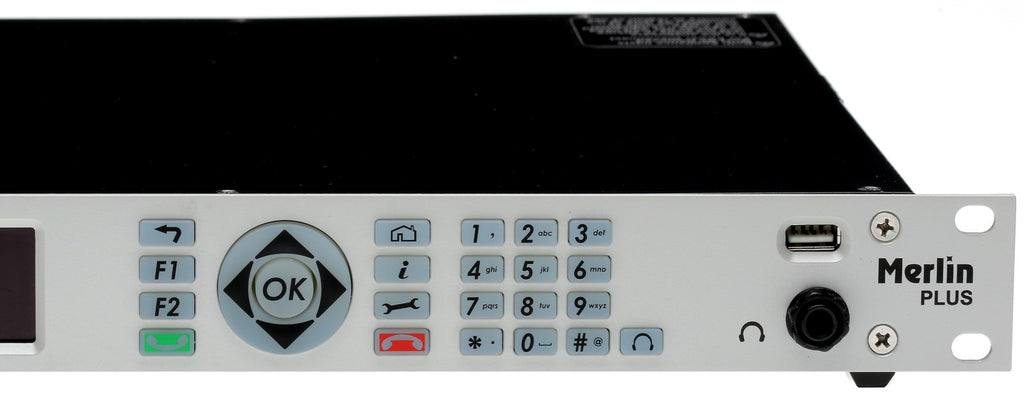

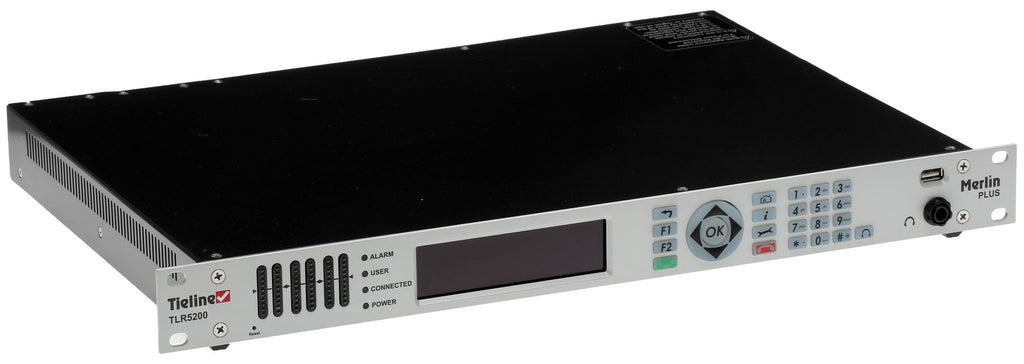

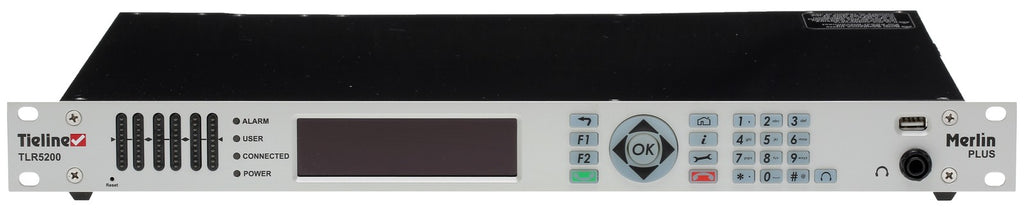

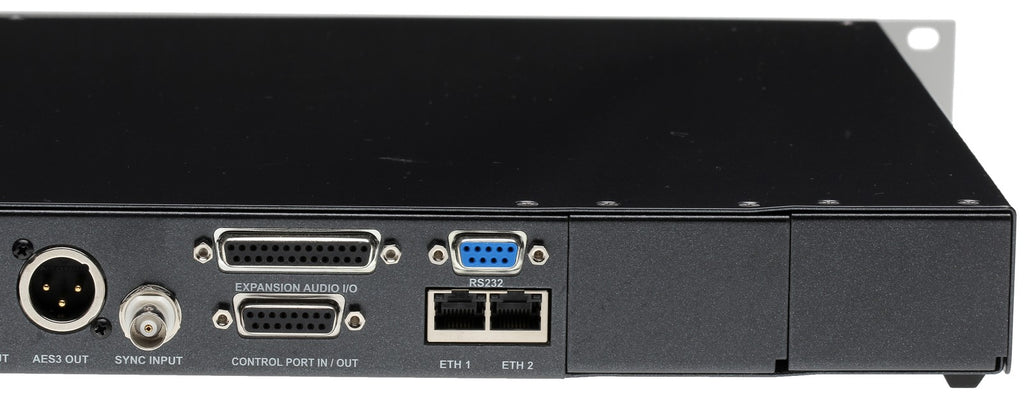

Photos show the actual item for sale

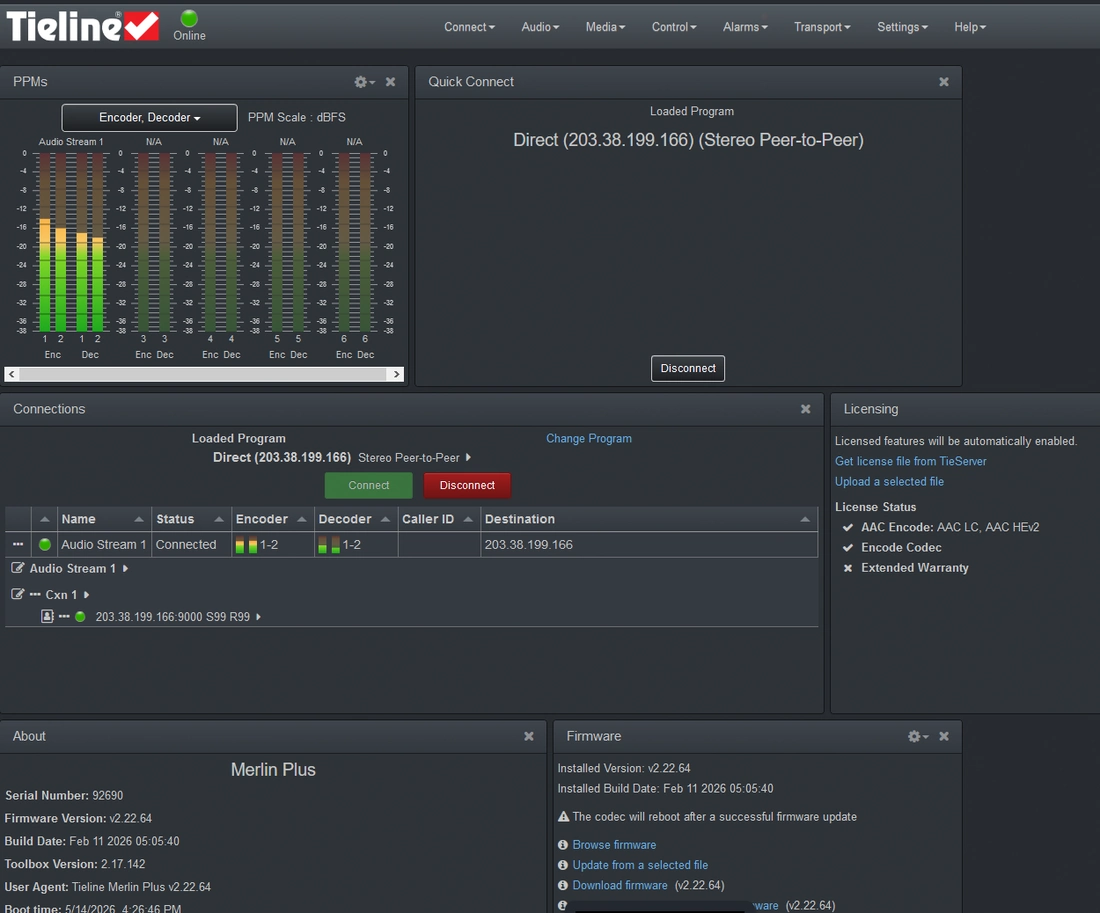

A very lightly used Tieline Merlin Plus audio over IP codec. This unit supports up to six simultaneous audio streams. The unit has been updated with the latest firmware and reset to factory default settings (logon is admin:password, and the IP address is assigned by DHCP). Further information may be obtained from the User Manual at https://www.prostudioconnection.net/2605/Merlin-PLUS-User-Manual.pdf. This codec will work best when connecting to other Tieline devices. The technical note on the Tieline website provides some guidance on how to connect to Comrex and Telos IP boxes, but note that they have limited their discussion to the use of the G.722 codec.

Description

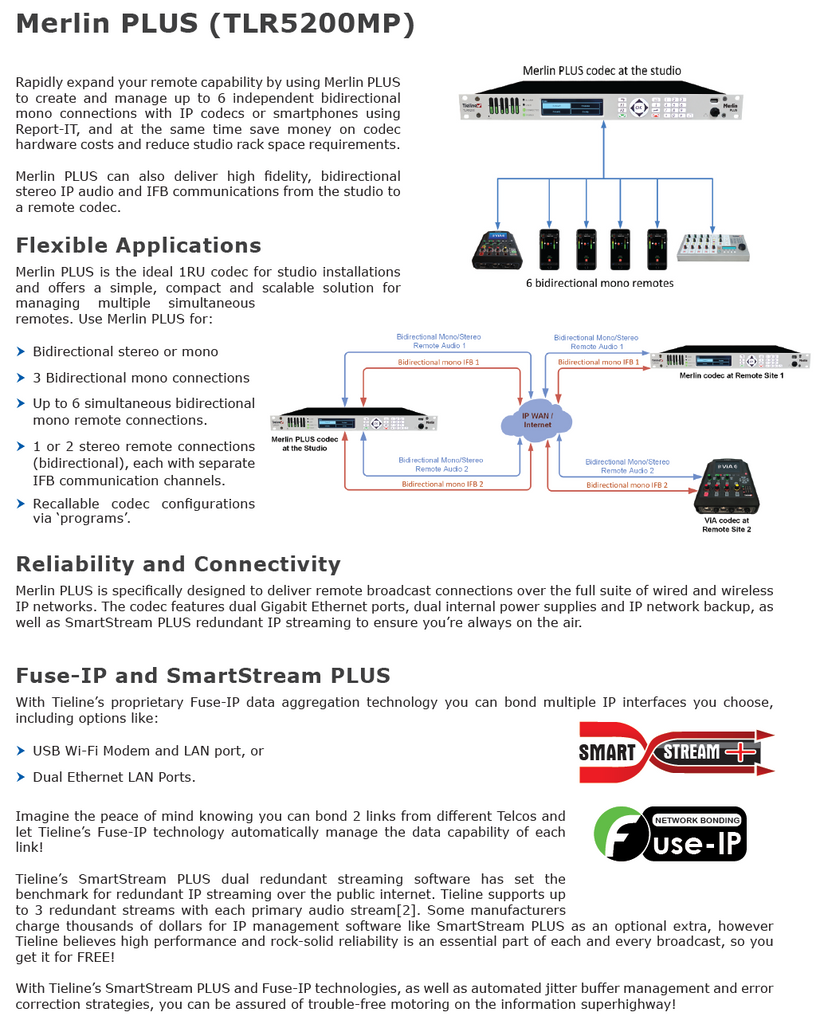

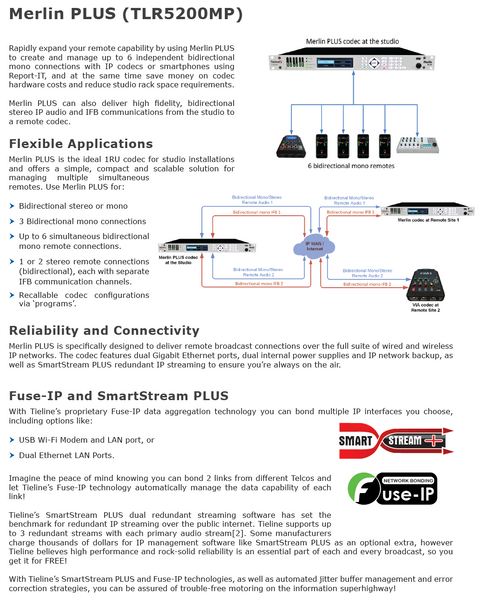

Merlin PLUS is the ideal 1RU codec for studio installations and offers a simple, compact and scalable solution for managing multiple simultaneous remotes. Use Merlin PLUS for:

• Up to 6 simultaneous bidirectional mono remote connections.
• 2 x Bidirectional mono or stereo remotes, each with separate bidirectional IFB communications channel.
• Streaming multiple algorithms simultaneously at different sample rates and bit-rates over a range of connection transports.

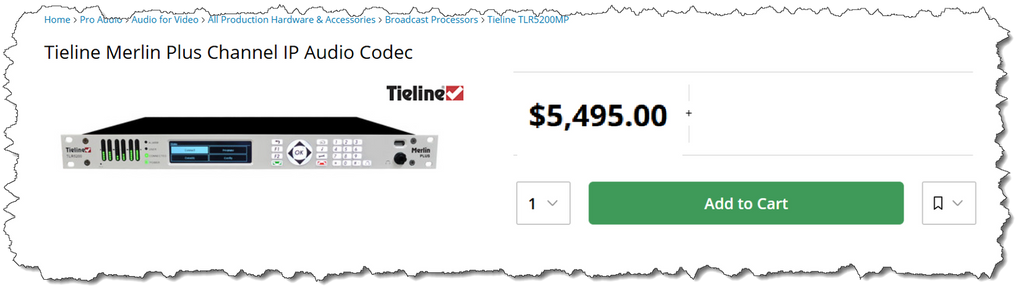

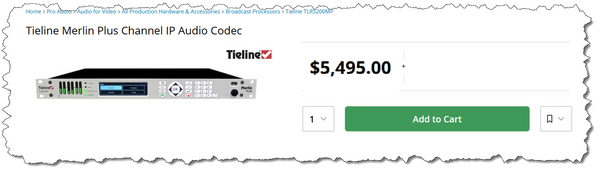

Usually Sells for $5,495

Reliability and Connectivity
Merlin PLUS will connect to all Tieline IP codecs, including G3 codecs, Bridge-IT, the Genie family of codecs and Report-IT Enterprise smartphone applications. It is designed to connect over the full suite of wired and wireless IP networks, including:

• Public Wide Area Networks (WANs)
• Private Local Area Networks (LANs)
• 3G and 4G wireless Networks

• Wi-Fi and WiMAX Networks

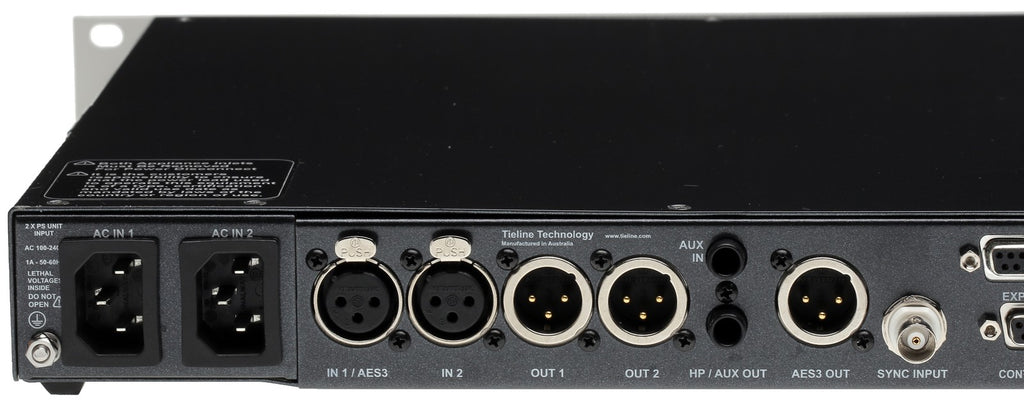

It has dual Gigabit (10/100/1000) onboard Ethernet ports, dual redundant power supplies, audio silence detection and IP network backup solutions to ensure you’re always on the air. An automated network failure detection feature provides switching to a backup IP LAN connection. You can also fail over to backup ISDN or POTS connections as required using optional ISDN or POTS modules.

SmartStream: Rock Solid Audio using Inexpensive IP Links
As an IP audio pioneer, Tieline was the first major codec manufacturer to integrate SmartStream features such as Automated Jitter Buffer management, Forward Error Correction (FEC) and error concealment techniques in all IP codecs. These features dynamically respond to variable conditions over unmanaged IP networks like the public internet to ensure reliable streaming.Now SmartStream PLUS has revolutionised IP broadcasting by delivering the rock solid and reliable STL-grade audio quality you would expect over a T1/E1 link by using inexpensive unmanaged IP networks like the internet for STLs, audio distribution and remotes


Save Money Now with SmartStream PLUS Redundant Streaming

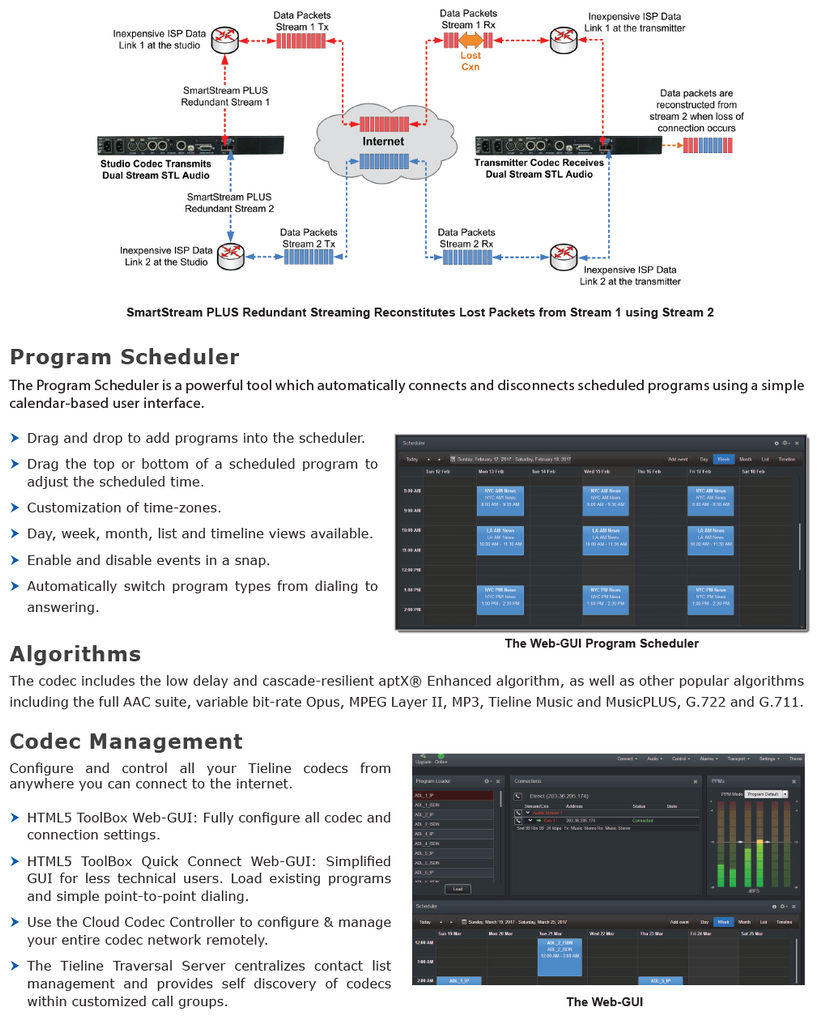

Some other manufacturers charge thousands of dollars for IP management software like SmartStream PLUS as if it's an optional extra. However Tieline believes high performance and STL-grade rock-solid reliability is an essential part of each and every broadcast, and delivers its renowned SmartStream PLUS as standard in Merlin PLUS.Tieline can show you how an investment in new codecs will pay for itself in just a few months by using SmartStream PLUS over inexpensive IP links to transport STL-grade, high fidelity audio at a fraction of the cost of synchronous leased lines. With SmartStream PLUS:Stream simultaneous redundant data streams and deliver seamless redundancy by switching back and forth, without loss of audio, from the nominated primary data link to the backup link if one fails and then subsequently recovers. Note: Use IP links from two different IP network providers for optimal redundancy over mission critical STL connections.When multiple redundant audio streams are sent, the decoding codec automatically reconstructs audio into a perfect single stream on a first packet arrived basis to ensure audio integrity.


Flexibility and Interoperability
Many broadcast networks are transitioning to IP but still require connectivity over ISDN or POTS. Tieline Merlin PLUS codecs deliver flexibility by allowing you to connect over ISDN, POTS or IP networks as required. Simply purchase optional ISDN G5 or POTS G5 modules, insert them in the codec and you are ready to connect over ISDN, POTS or IP on demand. Click here to learn more about Tieline ISDN options.Merlin PLUS supports both IPv4 and IPv6 (Dual Stack) protocols, so broadcasters can be assured that they have made a smart investment for the future as new networks and technologies emerge over time.Connect over IP with any SIP-enabled IP codec brand that supports the EBU N/ACIP tech 3326 standard, as well as VoIP telephone devices supporting G.711 and G.722. Merlin PLUS is also compliant with I3P EBU334 requirements for interoperability of AoIP production intercoms.

Algorithms

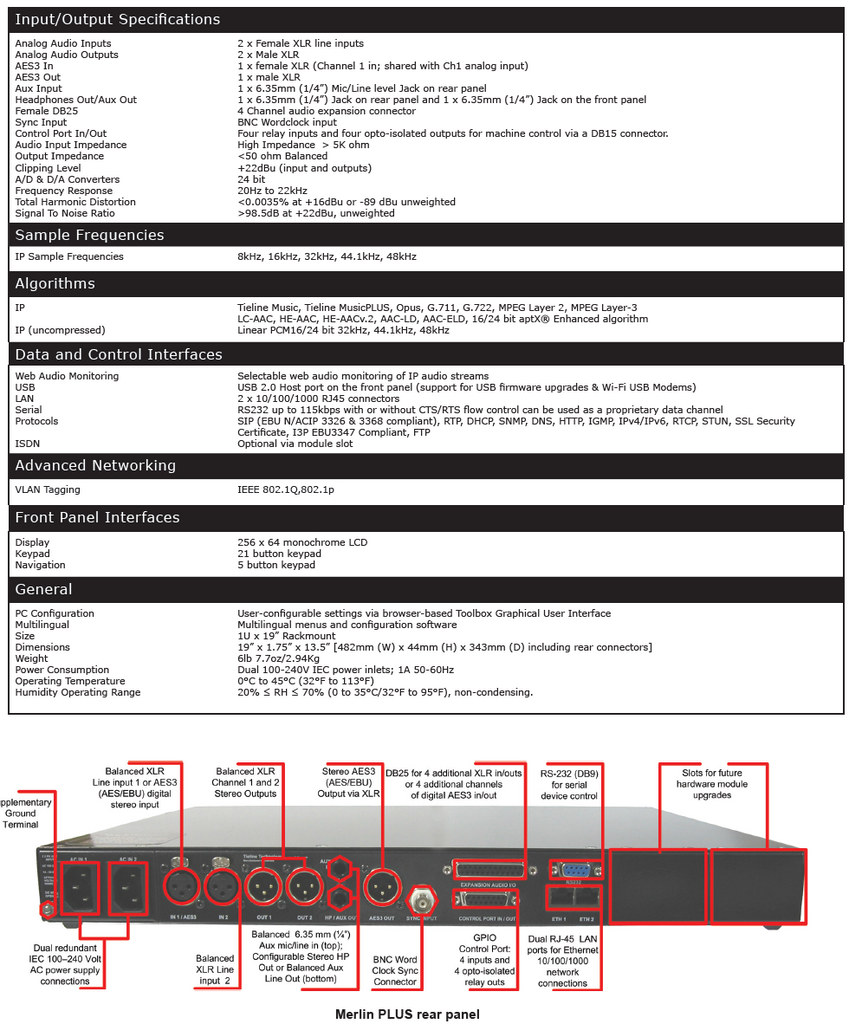

Merlin PLUS is capable of 16-24bit 22kHz low latency linear PCM audio at up to 48kHz sampling and features aptX® Enhanced, LC-AAC, HE-AAC v1 and v2, AAC-LD, AAC-ELDv1 and v2, Opus, MPEG II, MPEG Layer-3, Tieline Music and MusicPLUS, G.722 and G.711 algorithms. Merlin PLUS supports up to 6 simultaneous streams of Opus encoding.
