Timesource 3500 Wall Mount Antenna Synergy Systems AR-10N GPS SMA Male 5V-12V

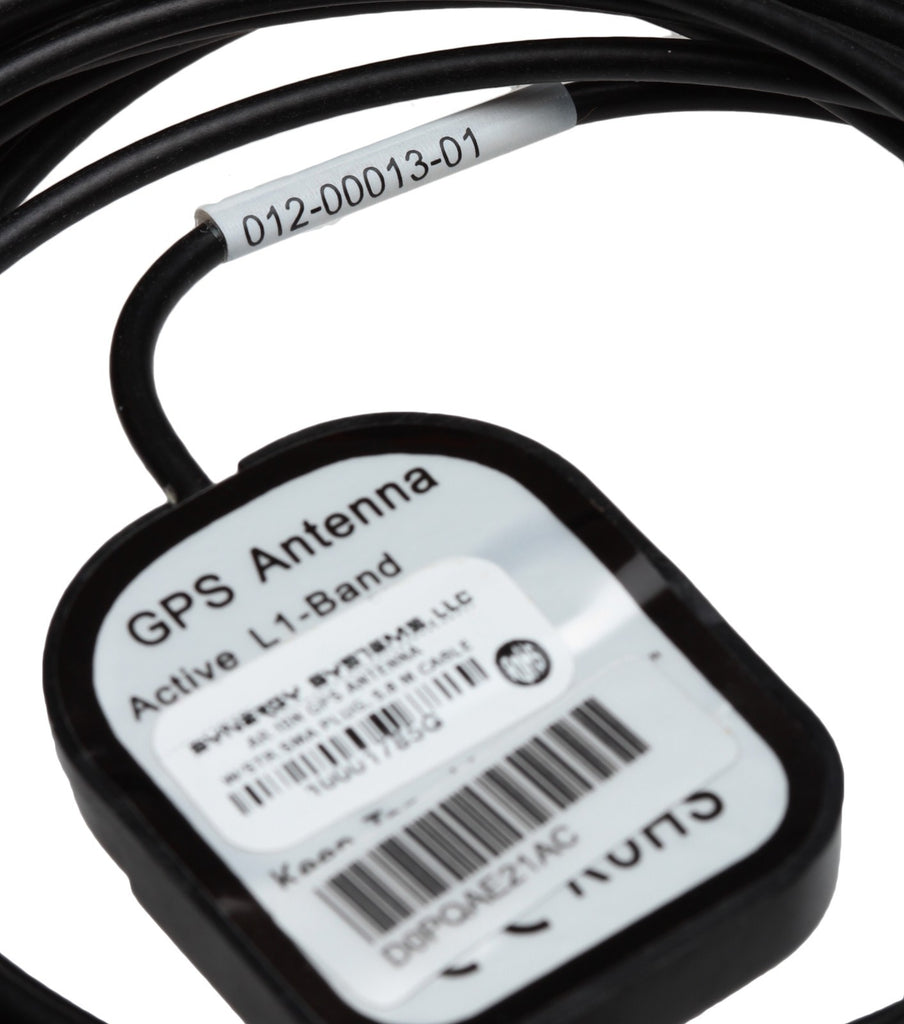

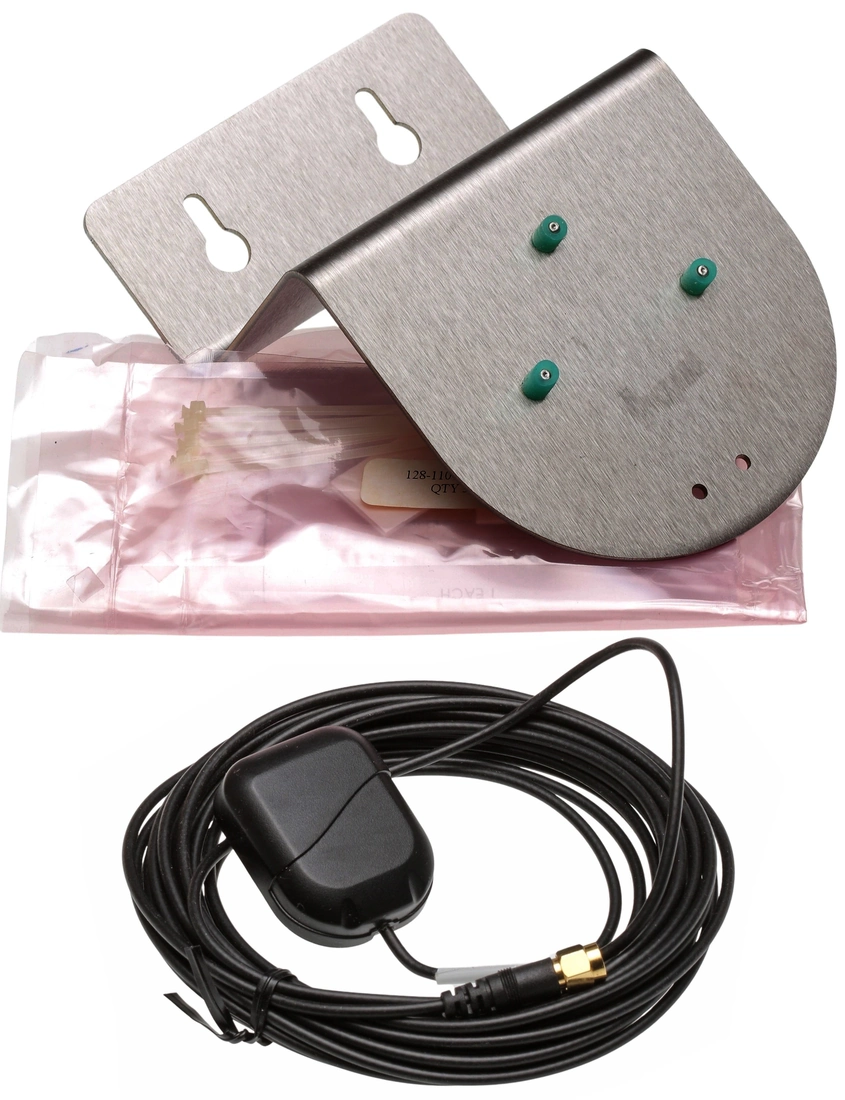

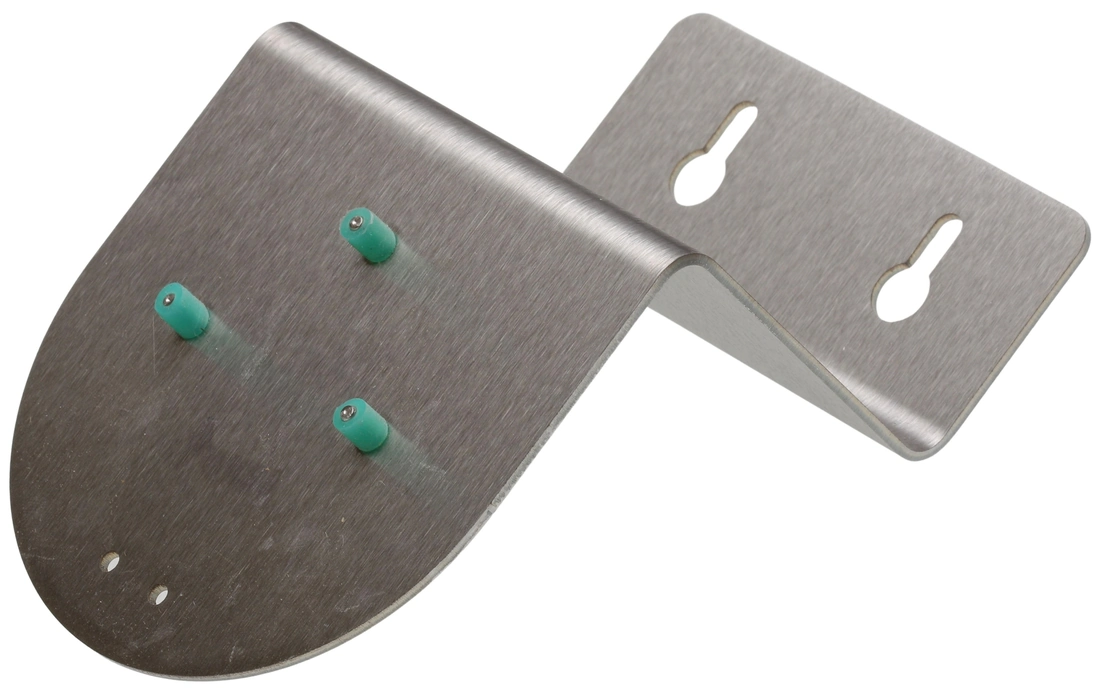

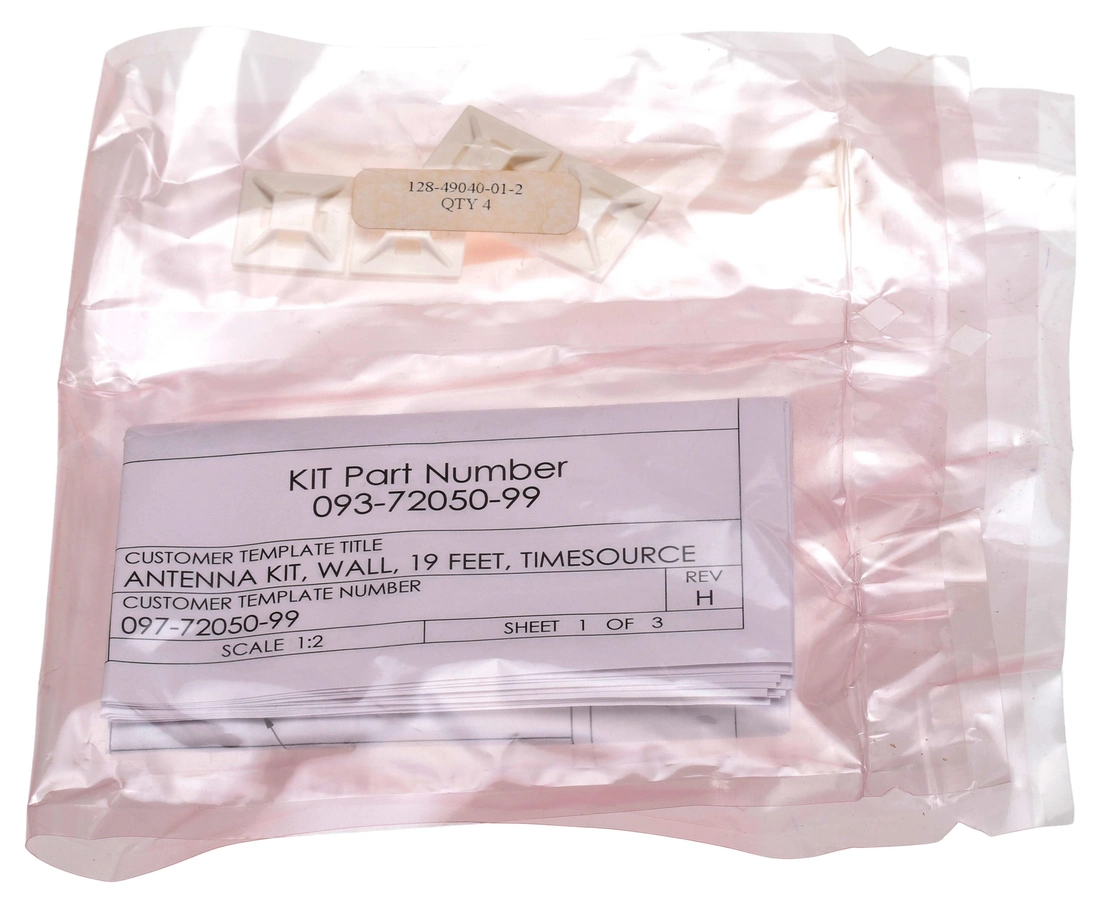

Timsource 3500 Wall Mount Antenna Kit • Part Number 093-72050-99 • Antenna Part 012-00013-01 • 12V Capable • Active GPS 28dB Antenna • SMA Connector • Magnetic Mount • 16ft RG-174 Flexible Downlead

New old stock. Ships in a plain packaging. Unusually this antenna will not be damaged by a 12V supply. Most antennae can only tolerate 5V. So it may be useful with TrueTime/Symmetricom gear some of which can output 12V.

Description

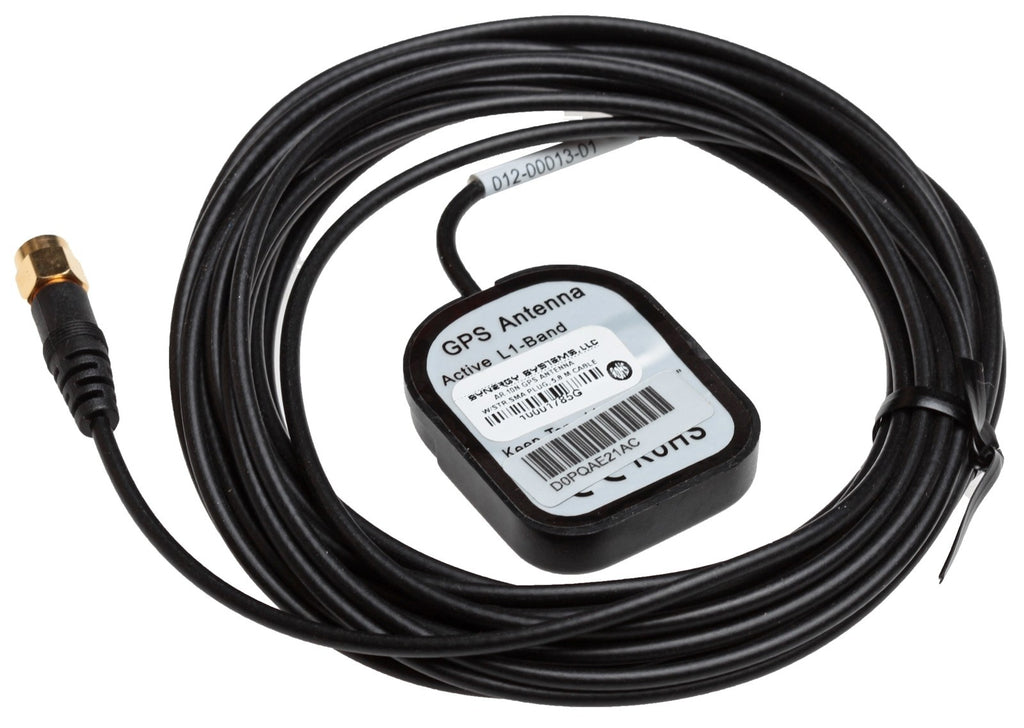

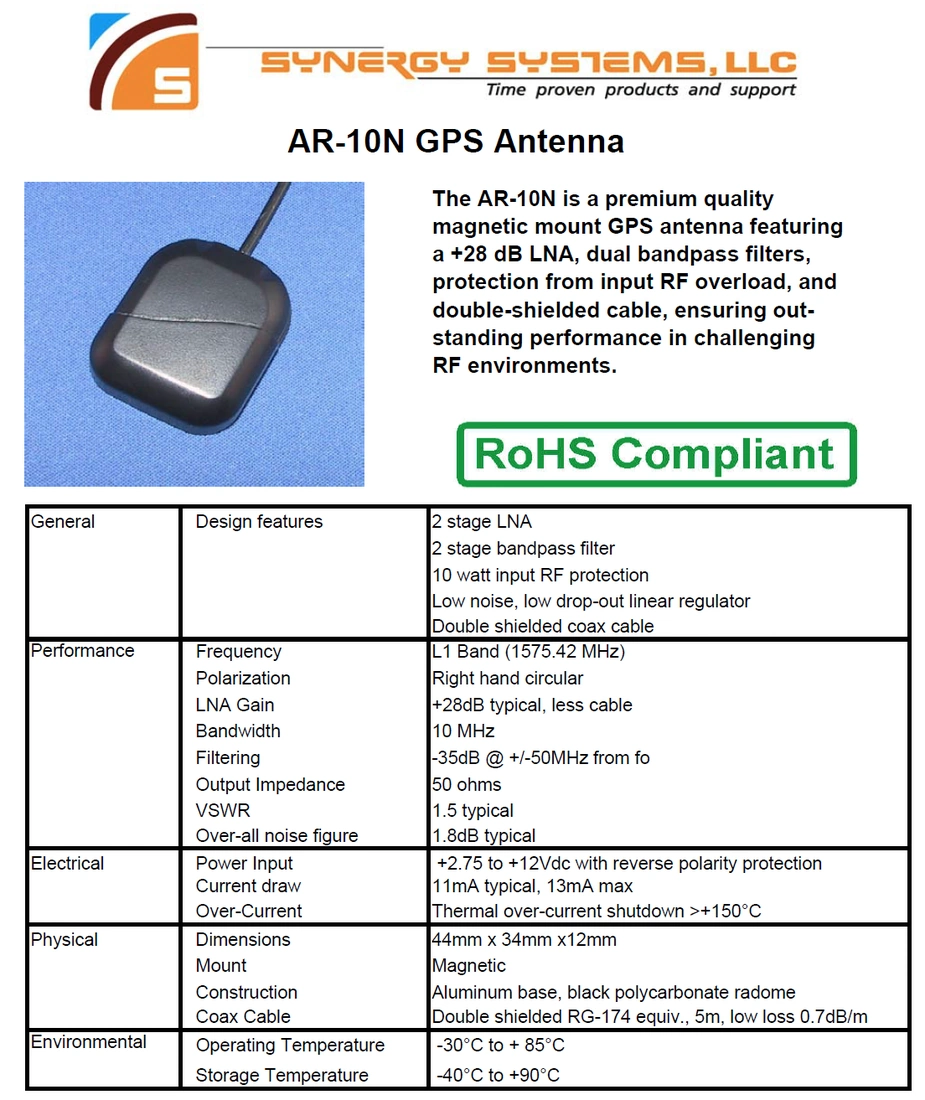

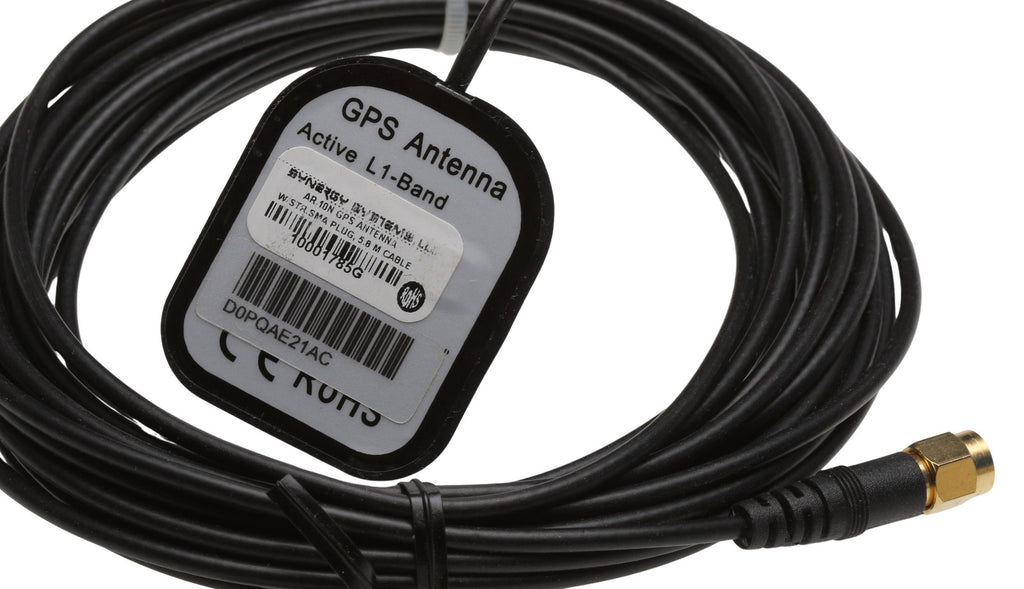

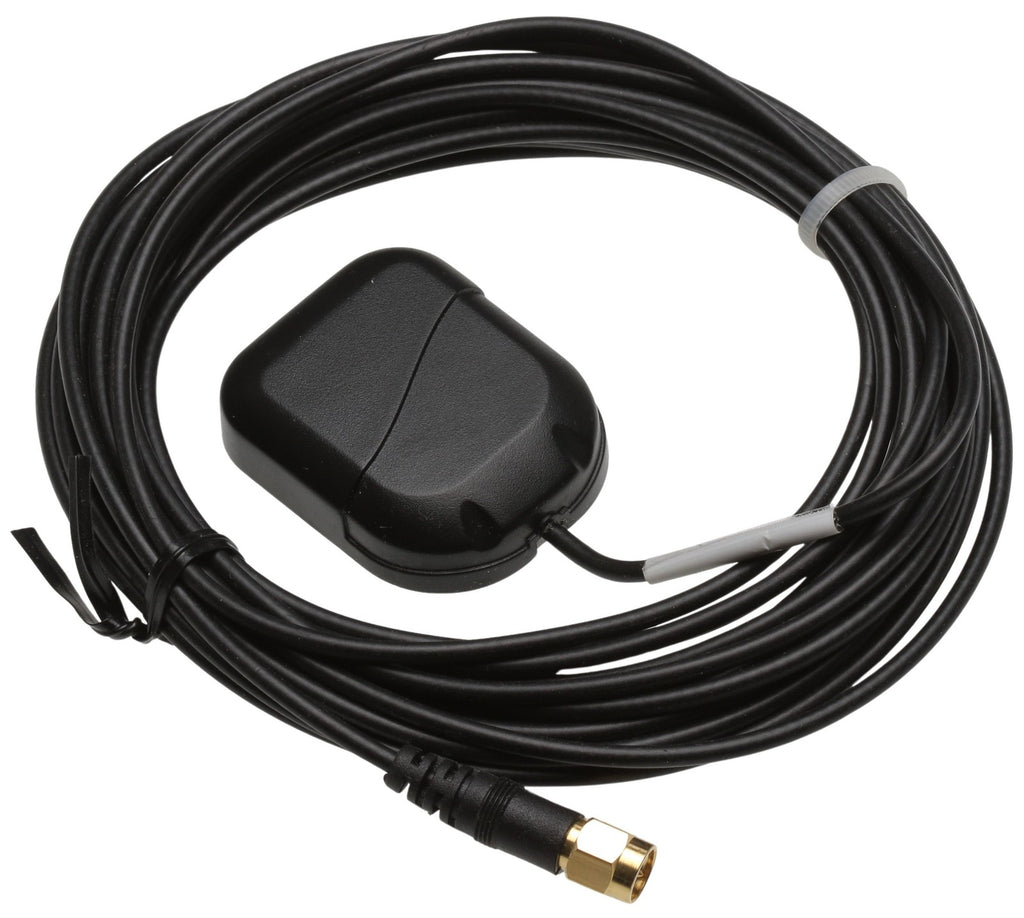

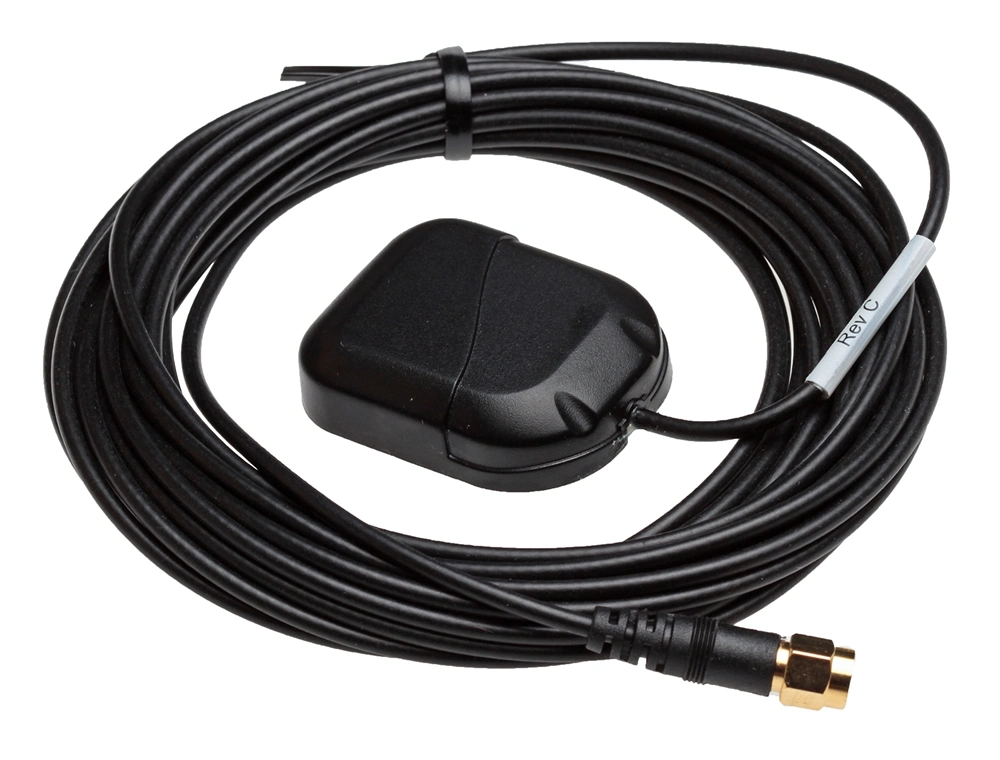

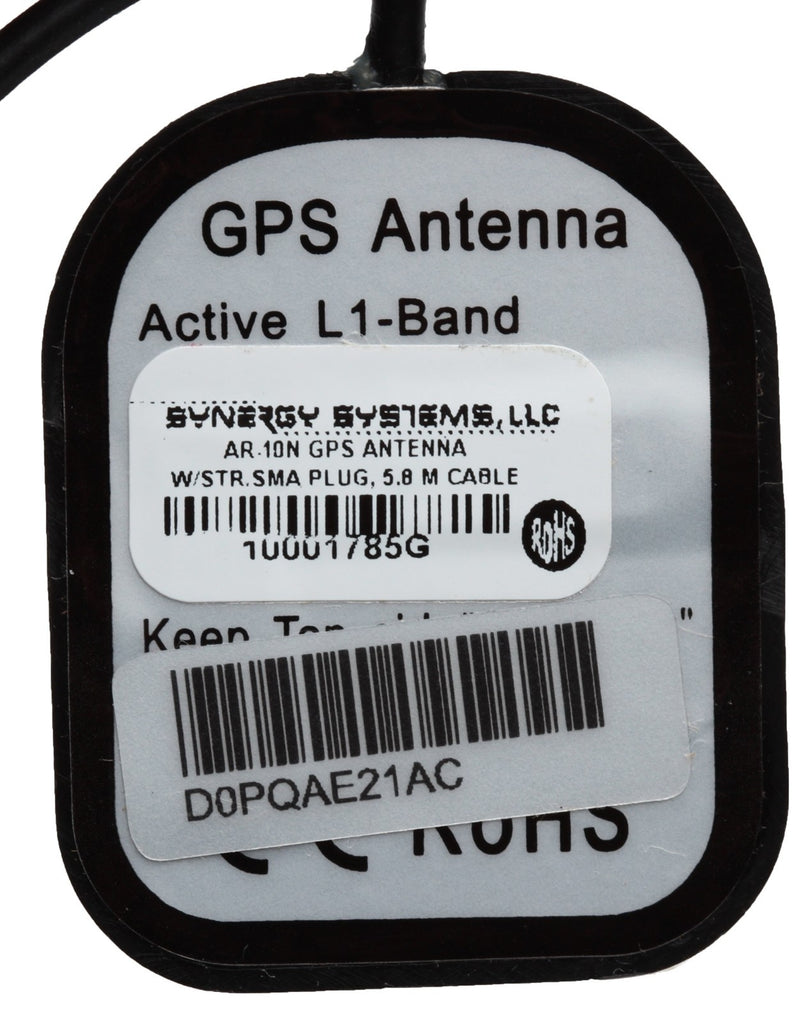

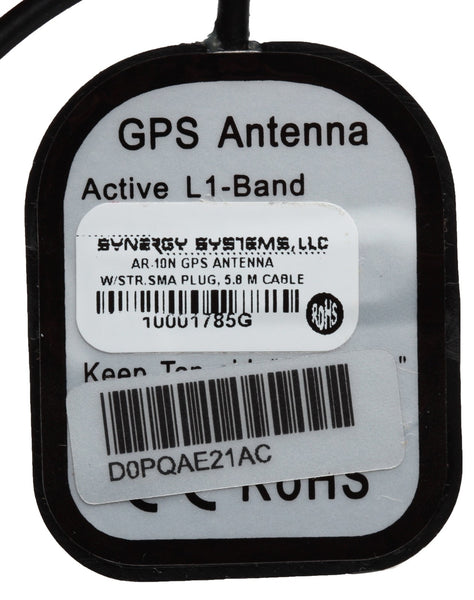

The AR-10N is a premium quality magnetic mount GPS antenna featuring a +28 dB LNA, dual bandpass filters, protection from input RF overload, and double-shielded cable, ensuring outstanding performance in challenging RF environments.

Features

• Magnetic mount
• 2.75 to 12.0Vdc voltage range
• 28dB gain
• Filtering: BPF<10MHz @ -3dB point
• RF protection (10Watts), nano-second spark-gap
• Low profile
• 5.8m cable (19 feet approx)

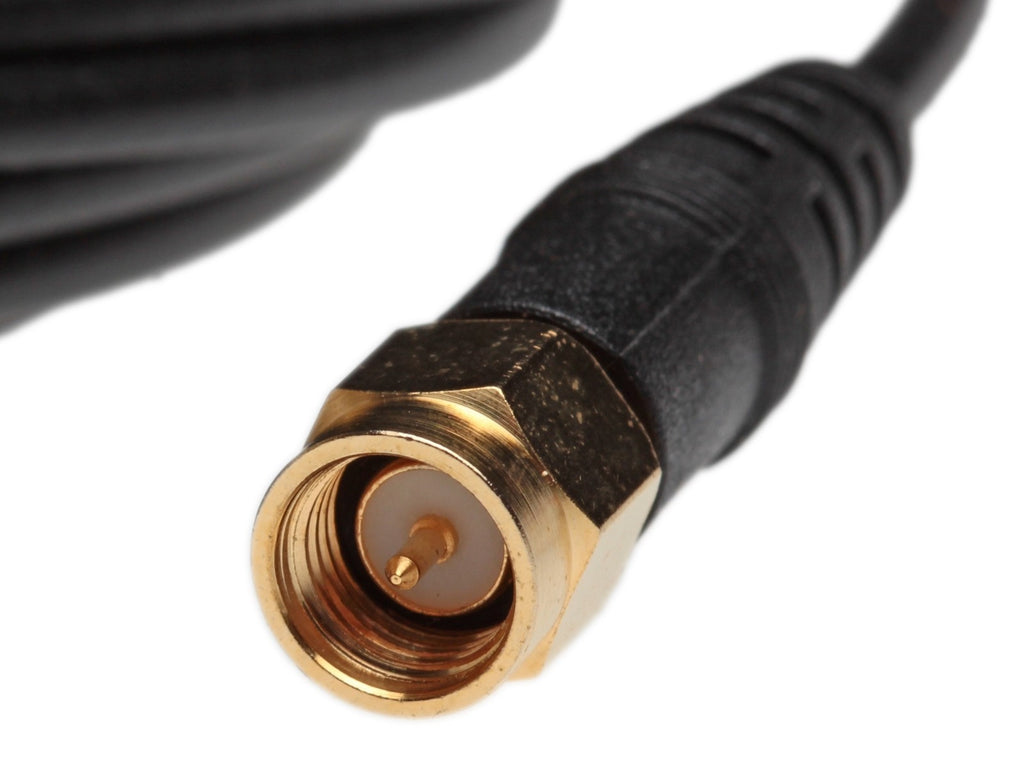

• SMA Male connector
