TrueTime Symmetricom 87-6002-XL1 XLi Timecode Output Option Card IRIG-B AM DCLS [Refurbished]

( 235417241803) )

Regular price $122.00 Sale price $181.00      (5 available in stock)

TrueTime Symmetricom β€’ Part Number 87-6002-XL1 β€’ IRIG Quad Multicode Output Option Card β€’ DCLS and Amplitude Modulated Signal Formats β€’ Suits XLi and XL-DC β€’ Used, Good Condition

https://www.prostudioconnection.net/1705/P5212545b.PNG

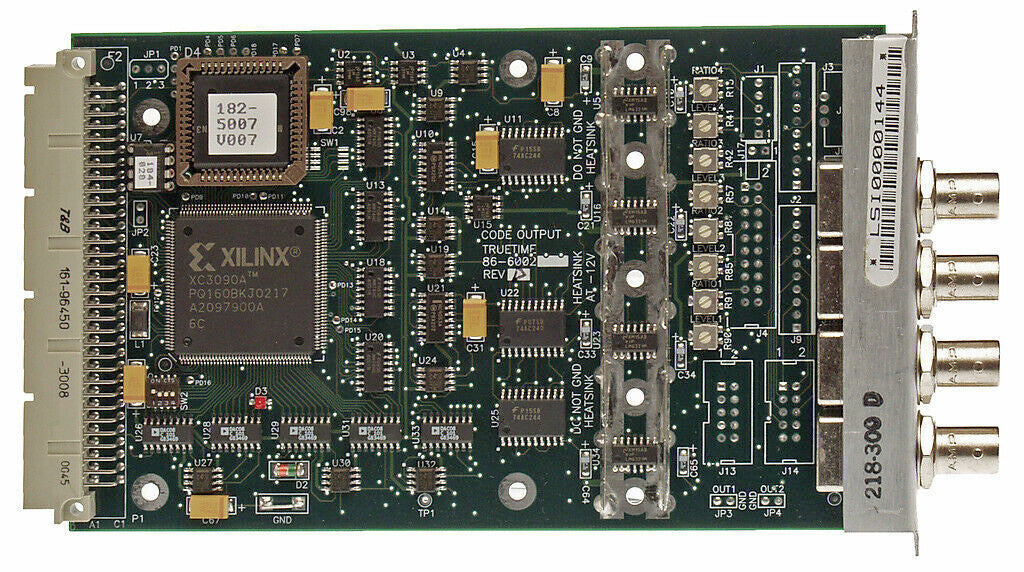

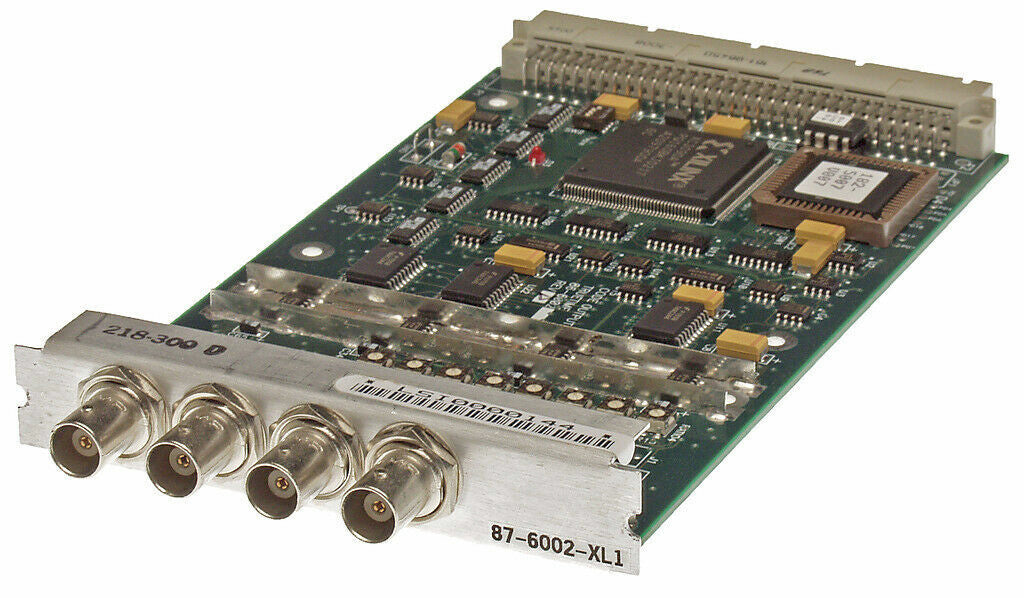

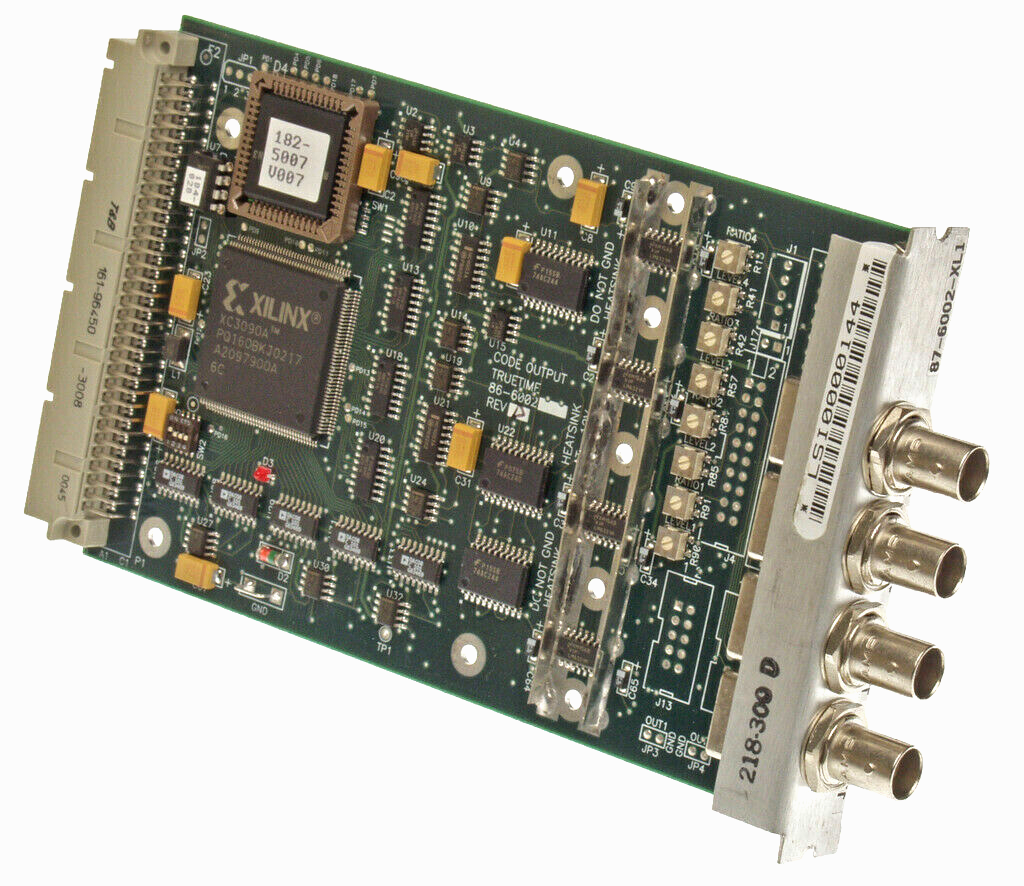

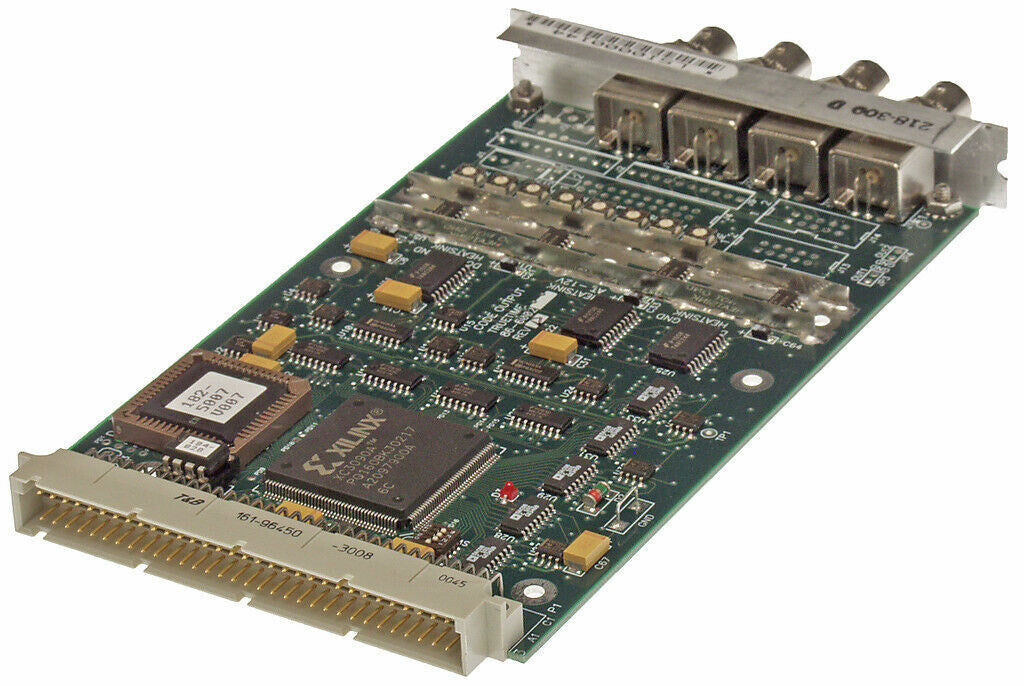

Here's a used quad multi-timecode option card for an XL-DC/XLi GPS disciplined clock/frequency generator. A jumper on the board for each output jack selects between DCLS and amplitude modulated signal types.Β  This was tested in a XL-DC chassis and confirmed to work as it should. This is a multiple item listing so there will me minor, non-performance affecting cosmetic variations between units.

Description

  • Up to four code outputs
  • Codes available: IRIG A, B, E, G, H; XR3/2137 and NASA 36

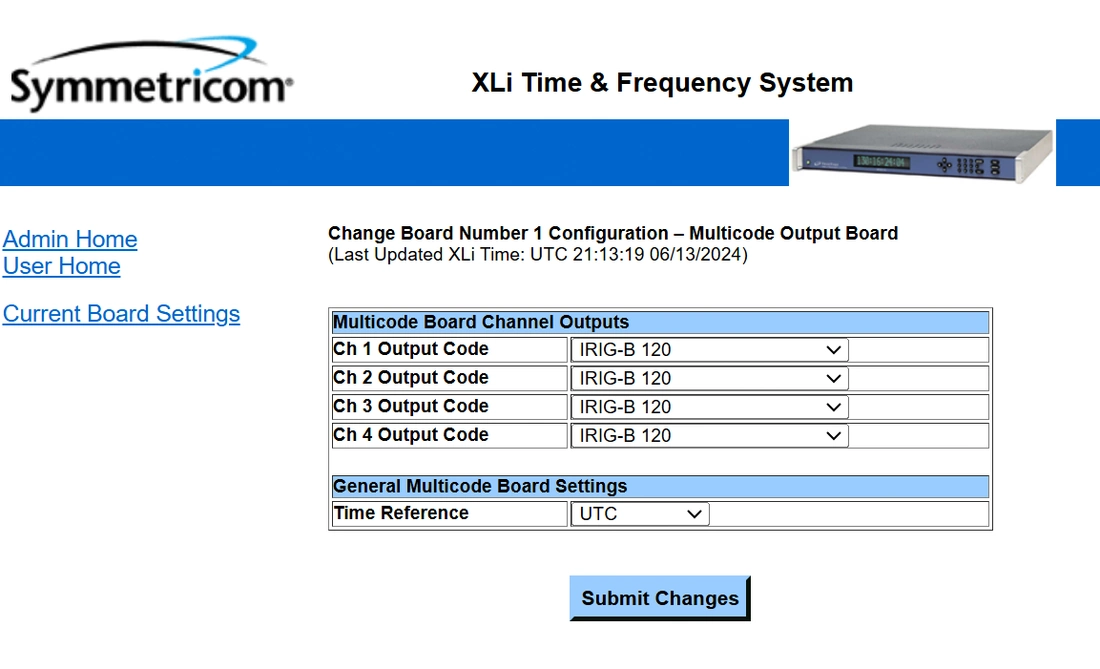

  • Select the various time code formats by using any of the three interfaces available: the front panel keypad and display, the RS-232/422 serial port, or the standard network port that is accessible from anywhere in the world.
  • The available time code format menu contains IRIG A, B, E, G, H; XR3/2137, and NASA 36.

https://www.prostudioconnection.net/1705/P5212544b.PNG

SPECIFICATIONS: MULTICODE OUTPUT 87-6002-XL1

  • Amplitude modulated;
    • Amplitude into 50 Ohms: 0–3 Vpp, adjustable via internally accessible potentiometer
    • Amplitude into 600Ohms: 0–10 Vpp, adjustable via internally accessible potentiometer
  • Modulation ratio: 2:1 to 5:1 adjustable via internally accessible potentiometer
  • Connector: BNC
  • Quantity: 4
  • Output impedance: 25 Ohms
  • Accuracy: Function of input synchronization source (GPS, IRIG, 1PPS, Have Quick)
  • Time codes
    IRIG A 130 IRIG A 133 IRIG B 120 IRIG B 123
    IRIG E 111 IRIG E 112 IRIG E 121 IRIG E 122
    IRIG G 141 IRIG G 142 IRIG H 111 IRIG H 112
    IRIG H 121 IRIG H 122 2137 XR-3
    NASA-36 (All codes in 24 hour format)
  • Time references: Standard, UTC, GPS, or Local

https://www.prostudioconnection.net/1705/P5212546b.PNG

https://www.prostudioconnection.net/1705/P5212547b.PNG
