TrueTime Symmetricom XL-DC GPS Disciplined 10MHz Oscillator IRIG-B Timecode LCD [Used]

Tested/Guaranteed • Good Time, Frequency & IRIG-B Outputs • Date Value Correct • TCXO with 10MHz, 5MHz, 1MHz, & IRIG-B Outputs • 115V or 230V Power • TrueTime XL-DC GPS Clock

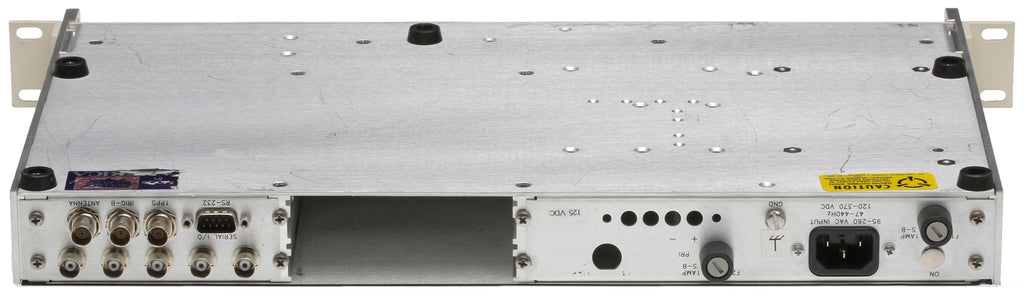

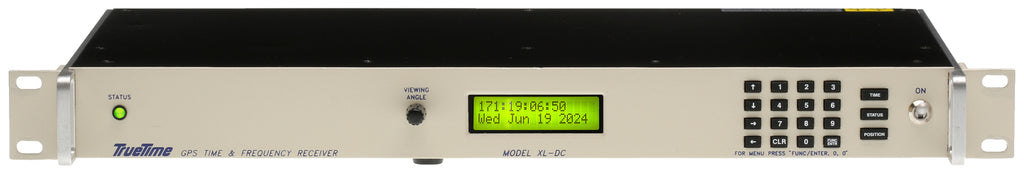

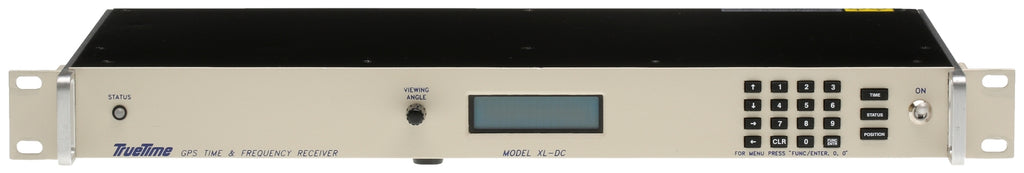

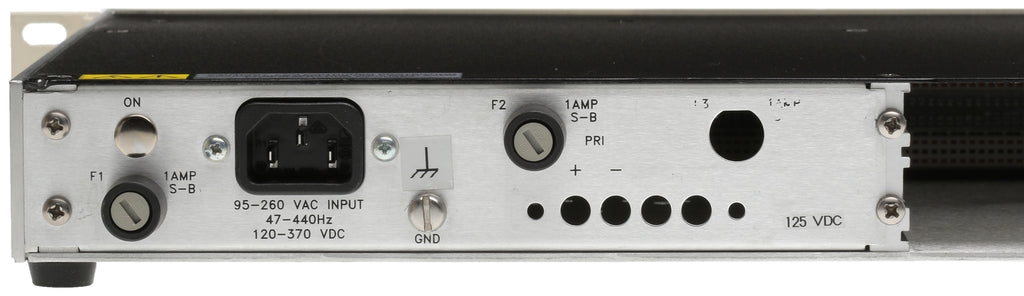

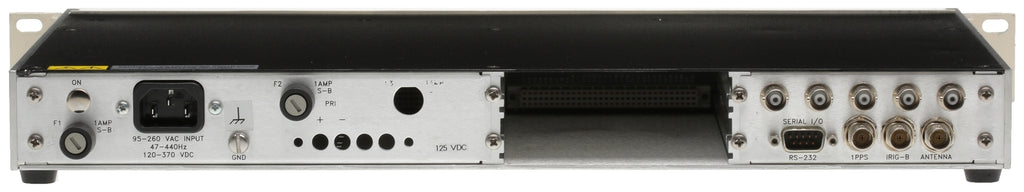

Photos show the actual item for sale

Description

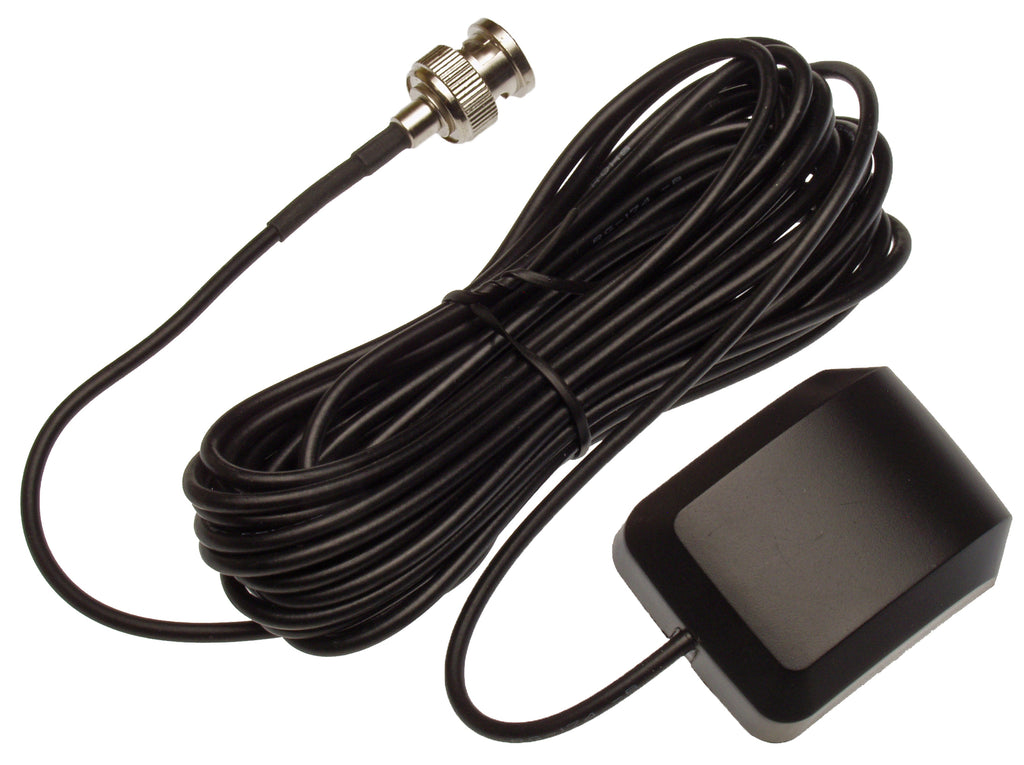

Used, in very good cosmetic condition and fully working, including showing a correct date. The IRIG-B, 10MHz, 5MHz and 1MHz outputs tested as being good. A copy of the log from the serial port taken while testing is provided below.  The photos show the actual item for sale - a few nicks in the paintwork (eg on the rack ears) have been retouched using matching paint so that the unit will look smart in your rack.. A basic antenna is included to allow you to test the item out of the box although you will probably need to take both the receiver and the antenna outdoors to test. The Antenna voltage is 5V so almost any professional conical type antenna will probably work. Note that the antenna needs a clear and complete view of the sky for the unit to function to full specification. Rack ears are included as shown. The internal Lithium memory back up battery has just been replaced so should not need attention for some years. The photos show the actual item for sale. No printed manual is included but a copy may be downloaded from https://www.prostudioconnection.net/1112/xl-dc-manual.pdf if required.

Actual item for sale

Features

• Less Than 40 Nanoseconds rms Accuracy to UTC During Selective Availability (SA)*
• Better Than 1x10-12 Frequency Accuracy
• Versatile and Modular Architecture
• Supports Many Different Output Options
• 1 PPS Output (not confirmed during testing)

• 10MHz, 5MHz and 1MHz Frequency Outputs
• IRIG B Time Code Output

Serial Port Log

>
171:19:08:36
171:19:08:37
171:19:08:38


F01 +00:00
f02
F02 24
f03
F03  UTC  06/19/24 19:09:57
f04
ERROR 05 NO SUCH FUNCTION
f05
F05 ON  00000001000 00000010000 00000100000 00001000000
f06
F06 OFF
f07
ERROR 05 NO SUCH FUNCTION
f13
F13 00.000000200
f14
ERROR 05 NO SUCH FUNCTION
f15
F15 OFF
f16
ERROR 05 NO SUCH FUNCTION
f17
ERROR 05 NO SUCH FUNCTION
f18
 TRUETIME XL     SV6 sys ver 030 GPS-XL V1.047   182-6610V001
f28
ERROR 05 NO SUCH FUNCTION
f31
ERROR 05 NO SUCH FUNCTION
f50
F50 N 28d32'11.0" W 08xdxx'9.8"     7m pdop  5.40
f51
F51        +50ns
f52
F52         +0ns
f53
F53 AUTO: 6 SATS
f55
F55 METERS
f60
F60 prn 22  good  enabled                 sig level=  +0.00
F60 prn 2   good  enabled                 sig level=  +0.00
F60 prn 20  good  enabled tracked current sig level= +11.62
F60 prn 5   good  enabled tracked current sig level= +13.50
F60 prn 1   good  enabled                 sig level=  +0.00
F60 prn 18  good  enabled                 sig level=  +0.00
F60 prn 24  good  enabled                 sig level=  +0.00
F60 prn 26  good  enabled                 sig level=  +0.00
F60 prn 29  good  enabled tracked current sig level= +12.30
F60 prn 17  good  enabled                 sig level=  +0.00
F60 prn 25  good  enabled                 sig level=  +0.00
F60 prn 15  good  enabled tracked current sig level= +11.25
F60 prn 9   good  enabled                 sig level=  +0.00
F60 prn 6   good  enabled                 sig level=  +0.00
F60 prn 11  good  enabled tracked current sig level=  +6.51
F60 prn 12  good  enabled                 sig level=  +0.00
F60 prn 19  good  enabled                 sig level=  +0.00
F60 prn 13  good  enabled tracked current sig level= +13.54
f65
ERROR 02 SYNTAX
f68
F68 2004
f69
F69 UTC
f71
F71 phase= 3.577E-08 s  offset= 1.361E-10  drift=-8.962E-07/DAY  DAC=-14458
f72
F72 Antenna: OK  PLL: OK  GPS: Locked
f73
F73 SLBA6G--- M-------- m--------
