Audioscience ASI5644 Broadcast AES Digital & Balanced Analog Audio Sound Card [Used]

Tested/Guaranteed • Fully Working • AES/EBU Digital Audio • Balanced Analog Audio Professional Broadcast Multichannel Sound Card • Bare Card - No Cables or Connectors Included

A lightly used sound card which has been tested to confirm that it works as it should.  A screenshot of the test results will be included in the package.  This card works under Windows 10/11 64 Bits. No cables are included but I usually have BOB1024 breakout boxes listed separately which can be used to connect to the card.

Description

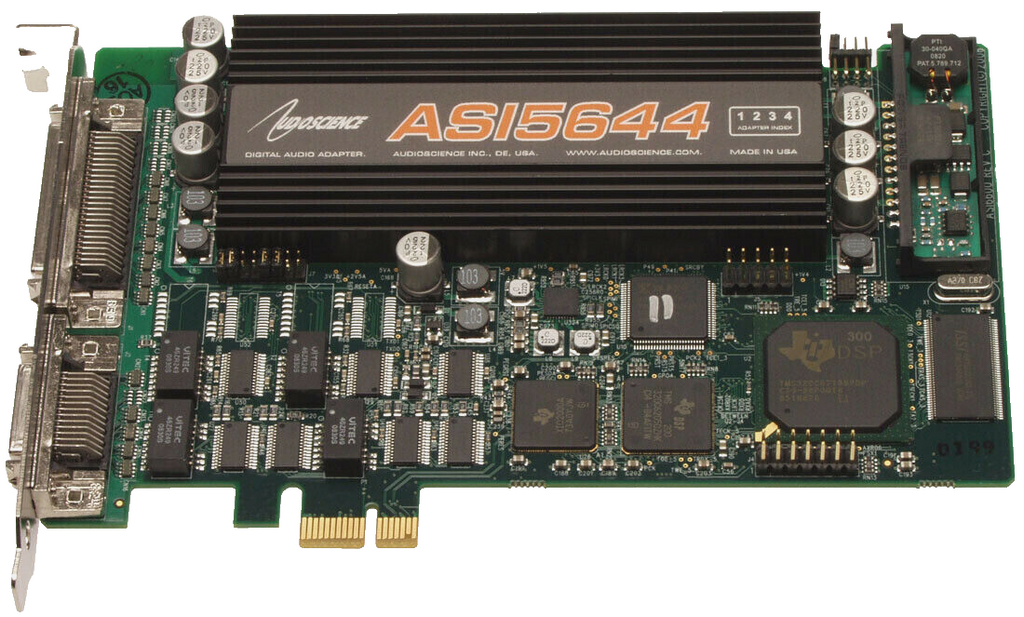

The AudioScience ASI5644 is a professional linear PCI-Express sound card providing four stereo/eight mono inputs and outputs. For full versatility, it offers both analog and digital I/O.

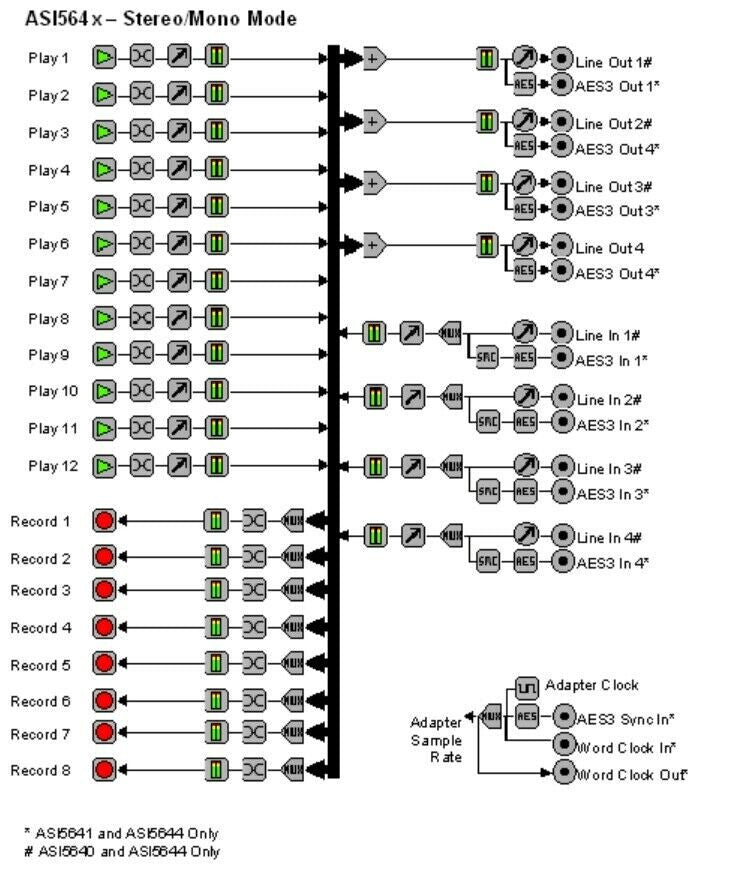

Providing 12 play streams that are mixed to 4 balanced stereo outputs and 8 record streams fed from four balanced stereo inputs, the ASI5644 features AudioScience's unique “anything to anywhere" routing and mixing.

Uncompressed PCM, in a choice of precision is available for both recording and playback. For emerging surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played and mixed.

Features

12 mono/stereo streams of playback into 4 stereo outputs

• 8 mono/stereo streams of record from 4 stereo inputs
• Formats include 8, 16, 24 and 32 bit PCM with sample rates from 32kHz to 96kHz
• SSX mode for multichannel record, playback and mixing
• Balanced stereo Mini50 (SCSI-II type) analog inputs and outputs with levels to +24dBu
• AES/EBU inputs and outputs (EIAJ CP-340 Type I / IEC-958 Professional) with sample rate converters on all inputs; Mini26 (SCSI-II type) connectors
• 24-bit ADC and DAC with 110dB DNR and 0.0015% THD+N
• Dedicated AES/EBU and Word clock Sync input
• Short length PCI card format (6.6 inches/168mm)
• Up to 4 cards in one system
• Breakout cables not included
