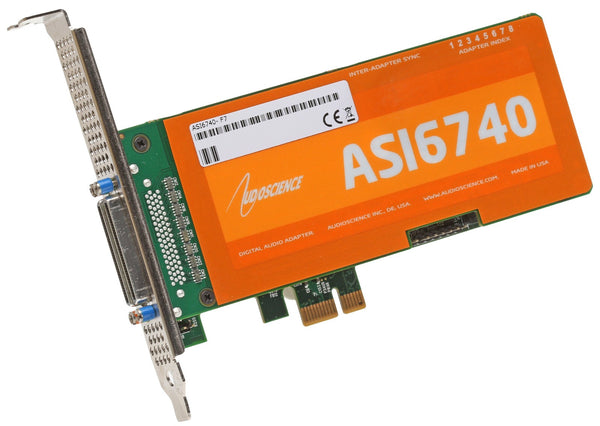

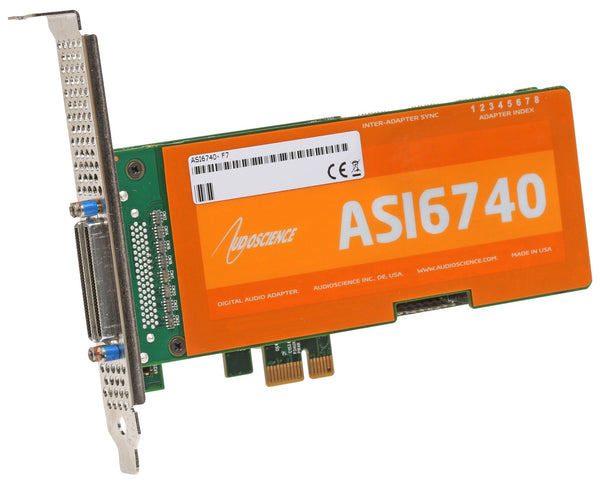

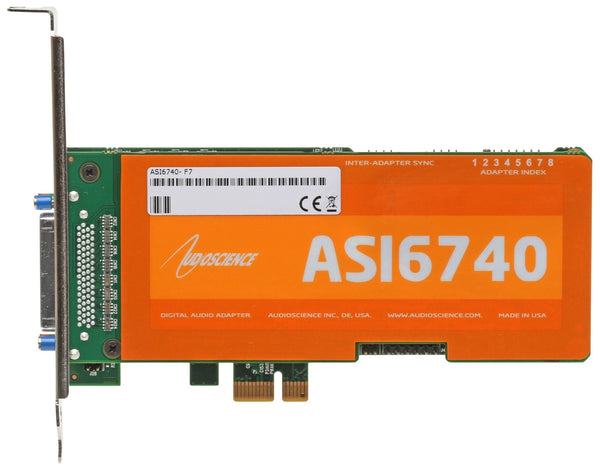

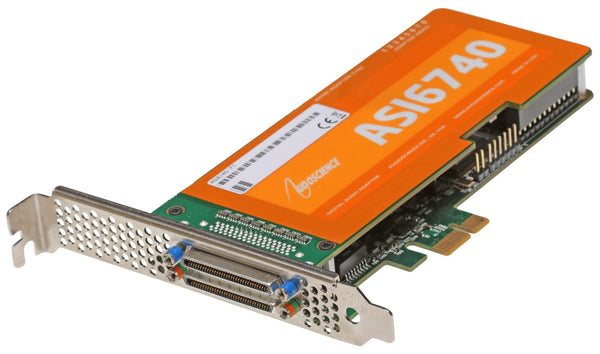

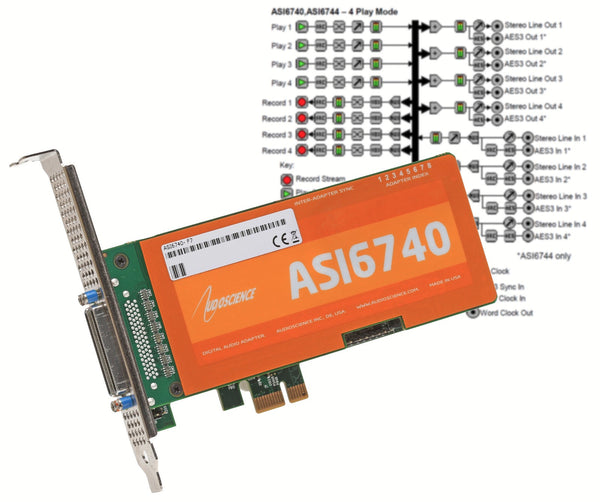

AudioScience ASI6740 Broadcast 4 Channel In/Out Balanced Analog PCIe Sound Card

4 Stereo Outputs and 4 Stereo Inputs • Balanced Analog Connections • 192KHz Capable • PCIe Express Interface • MRX and TRX Capable

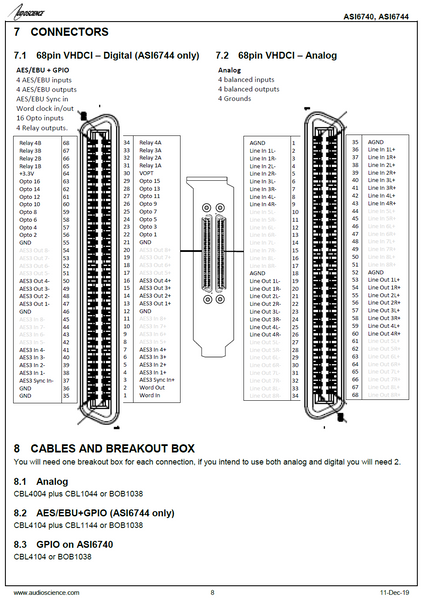

In very good condition. Tested to confirm that it is fully working. Note that no breakout cable or breakout box is included. This listing is for the bare sound card only. See below for the part numbers of the matching cables. This is a PCI Express (PCIe) card. This card requires driver version 4.16.00 or later under Windows 10 or Windows 11. Suits a full height ATX case - no Low Profile bracket is included.

Description

The ASI6740 is a professional PCI-Express sound card designed for use in radio broadcast automation.

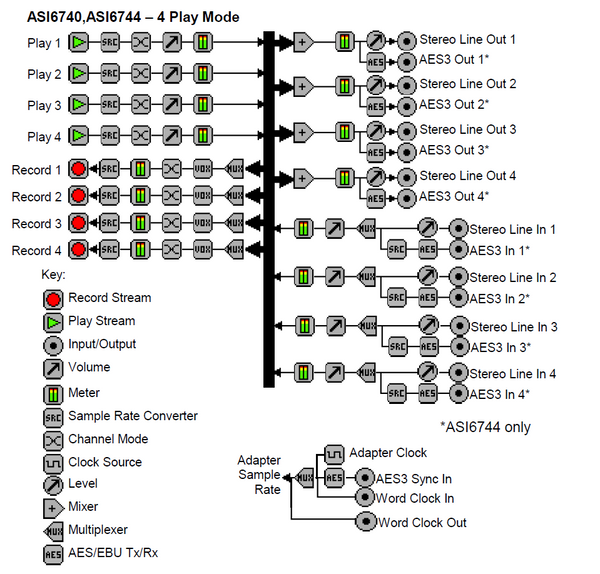

Providing 12 play streams that are mixed to 4 balanced stereo outputs and 8 record streams fed from four balanced stereo inputs, the ASI6740 features AudioScience's unique "anything to anywhere" mixing and routing.

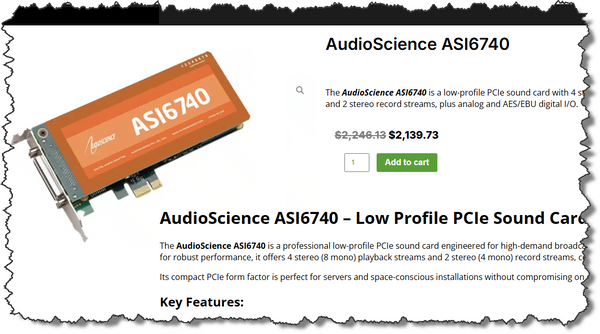

Usually Sells for $2,140

The ASI6740 provides balanced analog inputs and outputs only. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6740 functionality includes MRX multi-rate mixing technology which allows streams of different sample-rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

For surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.


Features

• 4 or 12 stereo/mono streams of playback into 4 stereo outputs
• 4 or 8 stereo/mono streams of record from 4 stereo inputs
• PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz
• MRX technology supports mixing of multiple formats and rates
• TSX time scaling by up to +/-20%
• SSX2 mode for multichannel record, playback and mixing
• Balanced stereo analog I/O with levels to +24dBu
• 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
• AES/EBU I/O with sample rate converters on all inputs (ASI6744 only)
• Low profile short length PCI(e) card format (6.6 inches/168mm)
• Up to 8 cards in one system
• Windows and Linux software drivers available
