Telos HX1 with AES Digital Audio Broadcast Hybrid Console Phone Line Interface

( 365806892246) )

$409.00 (1 available in stock)

Tested/Guaranteed • Lightly Used • Excellent Condition • Fully Working • AES Digital Audio In & Out

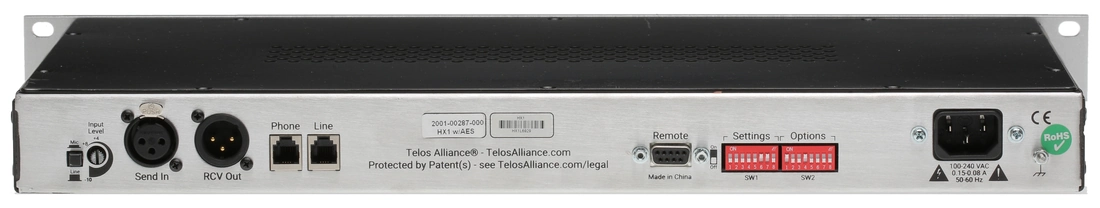

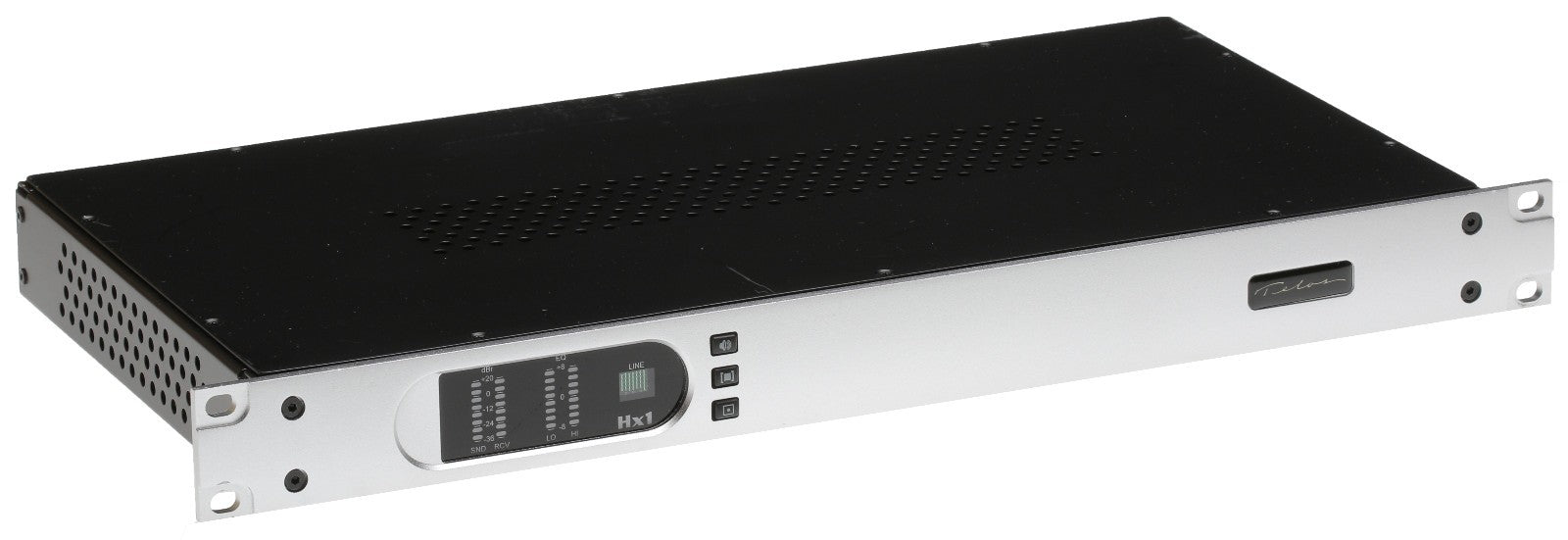

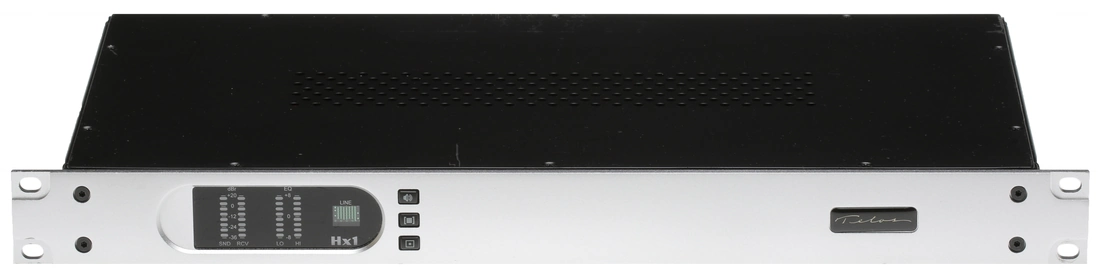

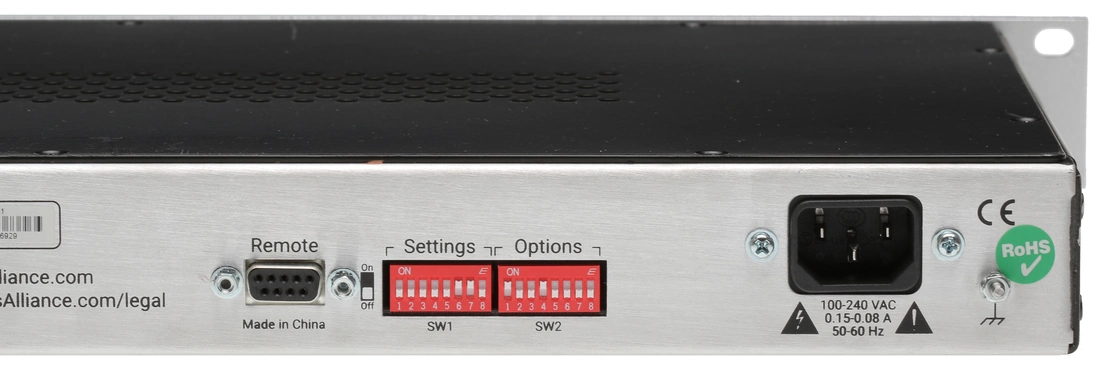

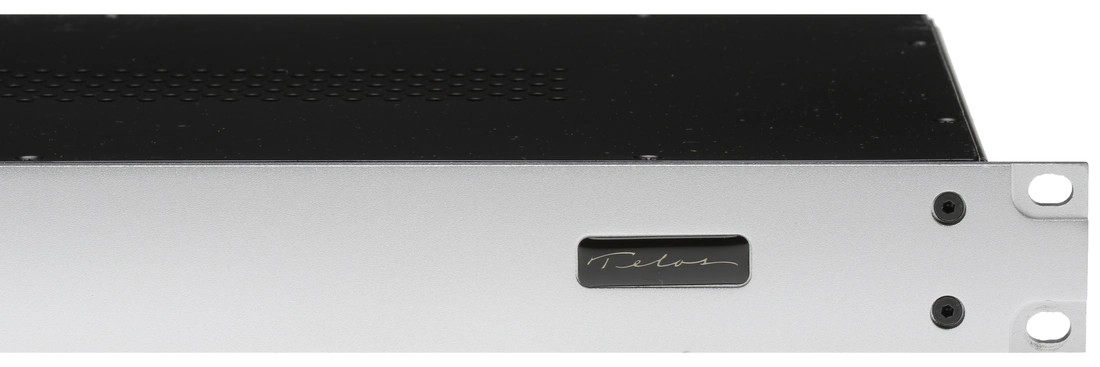

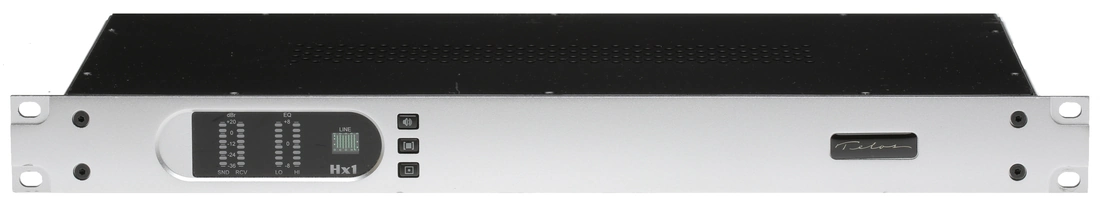

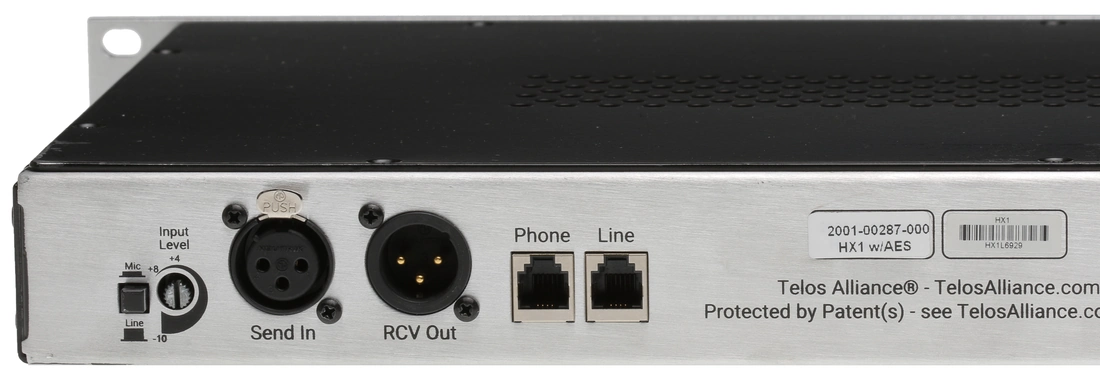

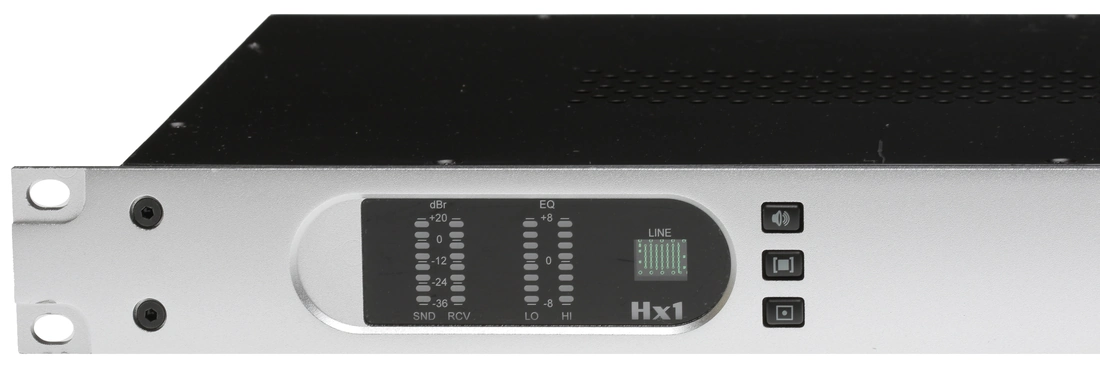

Photos show the actual item for sale

A lightly used unit in excellent cosmetic condition. It has been tested and confirmed to be fully operational. Note that this is the AES version of the HX1. The unit does not have separate AES I/O jacks - so it uses the regular Send In/Out jacks for digital audio streams. So you can't operate as a mixed analog/digital device. For the avoidance of doubt, this unit will not interface to analog equipment.

Full product information may be obtained from the User Manual via the link below.

Description

A cost efficient yet highly professional digital telephone interface that is simple to use and provides more features than ever before. Taking communication to the next level

This is the Telos Hx – the thinking hybrid. All of Telos exceptional processing and an array of new technologies make this POTS hybrid a revolution in consistently superior performance.

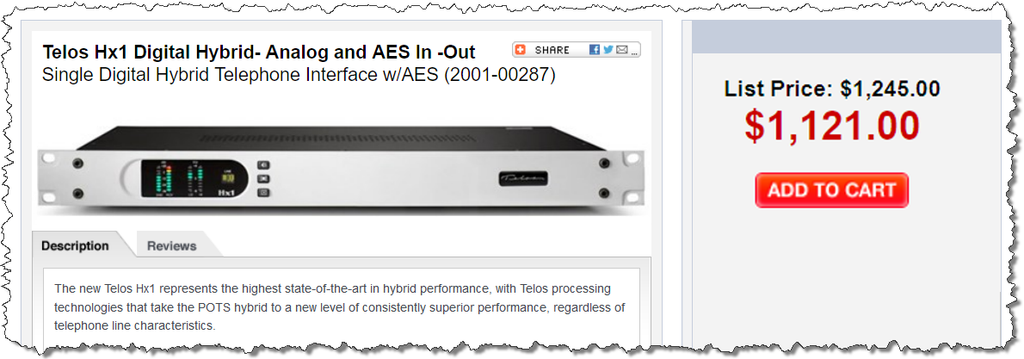

Usually Sells for $1,121

Inside the single-hybrid Hx1, you’ll find our advanced hybrid technology with new features to sweeten and control caller audio better than ever before. Omnia processing intuitively manages levels and eq. Extra DSP power is added so even unruly mobile phone audio is brought to submission. The power supply is now internal. New features like built-in Auto-Answer, caller disconnect detection, ingenious audio-leveling and anti-feedback routines for enhanced open-speaker applications, call screening and line-hold features, and front-panel send and receive audio metering are standard on the Hx.

Telos has reinvented the digital hybrid. It offers more features but costs less. It sounds better and works harder but is easy to configure and simple to install. Make wiggy POTS signals work in your studio for broadcast, podcast or whatever. The Hx1 will make it happen.

Features

The best, most advanced hybrid algorithms.
New symmetrical wide-range AGC and noise gate by Omnia, with adjustable gain settings
Studio adaptation and pitch shifter help prevent feedback in situations where open speakers are required.
Adjustable caller override improves performance and allows you to individualize the degree to which the announcer
ducks the caller audio
DDEQ-Digital dynamic EQ keeps audio spectrally consistent from call to call
New EQ High and EQ Low display meters for each hybrid
Separate Send level and Receive level meters for each hybrid
Status Symbols make life easier for producers and talent with their animated high-contrast icon display of line status
Place caller on-hold via front panel button
Auto-Answer with selectable ring count
Worldwide disconnect signal detection. (loop drop, dial tone, or reorder tone)
Input/output via AES Digital XLR
Input switchable between MIC or LINE levels (Only applicable if the Digital I/O card is removed).

Note that these jacks work with Digital Audio signals only

Specifications

Processing Functions
General	Telos 3rd-generation Adaptive Digital Hybrids
Telos Exclusive Feedback Reduction Functions, including Acoustic Echo Cancellation
Send (to caller) Processing	Sample Rate Conversion
High-pass Filter
Frequency Shifter
AGC/Limiter
Receive (from caller) Processing	High-pass 'Hum' Filter
Smart AGC / Platform Leveler
Noise Gate
Caller Ducking
Telos' DDEQ (Digital Dynamic Equalization) 3-band Adaptive Spectral Processor
Sample Rate Conversion
Analog Inputs (NOT ACTIVE)
Send Analog Inputs	One
Connector	XLR Female, Pin 2 High (Active Balanced with RF Protection)
Input Range	Select between MIC and LINE levels
Input Level	Adjustable from -10 to +4 dBu (nominal)
Impedance	Bridging, > 50K Ohms
Analog Clip Point	+21 dBu
Analog-to-Digital Converter Resolution	20 bits
Analog Outputs (NOT ACTIVE)
Receive Analog Outputs	One
Connector	XLR Male, Pin 3 High
Output Level	Nominal at +4 dBu
Impedance	<50 ohms
Digital-to-Analog Converter Resolution	24 bits
Headroom Before Clipping	20 dB headroom from 4dBU nominal levels
AES Digital Input / Output (INSTALLED)
Overview	Plug-in module [not included] converts the XLR inputs and outputs to AES3.
Rate Conversion Sample Rate Converters on all inputs and outputs. Inputs can accept 32, 44.1, and 48kHz
Input Level	Nominal at -20 dBFs
Output Level	Nominal at -20 dBFs
Audio Performance
Frequency Response	200 to 3400 Hz, +/- 1 dB
THD+N/Input	< 0.5%25 THD+N using 1 KHz sinewave
Signal to Noise	>90 dB
Control Ports
General purpose Input/Output	Single 9 pin D-Sub connector with 2 status outputs (Ringing and ON-AI
Analog Telephone Line Connectivity
Universal POTS interface for worldwide application.
Programmable loop current.
Auto-Answer with selectable ring count.
Worldwide disconnect signal detection (loop drop, dial tone, or reorder tone)
